Can you do an LS1 brake swap on a 9-bolt rear?
#1
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Dec 2000
Location: Buffalo, NY
Posts: 2,361
Likes: 0
Received 2 Likes
on
1 Post
Car: 1984 Trans Am
Engine: LT1
Transmission: T56
Axle/Gears: 10 bolt w/ 4.10 gears
Can you do an LS1 brake swap on a 9-bolt rear?
I've done a lot of searching, but haven't found a direct answer on this. I realize that the ls1 rear disk setup is easy to bolt onto a 10-bolt rear, but what does it take to install it on a 9-bolt rear axle?
Does one of Ebmiller's or anyone else's adapter plates work for it, or is the backing plate too integrated into the LS1 rear brake design to easily swap it for an aftermarket piece?
What if the LS1 setup were rotated slightly and new holes were drilled to match the 9-bolt axle flange pattern?
Any knowledgable answers would be very appreciated!
Does one of Ebmiller's or anyone else's adapter plates work for it, or is the backing plate too integrated into the LS1 rear brake design to easily swap it for an aftermarket piece?
What if the LS1 setup were rotated slightly and new holes were drilled to match the 9-bolt axle flange pattern?
Any knowledgable answers would be very appreciated!
#2
Moderator
iTrader: (5)
Re: Can you do an LS1 brake swap on a 9-bolt rear?
EDIT: To show the pattern, note that the 10-bolt backing plate is on the bottom, the 9-bolt on top:
https://www.thirdgen.org/forums/atta...89-bplate1.jpg
JamesC
Last edited by JamesC; 08-16-2011 at 09:02 PM.
#3
Supreme Member
iTrader: (11)
Join Date: Sep 1999
Location: NJ
Posts: 4,345
Received 298 Likes
on
234 Posts
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt
Re: Can you do an LS1 brake swap on a 9-bolt rear?
If you swap the backing plates side to side you have blank surfaces to work with for the re-drilling and you dont have to worry about anything cracking or breaking. I had bought a set of 10 bolt Baer backing plates from a member here years ago. I overlayed the 9 bolt backing plate on the opposite 10 bolt backing plate and there were no hole overlaps.
#4
Junior Member
Re: Can you do an LS1 brake swap on a 9-bolt rear?
I would say it can be done but it's not the easiest way to go. I'm thinking about installing a set of LS1's on my 92 that has a set of iron Delco-moraine brakes off of an 88 9 bolt. On that build we slotted the old backing plates to make them work on the 10 bolt drum rear end . If I use the old rear end I will have to slot the LS1 backing plates to get them to work. A easier way would to use the PBR style brakes for your 9 bolt.
Last edited by profootbrake2; 09-06-2011 at 02:40 AM. Reason: add pic's
#5
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,047
Received 1,670 Likes
on
1,268 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Can you do an LS1 brake swap on a 9-bolt rear?
I seem to recall hearing of people swapping the backing plates to the other side, which allows a complete new pattern to be drilled.
I wouldn't slot them: the act of using the brakes tries to spin the plate around the axle. (duh) They're not just a "bracket" for holding the caliper, they are a LIVE part of the application of braking force. Not something that seems like a good idea to half-a$$.
I wouldn't slot them: the act of using the brakes tries to spin the plate around the axle. (duh) They're not just a "bracket" for holding the caliper, they are a LIVE part of the application of braking force. Not something that seems like a good idea to half-a$$.
#6
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,695
Received 747 Likes
on
506 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Can you do an LS1 brake swap on a 9-bolt rear?
I have slotted many backing plates. The plate to housing uses bolt torque to keep the plates from moving.
As long as you have one non slotted hole your more than fine.
The factory bolts are not pressed in the housing or interference fit on the backing plate sooo they do move until the bolts are tightened properly.
Slot away and use a grade 8 washer over the slotted holes.
As long as you have one non slotted hole your more than fine.
The factory bolts are not pressed in the housing or interference fit on the backing plate sooo they do move until the bolts are tightened properly.
Slot away and use a grade 8 washer over the slotted holes.
#7
Supreme Member
iTrader: (11)
Join Date: Sep 1999
Location: NJ
Posts: 4,345
Received 298 Likes
on
234 Posts
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt
Re: Can you do an LS1 brake swap on a 9-bolt rear?
None of this is correct, The backing plates are held by the shear force (May not be correct in that term) to prevent the plate from spinning, stretch has nothing to do with holding the plate from spinning.
Slotting is not safe or a good idea when there is a good safe alternative by changing the plates side-to-side
Slotting is not safe or a good idea when there is a good safe alternative by changing the plates side-to-side
Trending Topics
#8
Junior Member
Re: Can you do an LS1 brake swap on a 9-bolt rear?
The LS1 backing plates can not be moved side to side they are marked left and right. If you tried to move them side to side the parking brake wouldn't work.
#9
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,695
Received 747 Likes
on
506 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Can you do an LS1 brake swap on a 9-bolt rear?
None of this is correct, The backing plates are held by the shear force (May not be correct in that term) to prevent the plate from spinning, stretch has nothing to do with holding the plate from spinning.
Slotting is not safe or a good idea when there is a good safe alternative by changing the plates side-to-side
Slotting is not safe or a good idea when there is a good safe alternative by changing the plates side-to-side
Some how I don't.. strange
Would I rather have the correct backing plate? Yes.
Sloting works and is safe if done properly.
#10
Junior Member
Join Date: Mar 2009
Posts: 6
Likes: 0
Received 1 Like
on
1 Post
Car: 1983 Firebird S/E
Engine: 305
Transmission: T5
Axle/Gears: 9 Bolt Posi+Disk 3.70
Re: Can you do an LS1 brake swap on a 9-bolt rear?
I just finished this swap myself. I kept the plates on their labeled sides. I had to grind the axle flange on 3 corners to make them round and clear the backing plate. I then clamped on the backing plate, aligning so the caliper would be in correct position. Then drilled through the flange using the backing plate as a guide. I then removed the backing plates and ground the 3 ribs on the outer face down so the plate that retains the axle, bearings, and seal will sit flush. Then I removed the bearings, seals and plates from the axle. I then clamped the retaining plate to the back plate, making sure it was centered properly, and drilled holes to match. This left me with one good hole, and 3 slotted holes. To get rid of the slots I clamped the back plates on and inserted brass rods through the holes. I used a mig welder to fill in the slots around the brass, because the brass won't weld I then was able to tap the brass rods out, leaving clean holes behind. I had to grind a little bit on the back of the flanges to make them smooth after welding.
Spacers then had to be made to make up for the increased thickness of the backing plates. I beleive the gap was about .300. I had some large shims left over from doing a gear install that I carefully ground to fit inside and maintain the pressure on the seal to keep everything retained. After that I just put the retaining plates on the axles, then the spacers, seals, and bearings. After placing the backing plates on the end of the axle tube I inserted the axles all the way and bolted them in. Bolted the calipers on and hooked up the lines. Took maybe 6 hours of my time to do both sides. Would have been faster if I had known what to do and my crappy harbor freight angle grinder works for about 15 seconds before it overheats.
Spacers then had to be made to make up for the increased thickness of the backing plates. I beleive the gap was about .300. I had some large shims left over from doing a gear install that I carefully ground to fit inside and maintain the pressure on the seal to keep everything retained. After that I just put the retaining plates on the axles, then the spacers, seals, and bearings. After placing the backing plates on the end of the axle tube I inserted the axles all the way and bolted them in. Bolted the calipers on and hooked up the lines. Took maybe 6 hours of my time to do both sides. Would have been faster if I had known what to do and my crappy harbor freight angle grinder works for about 15 seconds before it overheats.
The following users liked this post:
wht96 (02-22-2020)
#11
Member
iTrader: (-1)
Join Date: Jun 2013
Location: Newmanstown, PA
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: '87 Flame Red/Carmine Red GTA
Engine: 350
Transmission: 700r4
Re: Can you do an LS1 brake swap on a 9-bolt rear?
On every topic about this I see talks of shimming, but nothing is mentioned what is being shimmed. Is the rotor being shimmed out, like a wheel spacer, or is the caliper being spaced?
#12
Moderator
iTrader: (5)
Re: Can you do an LS1 brake swap on a 9-bolt rear?
https://www.thirdgen.org/forums/faq-...iscs-89-a.html
JamesC
#13
Member
iTrader: (-1)
Join Date: Jun 2013
Location: Newmanstown, PA
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: '87 Flame Red/Carmine Red GTA
Engine: 350
Transmission: 700r4
Re: Can you do an LS1 brake swap on a 9-bolt rear?
That thread isn't about LS1 brakes. The shims appear to go between the backing plate and the flange.
I don't see how one could come up with 0.3" of material to safely move out the backing plate. Unless the ".300" mentioned here isn't 3 tenths of an inch, but 3 tenths of a millimeter...
I don't see how one could come up with 0.3" of material to safely move out the backing plate. Unless the ".300" mentioned here isn't 3 tenths of an inch, but 3 tenths of a millimeter...
#14
Supreme Member
Re: Can you do an LS1 brake swap on a 9-bolt rear?
#15
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,047
Received 1,670 Likes
on
1,268 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Can you do an LS1 brake swap on a 9-bolt rear?
"Road racing", a relatively short-term, controlled application, is NOT THE SAME as putting brakes on the street.
In "road racing", people sign away their life insurance, the "road" is closed to all but the "participants", and those assume all inherent risk in what might happen from stressing a car to the absolute max, for some defined, rules-limited, finite period of time, that ALL the other people around them are ALSO willing to sign away on. Their OWN car, and the cars they're "racing" against. Think NASCAR going around Martinsville... yeah, it's HELL on brakes, but they only have to last 1000 times of pushing that pedal. If you build in a safety factor, let's say you build your brakes to go 1100 times... the guy that sets his up to go 1075 times KICKS YER A$$; unless of course, the total # of qualifying and practice and overtime laps, leads to 1080 brake applications, in which case, their driver hits the wall. Is THAT the world you want to live in, DAILY? All the time? Going to the store to pick up a 6-pack or a steak or some diapers or laundry detergent? REALLY??
The street is not like that. You put yer wife, husband, whatever ya got; yer sons & daughters in yer own car; EVERY OTHER PERSON on the roads around you; at risk. For potentially HUNDREDS OF THOUSANDS of applications of those brakes. MILLIONS maybe. It's kinda like rocker arms... I can't tell you how many people have come to me with their street cars and wanted the aluminum rockers that "all the fast cars" are running at the track, while they drive theirs to school / work / GF house / grocery store EVERY DAY, and wonder why they shouldn't use the same stuff. Well... let's say you're running a drag car, and it runs 7000 RPM down the track, start to finish, and it takes 10 seconds. DAMN fast car... seems like every part in it must be "heavy duty", no? OK, HOW MANY TIMES does that rocker operate during a run? 7000 RPM for 10 seconds = 7000 / 60 *10 revolutions, which is around 1170 rotations of the crank, which in turn is, not quite 600 operations of the rockers. 600. In the whole run. Let that sink in. Let's say you do a burnout beforehand, and it goes to 5000 RPM for 5 seconds... OK, another 220 or so... plus idling around the pits and shutdown lane and the reverse demonstration check... How many times do YOUR rockers operate on the way to the grocery store? Taking your daughter or your son to school? Commuting 20 miles to work? … Now put that same kind of calculation to work on your brakes. Are you ready to sign away your right to collect on your life insurance, OR THEIR LIFE, because you want to half-a$$ a bolt pattern? THAT'S what's wrong with comparing "racing" conditions to "real life".
Brakes are the ultimate "stay alive" part. I'm not real fond of my life, to the degree some people are; I have many disappointments, much sorrow, lots of compulsion to just give it up; but I'm not there yet. I want to stay alive. More than that by far is, I want to keep the OTHER people who are important to me alive, when they're in my car.
Don't [alternate minority ethnicity] rig [/alternate minority ethnicity] your brakes. Do it RIGHT. There are LOTS of ways for that; the simplest involve, taking some DOT approved STOCK brakes off of some car that has better brakes than yours, and PROPERLY putting them on yours. But in the long run, the method of putting them on your car, is EVERY BIT AS important as, which kind of brakes they are... if not more so.
Slotting the backing plate holes and relying on bolt torque doesn't pass that test. For "road racing", maybe; but would I do that to my children? In the car I drive them to grade school in every morning? NO EFFFFFFING WAY.
In "road racing", people sign away their life insurance, the "road" is closed to all but the "participants", and those assume all inherent risk in what might happen from stressing a car to the absolute max, for some defined, rules-limited, finite period of time, that ALL the other people around them are ALSO willing to sign away on. Their OWN car, and the cars they're "racing" against. Think NASCAR going around Martinsville... yeah, it's HELL on brakes, but they only have to last 1000 times of pushing that pedal. If you build in a safety factor, let's say you build your brakes to go 1100 times... the guy that sets his up to go 1075 times KICKS YER A$$; unless of course, the total # of qualifying and practice and overtime laps, leads to 1080 brake applications, in which case, their driver hits the wall. Is THAT the world you want to live in, DAILY? All the time? Going to the store to pick up a 6-pack or a steak or some diapers or laundry detergent? REALLY??
The street is not like that. You put yer wife, husband, whatever ya got; yer sons & daughters in yer own car; EVERY OTHER PERSON on the roads around you; at risk. For potentially HUNDREDS OF THOUSANDS of applications of those brakes. MILLIONS maybe. It's kinda like rocker arms... I can't tell you how many people have come to me with their street cars and wanted the aluminum rockers that "all the fast cars" are running at the track, while they drive theirs to school / work / GF house / grocery store EVERY DAY, and wonder why they shouldn't use the same stuff. Well... let's say you're running a drag car, and it runs 7000 RPM down the track, start to finish, and it takes 10 seconds. DAMN fast car... seems like every part in it must be "heavy duty", no? OK, HOW MANY TIMES does that rocker operate during a run? 7000 RPM for 10 seconds = 7000 / 60 *10 revolutions, which is around 1170 rotations of the crank, which in turn is, not quite 600 operations of the rockers. 600. In the whole run. Let that sink in. Let's say you do a burnout beforehand, and it goes to 5000 RPM for 5 seconds... OK, another 220 or so... plus idling around the pits and shutdown lane and the reverse demonstration check... How many times do YOUR rockers operate on the way to the grocery store? Taking your daughter or your son to school? Commuting 20 miles to work? … Now put that same kind of calculation to work on your brakes. Are you ready to sign away your right to collect on your life insurance, OR THEIR LIFE, because you want to half-a$$ a bolt pattern? THAT'S what's wrong with comparing "racing" conditions to "real life".
Brakes are the ultimate "stay alive" part. I'm not real fond of my life, to the degree some people are; I have many disappointments, much sorrow, lots of compulsion to just give it up; but I'm not there yet. I want to stay alive. More than that by far is, I want to keep the OTHER people who are important to me alive, when they're in my car.
Don't [alternate minority ethnicity] rig [/alternate minority ethnicity] your brakes. Do it RIGHT. There are LOTS of ways for that; the simplest involve, taking some DOT approved STOCK brakes off of some car that has better brakes than yours, and PROPERLY putting them on yours. But in the long run, the method of putting them on your car, is EVERY BIT AS important as, which kind of brakes they are... if not more so.
Slotting the backing plate holes and relying on bolt torque doesn't pass that test. For "road racing", maybe; but would I do that to my children? In the car I drive them to grade school in every morning? NO EFFFFFFING WAY.
Last edited by sofakingdom; 01-24-2019 at 06:47 AM.
#16
Supreme Member
iTrader: (3)
Join Date: Jan 2004
Location: Las Vegas
Posts: 2,663
Likes: 0
Received 239 Likes
on
179 Posts
Car: 1987 Formula (original owner)
Engine: 305 TPI
Transmission: T5
Axle/Gears: 9-bolt/3.45
Re: Can you do an LS1 brake swap on a 9-bolt rear?
Good timing for this 8-year old thread to have been revived a couple of weeks ago, and again nearly a year after that, because a new C6 Rear Brake Conversion has been designed by Scott at Big Brake Upgrade, specifically for 9-bolts. It's versatile and adaptable to multiple sizes, making it a better option than the 4thgen LS1 upgrade(which doesn't fit 9-bolts anyway). Check it out at the link below:
https://www.thirdgen.org/forums/brak...brakes-c6.html
https://www.thirdgen.org/forums/brak...brakes-c6.html
Last edited by LAFireboyd; 02-25-2020 at 04:41 PM.
#18
Supreme Member
Join Date: Jun 2002
Location: North East GA
Posts: 2,221
Likes: 0
Received 44 Likes
on
40 Posts
Car: 1989 Firebird
Engine: 5.7 LS1
Transmission: T56
Re: Can you do an LS1 brake swap on a 9-bolt rear?
https://www.thirdgen.org/forums/brak...e-upgrade.html -- may be a better option than the ls rear brakes on the 9 bolt.
http://bigbrakeupgrade.com/2019/02/1...sion-brackets/
http://bigbrakeupgrade.com/2019/02/1...sion-brackets/
#19
#20
Member
Join Date: Aug 2010
Posts: 101
Likes: 0
Received 3 Likes
on
3 Posts
Car: 85 T/A
Engine: 305 TPI
Transmission: 700R4
Axle/Gears: BW Limited Slip 3.27 w/disc brakes
Re: Can you do an LS1 brake swap on a 9-bolt rear?
I recently completed the LS1 brake upgrade on my 85 9 bolt. Mine was originally a rear disc but even with the recall kit installed the calipers never really worked that well.
I looked at a variety of retainer spacer options walking around the various departments of Lowes with my caliper measuring anything that might work. The solution I used is a little different but turned out to be very effective.
This is what I started with, 2” conduit lock nut. I picked up a bag of 10 for about $6 from Lowes.
The diameter is a little over 2.5” from tab to tab. The inner diameter of the ring matches the bearing retainer seal and is raised slightly, ideal for keeping pressure on the seal. Each ring is ~.15” thick, so two of them stacked takes up the additional space inside the backing plate.

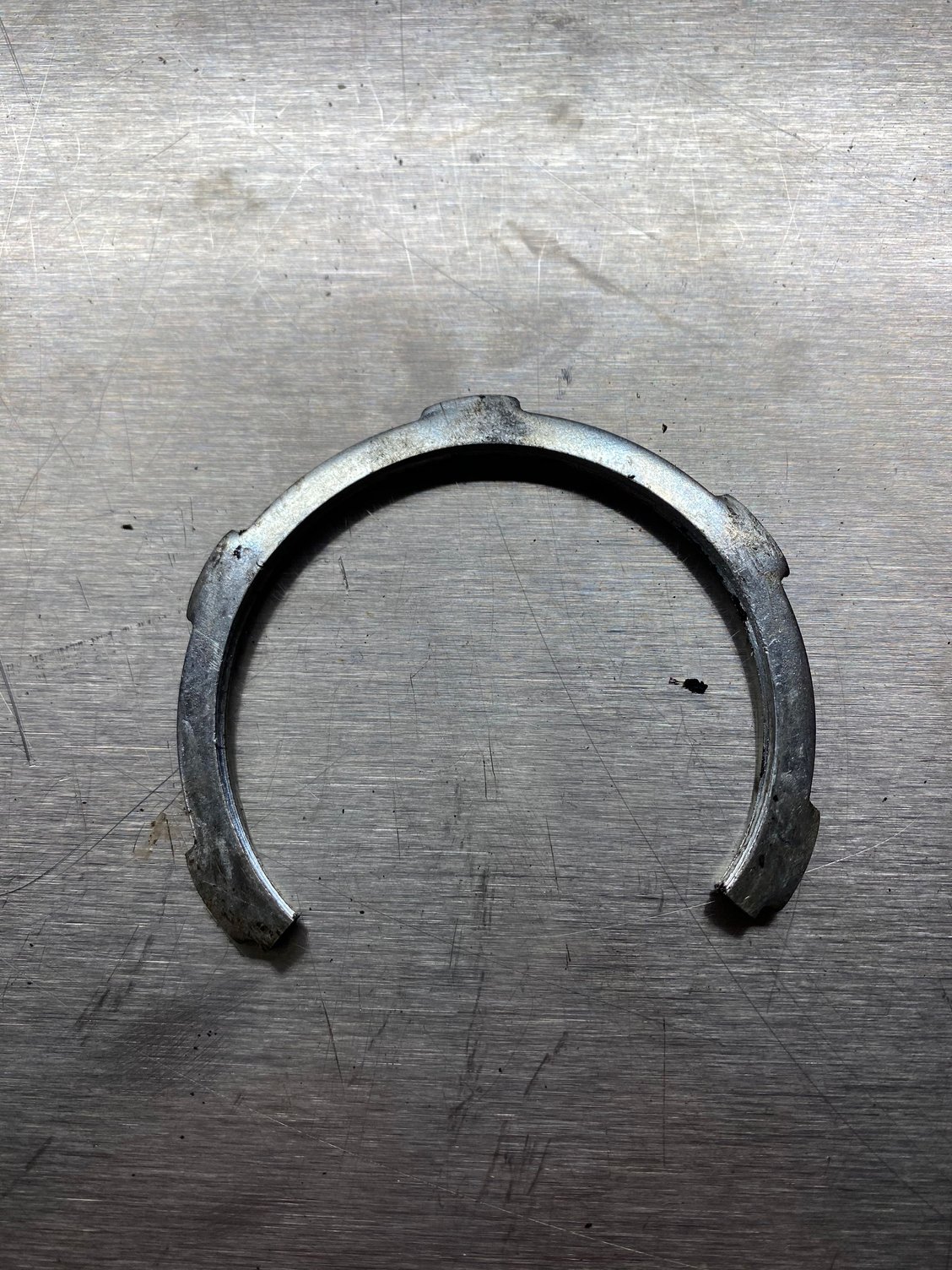

I used my bench grinder and took 1 to 2 millimeters off of each tab grinding a little at a time and test fitting them inside the center of the backing plate. The rings should just fit within the center of the backing plate. The next step is to cut a section out of the ring so it can be fitted over the axle. It’s important that this is done after all the tabs have been ground and fitted to the backing plate.
The ring is inserted over the axle with the raised face toward the axle seal. The tabs keep the ring centered inside the backing plate even with a section cut out. I would suggest using a thin layer of silicone or other adhesive between the rings. I didn’t think about it until I was in the middle of installing them. The first ring installed fairly easily but the second is more difficult trying to keep it in position. I found getting the bottom two bolts and nuts on the retaining plate helped hold the second ring in position while I adjusted it to center.
I should also mention that a third ring is useful to help seat the seal in the axle. To do this you just snug the bolts down with the third ring in place. I tightened the bolts just to where the retaining plate started to bend. Then just loosen everything up, carefully pull the backing plate away from the axle tube without pulling the seal back out and verify the seal is seated. There should be about 1/8” of the seal visible past the end of the axle tube. Next reposition the backing plate on the axle tube and remove the third ring. Reposition the two rings inside the backing plate and bolt everything back up. I replaced the original disc backing plate bolts with 1.5” grade 8 bolts and nuts sine the originals are too short to reuse with the LS1 backing plate. There seems to be quite a lot of debate regarding elongating the backing plate holes or the axle flange. My axle flange isn’t large enough so i opted to modify the backing plate since it is much thicker and I had more flexibility to make new holes.
I looked at a variety of retainer spacer options walking around the various departments of Lowes with my caliper measuring anything that might work. The solution I used is a little different but turned out to be very effective.
This is what I started with, 2” conduit lock nut. I picked up a bag of 10 for about $6 from Lowes.
The diameter is a little over 2.5” from tab to tab. The inner diameter of the ring matches the bearing retainer seal and is raised slightly, ideal for keeping pressure on the seal. Each ring is ~.15” thick, so two of them stacked takes up the additional space inside the backing plate.
I used my bench grinder and took 1 to 2 millimeters off of each tab grinding a little at a time and test fitting them inside the center of the backing plate. The rings should just fit within the center of the backing plate. The next step is to cut a section out of the ring so it can be fitted over the axle. It’s important that this is done after all the tabs have been ground and fitted to the backing plate.
The ring is inserted over the axle with the raised face toward the axle seal. The tabs keep the ring centered inside the backing plate even with a section cut out. I would suggest using a thin layer of silicone or other adhesive between the rings. I didn’t think about it until I was in the middle of installing them. The first ring installed fairly easily but the second is more difficult trying to keep it in position. I found getting the bottom two bolts and nuts on the retaining plate helped hold the second ring in position while I adjusted it to center.
I should also mention that a third ring is useful to help seat the seal in the axle. To do this you just snug the bolts down with the third ring in place. I tightened the bolts just to where the retaining plate started to bend. Then just loosen everything up, carefully pull the backing plate away from the axle tube without pulling the seal back out and verify the seal is seated. There should be about 1/8” of the seal visible past the end of the axle tube. Next reposition the backing plate on the axle tube and remove the third ring. Reposition the two rings inside the backing plate and bolt everything back up. I replaced the original disc backing plate bolts with 1.5” grade 8 bolts and nuts sine the originals are too short to reuse with the LS1 backing plate. There seems to be quite a lot of debate regarding elongating the backing plate holes or the axle flange. My axle flange isn’t large enough so i opted to modify the backing plate since it is much thicker and I had more flexibility to make new holes.
