1LE Bearings in a STD Hub
Lets face it, whats so great about the 1LE hub?? the outboard bearing of course! Once the larger 1LE offset hub is used along with a "stacked" rotor in some of these brake conversions, you end up with 1.350 inches of extra track width, mind you .600 is pretty much unavoidable with these kits but wow thats got the wheel & tire out of the wheel well now.

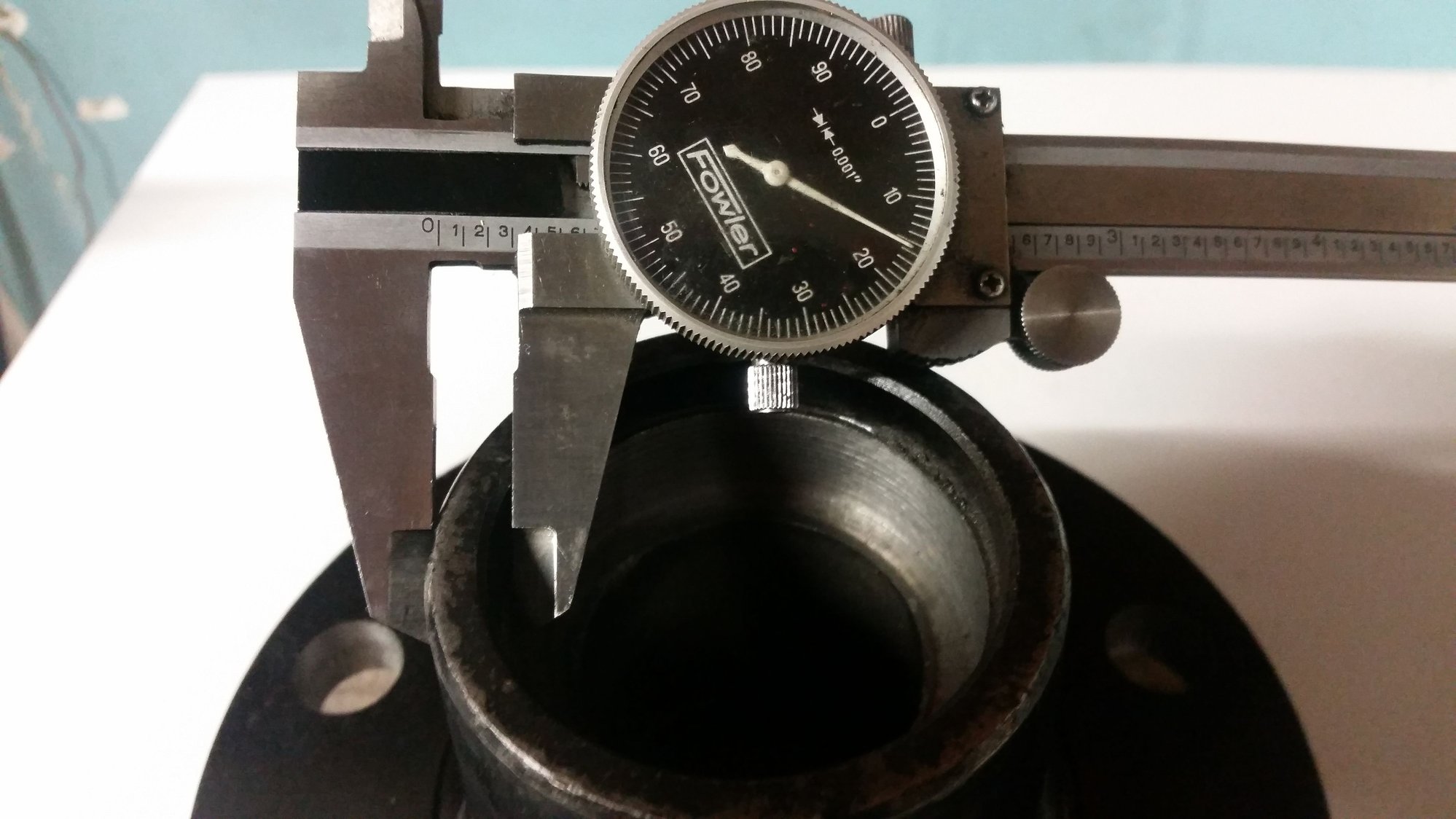

I took a standard 10.5 hub today and bored the outboard hole for the larger 1LE bearing (set3), super simple! Great option for guys who want that extra large bearing without the added track width
1LE on the Left, Std or the right

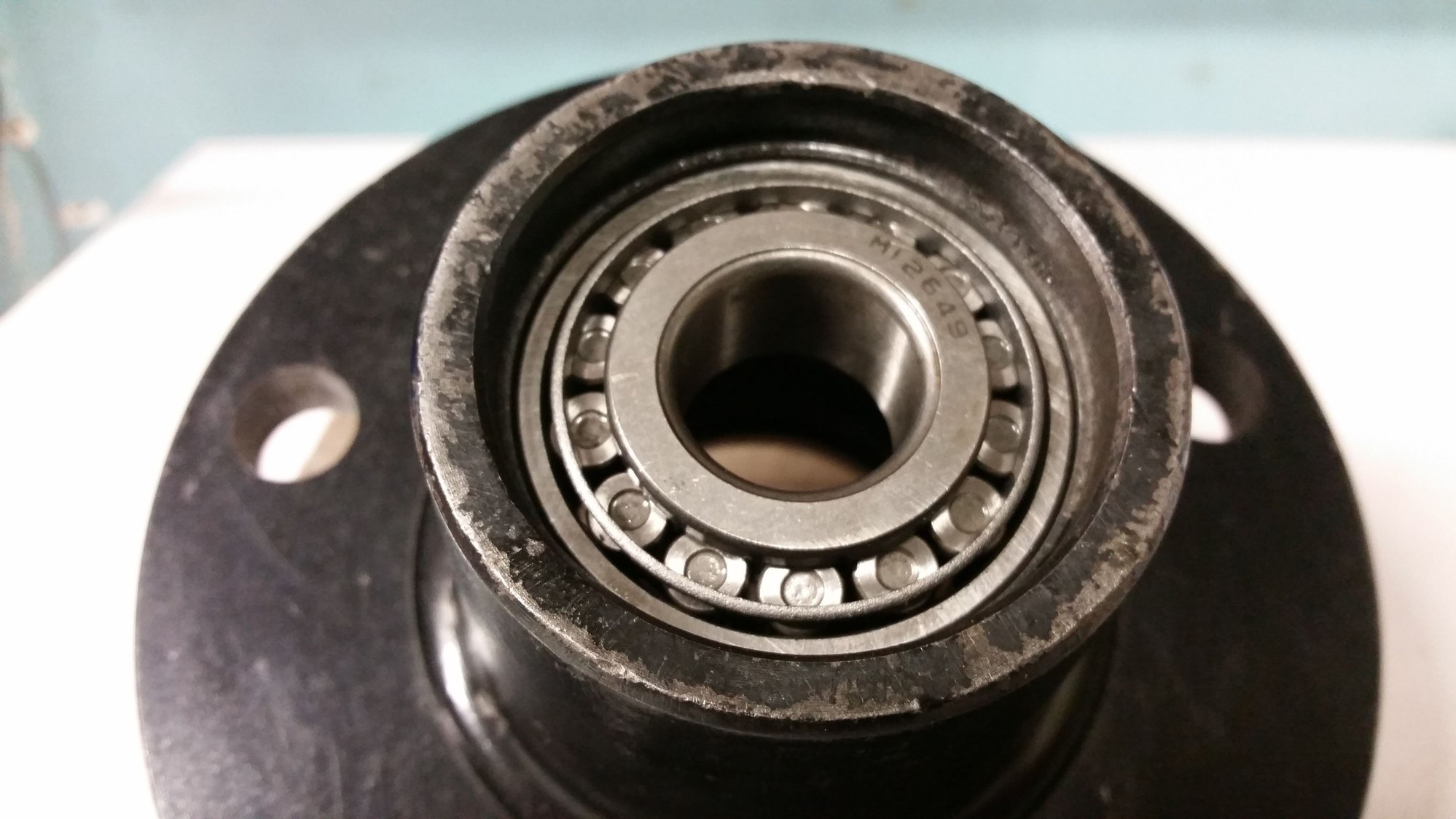

Std bearing and race in the bored out Std hub
Nice set 3 there in your std hub !
Side view of the set 3 1LE and std set 34
I took a standard 10.5 hub today and bored the outboard hole for the larger 1LE bearing (set3), super simple! Great option for guys who want that extra large bearing without the added track width
1LE on the Left, Std or the right
Std bearing and race in the bored out Std hub
Nice set 3 there in your std hub !
Side view of the set 3 1LE and std set 34
Trending Topics
#8
Re: 1LE Bearings in a STD Hub
Yes, the new hubs, longer studs and larger set 3 cup installed are 200 for the pair or a +75 upgrade in a kit. I found that the besides the bore needing to be expanded it also needs to be lowered or dropped down a little so that the castle nut lines up with the spindles cotter pin holes.
#9
Supreme Member
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: 1LE Bearings in a STD Hub
So when you enlarged the bore did you cut it to the exact O.D. of the race?
#10
#11
Supreme Member
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: 1LE Bearings in a STD Hub
Yes, the new hubs, longer studs and larger set 3 cup installed are 200 for the pair or a +75 upgrade in a kit. I found that the besides the bore needing to be expanded it also needs to be lowered or dropped down a little so that the castle nut lines up with the spindles cotter pin holes.
How much farther down did you go?
#14
Re: 1LE Bearings in a STD Hub
Just trial and error, first one I cut the bearing sat too high so the next I cut lower (aprox .200) and the cotter hole was almost out of the castle nuts tooth, took it back fifty on the next one is all. I use a mag base dial indicator on the lathe to determine depth of the bore measuring off of the carriage as I plunge.
Are you going to do a set for yourself?
Are you going to do a set for yourself?
#15
Supreme Member
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: 1LE Bearings in a STD Hub
I'm seriously considering it. I will have our machinist at work do all the work, he has already cut the rotors turning them into hubs. I'm gathering parts for my LS1 front brake swap.
#16
Re: 1LE Bearings in a STD Hub
Awesome! its an easy job for a good machinist.... I`m working on a CNC Billet Hub for the third gen conversions right now, it will have this 1LE bearing feature standard and I plan to offer it in the sought after 65MM hub register for the CTSV / Camaro SS conversions as well as the standard 2.786 register for all the other conversions, we should have a prototype in a few weeks to show off ! Let us know how your conversion goes!
#18
Re: 1LE Bearings in a STD Hub
Things to complete:
We just started looking at wheel studs for these. The deck or flange of the hub is thicker than say a stock rotor cut down so finding a M12x1.5 with longer than the std .312 knurl length is looking to be a problem, keeping in mind that our flange will be somewhere around .600 thick I`d like to have full knurl along that length of course..
Finish type or leave bare ? powder is easy enough, anodizing I have not looked into but thats something that has yet to be determined and fairly secondary at this point.
I will start a thread for the sample as soon as I have something tangible to show off.
#19
Supreme Member
Join Date: Apr 2013
Location: North Salt Lake
Posts: 1,353
Likes: 0
Received 1 Like
on
1 Post
Car: '86 Camaro, '94 Camaro, 3 others
Engine: LG4 ->L29, L32->LR4, L36, LG4, L31
Transmission: 700R-4, T5WC, 4L80E, SM465, 4L60E
Axle/Gears: 3.42, 3.23, WTB/WTT 2.93
Re: 1LE Bearings in a STD Hub
Actually, the bearing is the least important part. And if you're milling off the rotor to fit bigger, separate rotors, you still get the best part!
1LE hubs are thicker where it matters most, reducing cracking under extreme brake use. That isn't the bearing at all. In fact, if you could get 1LE hubs cast and machined for the smaller bearings, they'd be even stronger.
1LE hubs are thicker where it matters most, reducing cracking under extreme brake use. That isn't the bearing at all. In fact, if you could get 1LE hubs cast and machined for the smaller bearings, they'd be even stronger.
#20
Supreme Member
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: 1LE Bearings in a STD Hub
Actually, the bearing is the least important part. And if you're milling off the rotor to fit bigger, separate rotors, you still get the best part!
1LE hubs are thicker where it matters most, reducing cracking under extreme brake use. That isn't the bearing at all. In fact, if you could get 1LE hubs cast and machined for the smaller bearings, they'd be even stronger.
1LE hubs are thicker where it matters most, reducing cracking under extreme brake use. That isn't the bearing at all. In fact, if you could get 1LE hubs cast and machined for the smaller bearings, they'd be even stronger.
Playing devils advocate
So in your opinion do you think there would be any benefit to cutting a set of standard hub style rotors to except the 1LE bearings? I can see that it would make the hub marginally weaker because your removing material.
#21
Supreme Member
iTrader: (1)
Join Date: Dec 2000
Location: Cincinnati,Ohio
Posts: 2,341
Received 151 Likes
on
111 Posts
Car: 1991 BandittII Firebird
Engine: 5.7 HSR
Transmission: 700R4
Axle/Gears: 3.27 9 bolt
Re: 1LE Bearings in a STD Hub
Yes the hubs will be cut from aluminum T6061 We are setting up the CNC Mill with the appropriate tooling, optimistically hoping for that to be completed by weeks end and then run a sample over this coming weekend. ( already a week behind my first estimates) So far we have the design completed (to be tweaked I`m sure), we have the tooling paths ready, we have a source for our material thats local enough and have blanks of the 6 x 4 inch round bar squared off by the lathe. So we are ready to cut once the machines tooling is in.
Things to complete:
We just started looking at wheel studs for these. The deck or flange of the hub is thicker than say a stock rotor cut down so finding a M12x1.5 with longer than the std .312 knurl length is looking to be a problem, keeping in mind that our flange will be somewhere around .600 thick I`d like to have full knurl along that length of course..
Finish type or leave bare ? powder is easy enough, anodizing I have not looked into but thats something that has yet to be determined and fairly secondary at this point.
I will start a thread for the sample as soon as I have something tangible to show off.
Things to complete:
We just started looking at wheel studs for these. The deck or flange of the hub is thicker than say a stock rotor cut down so finding a M12x1.5 with longer than the std .312 knurl length is looking to be a problem, keeping in mind that our flange will be somewhere around .600 thick I`d like to have full knurl along that length of course..
Finish type or leave bare ? powder is easy enough, anodizing I have not looked into but thats something that has yet to be determined and fairly secondary at this point.
I will start a thread for the sample as soon as I have something tangible to show off.
What is the cost that your projecting?
#22
Re: 1LE Bearings in a STD Hub
Actually, the bearing is the least important part. And if you're milling off the rotor to fit bigger, separate rotors, you still get the best part!
1LE hubs are thicker where it matters most, reducing cracking under extreme brake use. That isn't the bearing at all. In fact, if you could get 1LE hubs cast and machined for the smaller bearings, they'd be even stronger.
1LE hubs are thicker where it matters most, reducing cracking under extreme brake use. That isn't the bearing at all. In fact, if you could get 1LE hubs cast and machined for the smaller bearings, they'd be even stronger.
The combo was chosen because the B-Body rotor put the C4 caliper deep behind the wheel with no chance of wheel to caliper interference. So the B-Body rotors were designed with more weight in mind hence the extra thickness but also were meant for a wider tracked vehicle. For a "track car" an extra 1.25 of track with a brake upgrade is a good thing, on a street car its nothing but bad looks and tires that rub inner fender wells.
I intentionally avoid using the B-Body or 1LE rotor on all of my conversion unless absolutely necessary because of the track increase, as far as strength, I`ve been using the STD hub for over 12 years now on these conversions and have yet to see a failure of the hub itself due to cracking.
So when we decided to open a std hub to accept the 1LE bearing it was to appease a need that the customers have been asking for, it`s apparent that using a larger bearing will increase durability, while using a smaller one will decrease it. Bottom line is, that it is an upgrade over a set 34.
I`ve attached some 1LE history below to support my explanation.
"Due to the many complaints from Camaro racers, Phil Minch, a General Motors brake engineer, set out to come out with a solution. One very important part of this solution was the use of the massive 12-inch front disc brakes off the Chevrolet Caprice as it used the same front bearing package as the Camaro. Unfortunately these calipers, Minch suspected, would end up not being up to the task. So After some research, Minch checked out and was considering the two-piston aluminum caliper manufactured in Australia by PBR. The Corvette used this caliper as they were specifically made for them. To use them for the Camaro, it required modification to bolt to the Camaro spindle. Minch worked with Camaro platform chief engineer Chuck Hughes and F-body power-train manager Ray Canale to get the car modified. The rear disc brakes that came with the original four-wheel disc brake option were felt to be adequate, since most of the braking force is borne by the front brakes. Bill Mitchell of Special Vehicle Developments was contracted to do track testing of the car. The stock front-to-rear proportioning valve was nonadjustable and did not work well with the new brake setup. It was replaced by a new proportioning valve with satisfactory results."
As far as cost its still an unknown but we are looking to be lower than the only other billet hub out there I know about for these type upgrades.
#23
Member
iTrader: (7)
Join Date: Jun 2004
Location: Lincoln, Missouri
Posts: 156
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1980 Regal
Engine: 383 Superram
Transmission: 700R4
Axle/Gears: 12 bolt w/ 3.31 posi
Re: 1LE Bearings in a STD Hub
You can just get a front rotor for a 78-81 A/G body and measure it as those cars used the same rotor but with the larger set 3 outer bearing. GM changed to the set 34 outer in 82 so they could use a cheaper rotor/bearing combo for the 3rd gens, S series 2wd p/u and the 83-88 G bodies. Only thing about those 78-81 rotors is they will have 7/16-20 studs in them vs the metric for the later ones.
#24
Re: 1LE Bearings in a STD Hub
You can just get a front rotor for a 78-81 A/G body and measure it as those cars used the same rotor but with the larger set 3 outer bearing. GM changed to the set 34 outer in 82 so they could use a cheaper rotor/bearing combo for the 3rd gens, S series 2wd p/u and the 83-88 G bodies. Only thing about those 78-81 rotors is they will have 7/16-20 studs in them vs the metric for the later ones.
heres the 3rd gen specs followed by the 2nd Gen.
We are cutting the first hub this week, finally after many set backs we are running the prototype, the tool paths have been the issues (trying to get the most efficiency and least amount of machine time) I`ll update when I have a sample, Thanks for the patience
3rd Gen
2nd Gen
Last edited by BBU.COM; 05-11-2016 at 05:57 AM. Reason: added update about billet hubs
#25
Re: 1LE Bearings in a STD Hub
Aluminum Hub update ! Finally, we are making chips. This is a roughing of the new hub:

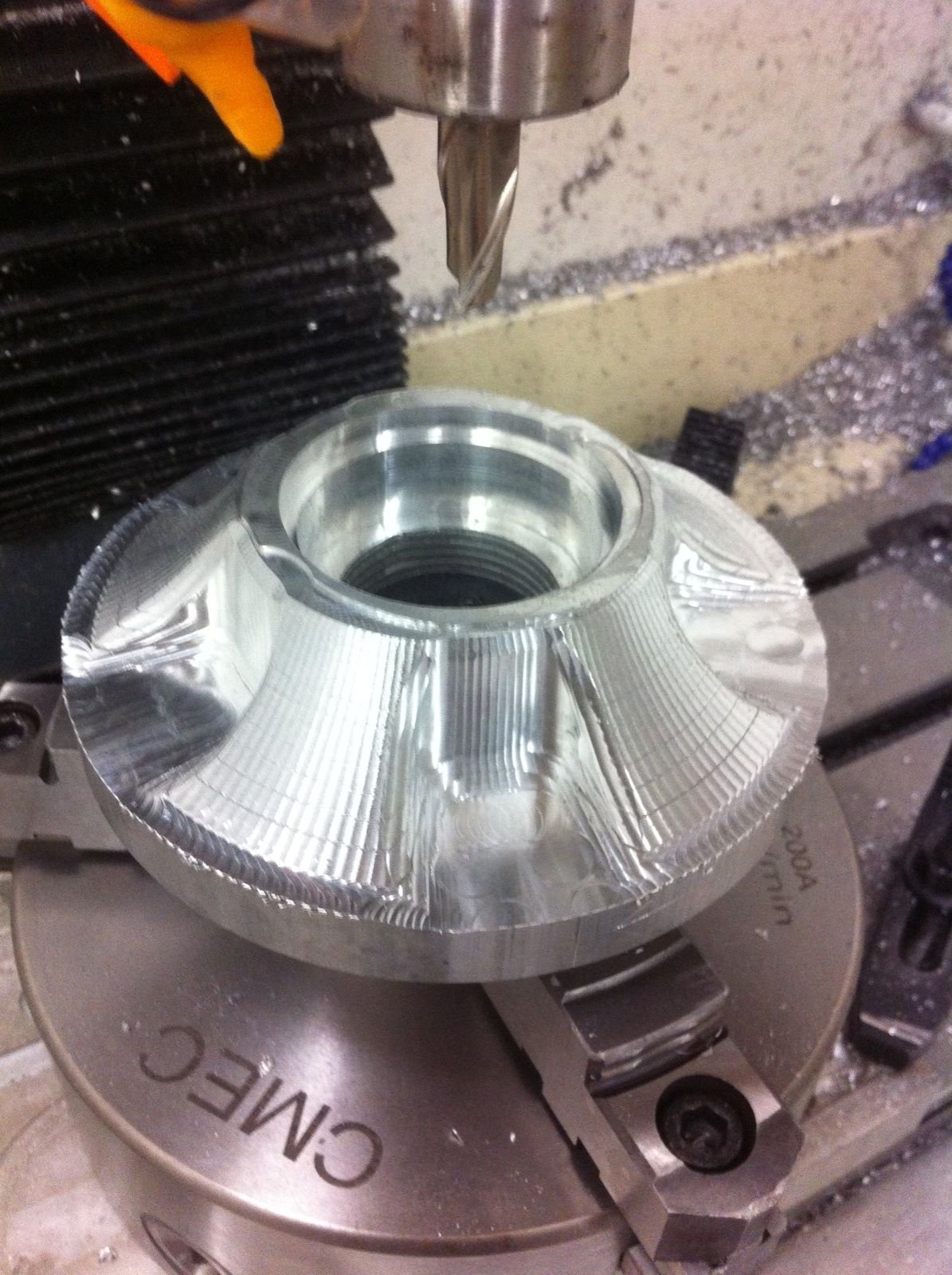

STD Offset billet hub prototype on the mill.
Iron vs Aluminum
More to come!
STD Offset billet hub prototype on the mill.
Iron vs Aluminum
More to come!
#29
Junior Member
Join Date: Dec 2011
Posts: 23
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1988 Camaro IROC-Z
Engine: LB9 305
Transmission: T5
Axle/Gears: 9 Bolt 3.45
Re: 1LE Bearings in a STD Hub
How does the FEA compare between the OEM cast hub and your billet hub?
Did the FEA show a need to go to the (approximately) .600" thick flange?
Is it possible to move the wheel mounting face to compensate for the thickness of brake conversions (ie LS1) and keep the stock track-width?
(I will be looking for an upgrade to fit my 17" ROH Snypers)
Did the FEA show a need to go to the (approximately) .600" thick flange?
Is it possible to move the wheel mounting face to compensate for the thickness of brake conversions (ie LS1) and keep the stock track-width?
(I will be looking for an upgrade to fit my 17" ROH Snypers)
#30
Re: 1LE Bearings in a STD Hub
Thanks guys I will keep you updated on the progress, the FEA or stress analysis I`d have to get from the CNC programmer but when we designed it, I had two different studs in mind for it, both with .312 long knurls.
long story shorter is we went around on the flange thickness and it is .600 or better, I think its a true .625. If I can post the renderings, this piece is thicker everywhere, (the snout, the webs for the flange, the race seats (set 3 and 34) We even lengthened the register so even with a stacked rotor you`ll have more register than a stock OE rotor.
As for making the hub shorter height, I`m sure it possible but that would leave no room for the adapter brackets on the spindle, for instance most conversions use a .375 bracket and if we took back .300 for the added rotor, it leaves about nothing for a bracket. Fact is there is no extra room to play with except for the C5 and C6 which if you kept the rotor in the OE position, you still only have a .200 thick bracket on that conversion.
long story shorter is we went around on the flange thickness and it is .600 or better, I think its a true .625. If I can post the renderings, this piece is thicker everywhere, (the snout, the webs for the flange, the race seats (set 3 and 34) We even lengthened the register so even with a stacked rotor you`ll have more register than a stock OE rotor.
As for making the hub shorter height, I`m sure it possible but that would leave no room for the adapter brackets on the spindle, for instance most conversions use a .375 bracket and if we took back .300 for the added rotor, it leaves about nothing for a bracket. Fact is there is no extra room to play with except for the C5 and C6 which if you kept the rotor in the OE position, you still only have a .200 thick bracket on that conversion.
#32
Senior Member
Re: 1LE Bearings in a STD Hub
Scott, BBU.COM doesn't work for me.
bigbrakeupgrade.com is linking to your site
bigbrakeupgrade.com is linking to your site
#33
#34
Re: 1LE Bearings in a STD Hub
I requested the stress analysis screen shots today, so I should have those soon to post.
We completed the first hub today, for a proto type it is 100% functional, I`d put it on my own car right now if I could! We have some minor details to address but they are very minor imo. Teamed up with the same individual who cuts my rear Brembo park brake spacers we should be able to start offering these as they become available or by order. These hubs will be direct replacements for any brake kit using the std hub except these will use the set 3 outboard bearing, inboard bearing,dust cap and grease seal all remain stock equipment available at your corner parts store. Billet T6061 saves about 3lbs from the cast steel hub... with 54mm length studs at M12 x 1.5 with a lengthened register stronger thicker webbing on the inboard side. We have still to work on pricing but that should fall under 400 for the set I assume.
BBU Hub
We completed the first hub today, for a proto type it is 100% functional, I`d put it on my own car right now if I could! We have some minor details to address but they are very minor imo. Teamed up with the same individual who cuts my rear Brembo park brake spacers we should be able to start offering these as they become available or by order. These hubs will be direct replacements for any brake kit using the std hub except these will use the set 3 outboard bearing, inboard bearing,dust cap and grease seal all remain stock equipment available at your corner parts store. Billet T6061 saves about 3lbs from the cast steel hub... with 54mm length studs at M12 x 1.5 with a lengthened register stronger thicker webbing on the inboard side. We have still to work on pricing but that should fall under 400 for the set I assume.
BBU Hub
#35
Member
Re: 1LE Bearings in a STD Hub
Pretty looking forward to these
I requested the stress analysis screen shots today, so I should have those soon to post.
We completed the first hub today, for a proto type it is 100% functional, I`d put it on my own car right now if I could! We have some minor details to address but they are very minor imo. Teamed up with the same individual who cuts my rear Brembo park brake spacers we should be able to start offering these as they become available or by order. These hubs will be direct replacements for any brake kit using the std hub except these will use the set 3 outboard bearing, inboard bearing,dust cap and grease seal all remain stock equipment available at your corner parts store. Billet T6061 saves about 3lbs from the cast steel hub... with 54mm length studs at M12 x 1.5 with a lengthened register stronger thicker webbing on the inboard side. We have still to work on pricing but that should fall under 400 for the set I assume.
BBU Hub
We completed the first hub today, for a proto type it is 100% functional, I`d put it on my own car right now if I could! We have some minor details to address but they are very minor imo. Teamed up with the same individual who cuts my rear Brembo park brake spacers we should be able to start offering these as they become available or by order. These hubs will be direct replacements for any brake kit using the std hub except these will use the set 3 outboard bearing, inboard bearing,dust cap and grease seal all remain stock equipment available at your corner parts store. Billet T6061 saves about 3lbs from the cast steel hub... with 54mm length studs at M12 x 1.5 with a lengthened register stronger thicker webbing on the inboard side. We have still to work on pricing but that should fall under 400 for the set I assume.
BBU Hub
#36
Supreme Member
iTrader: (4)
Re: 1LE Bearings in a STD Hub
These rotors have more offset like a 1LE check the height measurements
heres the 3rd gen specs followed by the 2nd Gen.
We are cutting the first hub this week, finally after many set backs we are running the prototype, the tool paths have been the issues (trying to get the most efficiency and least amount of machine time) I`ll update when I have a sample, Thanks for the patience
http://cimg2.ibsrv.net/gimg/www.thir...22d3ef987e.jpg
3rd Gen
http://cimg3.ibsrv.net/gimg/www.thir...994088135b.jpg
2nd Gen
heres the 3rd gen specs followed by the 2nd Gen.
We are cutting the first hub this week, finally after many set backs we are running the prototype, the tool paths have been the issues (trying to get the most efficiency and least amount of machine time) I`ll update when I have a sample, Thanks for the patience
http://cimg2.ibsrv.net/gimg/www.thir...22d3ef987e.jpg
3rd Gen
http://cimg3.ibsrv.net/gimg/www.thir...994088135b.jpg
2nd Gen
'79-81 A-body rotors use A3 outers, but are dimensionally the same as the iron rotors you're boring for an A3 bearing. Just SAE studs.
#37
Re: 1LE Bearings in a STD Hub
True, the only problem which is a easy fix are the metric studs, I`ll look into that.
#38
Senior Member
Re: 1LE Bearings in a STD Hub
I'd pay $400 for a set of these hubs, most especially if a set would eliminate my 1" spacers on my current BBU hubs. Is this possible? to custom order offset?
#39
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,685
Received 745 Likes
on
505 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: 1LE Bearings in a STD Hub
I requested the stress analysis screen shots today, so I should have those soon to post.
We completed the first hub today, for a proto type it is 100% functional, I`d put it on my own car right now if I could! We have some minor details to address but they are very minor imo. Teamed up with the same individual who cuts my rear Brembo park brake spacers we should be able to start offering these as they become available or by order. These hubs will be direct replacements for any brake kit using the std hub except these will use the set 3 outboard bearing, inboard bearing,dust cap and grease seal all remain stock equipment available at your corner parts store. Billet T6061 saves about 3lbs from the cast steel hub... with 54mm length studs at M12 x 1.5 with a lengthened register stronger thicker webbing on the inboard side. We have still to work on pricing but that should fall under 400 for the set I assume.
[IMG]
We completed the first hub today, for a proto type it is 100% functional, I`d put it on my own car right now if I could! We have some minor details to address but they are very minor imo. Teamed up with the same individual who cuts my rear Brembo park brake spacers we should be able to start offering these as they become available or by order. These hubs will be direct replacements for any brake kit using the std hub except these will use the set 3 outboard bearing, inboard bearing,dust cap and grease seal all remain stock equipment available at your corner parts store. Billet T6061 saves about 3lbs from the cast steel hub... with 54mm length studs at M12 x 1.5 with a lengthened register stronger thicker webbing on the inboard side. We have still to work on pricing but that should fall under 400 for the set I assume.
[IMG]
#41
Re: 1LE Bearings in a STD Hub
Its the exact same as the hub cut from the std 10.5 rotor its 3.875 tall seal flange to dust cap flange. It will replace any hub I have used in any kit except for ones using the 1LE hub (which I could probably count on my left hand the number I have done!)
I think its a nice weight savings and its obviously somewhat costly for that savings. I will need some test pilots for these soon!
Wow, 3 pounds of unsprung weight per side is a pretty significant savings.
#43
Re: 1LE Bearings in a STD Hub
I`m no cad programmer so I cannot do those myself but I`m confident that the hub is stronger than the cast steel part but we will see, and Yes we need to put them on a car that`s driven hard.
Any of you engineers want to weigh in, please do
#45
#46
Banned
Join Date: Nov 2004
Location: cleveland ohio
Posts: 740
Likes: 0
Received 1 Like
on
1 Post
Car: 1991 camaro RS
Engine: CharlesOdoryOB
Transmission: 82513892892
Axle/Gears: pbr disc 3.27 nine bolt
Re: 1LE Bearings in a STD Hub
I like the thicker hub centric part that's been one of the issues when using stock rotors milled down to hubs it most of the hubcentric "step" is used up by the rotor get me a price
#47
Member
Re: 1LE Bearings in a STD Hub
What's the latest on these hubs? I don't see them on the website yet?
#48
Re: 1LE Bearings in a STD Hub
Yes they are not on the site yet. Its a good news bad news situation, the bad....Learning curve. Although the mill does a decent job with these it takes too much time to produce one and if there is a hiccup along the way..bang! scrap. We have had a few hiccups, a few too many. I want a better looking part than what was being cut and it seemed that if we slowed the speed down it would produce better appearance / finish but it does not, at least not what I would like to offer. So its was about 12 hrs to make one including the finish time on a manual lathe. I have to say the machinist that is doing these also produces my spacers for the rear Brembo conversions, both he and I keep a full time job aside from this venture, so to say the least, his time is limited and if there is a hiccup, it sets things back days.
The GOOD ! The new news is good, These are now being cut on a CNC lathe that has cut a few hours out of the machining time but most importantly the accuracy is incredible and the appearance is much better. The design although appears to remain unchanged has not, we have thickened up the center of the hub even further, it picked up a few oz`s in weight, and have added race knock out reliefs.
They are still slow to come out of the shop though. We have 3 sets out on the road another set on my bench for assembly to a LS1 kit this week and one more order to fill ASAP for a customer who has been very patient.
Until I have a few sets in my back pocket these wont be on the site. If your in need of a set just email me for a ETA on a set.
