Original Delco Radio with MP3 module
#1
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Original Delco Radio with MP3 module
Hi
That was an original radio
and that was look after
I made a video but I was record it by my phone and it is very poor quality (darknesses)
As I wrote before if someone will be interested to built it - I can help
That was an original radio
and that was look after
I made a video but I was record it by my phone and it is very poor quality (darknesses)
As I wrote before if someone will be interested to built it - I can help
Last edited by levy; 02-26-2014 at 03:25 AM.
#2
Supreme Member
Join Date: Feb 2004
Location: So Cal
Posts: 1,581
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 IROC Z28
Engine: 357 TPI
Transmission: 700R4
Axle/Gears: 3.42 Posi
Re: Original Delco Radio with MP3 module
Why not just buy one that's been modified already?
http://www.ebay.com/itm/190648617532...84.m1423.l2649
http://www.ebay.com/itm/190648617532...84.m1423.l2649
#3
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
The first thing is differences between 7$ for this module and 195$ for that complete radio is quite big. The second thing is that if buy radio from ebay you don`t have thirdgen looking radio anymore. The third thing is you must have external mp3 player, with this radio you get only wire minijack and aux socket.
#4
Supreme Member
Join Date: Feb 2004
Location: So Cal
Posts: 1,581
Likes: 0
Received 2 Likes
on
2 Posts
Car: 89 IROC Z28
Engine: 357 TPI
Transmission: 700R4
Axle/Gears: 3.42 Posi
Re: Original Delco Radio with MP3 module
If you think that thing will look stock you're kidding yourself. Good luck trying to install it.
Looks like you'll have to cut up the faceplate of your stock radio to get that circuit board in so it will mount flush. The YouTube video sounded terrible. That 4th gen radio looks more stock than that thing is going to look and sound a 100 times better, You get what you pay for.
Looks like you'll have to cut up the faceplate of your stock radio to get that circuit board in so it will mount flush. The YouTube video sounded terrible. That 4th gen radio looks more stock than that thing is going to look and sound a 100 times better, You get what you pay for.
#5
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
thats your opinion
I`ve already installed it in two cars and works great, what you see on last pic is already assembled
You don`t have to cut anything. I designed front plexi and cut it on laser
Old phone and dark place, I will record it better camera
Why do you think it will work better than this? The 4th gen radio looks like a crap.
I`ve already installed it in two cars and works great, what you see on last pic is already assembled
Old phone and dark place, I will record it better camera
Why do you think it will work better than this? The 4th gen radio looks like a crap.
Last edited by levy; 11-10-2012 at 04:25 AM.
#6
Senior Member
iTrader: (3)
Join Date: Jan 2012
Location: Downriver, MI
Posts: 790
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1986 IROC-Z
Engine: 350
Transmission: T5
Axle/Gears: 4:10
Re: Original Delco Radio with MP3 module
I think it's cool. I have a background in car audio install and can appreciate your work. If you're looking to keep the stock radio it's certainly one option. My only issue is that there are better resources available such as an istreamer.
#7
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
what is istreamer ? I`m not US citizen so have problems with English, I haven`t use that language for last 11 years
ok, I found what is istreamer
ok, I found what is istreamer
Last edited by levy; 11-11-2012 at 03:55 AM.
Trending Topics
#11
Re: Original Delco Radio with MP3 module
#12
Supreme Member
iTrader: (4)
Re: Original Delco Radio with MP3 module
I went and picked up a 4th gen radio from a 2001 Camaro that has the CD changer option. I then picked up a GM-AUX9 adapter which as an input for my IPOD. This adapter plugs into the harness behind the radio and uses the CD changer option to run it. So when I want to listen to my ipod, I just switch to the CD changer mode on the radio. The only modifiations that needed to be done were to enlarge the radio faceplate to fit the newer radio which has a slightly larger face, and drill new bolt holes because the ones for the 4th gen stereo aren't in the exact same location. They're hidden though so you don't see them.
#13
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
I built that to not have an external device such an ipod connected via aux. I used that solution for last 9 years.
#15
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
ok I will try to translate it, if something will be not understand - let me know
cut on CNC plexi 2mm of the front window, if someone is interested email me I have file with that window
take off push buttons
take off the top cover
unscrew the tuner PCB
unplug the wire which have plug, the rest wires just cut

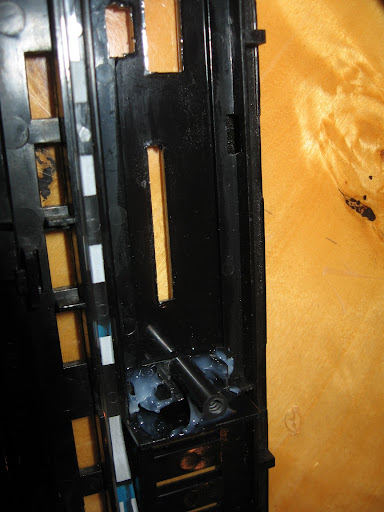

glue the holders on back side of front mask (holders come with mp3 module)
cutoff VFD display (in my radio - red wires)
cut on CNC plexi 2mm of the front window, if someone is interested email me I have file with that window
take off push buttons
take off the top cover
unscrew the tuner PCB
unplug the wire which have plug, the rest wires just cut
glue the holders on back side of front mask (holders come with mp3 module)
cutoff VFD display (in my radio - red wires)
#19
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
to the 3rd and 4th cable from the wires that was pluged to the tuner PCB which was disconected, on the last pic you have marked in red circle
#21
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
you count from front of radio
I connect only left and riight via 1uF capacitor to protect the module
You don`t need to use ground
I connect only left and riight via 1uF capacitor to protect the module
You don`t need to use ground
#22
Re: Original Delco Radio with MP3 module
Hi!
Thank you very much.
I also have such a mp3 board, the only problem is that you can´t switch between the folders. So i search for a long time for another sound modul that i can use with this radio.
thanks
Thank you very much.
I also have such a mp3 board, the only problem is that you can´t switch between the folders. So i search for a long time for another sound modul that i can use with this radio.
thanks
#23
Senior Member
Join Date: Sep 2008
Location: France
Posts: 588
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1984 Pontiac Firebird Trans Am
Engine: V8 5.0L HO (L69)
Transmission: B&W T5
Axle/Gears: 3.73 limited slip
Re: Original Delco Radio with MP3 module
That is really cool, the only thing that bothers me is to cut through the original faceplate. The red screen is perfect for a Pontiac.
I guess the USB ports could be removed from the PCB and placed somewhere else at the end of some wires. And I could do without the card reader.
Or, seeing how it's made, simply wire the screen and glue it on the back of the original one, and place the rest of the unit wth the buttons and USB/card slots in place of the ashtray for example.
Do you think you could make a clear schematic to explain how you wired it to the original radio ?
I guess the USB ports could be removed from the PCB and placed somewhere else at the end of some wires. And I could do without the card reader.
Or, seeing how it's made, simply wire the screen and glue it on the back of the original one, and place the rest of the unit wth the buttons and USB/card slots in place of the ashtray for example.
Do you think you could make a clear schematic to explain how you wired it to the original radio ?
#27
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
That is really cool, the only thing that bothers me is to cut through the original faceplate. The red screen is perfect for a Pontiac.
I guess the USB ports could be removed from the PCB and placed somewhere else at the end of some wires. And I could do without the card reader.
Or, seeing how it's made, simply wire the screen and glue it on the back of the original one, and place the rest of the unit wth the buttons and USB/card slots in place of the ashtray for example.
Do you think you could make a clear schematic to explain how you wired it to the original radio ?
I guess the USB ports could be removed from the PCB and placed somewhere else at the end of some wires. And I could do without the card reader.
Or, seeing how it's made, simply wire the screen and glue it on the back of the original one, and place the rest of the unit wth the buttons and USB/card slots in place of the ashtray for example.
Do you think you could make a clear schematic to explain how you wired it to the original radio ?
USB port can be removed but in car there is a lot of noises from electrical instalation of the car so that could be a problem
What conections are you interested ? Power, Audio, push buttons ?
#28
Junior Member
Join Date: Feb 2013
Location: Kerrville TX
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Transmission: 5 speed manual
Re: Original Delco Radio with MP3 module
Where can I wire the left and right to a audio jack, I want to plug my phone in via headphone jack but I got nothing when pluging it into the 3rd and 4th wires on the cable circled in red, what do I do I want to be able to use the equilizer?
#31
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
Little update
I`ve just upgrade my version with Bluetooth option
Sorry for pure version
I`ve just upgrade my version with Bluetooth option
Sorry for pure version
#35
Junior Member
Thread Starter
Join Date: Jul 2005
Location: Cracow, Poland
Posts: 29
Likes: 0
Received 2 Likes
on
2 Posts
Car: chevy camaro
Engine: 350 LT1
Transmission: 4L60E
Axle/Gears: 3,42
Re: Original Delco Radio with MP3 module
Hi everyone. I just want to inform you that radio is still working. I made some other modifications for my friends and they are happy with that.
Last time I swaped into LT1 engine and made some modifications to speedometer. I`m using two stepper motors to make it working. Odometer is working also. It is no longer powered mechanical
During the tests
And after crash of transmission I made a little OLED display connected to ALDL connect which show me temperature of transmission
Last time I swaped into LT1 engine and made some modifications to speedometer. I`m using two stepper motors to make it working. Odometer is working also. It is no longer powered mechanical
During the tests
And after crash of transmission I made a little OLED display connected to ALDL connect which show me temperature of transmission
The following users liked this post:
CorvairGeek (06-26-2020)
#36
Supreme Member
iTrader: (3)
Re: Original Delco Radio with MP3 module
Hi everyone. I just want to inform you that radio is still working. I made some other modifications for my friends and they are happy with that.
Last time I swaped into LT1 engine and made some modifications to speedometer. I`m using two stepper motors to make it working. Odometer is working also. It is no longer powered mechanical
During the tests
https://www.youtube.com/watch?time_c...ature=emb_logo
https://www.youtube.com/watch?time_c...ature=emb_logo
And after crash of transmission I made a little OLED display connected to ALDL connect which show me temperature of transmission
https://www.youtube.com/watch?v=OwK0tqzsZCM
Last time I swaped into LT1 engine and made some modifications to speedometer. I`m using two stepper motors to make it working. Odometer is working also. It is no longer powered mechanical
During the tests
https://www.youtube.com/watch?time_c...ature=emb_logo
https://www.youtube.com/watch?time_c...ature=emb_logo
And after crash of transmission I made a little OLED display connected to ALDL connect which show me temperature of transmission
https://www.youtube.com/watch?v=OwK0tqzsZCM
DR.K.
The following users liked this post:
DynoDave43 (12-12-2023)
#38
Re: Original Delco Radio with MP3 module
I'm from poland. I'm interesting to cooperate with You to modify my radio. Please contact to me or share some contact to You.
