fuel line inlet too long?
#1
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
fuel line inlet too long?

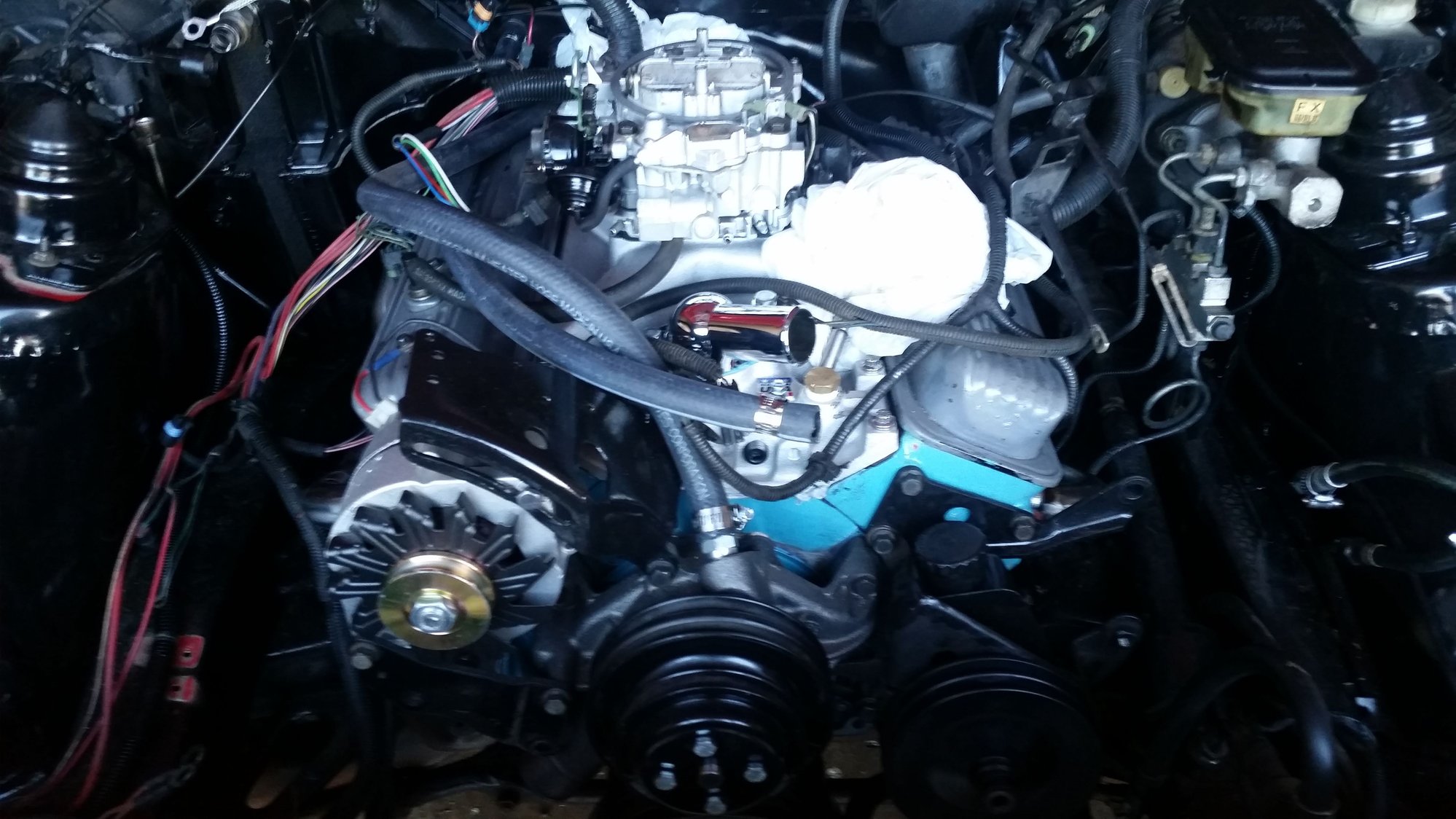

Trying to wrap my engine swap up but on my rebuilt quadrajet the fuel line inlet barb hits this other piece. Just to get things together I plan on using rubber fuel Injection hose until I get the other AN fittings I need. Is there a shorter piece? Here's an attached pic of another quadrajet with the same issue.
I'm not sure what the piece connected to the black hose is but the fuel Inlet won't fit since the hose and the rest of it is in the way.
I'm not sure what the piece connected to the black hose is but the fuel Inlet won't fit since the hose and the rest of it is in the way.
#2
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
That part is a vacuum diaphragm. Has 2 functions: it cracks the choke open a bit right immediately after a cold start; and it provides timing for the secondary air valve opening (without it, the AV just kinda flops open or otherwise responds too fast and the engine bogs, stutters, etc.)
Sounds like you need a different combination of parts.
Sounds like you need a different combination of parts.
#3
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
My inlet piece won't even go in since the hose and diaphragm is in the way. Is there an AN fitting that would screw directly into the carb that's also short enough to fit?
QUOTE=sofakingdom;5960012]That part is a vacuum diaphragm. Has 2 functions: it cracks the choke open a bit right immediately after a cold start; and it provides timing for the secondary air valve opening (without it, the AV just kinda flops open or otherwise responds too fast and the engine bogs, stutters, etc.)
Sounds like you need a different combination of parts.
[/QUOTE]
QUOTE=sofakingdom;5960012]That part is a vacuum diaphragm. Has 2 functions: it cracks the choke open a bit right immediately after a cold start; and it provides timing for the secondary air valve opening (without it, the AV just kinda flops open or otherwise responds too fast and the engine bogs, stutters, etc.)
Sounds like you need a different combination of parts.
[/QUOTE]
#4
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
Is there an AN fitting that would screw directly into the carb that's also short enough to fit?
3/8" inverted flare to AN, then a right-angle sweep hose end. There's also an swivel elbow 90 adapter but I like the short straight adapter and sweep better.
#5
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
I just tried a russells fitting that screws directly into the carb body and it won't even sew in since the end is hitting the diaphragm. The fitting above would stick out farther since it screws into the fitting that then screws into the carb body.
#6
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
I'm thinking this aeroquip fitting could work. Turns out there's a whisler bearing industrial supply in town so I'm going to give them a try tomorrow.
Trending Topics
#9
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
Something is wrong about that carb. The stock fuel line wouldn't even hook up to that.
Get acoupla pics where all the parts that are involved, aren't all in the dark and deep in the mud, where we can see em; one from in front, one from straight above, one from the pass side. Put a light on the parts we're trying to see instead of on the fuel bowl.
Get acoupla pics where all the parts that are involved, aren't all in the dark and deep in the mud, where we can see em; one from in front, one from straight above, one from the pass side. Put a light on the parts we're trying to see instead of on the fuel bowl.
#10
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
Something is wrong about that carb. The stock fuel line wouldn't even hook up to that.
Get acoupla pics where all the parts that are involved, aren't all in the dark and deep in the mud, where we can see em; one from in front, one from straight above, one from the pass side. Put a light on the parts we're trying to see instead of on the fuel bowl.
Get acoupla pics where all the parts that are involved, aren't all in the dark and deep in the mud, where we can see em; one from in front, one from straight above, one from the pass side. Put a light on the parts we're trying to see instead of on the fuel bowl.
#11
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?

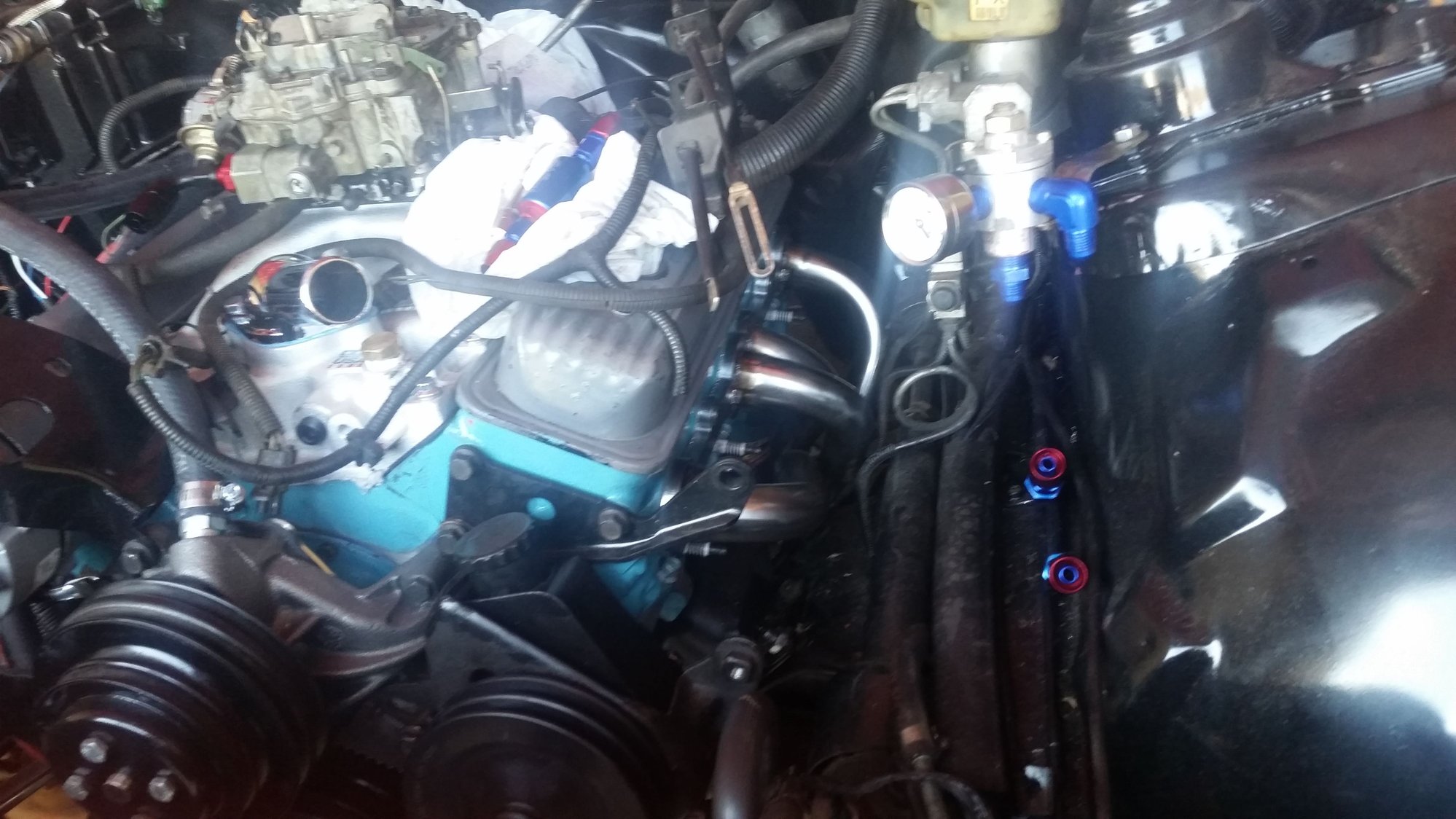

Here's where I'm at now. Putting the AN fittings on the lines in a few mins.
#13
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
Gee... looks AMAZINGLY similar to the one I posted... A few minor detail differences but overall, quite similar.
The Q-Jet in your first pic is non-computerized, but the one you got from the buzzard is. ???
The Q-Jet in your first pic is non-computerized, but the one you got from the buzzard is. ???
#14
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
[QUOTE=sofakingdom;5960794]Something is wrong about that carb. The stock fuel line wouldn't even hook up to that.
Get acoupla pics where all the parts that are involved, aren't all in the dark and deep in the mud, where we can see em; one from in front, one from straight above, one from the pass side. Put a light on the pa0rts we're trying to see instead of on the fuel
Like an idiot i bought that first carb off of a supposed carb builder i found on ebay. He asked for all of the engine specs and said everything was rebuilt and tuned to my engine. I'll post a few more pics in hopes of figuring out what's up with that carb so hopefully i can fix it to be used.
Get acoupla pics where all the parts that are involved, aren't all in the dark and deep in the mud, where we can see em; one from in front, one from straight above, one from the pass side. Put a light on the pa0rts we're trying to see instead of on the fuel
Like an idiot i bought that first carb off of a supposed carb builder i found on ebay. He asked for all of the engine specs and said everything was rebuilt and tuned to my engine. I'll post a few more pics in hopes of figuring out what's up with that carb so hopefully i can fix it to be used.
#15
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
The caddy one is? I assumed it was non CC since there aren't any electrical plugs.
#17
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
You're right not sure what I was thinking. (or even, IF)
Still, it'd be real interesting to have some pics of that other one from the angles I described - straight in front, straight above, and straight from the right, and made under conditions of good lighting in the area in question - to figure out why its vacuum break diaphragm is so far forward.
Still, it'd be real interesting to have some pics of that other one from the angles I described - straight in front, straight above, and straight from the right, and made under conditions of good lighting in the area in question - to figure out why its vacuum break diaphragm is so far forward.
#18
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
You're right not sure what I was thinking. (or even, IF)
Still, it'd be real interesting to have some pics of that other one from the angles I described - straight in front, straight above, and straight from the right, and made under conditions of good lighting in the area in question - to figure out why its vacuum break diaphragm is so far forward.
Still, it'd be real interesting to have some pics of that other one from the angles I described - straight in front, straight above, and straight from the right, and made under conditions of good lighting in the area in question - to figure out why its vacuum break diaphragm is so far forward.
Anyways I'll try and get better pics of the old one but the car is in a small one car garage with not so good lighting. In the first corvette fever pic that I posted it also has the fuel inlet pretty close to that diaphragm. Also here's here's a link to the carb rebuilder.
http://m.ebay.com/itm/Quadrajet-carburetor-REBUILD-SERVICE-/231684589713?nav=SEARCH
#20
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
I've got the caddy quadrajet bolted in place. We're you able to see the other pics I posted with the rebuilt quad?
Here's a few pics I snapped of the rebuilt carb.
Here's a few pics I snapped of the rebuilt carb.
#21
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
That looks like they used the wrong bracket for the VBD as well as the wrong VBD itself. Looks like it's for an Olds or Buick, where the fuel line comes straight out the front.
Plus, it's all painted black... no telling what that's all about. But it sure isn't how any of it left its factory.
What does it look like from the right side? (pass side; the side it's on)
Plus, it's all painted black... no telling what that's all about. But it sure isn't how any of it left its factory.
What does it look like from the right side? (pass side; the side it's on)
#22
Senior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2010
Location: Martinsburg,WV
Posts: 554
Likes: 0
Received 6 Likes
on
6 Posts
Car: '02 T/A
Engine: LS1
Transmission: 4l60e
Axle/Gears: 3.23
Re: fuel line inlet too long?
That looks like they used the wrong bracket for the VBD as well as the wrong VBD itself. Looks like it's for an Olds or Buick, where the fuel line comes straight out the front.
Plus, it's all painted black... no telling what that's all about. But it sure isn't how any of it left its factory.
What does it look like from the right side? (pass side; the side it's on)
Plus, it's all painted black... no telling what that's all about. But it sure isn't how any of it left its factory.
What does it look like from the right side? (pass side; the side it's on)
#23
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
Could possibly be... what did it look like when you swapped it?
The VBD is actually a calibration component for the secondary operation, so it might or might not be "The Best". I'm kinda thinking though, the combination of a bracket off of a carb for one of the divisions whose engines required the fuel line to exit straight out the front, plus the link part of the VBD, might be different from one that exited to the side; and the link looks REEEEEEEL long compared to what I'm used to seeing on a Chevy carb. IOW, the whole thing might just simply be WRONG, in that it moves it all too far forward to fit a Chevy carb properly.
A pic from the right side of the carb would help although might still be inconclusive. Maybe a pic of the carb that fits and one of the one that doesn't, to compare, would be better.
The VBD is actually a calibration component for the secondary operation, so it might or might not be "The Best". I'm kinda thinking though, the combination of a bracket off of a carb for one of the divisions whose engines required the fuel line to exit straight out the front, plus the link part of the VBD, might be different from one that exited to the side; and the link looks REEEEEEEL long compared to what I'm used to seeing on a Chevy carb. IOW, the whole thing might just simply be WRONG, in that it moves it all too far forward to fit a Chevy carb properly.
A pic from the right side of the carb would help although might still be inconclusive. Maybe a pic of the carb that fits and one of the one that doesn't, to compare, would be better.
#26
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,672 Likes
on
1,269 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: fuel line inlet too long?
Should be more or less OK.
It's pretty obvious what's wrong with the black one. It's for an Olds or Buick. Simply, the wrong part for a Chevy. The bracket is clearly wrong, by mounting the diaphragm too far forward, and the VBD plunger piece is too long, since the diaphragm body is too far away from the green link.
If you can depress your LG4 one's plunger and then cover the fitting with your finger and it holds itself in, then it's at least "good" and should "work". The thing is however, the vacuum is fed through a tiny orifice, which is calibrated to provide some particular operating rate of the sec air valve, meaning you might end up with secondaries that open either too fast (bog) or too slow (delay in acceleration when you floor it). Only way to know, is to try it. You can replace it easily enough if it's broken (doesn't hold vacuum) or unsuitable. The "ideal" diaphragm spring and orifice combo is dependent on the vacuum that exists normally right before you stomp on it, and the engine's ability to immediately use more air right after. A great deal of tuning is possible by changing it.
Adjust the screw thing on it so that if the choke is held closed by its stat, and you either apply vacuum to the VBD or just mash it manually, it cracks the choke blade open by about 3/16" or so. Should get it close enough to run OK on a cold startup. You can tune it from there if it either dies shortly after a cold start (too lean... cracks it open too far), or if it seems to load up and labor and maybe even blows out black smoke (too little break).
It's pretty obvious what's wrong with the black one. It's for an Olds or Buick. Simply, the wrong part for a Chevy. The bracket is clearly wrong, by mounting the diaphragm too far forward, and the VBD plunger piece is too long, since the diaphragm body is too far away from the green link.
If you can depress your LG4 one's plunger and then cover the fitting with your finger and it holds itself in, then it's at least "good" and should "work". The thing is however, the vacuum is fed through a tiny orifice, which is calibrated to provide some particular operating rate of the sec air valve, meaning you might end up with secondaries that open either too fast (bog) or too slow (delay in acceleration when you floor it). Only way to know, is to try it. You can replace it easily enough if it's broken (doesn't hold vacuum) or unsuitable. The "ideal" diaphragm spring and orifice combo is dependent on the vacuum that exists normally right before you stomp on it, and the engine's ability to immediately use more air right after. A great deal of tuning is possible by changing it.
Adjust the screw thing on it so that if the choke is held closed by its stat, and you either apply vacuum to the VBD or just mash it manually, it cracks the choke blade open by about 3/16" or so. Should get it close enough to run OK on a cold startup. You can tune it from there if it either dies shortly after a cold start (too lean... cracks it open too far), or if it seems to load up and labor and maybe even blows out black smoke (too little break).
