PCM hacking 101 - The step by step approach
01-13-2009, 11:47 PM
#1
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
PCM hacking 101 - The step by step approach
Ive been getting some requests to do something like this, so here it goes:
Here at TGO, there has been a new trend to update to the later OBD-II based PCMs to gain additional features like MAF/MAP fueling, coil per cyl. ignition, SFI, etc. One thing that is missing for the PCMs, though, is good DIY support like there is for the 7730/7749 ECMs. Part of the problem is a general lack of understanding of how to work with these. The later PCMs are not impossible to work with, but will require a different approach due to the 32-bit nature of these, as well as the enhanced vehicle communications functions that are mandated as part of the OBD-II package. The steps needed to start work with the PCM can be broken down as follows:
Here at TGO, there has been a new trend to update to the later OBD-II based PCMs to gain additional features like MAF/MAP fueling, coil per cyl. ignition, SFI, etc. One thing that is missing for the PCMs, though, is good DIY support like there is for the 7730/7749 ECMs. Part of the problem is a general lack of understanding of how to work with these. The later PCMs are not impossible to work with, but will require a different approach due to the 32-bit nature of these, as well as the enhanced vehicle communications functions that are mandated as part of the OBD-II package. The steps needed to start work with the PCM can be broken down as follows:
- Getting a good stock binary to work with
- Using TunerPRO 2D and 3D hex viewers to find calibration tables
- Documentation: What you need to read and know before starting
- Disassembling the binary into Moto 68332 Assembly
- Using the J1850 communication bus/Datalink Controller and SAE standards to unlock the basic engine parameters and hardware I/O
- Working with the code: Finding tables and constants using the assembly
The following users liked this post:
Stack28 (11-14-2023)
01-13-2009, 11:59 PM
#2
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Getting a good binary to work with:
Lets get started: So you bought your PCM and now you want to get a bin for it, but a bin isn't available, and you dont have any OBD scanners available to download the bin. All is not lost... Within most GM PCMs, there is a standard intel 28FXXX-BB flash chip that can be read in some commercially available EEPROM readers such as the PP-II. Unlike the earlier ECMs with EPROMs or MEMCALs, though, the flash chip is a SOP surface mount IC that is hard soldered to the PCMs PCB. You will need to take a different approach to remove the IC and get it into a reader.
The first step is to get the right tools. One tool that you will need is an SMD rework station. This is a device that has an air pump and closed loop controller in it that can produce controlled air temperatures for working with SMD ICs (Fig. 1). These are available as professional units, or as low priced hobby grade units sourced from asia. The hobby grade units aren't too precise, but are good enough for our purposes. Some other tools to have are a solder pen, needle-nose pliers, wire cutters, hobby knife, and desoldering brade (Fig. 2).
Lets get started: So you bought your PCM and now you want to get a bin for it, but a bin isn't available, and you dont have any OBD scanners available to download the bin. All is not lost... Within most GM PCMs, there is a standard intel 28FXXX-BB flash chip that can be read in some commercially available EEPROM readers such as the PP-II. Unlike the earlier ECMs with EPROMs or MEMCALs, though, the flash chip is a SOP surface mount IC that is hard soldered to the PCMs PCB. You will need to take a different approach to remove the IC and get it into a reader.
The first step is to get the right tools. One tool that you will need is an SMD rework station. This is a device that has an air pump and closed loop controller in it that can produce controlled air temperatures for working with SMD ICs (Fig. 1). These are available as professional units, or as low priced hobby grade units sourced from asia. The hobby grade units aren't too precise, but are good enough for our purposes. Some other tools to have are a solder pen, needle-nose pliers, wire cutters, hobby knife, and desoldering brade (Fig. 2).
01-14-2009, 12:14 AM
#3
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach

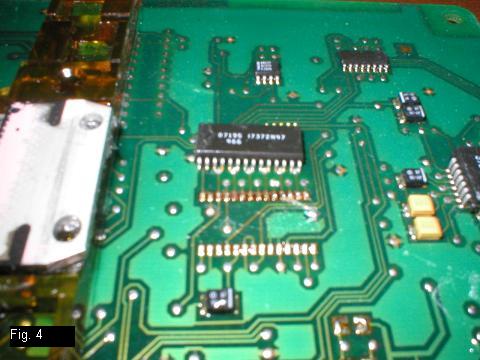

The next step is to remove the PCB from the PCMs enclosure. First, locate a suitable work area, such as a table or large sized desk with adiquate lighting. Also, if your work area is in a dry climate, a space with A/C or anywhere with a low relative humidity, its a good idea to wear a grounded wrist strap to prevent static electricity build-up. Static discharges will not only damage the flash chip, but the other ICs as well, rendering the PCM useless.
You will next need to open the PCMs enclosure. There are typically torx head screws holding the PCMs covers together. Remove these, and carefully remove the outer cover + heat sink, setting it, the screws, and weather seal aside. Next, get a damp sponge and wet paper towel ready for removing the flash chip. The sponge should be placed underneath the PCB where the flash chip is. This is to keep the bottom of the PCB cool so the surface mount components on that side will not become disloged by the heat. The paper towel should be placed over the top of the flash chip (a generic IC is shown as an example) to keep it cool (as shown in Fig. 3). Set your rework station for low to medium flow and for an output temp of 300 deg C. Carefully slip your hobby knife under one side of the flash chip and heat one set of the pins in a back and fourth motion to melt the solder and loosen that side while carefully prying the chip up with your hobby knife (Fig. 3). Once the pins get hot enough, that side of the chip will come up. Grasp the chip carefully with your pliers, and repeat the process for the other side of the chip. Once those pins have been loosended, the IC will come away completly (Fig. 4). After that, you will want to clean the solder pads off for either resoldering the chip, or installing a socket. This is accomplished by placing the desoldering brade under the heated soldering pen, and working your way across the solder pads to lift up the excess solder (Fig. 5).
You will next need to open the PCMs enclosure. There are typically torx head screws holding the PCMs covers together. Remove these, and carefully remove the outer cover + heat sink, setting it, the screws, and weather seal aside. Next, get a damp sponge and wet paper towel ready for removing the flash chip. The sponge should be placed underneath the PCB where the flash chip is. This is to keep the bottom of the PCB cool so the surface mount components on that side will not become disloged by the heat. The paper towel should be placed over the top of the flash chip (a generic IC is shown as an example) to keep it cool (as shown in Fig. 3). Set your rework station for low to medium flow and for an output temp of 300 deg C. Carefully slip your hobby knife under one side of the flash chip and heat one set of the pins in a back and fourth motion to melt the solder and loosen that side while carefully prying the chip up with your hobby knife (Fig. 3). Once the pins get hot enough, that side of the chip will come up. Grasp the chip carefully with your pliers, and repeat the process for the other side of the chip. Once those pins have been loosended, the IC will come away completly (Fig. 4). After that, you will want to clean the solder pads off for either resoldering the chip, or installing a socket. This is accomplished by placing the desoldering brade under the heated soldering pen, and working your way across the solder pads to lift up the excess solder (Fig. 5).
01-14-2009, 12:32 AM
#4
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Once you have the chip desoldered, you can now place it in your reader. One popular reader that can be used for this purpose is the xtronics pocket programmer. For around $350, the reader and needed 28FXXX adaptor can be purchased from xtronics.com (Fig. 6). Connect the reader to your PC and launch the readers software. Select the appropriate chip from the device menu, in this case, a 28F400 flash chip. The programmer interface should also have an option for how the chip should be read. Select the 8/16 reads as Hi/Lo. Insert the flash chip into the reader, and click move device, or read device. DO NOT click program or erase device, as your reader will ERASE or ALTER the flash chips contents, rendering the binary useless. Its a good idea once the read is complete to verify the downloaded buffer to the flash chip. As a final check, save the binary and open it up in either hex workshop or hex editor neo, and search for 4E75 (this is the machine code for ReTurn from Subroutine). This should come up hundreds of times. If not then either the chip didn't read correctly, or the Hi/Lo order is set incorrectly. Once you have your bin, then you can socket the PCM for development. There are a variety of sockets available, such as surface mount clamshell types, or spring loaded ZIF sockets. In Fig. 7, the PCM has been socketed with an external socket to allow for the use of AMD 29F400-BB flash chips. This allows one to edit the bin as needed without having to worry about the need for re-flashing the PCM. The stock flash chip can also be re-programmed, but its a good idea to get multiplie flash chips rather than continuously use just one.
Coming up next: Using TunerPRO 2D and 3D hex viewers to find calibration tables
Coming up next: Using TunerPRO 2D and 3D hex viewers to find calibration tables
01-15-2009, 07:41 PM
#5
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Using TunerPRO 2D and 3D hex viewers to find calibration tables
This section will be fairly short. The main reason is that only a minority of the tables can be conclusivly found using just a hex viewer. Some tables like the composite cylinder volume/engine VE tables are relatively featureless in a 3D hex viewer, leaving some doubt as to what the table is without supporting information from the actual code. Never the less, some tables can be readily found using a 2D or 3D hex viewer present in programs like TunerPro and WinOLS. Before I did any hacking, I immediatly opened the bin I was working with in TunerPro's hex viewers, and found a few tables right away. Because of this, its worth mentioning this technique as it can pinpoint some items before you even need to do any hard work.
The two examples I have chosen are the MAF flowratre table and the spark tables. These tables have distinctive shapes, and can be easily ID'd. Because the flash chip is broken into sectors, you can narrow down your search for tables. The engine calibration section typically runs from $8000 - $F000. Shown below is a breakdown of the calibration sectors within my '279:
As seen from these sections, this is where you should concentrate on.
Becuase most if not all GM PCMs use the hybrid SD/MAF fueling after 95 or so, the base MAF flowrate table is present in the calibration section of the bin. The MAF table has a very unique shape due to the fact that the flowrate increases in a parabolic fashion. This gives the MAF table a parabolic or exponetial shape. Even though TunerPRO can only show the 2D tables as 8-bit, the MAF table still shows up when you scan for it as seen below.
This section will be fairly short. The main reason is that only a minority of the tables can be conclusivly found using just a hex viewer. Some tables like the composite cylinder volume/engine VE tables are relatively featureless in a 3D hex viewer, leaving some doubt as to what the table is without supporting information from the actual code. Never the less, some tables can be readily found using a 2D or 3D hex viewer present in programs like TunerPro and WinOLS. Before I did any hacking, I immediatly opened the bin I was working with in TunerPro's hex viewers, and found a few tables right away. Because of this, its worth mentioning this technique as it can pinpoint some items before you even need to do any hard work.
The two examples I have chosen are the MAF flowratre table and the spark tables. These tables have distinctive shapes, and can be easily ID'd. Because the flash chip is broken into sectors, you can narrow down your search for tables. The engine calibration section typically runs from $8000 - $F000. Shown below is a breakdown of the calibration sectors within my '279:
Code:
; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ;-ROM sectors to perform checksum on ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; ;-Sector #0: Operating System ; LBL_$2000C: DC.L $00020000 ;Start of checksum area LBL_$20010: DC.L $00066F63 ;End of checksum area ; ;-Sector #1: Engine ; LBL_$20014: DC.L $00008000 ;Start of checksum area LBL_$20018: DC.W $0000E651 ;End of checksum area ; ;-Sector #2: Fuel System ; LBL_$2001C: DC.L $0000E652 ;Start of checksum area LBL_$20020: DC.L $0000EF93 ;End of checksum area ; ;-Sector #3: System ; LBL_$20024: DC.L $0000EF94 ;Start of checksum area LBL_$20028: DC.L $0000F0D1 ;End of checksum area ; ;-Sector #4: Speedometer ; LBL_$2002C: DC.L $0000F0D2 ;Start of checksum area LBL_$20030: DC.L $0000F109 ;End of checksum area ; ;-Sector #5: HVAC ; LBL_$20034: DC.L $000148FE ;Start of checksum area LBL_$20038: DC.L $0001491D ;End of checksum area ; ;-Sector #6: Transmission ; LBL_$2003C: DC.L $0000F10A ;Start of checksum area LBL_$20040 DC.W $000148FD ;End of checksum area
Becuase most if not all GM PCMs use the hybrid SD/MAF fueling after 95 or so, the base MAF flowrate table is present in the calibration section of the bin. The MAF table has a very unique shape due to the fact that the flowrate increases in a parabolic fashion. This gives the MAF table a parabolic or exponetial shape. Even though TunerPRO can only show the 2D tables as 8-bit, the MAF table still shows up when you scan for it as seen below.
Last edited by dimented24x7; 01-15-2009 at 07:47 PM.
01-15-2009, 07:50 PM
#6
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach

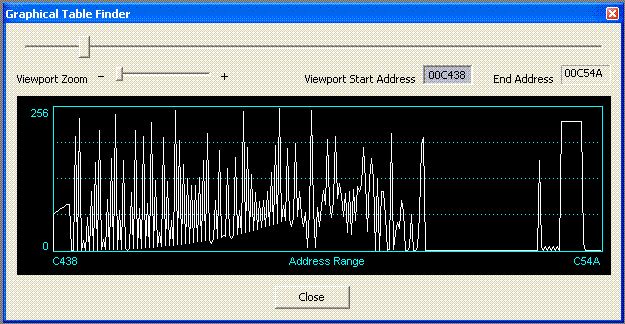

Even though it looks like noise, there is still a clear lower boundry to the table in the shape of a parabola. When I went into the bin and added a scrach XDF with the extents of the table defined, I ended up with the following graph, which is clearly the MAF table. This was confirmed later by tracing the MAF hardware input and flowrate lookup routines.
01-15-2009, 08:00 PM
#7
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach

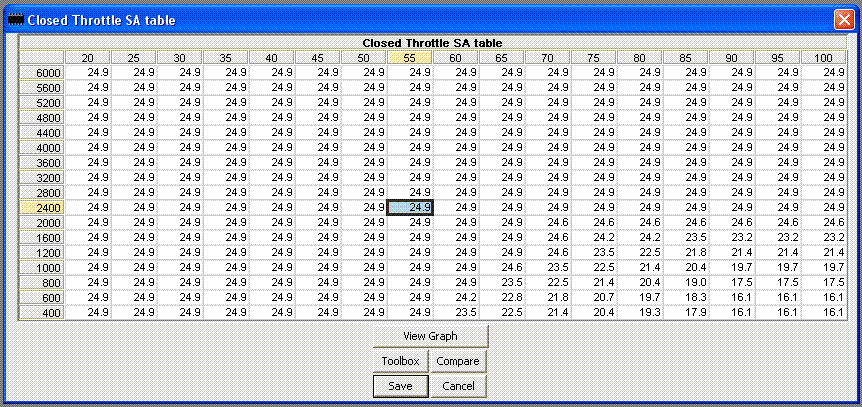

The next example is the spark tables. These are easlily ID'd due to their shape. The table will have a high peak at low kPa values that slopes down to lower values at higher kPa's. One thing to keep in mind is that you will need to adjust the size of the row and columns shown within the window due to the varying sizes of the tables. If the table looks like a mountain range (or more technically, tearing), then you will need to tweak the row and column sizes until the table doesnt show any more tearing and looks the way it should. In the first picture, there is an example of tearing due to the incorrect size of row and column values selected. The table shown is the closed throttle spark advance vs. kPa and RPMs. In the two following examples, the closed and open throttle SA tables are shown with the correct row and column values selected. Note the difference and how the tables now look like spark advance curves.
Trending Topics
01-15-2009, 08:02 PM
#8
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
So... While only some tables can be readily located using just the viewers, they are still quite useful as you can hit the ground running without even having to look at the code.
Coming up next: Documentation: What you need to read and know before starting
Coming up next: Documentation: What you need to read and know before starting
01-16-2009, 10:49 PM
#9
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Documentation: What you need to read and know before starting
Lets start with some background information on whats typically within a VPW based PCM. The main components are a custom to GM spec motorola 68332 32-bit MCU, Intel 28F400BX flash chip for code and calibration storage, and a motorola datalink controller. To really be able to understand the code and the operation of the PCM in general, you should get at least some familiarity with these three devices. Shown here is the '411 PCM with the major components labeled:
Lets start with some background information on whats typically within a VPW based PCM. The main components are a custom to GM spec motorola 68332 32-bit MCU, Intel 28F400BX flash chip for code and calibration storage, and a motorola datalink controller. To really be able to understand the code and the operation of the PCM in general, you should get at least some familiarity with these three devices. Shown here is the '411 PCM with the major components labeled:
01-16-2009, 11:32 PM
#10
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Before continuing, I packaged up all the most essential documentation into a zipfile titled 'M68332PCMDocs.zip' on moates.net. Its in the misc. uploads section on the file server. It contains documentation on the hardware discussed below.
At the heart of the PCM is the 68332 processor. This processor is geared towards automotive and robotics control. This means that there are some additional commands included such as the boxed table look up commands, and the math co-processor present in other 68XXX MPUs is instead replaced by the TPU, or timing processing unit. This is a somewhat nebuluous piece of internal hardware that you wont have direct access to in the code. Its main purpose is to independantly process timing based events such as the MAF frequency input, crank position reference pulses, etc. with the intent of reducing the load on the main processor. It has its own 'microcode' that it executes to interface with the hardware and read in the various inputs. The places where you will see it is mainly when the PCM handles timer updates and periodic input reads like the crank reference pulses and outputs, such as the injector pulsewidths for each cylinder. For the most part, this can be assumed to be a black box that you send information to, and get information back from. For more info, see the TPU reference manual. It gives some general information as to how the TPU functions.
The processor itself is the 68332 core that uses the CPU32 instruction set. This is quite a bit different than the older 68HC11. The 68HC11 has a very neat, orthogonal instruction set, meaning that each command has an opposite command. For example, there is Branch if EQual and Branch if Not Equal. This makes it very easy to remember the instructions and apply them. The CPU32 instruction set is quite a bit different. As the processor is no longer 8-bit, there needs to be a way to handle 8-bit, 16-bit, and 32-bit data and instructions. This gives rise to .B(yte), .S(hort), .W(ord) and .L(ong) extentions to all instructions. For example, a short branch instruction might be BRA.S while a long branch to some distant part of the address map might be BRA.L. This tells the processor how many of the proceeding bytes or words it needs to use to construct the address to jump to.
The machine code is also much more complex. In the older processors, all the instructions where simply single bytes with each having a value cooresponding to an instruction. In the CPU32 instruction set, the instructions are bit-field encoded, meaning that the instruction itself is a word long and the 16 individual bits encode the instruction type and addressing mode. Following the instruction are extention words that encode additional information such as the operand, base address index, etc. This gives rise to instructions that can be multiple words in length. To make things even MORE complex, the processor also supports many types of addressing modes to allow for the full flexibility needed to operate within the memory and MPU address map.
To add to your misery, the processor also has many more registers. There are eight 32-bit data registers D0-D7, eight 32-bit address registers A0-A6, with A7 typically assigned to the stack, and status and vector base registers. These are both a blessing and a curse. They are nice in that they drastically cut down on the need to use the stack. With the older MCUs, there was only registers A, B, X, and Y. This limits the kinds of operations that you can perform. With the plethora of address and index registers, many complex operations can be performed and data is readily accessible without the need to have to constantly push and pull stuff from the stack. the downside is that there is A LOT to keep track of. Its not uncommon to have a value stashed in a data register for no apparent reason, only to have it come back up hundreds of lines later in a seperate operation within a routine. This means that you need to search around a bit and keep notes as to what is being used and stored where. The other curse is that when they get together and fornicate with the addressing modes, they can give rise to some very convoluted instructions. Below is an example of this:
All in one shot, this instruction loads a value from the index in the RAM using register D2 as the index value and address $FFA44E as the base offset, and stores it in the RAM address pointed to by the label 'EXT_12A9.W'. The .W indicates to the MCU that this instruction is within the MCUs internal address map at the top of the addressing space, and not within the flash chip. It assumes that the address is preceeded by $FFFF.
All of this is not to deter you, but to give you fair warning that there is a bit of a learning curve with the CPU32 instruction set, to say the least. Its painful at first, but once you become familiar with it, its not as bad as it first seems. More can be found on this in the CPU32/programmers reference manuals. Pay close attention to these, as they are the holy bible of hacking when your working with the 68332 based PCMs.
At the heart of the PCM is the 68332 processor. This processor is geared towards automotive and robotics control. This means that there are some additional commands included such as the boxed table look up commands, and the math co-processor present in other 68XXX MPUs is instead replaced by the TPU, or timing processing unit. This is a somewhat nebuluous piece of internal hardware that you wont have direct access to in the code. Its main purpose is to independantly process timing based events such as the MAF frequency input, crank position reference pulses, etc. with the intent of reducing the load on the main processor. It has its own 'microcode' that it executes to interface with the hardware and read in the various inputs. The places where you will see it is mainly when the PCM handles timer updates and periodic input reads like the crank reference pulses and outputs, such as the injector pulsewidths for each cylinder. For the most part, this can be assumed to be a black box that you send information to, and get information back from. For more info, see the TPU reference manual. It gives some general information as to how the TPU functions.
The processor itself is the 68332 core that uses the CPU32 instruction set. This is quite a bit different than the older 68HC11. The 68HC11 has a very neat, orthogonal instruction set, meaning that each command has an opposite command. For example, there is Branch if EQual and Branch if Not Equal. This makes it very easy to remember the instructions and apply them. The CPU32 instruction set is quite a bit different. As the processor is no longer 8-bit, there needs to be a way to handle 8-bit, 16-bit, and 32-bit data and instructions. This gives rise to .B(yte), .S(hort), .W(ord) and .L(ong) extentions to all instructions. For example, a short branch instruction might be BRA.S while a long branch to some distant part of the address map might be BRA.L. This tells the processor how many of the proceeding bytes or words it needs to use to construct the address to jump to.
The machine code is also much more complex. In the older processors, all the instructions where simply single bytes with each having a value cooresponding to an instruction. In the CPU32 instruction set, the instructions are bit-field encoded, meaning that the instruction itself is a word long and the 16 individual bits encode the instruction type and addressing mode. Following the instruction are extention words that encode additional information such as the operand, base address index, etc. This gives rise to instructions that can be multiple words in length. To make things even MORE complex, the processor also supports many types of addressing modes to allow for the full flexibility needed to operate within the memory and MPU address map.
To add to your misery, the processor also has many more registers. There are eight 32-bit data registers D0-D7, eight 32-bit address registers A0-A6, with A7 typically assigned to the stack, and status and vector base registers. These are both a blessing and a curse. They are nice in that they drastically cut down on the need to use the stack. With the older MCUs, there was only registers A, B, X, and Y. This limits the kinds of operations that you can perform. With the plethora of address and index registers, many complex operations can be performed and data is readily accessible without the need to have to constantly push and pull stuff from the stack. the downside is that there is A LOT to keep track of. Its not uncommon to have a value stashed in a data register for no apparent reason, only to have it come back up hundreds of lines later in a seperate operation within a routine. This means that you need to search around a bit and keep notes as to what is being used and stored where. The other curse is that when they get together and fornicate with the addressing modes, they can give rise to some very convoluted instructions. Below is an example of this:
Code:
MOVE.W (EXT_$FFA44E.W,D2.W*2),EXT_12A9.W ;Load stored dynamic airflow from index
All of this is not to deter you, but to give you fair warning that there is a bit of a learning curve with the CPU32 instruction set, to say the least. Its painful at first, but once you become familiar with it, its not as bad as it first seems. More can be found on this in the CPU32/programmers reference manuals. Pay close attention to these, as they are the holy bible of hacking when your working with the 68332 based PCMs.
Last edited by dimented24x7; 01-17-2009 at 10:56 PM.
01-16-2009, 11:42 PM
#11
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
The next piece of hardware is the 28F400BX flash chip with 512K of NV storage space. This is sort of neat in that its not only memory, but it also has its own little internal microprocessor. During normal operation, it operates as regular memory adressable from $000000 - $7FFFFF. During a reflash, though, the PCM places it in a special mode that allows the PCM to send instructions and data to erase and program the blocks of memory. You wont see much of this in the code, except early on when the PCM inits the chip. No reflash commands or routines are present in the code (for obvious reasons). Any reflash routines have to be loaded as memory resident programs sent thru the OBD-II bus (much like your PC loading a program from the HD) and executed by routines that require you to present a valid security key. More on the chips operation and internal instructions can be found in the 28F400BX information document.
01-17-2009, 12:07 AM
#12
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
The last major piece of hardware is the VPW datalink controller (DLC). The DLC is seen in the picture above next to the blue viagra looking thing, which is its ceramic resonator that provides the clock signal for the DLC.
The datalink controller handles all the communications on the VPW bus with only top level control from the MCU. The reason for this is two-fold. First, the VPW, and later CAN buses aren't just for hooking up your laptop to datalog. These are actually local area networks, with many of the cars devices using the network to communicate with eachother. For instance, in the later CAN based cars, the body control module, powertrain control module, dashboard, driver information center, radio, etc. aren't hooked with individual wires. Instead, each device sends out requests for data over the network. For instance, your speedometer doesnt get a pulsetrain from the PCM, instead, the cluster sends out requests for the relevant data from the BCM and PCM, and relays it via the position of the needles on the 'analog' gauges. This means that there is a good deal of data streaming around. The MCU would need to expend a tremendous ammount of processing power to handle all the individual communications. The second reason is the requirements for the VPW and J1850 bus waveforms and timing. The DLC has special internal circuitry to provide the correct waveforms and timing for the 1x and 4x communications modes.
From the code standpoint, the DLC appears as two FIFO (first in, first out) hardware buffers. In my '279, the DLCs buffers are located at $FF9000 and $FF9001 (I will go into more detail on its operation later...). Basically, the DLC reads in frames of data off of the bus, and stores them internally. When it detects one or more complete frames of data, it issues an interrupt to the MCU. The MCU then spools the data from the recieve buffer on the DLC, interprets it, and if needed, uploads a response frame to the DLCs transmit buffer along with instructions. The DLC then autonomously transmits the datafram from the MCU over the VPW network, and the whole process repeats again. The reason that the DLC is so important is that it not only is the link with the PCM, but it also gives you a way to find out where the basic things such as O2 volts, mass airflow rate, kPa MAP, etc. are stored within the PCMs address map. This is a crucial first step that you need to take to reverse a PCM (again, much more on this to follow). In the information packet, I included the MC68HC58 users manual. The actual DLC used in each PCM varies, but the user manual will give you a good idea of how the DLC works and how the MCU interfaces with it and is a very good introduction.
Coming up next: Using the J1850 communication bus/Datalink Controller and SAE standards to unlock the basic engine parameters and hardware I/O
The datalink controller handles all the communications on the VPW bus with only top level control from the MCU. The reason for this is two-fold. First, the VPW, and later CAN buses aren't just for hooking up your laptop to datalog. These are actually local area networks, with many of the cars devices using the network to communicate with eachother. For instance, in the later CAN based cars, the body control module, powertrain control module, dashboard, driver information center, radio, etc. aren't hooked with individual wires. Instead, each device sends out requests for data over the network. For instance, your speedometer doesnt get a pulsetrain from the PCM, instead, the cluster sends out requests for the relevant data from the BCM and PCM, and relays it via the position of the needles on the 'analog' gauges. This means that there is a good deal of data streaming around. The MCU would need to expend a tremendous ammount of processing power to handle all the individual communications. The second reason is the requirements for the VPW and J1850 bus waveforms and timing. The DLC has special internal circuitry to provide the correct waveforms and timing for the 1x and 4x communications modes.
From the code standpoint, the DLC appears as two FIFO (first in, first out) hardware buffers. In my '279, the DLCs buffers are located at $FF9000 and $FF9001 (I will go into more detail on its operation later...). Basically, the DLC reads in frames of data off of the bus, and stores them internally. When it detects one or more complete frames of data, it issues an interrupt to the MCU. The MCU then spools the data from the recieve buffer on the DLC, interprets it, and if needed, uploads a response frame to the DLCs transmit buffer along with instructions. The DLC then autonomously transmits the datafram from the MCU over the VPW network, and the whole process repeats again. The reason that the DLC is so important is that it not only is the link with the PCM, but it also gives you a way to find out where the basic things such as O2 volts, mass airflow rate, kPa MAP, etc. are stored within the PCMs address map. This is a crucial first step that you need to take to reverse a PCM (again, much more on this to follow). In the information packet, I included the MC68HC58 users manual. The actual DLC used in each PCM varies, but the user manual will give you a good idea of how the DLC works and how the MCU interfaces with it and is a very good introduction.
Coming up next: Using the J1850 communication bus/Datalink Controller and SAE standards to unlock the basic engine parameters and hardware I/O
Last edited by dimented24x7; 01-17-2009 at 12:12 AM.
01-19-2009, 10:34 PM
#13
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Using the J1850 communication bus/Datalink Controller and SAE standards to unlock the basic engine parameters and hardware I/O
I'll probably present this in multiple sections as its a long topic. Before getting started, its recommended that you get the SAE docs if possible. The two most important ones are J1979 - Dignostic Test Modes, and J2178 - Class B Communication Network Messages - Detailed Header Formats and Physical Address Assignments. They are essential to have. These are only available for purchase from the SAE and are licensed on a by user basis, so I can't post them up. I also cannot post any diagrams from them (copywrite) so unfortunatly there wont be too many diagrams. Also, its a good idea to take a look at the OBD 1 and II hardware message board on HP Tuners. LOTS of great info available there. Also, dont forget to check out my hack in my other OBD-II thread here at TGO. That contains a lot of the OBD-II functional and physical routines with full comments.
In every VPW PCM there are routines that are mandated by SAE. One of them is basic diagnostics parameters so that all service stations will be able to at least have some way to perform diagnostics. Pardon my french, but IMO, the minumum mandates are ****. They only give you a bare bones ammount of functionality. Never the less, even though they dont give you a lot, they give you enough to get started. The other half of the puzzle is the diagnostic trouble codes. Within the PCMs, there is a large index table that contains all the powertrain DTCs supported by the PCM. This is important because it can give you some hints as to what memory and hardware addresses are assocaited with what inputs and outputs.
Lets first take a look at how the OBD message structure works. On the VPW network, all messages have a three byte header. This header tells the nodes (the PCM, TCM, BCM, etc.) the information about the message, who it is addressed to, and who it originated from. The first byte in the three byte format contains the bitwise encoded information about the message. This information is the messages priority, whether or not an immediate response is required, the type of addressing (functional or physical), and specific message type.
The second header byte contains the target address of the message being sent. This lets the specific nodes know who the message is for. This is important as ALL the nodes on the network will get the message, even the node thats sending the message. For example the PCMs base address is $10, while the address for all nodes on the network is $FE. The third byte is the address of the sender that the message originated from. The rest of the message is composed of the data fields and finally the CRC bit, which is used for error checking.
Lets next take a look at the addressing and modes. Physical addressing is primarily used for sending actual data. Such data might be to request a block of data to be read from the ROM, secure data link address, or control of a specific device controlled by the PCM. The physical messages are important mainly from the standpoint of gaining access to the PCM for flashing, but have other purposes as well. The OBD-II mode for physical address requests can be found in the first data byte after the three byte header. Below is a list of the typical OBD-II modes, which are in this case the ones supported by my PCM.
I'll probably present this in multiple sections as its a long topic. Before getting started, its recommended that you get the SAE docs if possible. The two most important ones are J1979 - Dignostic Test Modes, and J2178 - Class B Communication Network Messages - Detailed Header Formats and Physical Address Assignments. They are essential to have. These are only available for purchase from the SAE and are licensed on a by user basis, so I can't post them up. I also cannot post any diagrams from them (copywrite) so unfortunatly there wont be too many diagrams. Also, its a good idea to take a look at the OBD 1 and II hardware message board on HP Tuners. LOTS of great info available there. Also, dont forget to check out my hack in my other OBD-II thread here at TGO. That contains a lot of the OBD-II functional and physical routines with full comments.
In every VPW PCM there are routines that are mandated by SAE. One of them is basic diagnostics parameters so that all service stations will be able to at least have some way to perform diagnostics. Pardon my french, but IMO, the minumum mandates are ****. They only give you a bare bones ammount of functionality. Never the less, even though they dont give you a lot, they give you enough to get started. The other half of the puzzle is the diagnostic trouble codes. Within the PCMs, there is a large index table that contains all the powertrain DTCs supported by the PCM. This is important because it can give you some hints as to what memory and hardware addresses are assocaited with what inputs and outputs.
Lets first take a look at how the OBD message structure works. On the VPW network, all messages have a three byte header. This header tells the nodes (the PCM, TCM, BCM, etc.) the information about the message, who it is addressed to, and who it originated from. The first byte in the three byte format contains the bitwise encoded information about the message. This information is the messages priority, whether or not an immediate response is required, the type of addressing (functional or physical), and specific message type.
The second header byte contains the target address of the message being sent. This lets the specific nodes know who the message is for. This is important as ALL the nodes on the network will get the message, even the node thats sending the message. For example the PCMs base address is $10, while the address for all nodes on the network is $FE. The third byte is the address of the sender that the message originated from. The rest of the message is composed of the data fields and finally the CRC bit, which is used for error checking.
Lets next take a look at the addressing and modes. Physical addressing is primarily used for sending actual data. Such data might be to request a block of data to be read from the ROM, secure data link address, or control of a specific device controlled by the PCM. The physical messages are important mainly from the standpoint of gaining access to the PCM for flashing, but have other purposes as well. The OBD-II mode for physical address requests can be found in the first data byte after the three byte header. Below is a list of the typical OBD-II modes, which are in this case the ones supported by my PCM.
Code:
; ;========================================================================= ; -List of recognized OBD-II modes- ; ; Mode $12, ??? ; Mode $14, Clear Diagnostic Information ; Mode $17, Request Status of Diagnostic Trouble Codes ; Mode $19, Request DTC Information by Status ; Mode $20, Return to Normal Mode ; Mode $22, Request Diagnostic Data by PID ; Mode $25, ??? ; Mode $27, Data Link Security Access ; Mode $28, Disable Normal Message Transmission ; Mode $29, Enable Normal Message Transmission ; Mode $2A, Request Diagnostic Data Packets ; Mode $2C, Define Diagnostic Data Packet ; Mode $34, Request Download ; Mode $35, Request Upload ; Mode $36, Block Transfer Message ; Mode $3B, Request to Write Data Block ; Mode $3C, Request to Read Data Block ; Mode $3F, Test Device Present ; Mode $76, Response To Block Transfer Message ; Mode $A0, Request High Speed Mode ; Mode $A1, Begin High Speed Mode ; Mode $A8, ??? ; Mode $AE, Request Device Control ; ;========================================================================== ;
01-19-2009, 11:17 PM
#14
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
The next type of address is functional addressing. This is the addressing used during such things as scantool diagnostics. The header formatting is a little different for functional messages. The diagnostics message format for a request from a device such as a scantool is as follows: $68, $6A, $F1, [databyte #1: service request], [databyte #2], ... [databyte #N]. The $F1 indicates that the request is originating from an offboard device, such as a scantool hooked to the OBD port. The service requiest indicates which service is requiested, such as a PID value, or the vehicle information like the VIN. The most important are the PIDs. These are basically like the ALDL data sent from the earlier ECMs.

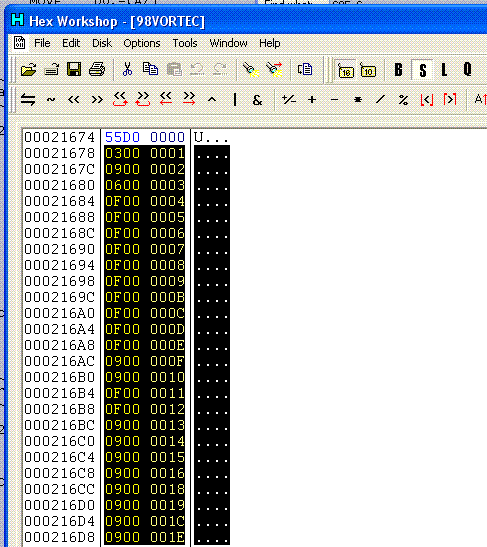

Lets take a closer look at the PIDs. They are the most important to you if you are hacking. Each PID is requested one at a time in a sequential fashion. Once the PCM recieves a request, it takes the recieved frame and reads in the requested PID. Then, using an index of supported PIDs, it locates the internal routine associated with that PID, and executes it. The routine properly formats the data, loads it into the buffer, and then sends the response message with the requested PID to the scantool.
Heres an example: Say the scantool requests the Mass airflow rate. The frame from the scantool would be: $68 $6A $F1 $01 $10, with $10 being the PID for the mass airflow rate. The PCM then responds with: $48, $6B, $10, $41, $10, [MSB MAF], [LSB MAF]. The nice thing about this is that the SAE dictates what the scaling shall be for all the data sent thru the OBD-II port for the PIDs. The rational behind this is so each scan tool will display the data correctly regardless of what units are used within the PCM. For this example, the mass airflow rate is given with a scaling of .01 grams/second. Since we know what the units are of the data being sent, and we also know the location of the routine that sent the mass airflow, we can simply work the equations within the routine backwards. In this case, it turns out that the PCM stores the mass airflow rate as grams/second x 81.92 in the RAM at an address of $FF9CD4. This required no tracing through the PCMs hardware or detailed knowledge of the processor to locate it. All we had to do was simply look at the routine that handles the message. So, you can see how powerful a tool this can be.
Next, I'll go into more detail on how the OBD-II requests are handled within the PCM. To be continued...
Lets take a closer look at the PIDs. They are the most important to you if you are hacking. Each PID is requested one at a time in a sequential fashion. Once the PCM recieves a request, it takes the recieved frame and reads in the requested PID. Then, using an index of supported PIDs, it locates the internal routine associated with that PID, and executes it. The routine properly formats the data, loads it into the buffer, and then sends the response message with the requested PID to the scantool.
Heres an example: Say the scantool requests the Mass airflow rate. The frame from the scantool would be: $68 $6A $F1 $01 $10, with $10 being the PID for the mass airflow rate. The PCM then responds with: $48, $6B, $10, $41, $10, [MSB MAF], [LSB MAF]. The nice thing about this is that the SAE dictates what the scaling shall be for all the data sent thru the OBD-II port for the PIDs. The rational behind this is so each scan tool will display the data correctly regardless of what units are used within the PCM. For this example, the mass airflow rate is given with a scaling of .01 grams/second. Since we know what the units are of the data being sent, and we also know the location of the routine that sent the mass airflow, we can simply work the equations within the routine backwards. In this case, it turns out that the PCM stores the mass airflow rate as grams/second x 81.92 in the RAM at an address of $FF9CD4. This required no tracing through the PCMs hardware or detailed knowledge of the processor to locate it. All we had to do was simply look at the routine that handles the message. So, you can see how powerful a tool this can be.
Next, I'll go into more detail on how the OBD-II requests are handled within the PCM. To be continued...
01-22-2009, 09:01 PM
#15
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Now lets take a look at how the OBD communications are handled within the PCM. Below are the addresses of the two FIFO buffers within the DLC.
These can actually be located by tracing the address pins on the MCU itself. If you look that the address leads leading from the DLC, you can trace them back to the flash chip/MCU and find them within the address space.
In my PCM, the DLC's interrupt pin is mapped to the level 1 interrupt. This gives the DLC a pretty high interrupt priority, meaning that it will pretty much always be serviced right away. Once the DLC has detected that it has a frame or a buffer nearing its capacity, it will generate an interrupt. The PCM will then jump to that interrupt to service the DLC. The first byte read in is the status byte. This byte is read ahead of the actual OBD data frame, can be read at any time, and gives the status of the last transmission to the MCU. The status encoded includes whether there is a complete frame, if the data is valid or the buffer is empy, if a completion code was recieved, etc. A complete description can be found in the 68HC58 reference manual. Below is an exerpt of the routine that handles the interrupt and read-in of the status byte and data. It loads the address of the routine that handles the VPW serial communications, and then goes and executes it.
As we can see, from the code, the first thing the MCU does is read in the status bit from the DLC. This will tell the MCU if it has a valid data frame present. If the data frame is not valid, or the data is a long stream of bytes originating from an offboard device, the PCM spools the contents of the buffer in to empty the buffer and takes any needed actions. If the PCM sees that there is a completion code and valid data available, it will then go and process that data as seen below
Code:
EXT_1060 EQU $FFFF9000 ;OBD VPW Rx FIFO hardware buffer EXT_1061 EQU $FFFF9001 ;OBD VPW Tx FIFO hardware buffer
In my PCM, the DLC's interrupt pin is mapped to the level 1 interrupt. This gives the DLC a pretty high interrupt priority, meaning that it will pretty much always be serviced right away. Once the DLC has detected that it has a frame or a buffer nearing its capacity, it will generate an interrupt. The PCM will then jump to that interrupt to service the DLC. The first byte read in is the status byte. This byte is read ahead of the actual OBD data frame, can be read at any time, and gives the status of the last transmission to the MCU. The status encoded includes whether there is a complete frame, if the data is valid or the buffer is empy, if a completion code was recieved, etc. A complete description can be found in the 68HC58 reference manual. Below is an exerpt of the routine that handles the interrupt and read-in of the status byte and data. It loads the address of the routine that handles the VPW serial communications, and then goes and executes it.
Code:
; ;~~~~~~~~~~~~~~~~~~~~~~~~~~ ; ; Level 1 interrupt vector ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~ ; LBL_$56BD4: ORI #$0700,SR ;Disable interrupts MOVEM.L D0-D7/A0-A6,-(A7) ;Move data and address regs. to stack CLR -(A7) ;Clear word on stack MOVEA.L #$00049BF2,A0 ;Address of VPW serial service routine BRA.S LAB_2815 ;Bra to continue .... ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; ; Routine to load recieved OBD VPW serial data ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; LBL_$49BF2: LINK A6,#-6 ;Link and allocate space on stack MOVEM.L D0-D2/A0,-(A7) ;Move data/addr. regs to stack MOVE SR,-(A7) ;Move status register to stack ORI #$0700,SR ;Disable interrupts MOVE.B EXT_1060.W,D0 ;Load frame status byte from Rx FIFO ...
Code:
; ;-Check if completion code available ; LSR.B #5,D3 ;Shift right to isolate upper 3 bits MOVEQ #2,D1 ;Move 2 into D1 CMP.B D3,D1 ;Compare to recieve status BEQ.S LAB_1F5B ;Bra if ==, buffer contains a completion code ... ; LAB_1F5B: JSR EXT_0C93 ;Routine to read in OBD serial data ...
01-22-2009, 09:18 PM
#16
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
The PCM does not service the request right away, instead it loades the data into a cyclitic data buffer that holds several OBD data frames. The only time you will see the PCM actually service the dataframe right away is in the boot kernal when the PCM is doing no other external processes other than servicing the OBD port. During normal operations, however, the PCM is controlling the engine and transmission in real time, so the PCM only has time to service the TX/RX buffers within the DLC. The end result of this is that you wont see the PCM immediatly go and send a PID or some other request. Instead, it spools the data into the buffer as seen below:
So, as long as there is data, the PCM keeps looping and streaming it to the OBD data buffer. Once it is done, it terminates the routine, and moves on. What this means from the standpoint of locating the PIDs is that there is not one single routine that you can go to and say 'Aha! found it!'. Instead, the routines that handle the OBD functional and physical messages are spread out through the code and the execution of them is handled by main scheduling routines.
Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
; Routine to upload OBD serial data frame to OBD data buffer
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LBL_$51FB6:
LINK A6,#-2 ;Link and allocate space on stack
MOVEM.L D0-D2/D5/A0-A1,-(A7) ;Move addr. and data regs. to stack
...
LAB_24F0:
JSR EXT_0CF0 ;Routine to load OBD serial data from Rx buffer
...
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
; No errors detected, advance OBD Rx data buffer
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LAB_24F4:
TST.B EXT_1B5E.W ;OBD data buffer read/write collision flag
BEQ.S LAB_24F5 ;Bra if ==0, no overruns detected
;
;-Read/write collision flagged
;
MOVEQ #1,D2 ;Load 1 to exit routine
BRA LAB_24FD ;Bra to return
;
;-Check to see if buffer pointer needs to be rewound
;
LAB_24F5:
MOVEA.L EXT_1B5C.W,A0 ;Load start addr of OBD data frame
MOVEA.L A0,A1 ;Move to A1
MOVE.L A1,D0 ;Move to D0
MOVE.L EXT_1B5D.W,D3 ;Load OBD Rx data buffer pointer
SUB.B D0,D3 ;Subtract previous position from current position,
;now # of bytes in previous frame
MOVE.B D3,(A0) ;Save size of last frame to beginning of frame in
;buffer
MOVE.L EXT_1B5D.W,D0 ;Load OBD data buffer write pointer
ADDQ.L #1,D0 ;+1, advance to start of next frame
MOVE.L D0,EXT_1B5D.W ;Save pointer
MOVEA.L #$00FFB318,A0 ;Load base addr. of OBD data buffer
MOVEQ #47,D3 ;47 bytes, position of last OBD serial data frame
ADD.L A0,D3 ;Add in to current data frame position
CMP.L D0,D3 ;Compare current position to position of last data
;frame
BCC.S LAB_24F6 ;Bra if <=, enough space for an additional frame
;
;-End of buffer reached, rewind to beginning of buffer
;
MOVE.L A0,EXT_1B5D.W ;Load base address into write pointer
;
LAB_24F6:
MOVE.L EXT_1B5D.W,D3 ;Load OBD data buffer write pointer
CMP.L EXT_1B5B.W,D3 ;Compare to OBD data buffer frame pointer
BNE.S LAB_24F7 ;Bra if !=, no collisions detected
;
;-Read/write collision detected
;
MOVE.B #$01,EXT_1B5E.W ;Load with 1, flag read/write collision
;
LAB_24F7:
MOVE.L EXT_1B5D.W,EXT_1B5C.W ;Save write pointer as start addr. of current OBD
;data frame
JSR EXT_0F51 ;520B6: 4EB900066128
BRA.S LAB_24FD ;Bra to continue
...
LAB_24FD:
TST.B D2 ;Test terminate read-in flag
BEQ LAB_24F0 ;Bra if ==0, continue reading in data Last edited by dimented24x7; 01-23-2009 at 03:20 AM.
01-22-2009, 09:26 PM
#17
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
In the next set of posts, I will go over how the PCM goes about reading in the frames from the buffer and carrying out the requests. I'll do some reaserch to try and distill the essence of this and go through the routines that handle the read in of the PIDs and other important items.
To be continued...
To be continued...
01-25-2009, 09:38 PM
#18
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Ok... This part was a bit confusing. I remember having a hard time with this early on when I was working on the OBD data transmission stuff. Hopefully, I can present it in a way that makes sense.
From the code above, there are two pointers used for the OBD data buffer, one for writing, and one for reading. Before, we were looking at the one used for writing to the buffer, which is EXT_1B5C. We also know that there is one used for reading from the buffer as well. This one is EXT_1B5B. It would be logical to assume that when this address is used, that we would likely find the other half of the OBD routines that process the requests. With some searching, this proved to be the case. Below is the header of the routine that starts the process of reading in the frame:
Now, before talking about this its worth discussing how each frame is stored in the buffer. There are no pre-defined addresses for each frame, its just put into the buffer as they are recieved on a constant cycling fasion. At the start of each frame, the PCM places a single byte size of the frame so the PCM knows how much space the frame occupies. The buffer looks something like this:
|size of frame #1|OBD frame 1|size of frame #2|OBD frame 2| ...
This way, the PCM knows how far to read into the buffer to obtain the needed data. In the code above, the PCM first checks the read and write buffers to make sure they are not both pointing to the same address. If they are, the PCM checks if the collision flag has been set. If it has, the PCM attempts to process the request, anyway. If not, then the buffer is assumed to not be initialized or empty, and the PCM exits the routine.
To process the request, the PCM loads the needed data and jumps to the end of the routine as shown below:
If the address was not cleared (IOW, the buffer has valid data in it), the PCM will jump to process the request. If not, it simply exits. The code that does the initial process of the message is below
The PCM starts off by checking if the message is functional (the type that send the mode requests) or physical (the type to send actual data). If you recall, the address of the current message frame was saved to the temporary space in the stack at position (-14,A6). The PCM again indexes this address into addr. register A4 and looks one ahead to load in the first header byte (remember, the first byte is the size of the frame itself). From the discussion above, in the three byte header format, the first byte encodes what type of message it is. The PCM checks to see if the message is a functional or physical request, and jumps to the appropriate scheduling routine to process the request.
From the code above, there are two pointers used for the OBD data buffer, one for writing, and one for reading. Before, we were looking at the one used for writing to the buffer, which is EXT_1B5C. We also know that there is one used for reading from the buffer as well. This one is EXT_1B5B. It would be logical to assume that when this address is used, that we would likely find the other half of the OBD routines that process the requests. With some searching, this proved to be the case. Below is the header of the routine that starts the process of reading in the frame:
Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
; Routine to process OBD VPW data frames in buffer
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LBL_$399E8:
LINK A6,#-14 ;Link and allocate space on stack
MOVEM.L D0-D2/D5-D7/A0-A1/A4,-(A7) ;Move data and addr. regs to stack
MOVE.L EXT_1B5B.W,D7 ;Load D7 with OBD serial data buffer frame pointer
CMP.L EXT_1B5C.W,D7 ;Compare to Start of current OBD serial data frame
;being written to buffer
BNE.S LAB_128B ;Bra if !=, no collision detected
;
;-Collision detected
;
TST.B EXT_1B5E.W ;Test read/write collision flag
BNE.S LAB_128B ;Bra if !=, continue anyway
;
;-Buffer has yet to be initialized
;
MOVEA #$0000,A4 ;Clear addr., no valid OBD data frame available
BRA.S LAB_128C ;Bra to contintue
;
LAB_128B:
MOVEA.L EXT_1B5B.W,A4 ;Load A4 with OBD serial data buffer frame
;pointer, now addr. of frame to be read
;
;-Transfer params to stack
;
LAB_128C:
MOVE.L A4,(-14,A6) ;Move frame pointer to stack
MOVE.L A4,(-14,A6) ;Move frame pointer to stack
MOVE.L A4,D7 ;Move frame pointer to D7
TST.L D7 ;Test frame pointer
BRA LAB_12B6 ;Bra to conitnue
... |size of frame #1|OBD frame 1|size of frame #2|OBD frame 2| ...
This way, the PCM knows how far to read into the buffer to obtain the needed data. In the code above, the PCM first checks the read and write buffers to make sure they are not both pointing to the same address. If they are, the PCM checks if the collision flag has been set. If it has, the PCM attempts to process the request, anyway. If not, then the buffer is assumed to not be initialized or empty, and the PCM exits the routine.
To process the request, the PCM loads the needed data and jumps to the end of the routine as shown below:
Code:
...
;
LAB_12B6:
BNE LAB_128D ;Bra if !=, valid OBD data frame available
;for use
;
;-No data frame available, return
;
MOVEM.L (A7)+,D0-D2/D5-D7/A0-A1/A4 ;Restore data and addr. regs
UNLK A6 ;Unallocate space on stack
RTS ;Return Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
; Here if new OBD data frame available, decode message
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LAB_128D:
CLR.B D5 ;Preclear D5
CLR.B (-10,A6) ;Preclear message type flag
CLR.L (-8,A6) ;39A20: 42AEFFF8
MOVEA.L (-14,A6),A4 ;Move start addr. of OBD data frame to A4
MOVE.B (1,A4),D1 ;Load D1 with first header byte
MOVE.L D1,D2 ;Move first header byte to D2
ANDI.B #$1F,D2 ;Mask lower 5 bytes
ANDI.B #$1C,D1 ;Mask b2-b4
MOVE.B (4,A4),D0 ;Load D0 with requested mode #
MOVE.B D0,D6 ;Move requested mode to D6 as well
ANDI.B #$40,D6 ;Mask out all but b6, set if response from PCM
;to external node
CMPI.B #$0C,D2 ;01100, physical addressing message recieved
BNE.S LAB_1291 ;Bra if !=, functional message recieved Last edited by dimented24x7; 01-25-2009 at 11:02 PM.
01-25-2009, 09:51 PM
#19
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Now, the routine that is of interest is the one that processes the functional requests. These requests are typically grouped by modes. Below are the typical diagnostic modes used on OBD-II systems:
Mode 01 Data stream (sensor readings and switch status)
Mode 02 Freeze-frame data (if DTCs are present)
Mode 03 Diagnostic Trouble Codes
Mode 04 Clear codes and freeze-frame data
Mode 05 Oxygen sensor monitor
Mode 06 Non-continuous monitors (EVAP, catalyst, EGR, etc.)
Mode 07 Continuous monitors
Mode 08 Bidirectional communication (onboard tests)
Mode 09 Vehicle VIN, PCM calibration, etc.
Mode 01 is the one we are most interested in. This one is used to transmit the scantool data. Now, lets take a look at how the PCM continues to process a functional message:
The PCM checks first to see that it is a function command, and then it does something important. It compares the SECOND header byte to $6A. If you recall, a scantool request starts with the two bytes $68, $6A. The PCM is checking for that $6A, and if it sees this, it sets D2 to 2 to signal a diagnostics request. Bingo, we hit paydirt!
Mode 01 Data stream (sensor readings and switch status)
Mode 02 Freeze-frame data (if DTCs are present)
Mode 03 Diagnostic Trouble Codes
Mode 04 Clear codes and freeze-frame data
Mode 05 Oxygen sensor monitor
Mode 06 Non-continuous monitors (EVAP, catalyst, EGR, etc.)
Mode 07 Continuous monitors
Mode 08 Bidirectional communication (onboard tests)
Mode 09 Vehicle VIN, PCM calibration, etc.
Mode 01 is the one we are most interested in. This one is used to transmit the scantool data. Now, lets take a look at how the PCM continues to process a functional message:
Code:
; LAB_1290: MOVE.B D2,(-10,A6) ;Move message type flag to stack BRA LAB_129B ;Bra to continue ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; Functional message recieved ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; LAB_1291: MOVEQ #8,D6 ;Set b3 in D6 CMP.B D2,D6 ;Compare to lower 5 bytes of first header byte BNE.S LAB_1292 ;Bra if !=, function command/status not recieved ; ;-Function command/status recieved ; CMPI.B #$6A,(2,A4) ;Compare value for diagnostic request to header byte 2 BNE.S LAB_1292 ;Bra if !=, diagnostic request not recieved ; ;-Diagnostic request recieved ; MOVEQ #2,D2 ;Move 2 to D2 to flag diagnostic request BRA.S LAB_1290 ;Bra to continue
Last edited by dimented24x7; 01-25-2009 at 11:00 PM.
01-25-2009, 10:03 PM
#20
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Now that we found the part of the routine that processes the scantools request, lets see what it does next:
This is the target jumped to in the code after the PCM has determined that it has a functional or physical message to process. Remember that the address (-10,A6) pointed to on the space allocated in the stack contains the message type flag. If the message was a functional diagnostics request, it was set to '2', otherwise, for a physical request, it is set to '1'. The message type flag is loaded from the temporary stack address at (-10,A6) into D1. We know that when a functional scantool request is received, this flag is set to '2'. We can find the routine that handles the request by looking at the following line of code from above:
The two addresses stored at $2330E are $39C60 and $39C98. Since we know that the message flag was set to '2', the routine we need to next look at is $39C98.
Code:
... ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; Here when functional or physical message recieved ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; LAB_129B: MOVEA.L (-8,A6),A1 ;39C16: 226EFFF8 MOVE.B (-10,A6),D1 ;Move message flag to D1 ; ;-Test functional target request type ; MOVEA.L A4,A0 ;Move start addr. of OBD data buffer to A0 BTST #0,(2,A0) ;Test functional target addr. type SNE D3 ;Signal if !=0, status request recieved NEG.B D3 ;Invert result ASL.B #1,D3 ;Shift left 1, result in b1 ; ;-Test message type ; BTST #0,(1,A0) ;Test b0 of first header byte SNE D0 ;Signal if !=0, physical message recieved NEG.B D0 ;Invert reselt ASL.B #2,D0 ;Shift left 2, result in b2 ADD.B D3,D0 ;Add in previous result ; ;-Check to make sure a physical or fuctional request has been recieved ; BTST #6,(4,A0) ;Test b6 of first data byte SNE D3 ;Signal if !=0, NEG.B D3 ;Invert result ADD.B D3,D0 ;Add in result MOVE.L A1,(-4,A6) ;Save to stack ANDI #$00FF,D1 ;Clear all but lower byte of message flag CMPI #$0001,D1 ;Compare to value for physical message flag BCS LAB_12B2 ;Bra if <, no physical or functional message recieved ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; Schedule appropriate routine to process request ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; MOVE.L ($2330E,D1.W*4),A0 ;Index addr. of routine to process the request MOVE A6,-(A1) ;39C5C: 330E JMP (A0) ;Jump to execute routine ...
Code:
MOVE.L ($2330E,D1.W*4),A0 ;Index addr. of routine to process the request
Last edited by dimented24x7; 01-25-2009 at 11:03 PM.
01-25-2009, 10:32 PM
#21
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Here is that routine that processes the functional request:
Those of you who know assembly will notice the 'JSR EXT_0C77' command. The PCM is yet again jumping to another routine! Following these routines is sort of like catching a connecting flight at Chicago O'Hare International Airport. Theres a whole lot of running around in a short period of time to get there...
So, we have to continue with routine EXT_0C77. Hopefully, we're getting a little closer. Below is the routine:
Remember that in a scantool request, the first databyte after the three byte header contains the diag. mode requested. From the above code, the PCM checks to see if the mode falls between mode 1-8. If it does, the PCM then uses that mode # to index the routine to process the request. It then jumps to process that routine (yes, I know, another routine). If we look at addr. $239DE, we see that the routine that is in question for mode 1 requests is located at $4F42C. That routine is shown below:
I dont know about you, but Im getting tired of all this jumping around. There must be a short cut to find the routine. By now, you'd even have trouble remembering what you where looking for in the first place (in case you really did forget, its the PIDs). There is indeed a short cut... Look at LAB_231F. If you notice, the PCM is indexing the OBD message frame. In a mode 1 diagnostics request, the requested PID # is always the 5th byte in. With the message size at the head of each frame, this is the 6th byte in the buffer, or current index + 5. Commands:
shows us that the PCM saves the requested PID # to the RAM. This is something we can use to cut right to the chase. We no longer need to look at the endless indexed routines and endless jumps and branches to find our way there, we can simply search for address EXT_199F to find the code that uses that PID to process the request.
Next, I will go into the actual routines that look up the PIDs and process them. To be continued...
Code:
; ;*************************************************** ; ; Routine to process functional diagnostic request ; ;*************************************************** ; LBL_$39C98: CMPI.B #$03,(A4) ;Compare to OBD frame message length BLS LAB_12B2 ;Bra if message <= 3, message too short ; MOVEA.L EXT_1B5B.W,A0 ;Load OBD message frame pointer MOVE.B (1,A0),D0 ;Load first header byte LSR.B #5,D0 ;Isolate upper 3 bits, priority of message MOVE.B D0,EXT_1B5A.W ;Save OBD message priority MOVE.B (3,A4),EXT_1B58.W ;Load 3rd header byte into RAM MOVE.B (4,A4),D0 ;Load D0 with first data byte JSR EXT_0C77 ;Routine to process OBD functional mode request ...
So, we have to continue with routine EXT_0C77. Hopefully, we're getting a little closer. Below is the routine:
Code:
;
;************************************************
;
; Routine to process OBD functional mode request
;
;************************************************
;
LBL_$4F40A:
MOVEM.L D1-D2/D5/A0,-(A7) ;Move addr. and data regs. to stack
ANDI #$00FF,D0 ;Mask out lower byte of first data byte,
;requested diag. mode
CMPI #$0001,D0 ;Compare to mode 1
BCS LAB_232F ;Bra if <
;
CMPI #$0008,D0 ;Compare to mode 8
BHI LAB_232F ;Bra if >
;
;-Valid mode presented
;
MOVE.L ($239DE,D0.W*4),A2 ;Index routine to process mode request
JMP (A2) ;Jump to execute routine Code:
; ;************************************ ; ; Routine to process mode 1 requests ; ;************************************ ; LBL_$4F42C: MOVE.L EXT_1B5B.W,D2 ;Load OBD data frame pointer CMP.L EXT_1B5C.W,D2 ;Load start of OBD data frame being saved to buffer BNE.S LAB_231E ;Bra if != ; ;-Check for possible read/write collision ; TST.B EXT_1B5E.W ;Read/write collision flag BNE.S LAB_231E ;Bra if !=, continue with read in ; MOVEA #$0000,A0 ;Clear addr., buffer not initialized BRA.S LAB_231F ;Bra to continue ' LAB_231E: MOVEA.L EXT_1B5B.W,A0 ;Load start of OBD data frame in buffer ; LAB_231F: MOVE.L A0,EXT_199C.W ;Move addr. to RAM CLR D0 ;Preclear D0 MOVE.B (5,A0),D0 ;Move requested PID to D0 MOVE D0,EXT_199F.W ;Save requested PID to RAM MOVE.B (A0),D1 ;Load D1 with OBD data frame size MOVE.B D1,EXT_199E.W ;Save frame size to RAM CMPI.B #$05,D1 ;Compare 5 to frame size BNE LAB_232F ;Bra if !=, invalid frame size ; ;-Valid frame size recieved ; TST D0 ;Test requested PID BNE.S LAB_2320 ;Bra if !=0 ; ;-Request for supported modes recievd ; MOVEQ #1,D0 ;Load D0 with 1 BRA.S LAB_2327 ;Bra to continue ; LAB_2320: CMPI #$0009,D0 ;OBD mode request 1-8 BCC.S LAB_2322 ;Bra if mode requested > Blah, blah, blah...
I dont know about you, but Im getting tired of all this jumping around. There must be a short cut to find the routine. By now, you'd even have trouble remembering what you where looking for in the first place (in case you really did forget, its the PIDs). There is indeed a short cut... Look at LAB_231F. If you notice, the PCM is indexing the OBD message frame. In a mode 1 diagnostics request, the requested PID # is always the 5th byte in. With the message size at the head of each frame, this is the 6th byte in the buffer, or current index + 5. Commands:
Code:
MOVE.B (5,A0),D0 ;Move requested PID to D0 MOVE D0,EXT_199F.W ;Save requested PID to RAM
Next, I will go into the actual routines that look up the PIDs and process them. To be continued...
Last edited by dimented24x7; 01-25-2009 at 10:40 PM.
01-26-2009, 09:48 PM
#22
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Ok, now that we know where the PID # is stored, lets see where it takes us... Some searching shows that the PID is only used in one other place, at the tail end of the routine where the transmission takes place. The routine where this resides is shown below:
Now, look closely at what is sent thru the OBD port at label LBL_$431C8:. The value $41 is sent thru the OBD port. Whats the significance? Well, recall what the PCM sends as a response to a mode 1 request, $48, $6B, $10, $41... The $41 is the PCMs response to a mode 1 request. Without the other comments, seeing this might lead us to guess that this might be our routine that sends the mode 1 PIDs. Lets take a look at the routine that calls this one. It appears below:
If we look at the value being loaded into D0, this looks like the PCM is checking the loaded response to modes 1-8. If we look at the routines pointed to in the index $237FE, we can see that each routine starts of by sending $41 thru $48 via the OBD port, and then additional data, which we might assume to be the PIDs. Additional work on the routines proved this to be the case. There is a rouitne for each PID to transmit the requested informaiton for each mode. For the mode 1 PIDs, as well as others, this is handled by routine EXT_0E37. Lets have a look:
Code:
;
;*******************************************
;
; Routine to send requested OBD mode 1 PIDs
;
;*******************************************
;
LBL_$431C8:
;
;-Echo PID request and requested PID # back to sender
;
MOVEQ #$41,D0 ;Load value for PID request
JSR EXT_0DCF ;Routine to transmit OBD serial data
;
MOVE EXT_199F.W,D2 ;Load PID # requested from RAM
MOVE.L D2,D0 ;Move to D0 as well
JSR EXT_0DCF ;Routine to transmit OBD serial data
;
;-Send value of PID
;
CLR.B D1 ;Preclear D1, mode #
MOVE.L D2,D0 ;Move requested PID to D0
LEA (-4,A6),A0 ;Load addr. of stack
JSR EXT_0E37 ;Routine to match and look up requested PID from
;index
;
;-Check size of transmission
;
CMPI.B #$01,D0 ;Compare # of bytes to transmit to 2
BHI.S LAB_1A4F ;Bra if size of xmission > 2 bytes
;
BEQ.S LAB_1A4E ;Bra if ==2 bytes
;
;-Transmit 1 byte
;
LAB_1A4D:
MOVE.B (-4,A6),D0 ;Load D0 with byte #1
BRA LAB_1A5A ;Routine to transmit OBD serial data
;
;-Transmit 2 bytes
;
LAB_1A4E:
MOVE.B (-4,A6),D0 ;Load D0 with byte #1
JSR EXT_0DCF ;Routine to transmit OBD serial data
;
MOVE.B (-3,A6),D0 ;Load D0 with byte #2
BRA LAB_1A5A ;Routine to transmit OBD serial data Code:
; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; ; Routine to schedule mode request transmission ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; LBL_$431A2: LINK A6,#-4 ;Link and allocate 4 bytes on stack MOVEM.L D1-D2/D5/A0,-(A7) ;Move data and addr. regs to stack ANDI #$00FF,D0 ;Mask out lower byte CMPI #$0041,D0 ;Value to transmit OBD mode 1 request BCS LAB_1A64 ;Bra if < ; CMPI #$0048,D0 ;Value to transmit OBD mode 8 request BHI LAB_1A64 ;Bra if > ; MOVE.L ($237FE,D0.W*4),A2 ;Load addr. of applicable transmission routine JMP (A2) ;Jump to routine
01-26-2009, 10:05 PM
#23
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
; Routine to match and look up requested PID from index
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LBL_$63516:
LINK A6,#-2 ;Link and allocate space on stack
MOVE.L A1,-(A7) ;Move addr. reg to stack
MOVEA.L A0,A1 ;Move target store addr. to A1
CLR.L (A1) ;Clear contents of addr.
LEA (-2,A6),A0 ;Load addr. of stack
JSR EXT_0DA9 ;Routine to match requested PID # to those
;supported
;
TST.B D0 ;Test result
BEQ.S LAB_3085 ;Bra if ==0, match not found
;
;-Match found in index
;
MOVE.B (-2,A6),D0 ;Move index value into D0
CMPI.B #$1A,D0 ;Compare index position to end of base PID
;params
BCC.S LAB_3084 ;Bra if >=
;
;~~~~~~~~~~~~~~~~~~~~
; Base PID requested
;~~~~~~~~~~~~~~~~~~~~
;
MOVEA.L A1,A0 ;Move target addr. to store PIDs to A0
JSR EXT_0BE2 ;Routine to schedule xmission of OBD-II
;PID (up to $1E)
;
BRA.S LAB_3086 ;Bra to return The PIDs are looked up by a program that searches thru the index until it finds a match to the PID. It is shown below:
Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
; Routine to match and verify requested PID # to those supported
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LBL_$605A6:
LINK A6,#0 ;Link to stack
MOVE D0,-(A7) ;Move requested PID # to stack
MOVEM.L D2/D5-D7,-(A7) ;Move data and addr. regs to stack
CLR D0 ;Preclear D0
MOVE #$00DE,D6 ;Init counter
MOVE.L D0,D4 ;Clear D4 as well
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
; Search index for match to requested PID #
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LAB_2EB3:
MOVE.L D6,D5 ;Move counter to D5
ADD D4,D5 ;Add lower index search bound to current
;position
ADDQ #1,D5 ;+1
LSR #1,D5 ;/2 for index lookup
MOVE.L D5,D7 ;Move current index position to D7
CLR.L D3 ;Preclear D3
MOVE.B D7,D3 ;Move offset for lookup to D3
MOVE.W ($21676,D3.W*4),D2 ;Look up PID # from index
MOVE (-2,A6),D3 ;Load requested PID # from stack
CMP D3,D2 ;Compare requested PID # to PID # from index
BNE.S LAB_2EB4 ;Bra if !=
;
;-Requested PID # found from index
;
MOVEQ #1,D0 ;Load D0 with 1, match found
BRA.S LAB_2EB6 ;Bra to continue
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
; Here to advance search through index for desired PID #
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LAB_2EB4:
CMP D2,D3 ;Compare PID # from index to requested PID #
BCC.S LAB_2EB5 ;Bra if PID # from index <=
;
;-PID # from index > requested PID
;
MOVE.L D5,D6 ;Update upper index search bound
SUBQ #1,D6 ;-1
CMP D6,D4 ;Compare to lower index search bound
BLS.S LAB_2EB6 ;Bra if upper index counter still >
;
MOVE D4,D6 ;Reset upper bound to lower bound value
BRA.S LAB_2EB6 ;Bra to continue
;
;-PID # from index is <= requested PID
;
LAB_2EB5:
MOVE.L D5,D4 ;Update lower index search bound
;
LAB_2EB6:
CMP D6,D4 ;Check lower bound against upper bound
BCC.S LAB_2EB7 ;Bra if lower index search bound >= upper index
;search bound, match not found
;
TST.B D0 ;Test index search result
BEQ.S LAB_2EB3 ;Bra if ==0, result not yet found, continue to
;search
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~
; Here to terminate search
;~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LAB_2EB7:
CMP D6,D4 ;Compare lower index search bound to upper index
;search bound
BNE.S LAB_2EB8 ;Bra if !=, return with result
;
MOVE.B D4,D7 ;Move lower search bound into D7
ANDI #$00FF,D4 ;Mask out lower byte portion
CMP.W ($21676,D4.W*4),D3 ;Compare requested PID # to PID # from index
BNE.S LAB_2EB8 ;Bra if !=, match not found
;
;-Requested PID # found from index
;
MOVEQ #1,D0 ;Load D0 with 1, positive match found
;
LAB_2EB8:
MOVE.B D7,(A0) ;Move result to target addr.
MOVEM.L (A7)+,D2/D5-D7 ;Restore data and addr. regs
UNLK A6 ;Unlink stack
RTS ;Return
01-26-2009, 10:35 PM
#24
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Ok, now that we know which index #s correspond to which PID, we can make sense of all the routines in the index. The scheduler for the base mode 1 PIDs is EXT_0BE2. This routine uses the index # found previously to look up the applicable routine in the index. A portion of the index is shown below:
The routine that handles the scheduling of each routine is shown below:
Ok, now that we found these, how can they be useful? What will all these routines tell me? Well, lets say for example you want to know where the PCM stores the value for the TPS. We know from the SAE J1979 standard that for PID 11, the TPS is transmitted to the scantool in the format of 100/255, which means that a hex value of 255 will correspond to 100% open throttle. Lets now take a look at the routine that handles PID 11:
From the above code, the PCM simply loads the 8-bit value for the TPS, and transmits it right away with no additional scaling. This tells us that the value stored in EXT_177D is scaled in terms of 100/255%, which is the typical %TPS as used in many other GM ECMs and PCMs. If we follow the address that the TPS is stored in, it will lead us to the routine that loads the A/D TPS and formats it for use. Once we trace through the code, we will have not only found the scaling for the TPS, but also the other functional addresses that the TPS is stored in as well as where teh A/D TPS resides. All of this stemming from using the known TPS value in address EXT_177D.
Ok, we found the TPS, lets look for something else. Lets say that we want to know where the mass airflow is stored. From the SAE doc, this is PID 10. The mass airflow must be returned with the range of 0-655.35 g/sec with a scaling of .01 grams/second. If we take a look at the routine, we will see the math used to convert the MAF flowrate. The routine is shown below:
From the commands, we can see what is done to the stored mass airflow rate to format it for output to the scantool. Remember that the mass airflow must be returned with a scaling of .01 g/sec. With some basic hand calculations, we find that the mass airflow is stored as grams/sec x 81.92. With some additional legwork, we will also find the address that the TPU stores the MAF pulses to as well as the other addresses that are used for storing the mass airflow rate and MAF based mass air per cylinder, which is a key component in the fuel calcs.
One thing to bear in mind is that the OBD routines are quite large, so you dont want to be a hero and reverse them all right away. Just get what you need at get out. I can tell you that up front, you will not have the information you need to map them out completly. This information can only be found two ways. 1) get it from a source that has the info from GM, or 2) come back at the end and complete the routines.
Its also worth noting that the OBD routines are some of the more complex routines in the PCM, so the work you do initially will be the hardest. Once you unlock these, though, it gets progressivly easier to find the basic stuff like the VE, spark tables, fuel cut-off thresholds, etc. I will review fiding and working with tables in the next and final section: Working with the code: Finding tables and constants using the assembly.
Code:
[Index at addr. $231C4] $00030A30 (PID $00 - Send supported PIDs) $00030A82 (PID $01 - Xmit trouble codes and onboard test info) $00030C2C (PID $02 - Return freezeframe trouble code) ...
Code:
; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; ; Routine to schedule xmission of OBD-II PID (up to $1E) ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; LBL_$30A18: LINK A6,#-4 ;Link and allocate space on stack MOVEM.L D2/D5/A1,-(A7) ;Move data and addr. regs to stack MOVEA.L A0,A1 ;Move target addr. to store to to A1 CLR D5 ;Clear D5 MOVE.B D0,D5 ;Move index position to D5 MOVE.L ($231C4,D5.W*4),A2 ;Load routine from index JMP (A2) ;Jump to routine
Code:
; ;****************** ; ; PID 11, xmit TPS ; ;****************** ; LBL_$31088: ... ; ;-In mode 1 ; LAB_0C3F: MOVE.B EXT_177D.W,D0 ;Load %TPS for OBD diags. BRA.S LAB_0C43 ;Bra to xmit ...
Ok, we found the TPS, lets look for something else. Lets say that we want to know where the mass airflow is stored. From the SAE doc, this is PID 10. The mass airflow must be returned with the range of 0-655.35 g/sec with a scaling of .01 grams/second. If we take a look at the routine, we will see the math used to convert the MAF flowrate. The routine is shown below:
Code:
; ;*************************** ; ; PID 10, xmit mass airflow ; ;*************************** ; LBL_$3103A: CMPI.B #$02,D1 ;Compare mode # to mode 3 BHI.S LAB_0C39 ;Bra if in higher modes ; BEQ.S LAB_0C3B ;Bra if ==, in mode 3 ; TST.B D1 ;Test mode # BNE.S LAB_0C3A ;Bra if !=0, in mode 2 ; ;-Here if in mode 1 or other modes ; LAB_0C39: MOVE EXT_12AA.W,D0 ;Load D0 with mass airflow rate MULU #625,D0 ;(g/sec x 81.92) x 625 LSR.L #8,D0 ;/256 LSR.L #1,D0 ;/2, now (g/sec x 81.92) x (625/512) BRA LAB_0C2E ;Bra to transmit scaled airflow
One thing to bear in mind is that the OBD routines are quite large, so you dont want to be a hero and reverse them all right away. Just get what you need at get out. I can tell you that up front, you will not have the information you need to map them out completly. This information can only be found two ways. 1) get it from a source that has the info from GM, or 2) come back at the end and complete the routines.
Its also worth noting that the OBD routines are some of the more complex routines in the PCM, so the work you do initially will be the hardest. Once you unlock these, though, it gets progressivly easier to find the basic stuff like the VE, spark tables, fuel cut-off thresholds, etc. I will review fiding and working with tables in the next and final section: Working with the code: Finding tables and constants using the assembly.
01-29-2009, 10:42 PM
#25
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Working with the code: Finding tables and constants using the assembly
Before delving into finding the actual tables, its worthwhile looking at how the PCM actually performs lookups. In the 68332, Motorola actually implemented a machine level command to perform this due to the fact that these where intended specifically for automotive and robotics applications. The command is TBLU and TBLS. TBLU is for 2D unsigned table lookups while TBLS is for 2D signed table lookups. The command takes the form of TBLU/S.[SZ] [Table Addr.],[Data Reg]. The SZ indicates the size of the table elements. They can be byte, word, or long. The data reg. is the register that contains the value to be used for the table lookup. The tables can be up to 257 elements in length with a spacing of 256 between each element. So, the value used for lookup can span from 0-65535. The looked up value is automatically scaled and returned in the data reg.
But, the 68332 is unique in this aspect. Most other processors used today in automotive applications do not have instruction sets as expansive as the CPU32 instruction set. As such, there is no built in routine in the CPU to perform a table lookup. The table lookups will not be a one line instruction, but actually a subroutine to perform the lookup. The closest analog that we can use to examine how these routines are structured is the 68HC11 used prior to the 68332. Lets first take a look at the standard 2D lookup routine. Its important that you learn to recognize these, as they will be some of the first routines that you encounter, and will almost always signal when a table lookup is taking place. Below is the standard routine to perform a 2D lookup:
This is the standard routine used in the ECMs and PCMs based on the 68HC11 MCU. Upon entry, the byte sized value used for the lookup is stored in the 8-bit reg. A and the address is stored in the 16-bit addr. reg. X. The standard spacing between table elements is decimal 16, or $10 in hex. Since the value of A can be anything from 0-255, it will not always fall exactly right on a table element. Instead, the value for lookup may be somewhere between two elements. Due to this, the routine performs whats called interpolation. Interpolation is basically the construction of an intermediate value using the two known adjacent table entries and the interval determined by the value in A.
The first step in the lookup is to multiply the value in A by 16. This gives a a 16 bit result stored in the 8-bit registers A and B. A will contain the desired element, and B will contain the remainder, or the locations between the element and the next element in the table. For example lets say we have a 5 element table as shown below
The table has a span from 0-64. 0 corresponds to value 20 in the table while 64 corresponds to value 60. Lets say that the value for lookup will be 35. So, the commands to perform the lookup might look like the following
Upon entry into the 2D lookup routine, the value in A is multiplied by 16. This gives a result of 560. Keep in mind that in the earlier 8 bit MCUs, the 16 bit results are stored in registers A and B. This means that A will contain the value /256, with B containing the remainder. In this case, A will contain the value 2 and B will contain the value 48. This means that the value we will be looking up will be between the values of 40 and 50. Next, we need to interpolate. First, the MCU will add the value in A to the address of the table to get the location of the table element it is to look up. The address in this case will be ($1234 + $02). This is the address of the element of the table that is equal to 40. If you notice, the command that does the lookup is:
The LDD stands for LoaD register D. The 16-bit register D is basically the 8-bit registers A and B combined. In our case, the values 40 and 50 are loaded consecutively. This means that A contains the value 40 and B contains the value 50. To interpolate, we must first determine the span between the two elements. In this case, its 50-40, or 10, which is our span. Now, the remainder is sort of like an imaginary sliding needle that can slide anywhere between the two values of 40 and 50. To determine where that needle is pointing to, we now need to look at the remainder. The remainder can be any value from 1-255. With a remainder of 1, the needle is next to 40. With a value of 255, the needle is next to 50. In our case, the remainder was 48. To interpolate, we first divide 48 by 256. This results in a value of .1875. Next, we multiply by our span, which is 10. The result is 1.875, which is rounded to 2. So, the final output will be 40 +2, or 42, which is what the routine returns once its complete.
Before delving into finding the actual tables, its worthwhile looking at how the PCM actually performs lookups. In the 68332, Motorola actually implemented a machine level command to perform this due to the fact that these where intended specifically for automotive and robotics applications. The command is TBLU and TBLS. TBLU is for 2D unsigned table lookups while TBLS is for 2D signed table lookups. The command takes the form of TBLU/S.[SZ] [Table Addr.],[Data Reg]. The SZ indicates the size of the table elements. They can be byte, word, or long. The data reg. is the register that contains the value to be used for the table lookup. The tables can be up to 257 elements in length with a spacing of 256 between each element. So, the value used for lookup can span from 0-65535. The looked up value is automatically scaled and returned in the data reg.
But, the 68332 is unique in this aspect. Most other processors used today in automotive applications do not have instruction sets as expansive as the CPU32 instruction set. As such, there is no built in routine in the CPU to perform a table lookup. The table lookups will not be a one line instruction, but actually a subroutine to perform the lookup. The closest analog that we can use to examine how these routines are structured is the 68HC11 used prior to the 68332. Lets first take a look at the standard 2D lookup routine. Its important that you learn to recognize these, as they will be some of the first routines that you encounter, and will almost always signal when a table lookup is taking place. Below is the standard routine to perform a 2D lookup:
Code:
; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; ; 2D lookup Routine ; ; Enter with: ; A=value to use for lookup ; X=Address of table ; ; Exit with: ; A=looked up table value ; B=Previous value on entry ; X=Previous value on entry ; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; LF15E PSHX ;Push table addr. to stack PSHB ;Push offset to stack LDAB #$10 ;Multiplier for lookup, 16 counts/row ; ;-ALternate entry point ; LF162 MUL ;Val x multiplier for lookup PSHB ;remainder to stack TAB ;Row offset into B ABX ;Add in offset to X LDD 0,X ;Load in table value and value following that ; ;-Perform interpolate ; SBA ;Subtract following value to get delta table value PULB ;Get remainder BCC LF172 ;Bra if underflow, next table value is greater ; ;-Interpolate up ; NEGA ;Make positive again MUL ;remainder x delta table value ADCA 0,X ;Add in table value to interpolated value and round if needed BRA LF178 ;Bra to return ; ;-Interpolate down ; LF172 MUL ;remainder x delta table value ADCA #0 ;Round if needed NEGA ;Switch sign ADDA 0,X ;Table value + (-interpolated value) LF178 PULB ;Restore acc. B PULX ;Restore acc. X RTS ;Return ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
The first step in the lookup is to multiply the value in A by 16. This gives a a 16 bit result stored in the 8-bit registers A and B. A will contain the desired element, and B will contain the remainder, or the locations between the element and the next element in the table. For example lets say we have a 5 element table as shown below
Code:
;
;-Some table
;
$1234
FCB 20
FCB 30
FCB 40
FCB 50
FCB 60 Code:
LDAA 35 ;Load value for lookup LDX $1234 ;Load address of table JSR 2DLOOKUP ;Go do lookup
Code:
LDD 0,X ;Load in table value and value following that
01-29-2009, 11:02 PM
#26
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Now, there are also routines to perform 3D lookups. In the 68332 code, these are basically just several TBLU commands performed consecutively, but in the earlier ECMs, its a bit more complicated due to the lack of a built in lookup command. Now, before we dive into the earlier routine, lets take a look at the 3D lookup routine in the 68332. Since we have built in commands, its easier to see what the essance of the routine is.
Since we have a built-in routine, it doesn't get much simpler than this. Basically, you come in with an X and a Y rectangular coordinate value that determine where in the table you want to do the lookup. These values are contained in data register D0 and D1. D0 is the column location of the value, and D1 is the row location. Now, lets say for example that we are looking up the spark advance. Lets further assume that the engine is at 2400 RPM and the MAP is 55 kPa. In the table shown below, the column value is 55 kPa, and the row value is 2400 RPM. The value that would be returned by the above routine is shown highlighted in the blue rectangle.
Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
; 3D lookup routine (16-bit)
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
; In:
; D0 = value for column lookup
; D1 = value for row lookup
; D2 = size of row
; A0 = base addr. of table
;
; Out:
; D0 = Result
;
LBL_$653E2:
MOVE D1,D3 ;Load value for row lookup into D3
LSR #8,D3 ;/256, now row offset
MULU D2,D3 ;Row size x row offset
ADDA.L D3,A0 ;Add in offset to base address of table for
;desired row
MOVE D0,D3 ;Move value for column lookup into D3 as well
TBLUN.W (A0),D0 ;Look up column value in row and interpolate
TBLUN.W (A0,D2),D3 ;Look up column value in next row and interpolate
TBLU.L D0:D3,D1 ;Interpolate column values between rows
ADDI.L #$00000080,D1 ;Round up if needed
LSR.L #8,D1 ;End result /256
MOVE.L D1,D0 ;Load result into D0
RTS ;Return
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
01-29-2009, 11:10 PM
#27
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Now, when you have a 3D table, its not really a table, but a surface such as the spark tables shown in the attached pictures above. To get the maximum resolution and approximate a smooth surface, we need to interpolate between the values that define the 3D surface. The value that we want to lookup will typically be bounded by 4 adjacent values if we are in an inbetween location in the table. This gives rise to the need to do two lookups and interpolate three times. These work like an expanded version of what we looked at above with the 2D table. The MCU looks up the first value treating the row as basically a 2D table, interpolating the result. It then looks up the next value in the next row, interpolating that result. The two commands that do this are:
Now, we have these two interpolated values, but since its a 3D table, we need to interpolate between the interpolated values as well. This is done by the following command:
The interpolation works just like explained above for the 2D table lookup. The D0:D3 defines the span. The span between the adjacent rows is D3-D0. The remainder for interpolation is the value in D1, which spans from 0-65535. After the three interpolations, the result of the lookup is /256 to give a 16-bit value and transferred from D1 to D0.
Code:
TBLUN.W (A0),D0 ;Look up column value in row and interpolate TBLUN.W (A0,D2),D3 ;Look up column value in next row and interpolate
Code:
TBLU.L D0:D3,D1 ;Interpolate column values between rows
01-29-2009, 11:20 PM
#28
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Now, the routine to perform this WITHOUT the imbedded table lookup commands is considerably more complex. It is shown below:
In a nutshell, though, it works in the same manner that the 3D lookup routine for the 68332 does. Since we dont have the built in commands, the 2D table lookup routine must be duplicated twice to look up and interpolate the values. As shown in the table indicating the 4 surrounding table values, the first row values are looked up, followed by the second. The first row values will be V1 and V2. The next ones are V3 and V4. The routine interpolates between the two of these to return intermediate values of, say, V'1 and V'2. Since the lookup is in 3D, we must also interpoate between the values of V'1 and V'2 to return the result. The process is the same as the other 3D routine, but there are many more commands. You can see the value of having the built-in table lookup routine. The processors with less complex instruction sets will instead have routines looking like the one above.
Now that we've taken a look at how the lookup is performed, we can delve into some basic examples of table lookups. Coming up next, I will show the process used to scale the values for the lookup as well as the lookups themselves using some examples. Stay tuned...
Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
; 3D Lookup Routine
;
; Enter with:
; A=Row value
; B=Column. value
; X=Table address
;
; Exit with:
; A=value from lookup
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LF17B PSHY ;Reg. Y to stack
PSHB ;Col. val. to stack
PSHX ;Table address to stack
SUBA 0,X ;Subtract row offset
BCC LF184 ;Bra if no underflow
;
CLRA ;Clear out col. val.
;
LF184 SUBB 1,X ;Subtract col offset
BCC LF189 ;Bra if no underflow
;
CLRB ;Clear underflow
;
LF189 PSHX ;Table addr. to stack
PULY ;Get table addr. into Y
PSHA ;Row val. to the stack
LDAA #$10 ;Mult. for lookup
MUL ;mult. x col. val, A now offset for lookup, B now remainder
PSHB ;col. remainder to the stack
TAB ;Get MSB into B
ABX ;Add the offset into X
PULA ;Get col. remainder into A
PULB ;Get row value back
PSHA ;Put the col. remainder back on the stack
;
LDAA #$10 ;mult. for lookup
MUL ;row value x mult. for lookup
PSHB ;row remainder to the stack
LDAB 2,Y ;Load # of cols.
MUL ;# cols x row offset, skip to row in table
ABX ;Add the offset into X
PSHX ;Push address (current row) to stack
LDAB 2,Y ;Load # cols
ABX ;Add it into X (Now next row)
;
;~~~~~~~~~~~~~~~~~~~~~~~
;-Perform interpolation
;~~~~~~~~~~~~~~~~~~~~~~~
;
;
; V1= current stored value in table
; V2-V4 are values located
; around the immediate table
; value
;
; -----------------
; i | V1 | V2 |
; -----------------
; i+1 | V3 | V4 |
; -----------------
; j j+1
;
TSY ;Get stack pointer + 1 into Y
LDD 3,X ;Get values in next row for interpolation
SBA ;Subtract table value in next col. from value in current col., now delta
LDAB 3,Y ;Load col. remainder from stack
BCC LF1B4 ;Bra if delta value was negative
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
; Interpolate values in next row up
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
;-Interpolate up
;
; V2 + col. remainder x |(V3-V4)|
;
;
NEGA ;Make delta positive
MUL ;remainder from col. value x delta
ADCA 3,X ;Add it into table value in next row up
BRA LF1BA ;Bra
;
;-Interpolate down
;
; V2 - col. remainder x |(v3-V4)|
;
;
LF1B4 MUL ;remainder from col. value x delta
ADCA #0 ;round if needed
NEGA ;Change sign
ADDA 3,X ;Add it into table value in next row up
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
; Interpolate table values in current row
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LF1BA PULX ;Get current col/row address back
PSHA ;Push interpolated table value in next row to stack
LDD 3,X ;Get table values in current row
SBA ;Subtract table value in next col. from current value
LDAB 3,Y ;Load in col. remainder
BCC LF1CA ;Bra if next value is less
;
NEGA ;Make positive
;
;-Interpolate up
;
; V1 + col. remainder x |(V1-V2)|
;
MUL ;remainder x delta
ADCA 3,X ;Add it into current value
BRA LF1D0 ;Bra
;
;-Interpolate down
;
; V1 - col. remainder x (V1-V2)
;
LF1CA MUL ;remainder x delta
ADCA #0 ;Round if needed
NEGA ;change sign
ADDA 3,X ;Add in current value
;
;-Interpolate between the two rows
;
LF1D0 PULB ;Get interpolated value from next row
PSHA ;Push interpolated value from current row to stack
SBA ;Current interpolated value - interpolated value in next row
LDAB 2,Y ;Load row remainder
BCC LF1DF ;Bra if delta was positive
;
;-Interpolate up between rows
;
NEGA ;change sign
MUL ;row remainder x delta value
ADCA 1,Y ;add to interpolated value in current row
BRA LF1E6 ;Bra to
;
;-Interpolate down between rows
;
LF1DF MUL ;row remainder x delta value
ADCA #0 ;Round up if needed
NEGA ;change sign
ADDA 1,Y ;add it into the current interpolated value
;
;-Clean up the stack and resore X, Y, B
;
LF1E6 INS ;Inc. stack pointer
PULX ;
PULX ;
PULB ;
PULY ;
RTS ;Return
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Now that we've taken a look at how the lookup is performed, we can delve into some basic examples of table lookups. Coming up next, I will show the process used to scale the values for the lookup as well as the lookups themselves using some examples. Stay tuned...
02-02-2009, 09:38 PM
#29
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Ok, now lets take a look at an actual table look up. First we'll use an example of a 2D look up. The first example will be the percent IAC airflow for the proportional term used to control the engine idle speed. From about 93 and on, many of the PCMs that used IACs had full standardized PID idle routines that used a linearizing airflow vs. steps table for the IAC. This allowed for a full linear control algorithm that had all the control parameters as a % of the total airflow of the IAC rather than the IAC steps. As such, there are many % airflow tables for the proportional term, integral gain, DFCO airflow rates, dynamic throttle airflow estimation, etc. The one we will look at is the proportional % airflow term.
This If you notice from the table, the RPM error used for the look up is not linear. Instead, the graduation changes as the RPM error becomes larger. This is because as the idle speed approaches the desired idle speed, you want to have more resolution to allow you to finely control the idle. At large errors, your more concerned with just trying to get the idle back under control, so resolution doesnt matter as much. Here is the first of seven such tables that contain the proportional airflow for various conditions.
Now that we see what the table looks like, lets see how the code performs the look up. The first step in the process is the RPM error. This is constructed from the desired idle speed, which is handled by a seperate loop of routines. Ultimatly, though, the idle RPM error is constructed by subtracting the desired idle speed from the current idle speed. This appears below.
From the loop above, the idle RPM error = desired idle speed - current idle speed, and is limited from -2000 to 2000 RPM. Now that we have our base value used for the table look up, lets see how its applied. Since the graduation of the RPM error scale used in the table lookup changes, we would suspect that the code would first have to format the RPM error for lookup. This indeed proves to be the case. First, the error is formatted so that the value used is the absolute value of the RPM error. This is due to the fact that signed table lookups wherent originally used in the earlier PCMs from which these routines originated from. Instead, there are seperate tables for above and below the desired idle speed. This is shown below.
Now that we have our value used for the lookup, lets see how its done. The code then takes the absolute value of the RPM error and applies various formulas to scale it based on the value of the RPM error. This is shown below.
From the formulas utilized in the above code segment, we now know what the graduations are in the table that was originally posted. The scaling goes as follows. For an error of 50 RPM and below, the graduations are in 12.5 RPM increments. For 50 - 200 RPM, its in 50 RPM increments, and from 200 - 500 RPM, its in 100 RPM increments.
Its important to get this right, because if you get the scaling off, you will end up editing the wrong section of the table when you go to tune. This can lead to a lot of insanity as the engine will not respond to your changes, and will end up acting weird in other areas of the table that you inadvertantly changed. You can also end up getting the size of the table wrong as well.
Case in point: I've seen tables posted on some tuning sites that are actually two tables partially combined as one from a mistake in the interpritation of the table. The table in question was the force motor current vs. line pressure for the later model electronic transmissions. As an interesting side note, people incorrectly use this table to tune as the creators of the tuning packages dont include the desired line pressure tables that should be used instead. The end result is that the 'table' looks weird in the tuning package. People see this and go 'hmm... thats not right, let me change it to the way it should look'. The next post will usually be something like the following: 'I made these changes, and now my transmission slips and my adaptive modifiers are going crazy, I cant fix it. WTF???' and later maybe followed by 'Now my transmission is TRASHED, and I have to spend [insert dollar ammount here] to have it fixed!!!' What the user didnt know was that the reason they where having all the trouble is that they where actually editing TWO tables at once. The net result was that this threw the force motor calibration straight to hell. The adaptive modifiers are going 'crazy' because the force motor is no longer responding in a linear fashion to the closed loop pressure inputs. From this we can see how critical it is to get the table scaling and start/end addresses correct. My motto is "when in doubt, leave it out". What I mean by this is if your unsure of the scaling or the use of the table, leave it ALONE. You may do more harm than good by trying to edit something that you dont fully understand.
This If you notice from the table, the RPM error used for the look up is not linear. Instead, the graduation changes as the RPM error becomes larger. This is because as the idle speed approaches the desired idle speed, you want to have more resolution to allow you to finely control the idle. At large errors, your more concerned with just trying to get the idle back under control, so resolution doesnt matter as much. Here is the first of seven such tables that contain the proportional airflow for various conditions.
Code:
; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ;-Proportional idle % airflow for low idle and in P/N ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; ; % airflow = val/327.68 ; ;RPM error LBL_$0BD6E: DC.W 0 ; 0.0 DC.W 0 ; 12.5 DC.W 0 ; 25.0 DC.W 115 ; 37.5 DC.W 246 ; 50.0 DC.W 328 ;100.0 DC.W 492 ;150.0 DC.W 655 ;200.0 DC.W 721 ;300.0 DC.W 885 ;400.0 DC.W 983 ;500.0
Code:
;
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
; Construct idle RPM error term
;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
;
LAB_2197:
CLR.L D3 ;Preclear D3
MOVE EXT_1460.W,D3 ;Load D3 with desired idle speed
CLR.L D4 ;Preclear D4
MOVE EXT_1197.W,D4 ;Load D4 with engine RPM
SUB.L D3,D4 ;Subtract desired idle speed from current engine
;speed
CMPI.L #$FFFF8000,D4 ;-6400 RPM, min allowed result
BLT.S LAB_2199 ;Bra if RPM error out of range
;
CMPI.L #$00007FFF,D4 ;6399 RPM, max allowed result
BGT.S LAB_2198 ;Bra if RPM error out of range
;
CMPI #10240,D4 ;Compare result to 2000 RPM, upper limit for RPM
;error
BGT.S LAB_2198 ;Bra if RPM error >
;
CMPI #-10240,D4 ;Compare result to -2000 RPM, lower limit for RPM
;error
BLT.S LAB_2199 ;bra if RPM error <
;
BRA.S LAB_219A ;Bra to save
;
;-Here to load upper limit for RPM error
;
LAB_2198:
MOVE #10240,D4 ;Load 2000 RPM, max allowed RPM error
BRA.S LAB_219A ;Bra to continue
;
;-Here to load lower limit for RPM error
;
LAB_2199:
MOVE #-10240,D4 ;Load -2000 RPM, min allowed RPM error
;
LAB_219A:
MOVE D4,EXT_1464.W ;Save it, idle RPM error term Code:
MOVE EXT_1464.W,D3 ;Load D3 with idle RPM error BGE.S LAB_09BF ;Bra if idle RPM error >=0 ; NEG D3 ;Neg result, get abs. value of idle RPM error ; LAB_09BF: MOVE D3,EXT_1101.W ;Save it, abs. idle RPM error
Code:
; ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; Scale idle RPM error for lookup ;~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ; CMPI #1024,D3 ;Compare abs. idle error to 200 RPM BLS.S LAB_2804 ;Bra if idle error <= ; ;-Idle RPM error > 200 RPM, RPM = (val - 1280) x .390 ; LSR #1,D3 ;/2, now RPM / .390 ADDI #1280,D3 ;Add in offset BRA.S LAB_2806 ;Bra to continue ; LAB_2804: CMPI #256,D3 ;Compare idle RPM error to 50 RPM BLS.S LAB_2805 ;Bra if idle RPM error <= ; ;-50 RPM < Idle RPM error <= 200 RPM, RPM = (val - 768) x .195 ; ADDI #768,D3 ;Add in offset BRA.S LAB_2806 ;Bra to continue ; ;-Idle RPM error <= 50 RPM, RPM = val x .0488 ; LAB_2805: ASL #2,D3 ;x4, now RPM / .0488 ; LAB_2806: CMPI #2560,D3 ;Compare to max allowed value for lookup BLS.S LAB_2807 ;Bra if scaled idle RPM error <= ; MOVE #2560,D3 ;Load max allowed value for lookup
Its important to get this right, because if you get the scaling off, you will end up editing the wrong section of the table when you go to tune. This can lead to a lot of insanity as the engine will not respond to your changes, and will end up acting weird in other areas of the table that you inadvertantly changed. You can also end up getting the size of the table wrong as well.
Case in point: I've seen tables posted on some tuning sites that are actually two tables partially combined as one from a mistake in the interpritation of the table. The table in question was the force motor current vs. line pressure for the later model electronic transmissions. As an interesting side note, people incorrectly use this table to tune as the creators of the tuning packages dont include the desired line pressure tables that should be used instead. The end result is that the 'table' looks weird in the tuning package. People see this and go 'hmm... thats not right, let me change it to the way it should look'. The next post will usually be something like the following: 'I made these changes, and now my transmission slips and my adaptive modifiers are going crazy, I cant fix it. WTF???' and later maybe followed by 'Now my transmission is TRASHED, and I have to spend [insert dollar ammount here] to have it fixed!!!' What the user didnt know was that the reason they where having all the trouble is that they where actually editing TWO tables at once. The net result was that this threw the force motor calibration straight to hell. The adaptive modifiers are going 'crazy' because the force motor is no longer responding in a linear fashion to the closed loop pressure inputs. From this we can see how critical it is to get the table scaling and start/end addresses correct. My motto is "when in doubt, leave it out". What I mean by this is if your unsure of the scaling or the use of the table, leave it ALONE. You may do more harm than good by trying to edit something that you dont fully understand.
Last edited by dimented24x7; 02-02-2009 at 09:53 PM.
02-02-2009, 09:50 PM
#30
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
The above table example is by no means comprehensive, but it gives a general idea of how you go about finding the tables. The process usually goes as follows:
-Find out where the table is referenced. This will tell you what the intent of the table is, and what scaling is used for the values stored in the table.
-ID the base values used for the look up.
-Map out the code that formats the values for the lookup.
-Use the min and max values to determine the table size.
-Construct the table in the calibration section.
-Finally, examine the final result. Does it make sense? If not, then double check your work.
Well, that concludes a basic overview of the hacking process. I could write volumes on this, but this should be enough to give you a general overview of reverse engineering a typical late model PCM.
Questions? Comments? Feel free to post, and I'll try my best to follow up...
-Find out where the table is referenced. This will tell you what the intent of the table is, and what scaling is used for the values stored in the table.
-ID the base values used for the look up.
-Map out the code that formats the values for the lookup.
-Use the min and max values to determine the table size.
-Construct the table in the calibration section.
-Finally, examine the final result. Does it make sense? If not, then double check your work.
Well, that concludes a basic overview of the hacking process. I could write volumes on this, but this should be enough to give you a general overview of reverse engineering a typical late model PCM.
Questions? Comments? Feel free to post, and I'll try my best to follow up...
02-07-2009, 09:53 AM
#31
Supreme Member
iTrader: (1)
Join Date: Apr 2004
Location: Browns Town
Posts: 3,178
Likes: 0
Received 3 Likes
on
3 Posts
Car: 86 Monte SS (730,$8D,G3,AP,4K,S_V4)
Engine: 406 Hyd Roller 236/242
Transmission: 700R4 HomeBrew, 2.4K stall
Axle/Gears: 3:73 Posi, 7.5 Soon to break
Re: PCM hacking 101 - The step by step approach
First I'd like to thank you for this writeup. Nice work, I'm sure this was not an overnight effort.
I did want to ask if the bin for these newer PCMs are all in one file such as the P4s. My confusion came in from the postings in the other thread where there were several files listed for one application with different bin files for transmision, speedometer and fuel.
Does the whole application bin reside in the SOP surface mount IC?
Also, The calibration values do not seem to be grouped into the lower areas like in the older stuff.
The values seem to be mixed in with the code pretty heavily (or code is mixed in some places)
This will make definition files difficult to manage with code changes (when it get to that point)
Any thoughts on this or is this just code to arrange the values in memory or something?
I did want to ask if the bin for these newer PCMs are all in one file such as the P4s. My confusion came in from the postings in the other thread where there were several files listed for one application with different bin files for transmision, speedometer and fuel.
Does the whole application bin reside in the SOP surface mount IC?
Also, The calibration values do not seem to be grouped into the lower areas like in the older stuff.
The values seem to be mixed in with the code pretty heavily (or code is mixed in some places)
This will make definition files difficult to manage with code changes (when it get to that point)
Any thoughts on this or is this just code to arrange the values in memory or something?
Last edited by JP86SS; 02-07-2009 at 03:21 PM. Reason: Post bailed early, didn't get 2nd item on it.
02-07-2009, 11:08 PM
#33
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
First I'd like to thank you for this writeup. Nice work, I'm sure this was not an overnight effort.
I did want to ask if the bin for these newer PCMs are all in one file such as the P4s. My confusion came in from the postings in the other thread where there were several files listed for one application with different bin files for transmision, speedometer and fuel.
Does the whole application bin reside in the SOP surface mount IC?
Also, The calibration values do not seem to be grouped into the lower areas like in the older stuff.
The values seem to be mixed in with the code pretty heavily (or code is mixed in some places)
This will make definition files difficult to manage with code changes (when it get to that point)
Any thoughts on this or is this just code to arrange the values in memory or something?
I did want to ask if the bin for these newer PCMs are all in one file such as the P4s. My confusion came in from the postings in the other thread where there were several files listed for one application with different bin files for transmision, speedometer and fuel.
Does the whole application bin reside in the SOP surface mount IC?
Also, The calibration values do not seem to be grouped into the lower areas like in the older stuff.
The values seem to be mixed in with the code pretty heavily (or code is mixed in some places)
This will make definition files difficult to manage with code changes (when it get to that point)
Any thoughts on this or is this just code to arrange the values in memory or something?
[$7FFFF]
-Subroutines for main OS
-Main vector table
-Main routines for the OS
-Address jump tables and constants for OS
-Calibration section
-Boot kernal
-Boot vector table
[$00000]
Last edited by dimented24x7; 02-07-2009 at 11:21 PM.
02-07-2009, 11:20 PM
#34
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
As far as the difinition files. With those you would need to make one file for each section. For example, the engine, transmission, speedo, etc. will all need their own XDFs. This is due to the fact that each section has its own assigned checksum. There are seven checksums for the calibration and OS as well as one additional checksum for the boot kernal. If you write to a section by accident, and dont update its checksum, the computer will endlessly reboot after it fails the checksum, possibly rendering it a paper-weight unless you manually reflash the chip.
02-15-2009, 12:21 PM
#35
Junior Member
Join Date: Jan 2009
Location: Iowa
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Car: '99 Grand Prix GTP
Engine: Supercharged Buick 3800
Transmission: 4T65E-HD
Axle/Gears: 2.89 FDR
Re: PCM hacking 101 - The step by step approach
Here's a (possibly easy) question: In the case of a line like this: move.w ($FFFF9116).w,($FFFFA692).w
How does that translate into a physical address, or is it accessing an external device? PCM addresses only go to $7FFFF... Assuming the first FF is a bug in IDA, it looks like that would be a transfer from some internal register to some other internal register... Does this make sense? I don't know, I'm looking at figure 3-5 in the 68332 user manual, it doesn't make much sense... On the left it says "internal registers" run from $FF0000 to $FFFFFF, then it expands into details on the right and defines $FFF000 to $FFFFFF... ???? what about $FF0000 through $FFF000, and what exactly is the blank space from $FFF000 to $FFFA00 supposed to represent? lol, this documentation seems sub-par.
Thoughts?
How does that translate into a physical address, or is it accessing an external device? PCM addresses only go to $7FFFF... Assuming the first FF is a bug in IDA, it looks like that would be a transfer from some internal register to some other internal register... Does this make sense? I don't know, I'm looking at figure 3-5 in the 68332 user manual, it doesn't make much sense... On the left it says "internal registers" run from $FF0000 to $FFFFFF, then it expands into details on the right and defines $FFF000 to $FFFFFF... ???? what about $FF0000 through $FFF000, and what exactly is the blank space from $FFF000 to $FFFA00 supposed to represent? lol, this documentation seems sub-par.
Thoughts?
02-15-2009, 07:20 PM
#36
Junior Member
iTrader: (2)
Join Date: Jun 2001
Location: Sayre, PA
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
Re: PCM hacking 101 - The step by step approach
Ive been getting some requests to do something like this, so here it goes:
- Getting a good stock binary to work with
- Using TunerPRO 2D and 3D hex viewers to find calibration tables
- Documentation: What you need to read and know before starting
- Disassembling the binary into Moto 68332 Assembly
- Using the J1850 communication bus/Datalink Controller and SAE standards to unlock the basic engine parameters and hardware I/O
- Working with the code: Finding tables and constants using the assembly
Thanks, Scot
02-16-2009, 12:53 AM
#37
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Actually Scot, your correct. I forgot to include the section
Although, on second thought, some of the hardcore atari sites like atari-forum.com might be better for the basics of disassembly. Most of the coding discussions there aren't really applicable to what we do as theyre working with game consols/dynamic PC type environments as opposed to more static embedded system code like the PCMs have. But... they have a fairly extensive repository of disassemblers and such, and lots of users that have experience working with the 68K assembly language.
For the most part, the only real big issue is finding a good disassmebler. The freeware one I started with didnt support some of the addressing modes like address indirect with indexing. Not an issue until I hit the O2 routines. 4 sensors each all handled in a similar manner, so they extensivly use address indirect w/ indexing for saves, stores, and look-ups. Basically the entire O2 logic didn't disassemble at all. Right now I have to use IDA to 'fill in the blanks' sort of speak. If you can get IDA, its a great program to use. It automatically stops when it hits stuff thats not code, so you can toggle where it actually does the disassembly. It also supports a lot of other features that the basic DOS disassemblers dont.
The other lesser issue is finding whats code and whats tables. The PCM has the boot kernal at the start of the flash chip, with constants organized into sections after that, followed by the constants for the OS, followed by the OS, which itself has some tables thrown in here and there along with the vector table. I'll probably add some more info on how to find some of that up front. The checksum routine can help as that will tell you in a broad fashion where everything is located.
Although, on second thought, some of the hardcore atari sites like atari-forum.com might be better for the basics of disassembly. Most of the coding discussions there aren't really applicable to what we do as theyre working with game consols/dynamic PC type environments as opposed to more static embedded system code like the PCMs have. But... they have a fairly extensive repository of disassemblers and such, and lots of users that have experience working with the 68K assembly language.
For the most part, the only real big issue is finding a good disassmebler. The freeware one I started with didnt support some of the addressing modes like address indirect with indexing. Not an issue until I hit the O2 routines. 4 sensors each all handled in a similar manner, so they extensivly use address indirect w/ indexing for saves, stores, and look-ups. Basically the entire O2 logic didn't disassemble at all. Right now I have to use IDA to 'fill in the blanks' sort of speak. If you can get IDA, its a great program to use. It automatically stops when it hits stuff thats not code, so you can toggle where it actually does the disassembly. It also supports a lot of other features that the basic DOS disassemblers dont.
The other lesser issue is finding whats code and whats tables. The PCM has the boot kernal at the start of the flash chip, with constants organized into sections after that, followed by the constants for the OS, followed by the OS, which itself has some tables thrown in here and there along with the vector table. I'll probably add some more info on how to find some of that up front. The checksum routine can help as that will tell you in a broad fashion where everything is located.
02-16-2009, 01:27 AM
#38
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Here's a (possibly easy) question: In the case of a line like this: move.w ($FFFF9116).w,($FFFFA692).w
How does that translate into a physical address, or is it accessing an external device? PCM addresses only go to $7FFFF... Assuming the first FF is a bug in IDA, it looks like that would be a transfer from some internal register to some other internal register... Does this make sense? I don't know, I'm looking at figure 3-5 in the 68332 user manual, it doesn't make much sense... On the left it says "internal registers" run from $FF0000 to $FFFFFF, then it expands into details on the right and defines $FFF000 to $FFFFFF... ???? what about $FF0000 through $FFF000, and what exactly is the blank space from $FFF000 to $FFFA00 supposed to represent? lol, this documentation seems sub-par. Thoughts?
How does that translate into a physical address, or is it accessing an external device? PCM addresses only go to $7FFFF... Assuming the first FF is a bug in IDA, it looks like that would be a transfer from some internal register to some other internal register... Does this make sense? I don't know, I'm looking at figure 3-5 in the 68332 user manual, it doesn't make much sense... On the left it says "internal registers" run from $FF0000 to $FFFFFF, then it expands into details on the right and defines $FFF000 to $FFFFFF... ???? what about $FF0000 through $FFF000, and what exactly is the blank space from $FFF000 to $FFFA00 supposed to represent? lol, this documentation seems sub-par.
Thoughts?You can differentiate when the flash chip is being accessed as you will see the addresses as longs as opposed to words. Since the flash chip is an entirely external memory device, a load from address $A000 on the flash chip would be 'MOVE.L $0000A000'. All other accesses for things such as teh RAM and internal registers are always done as word addressing. This is because the MPU inherently knows that any word address access is and only is for its internal registers, and not an external adressable memory device. A load from the address $FFA000 in the RAM would be 'MOVE.W $A000.W' or 'MOVE.W $FFA000.W'. Both are interchangeable. The $FF is truncated as its already assumed that word accesses are for the internal registers.
Not to add too much more confusion, but the internal registers are actually locatable right after the flash chip, or at the very top of the address map. On the handful of PCMs Ive looked at, they have always been at the top of teh address map at $FFXXXX and onward.
02-16-2009, 07:48 PM
#39
Junior Member
iTrader: (2)
Join Date: Jun 2001
Location: Sayre, PA
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
Re: PCM hacking 101 - The step by step approach
Actually Scot, your correct. I forgot to include the section
Although, on second thought, some of the hardcore atari sites like atari-forum.com might be better for the basics of disassembly. Most of the coding discussions there aren't really applicable to what we do as theyre working with game consols/dynamic PC type environments as opposed to more static embedded system code like the PCMs have. But... they have a fairly extensive repository of disassemblers and such, and lots of users that have experience working with the 68K assembly language.
Although, on second thought, some of the hardcore atari sites like atari-forum.com might be better for the basics of disassembly. Most of the coding discussions there aren't really applicable to what we do as theyre working with game consols/dynamic PC type environments as opposed to more static embedded system code like the PCMs have. But... they have a fairly extensive repository of disassemblers and such, and lots of users that have experience working with the 68K assembly language.
I bought a few 411's and such, but have really done very little with them except for taking the covers off...
So that is what I am really asking. Is there a good 32 bit moto disassembler out there?
Thanks, Scot
02-16-2009, 11:32 PM
#40
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
I used IRA (see 'The cook book approach to getting started with the '411 PCM' thread), or Intelligent Reverse Assembler. For the most part, it did ok, and produced code in the format like we're used to seeing, but it doesnt do some of the addressing modes. Basically, this produced an occasional group of commands that didn't reverse, but in the O2 routines that extensivly use certain address modes, they didn't disassemble at all. Had I known this at the start, I probably wouldn't have used it...
There are a few other ones out there that Ive come across. At the time I was looking, there weren't really that many, but a few more have popped up. One additional one is dasm68 (see attached). It seems to work, but when I played with it, I couldnt get it to dump to a .txt file. It kept trying to just echo the disassembly to the dos shell.
No freeware disassembler will ever truely support the CPU32 instruction code since it is used in embedded industrial and automotive systems only, but any good one that works for the 68K should come close to what we need. I saw a few on that atari site that I have yet to try. I'll give them a test drive and see what I think. Even if some of the commands aren't supported, its not the end of the world. Motorola gives all the bitfield encoding in their CPU32 programmers guide. All the instructions are bitfield encoded (binary), so you can look up the instruction manually in the users guide if the compiler doesnt support it.
02-21-2009, 01:59 AM
#41
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
I think I found a disassembler that looks like it might work. Its called TTDIGGER, and its pretty much one of only a few that still has current support from the developer. I was experimenting with it, and it does seem to at least handle most of the machine code. The caveat? It only runs on an Atari ST (man, remember those?).
In order to run it, I had to install an ST emulator running an old version of TOS. You also can't do an entire ROM, have to do each section individually due to the limited resources. Larger files either cause it to not work, or cause an exception, and subsiquent crash within the emulator.
In order to run it, I had to install an ST emulator running an old version of TOS. You also can't do an entire ROM, have to do each section individually due to the limited resources. Larger files either cause it to not work, or cause an exception, and subsiquent crash within the emulator.
05-10-2009, 09:53 AM
#42
Junior Member
Join Date: May 2009
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Re: PCM hacking 101 - The step by step approach
thank's alot. there is some really good info in your post that
is real hard to come by.
i am going to print it off at work to read on my down time.
i converted the whole thread to a pdf with a tittle page.
it's attached below
is real hard to come by.
i am going to print it off at work to read on my down time.
i converted the whole thread to a pdf with a tittle page.
it's attached below
05-11-2009, 02:57 AM
#43
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
Thanks, making it a PDF does make it more printer friendly and easier to search.
Your definitely right about the information being hard to come by. HPTuners had some really good info early on when they where trying to unlock the OBD-II routines, but there is very little on the actual operation of the engine and transmission code. Probably due to them not releasing any more info once they had what they needed. Never the less, its a good idea to also browse the old M68332/VPW archive board there if you want to get started with actual hacking and working with the code. Lot of good info on the OBD-II interface. Without that, figuring out the OBD-II routines would have been much harder. Luckily, though, these computers are more evolution rather than revolution, so if you can map out a previous generation computer in the same family, you basically have done 70% of the work needed to figure out the next one. A lot of the code/logic from the earlier $0D/$0E TBI PCMs carried over into the vortec PCM. With that in mind, I suspect that the LS1 '411 PCMs are close enough that it would be of use in mapping one out.
Im also going to post up an updated copy of my hack of the vortec PCM. Still trying to finish the spark calibration and fix some errors/loose ends I found. Its far from complete, but its still fairly comprehensive on the engine management side.
Your definitely right about the information being hard to come by. HPTuners had some really good info early on when they where trying to unlock the OBD-II routines, but there is very little on the actual operation of the engine and transmission code. Probably due to them not releasing any more info once they had what they needed. Never the less, its a good idea to also browse the old M68332/VPW archive board there if you want to get started with actual hacking and working with the code. Lot of good info on the OBD-II interface. Without that, figuring out the OBD-II routines would have been much harder. Luckily, though, these computers are more evolution rather than revolution, so if you can map out a previous generation computer in the same family, you basically have done 70% of the work needed to figure out the next one. A lot of the code/logic from the earlier $0D/$0E TBI PCMs carried over into the vortec PCM. With that in mind, I suspect that the LS1 '411 PCMs are close enough that it would be of use in mapping one out.
Im also going to post up an updated copy of my hack of the vortec PCM. Still trying to finish the spark calibration and fix some errors/loose ends I found. Its far from complete, but its still fairly comprehensive on the engine management side.
11-03-2009, 07:13 PM
#44
Junior Member
Join Date: Mar 2009
Location: Statesboro, GA
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1991 GMC SIERRA
Engine: 5.7L
Transmission: T56
Axle/Gears: 3.73
Re: PCM hacking 101 - The step by step approach
Yeah, I don't really want to pay $800 for EfiLive. I'd pay $400 right now, but not $800, sorry. It's pretty much the only thing holding me back from doing an OBDII TPI swap. I have all the parts, and my PCM is even flashed with an ExpressVan tune with all the necessary tweaks done to a PCM4Less bin I got from a friend who did some edits with TunerCat so I wouldn't throw any codes. I have even done a little port work to the TPI intake. I even have new gaskets, and was going to purchase EfiLive next, but just stopped... every time I go to efilive.com, I feel physically pained once I get to the order page.
I was running TunerCat in a virtual machine trying to figure out how to crack (for educational purposes only, of course) it so it won't require the... well... the dongle cable I suppose is what you'd call it, but got bored. I use Linux on my desktop and can monitor the serial port data stream as I mess with it, but can't figure anything out. I guess I could continue this insanity and if I strike gold, I might be able to supply some information (through more insanity, ie trial and error, of course) about the order of the data, though I guess I wouldn't be able to determine addressing. But, i don't know. This is over my head. I was a script kiddie in high school and have some networking and server skills, and that's about it. I just don't want to pay $800 for a software package and a 1 pound box with a cable and a scanner in it. Somehow, I've made myself think I'm smarter than that.
Thanks alot for this post by the way. It's inspiring hope, hope that I might be able to keep my $800 and just make some slight changes to the bin I already have... maybe? YES WE CAN!!!
I was running TunerCat in a virtual machine trying to figure out how to crack (for educational purposes only, of course) it so it won't require the... well... the dongle cable I suppose is what you'd call it, but got bored. I use Linux on my desktop and can monitor the serial port data stream as I mess with it, but can't figure anything out. I guess I could continue this insanity and if I strike gold, I might be able to supply some information (through more insanity, ie trial and error, of course) about the order of the data, though I guess I wouldn't be able to determine addressing. But, i don't know. This is over my head. I was a script kiddie in high school and have some networking and server skills, and that's about it. I just don't want to pay $800 for a software package and a 1 pound box with a cable and a scanner in it. Somehow, I've made myself think I'm smarter than that.
Thanks alot for this post by the way. It's inspiring hope, hope that I might be able to keep my $800 and just make some slight changes to the bin I already have... maybe? YES WE CAN!!!
11-07-2009, 05:53 PM
#45
Member
Join Date: Mar 2009
Location: Columbus, OH
Posts: 188
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1995 K2500
Engine: 5.7
Transmission: 4L80E
Axle/Gears: 4.11's
11-16-2009, 12:43 AM
#46
Supreme Member
Thread Starter
iTrader: (2)
Join Date: Jan 2002
Location: Moorestown, NJ
Posts: 9,962
Likes: 0
Received 3 Likes
on
3 Posts
Car: 88 Camaro SC
Engine: SFI'd 350
Transmission: TKO 500
Axle/Gears: 9-bolt w/ 3.23's
Re: PCM hacking 101 - The step by step approach
I've decided to finally tackle the '411 PCM. These will probably be a good bit harder as they supported multiple options like IAC, e-throttle, DIS, etc. Im hoping that at some point (maybe by the end of the summer or next fall), I can figure out enough to generate XDFs to allow for tuning. Even without reflashing, you can still tune using a roadrunner, which works quite well with tunerpro. One thing about these PCMs is that they are much more complex than any of the earlier stuff. My vortec PCM actually requires 5 seperate XDFs just to tune the engine. There are some 600 parameters in total between all the XDFs, just to give some idea of how complicated it is. As time goes on the PCMs increase in complexity exponentially, so Id imagine that the '411 could be 2-3x more parameters on the engine side, plus whatever is needed for the TCC and transmission.
02-15-2011, 02:01 AM
#47
Junior Member
Join Date: Feb 2011
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Re: PCM hacking 101 - The step by step approach
Hi Good Time
how to decode the following code to explain it to me
Thanks
TX: 82 10 F1 21 25
RX: 95 F1 10 61 81 00 7E FF
9C 00 00 02 00 23 6D 6D
5B 5B A5 00 00 31 00 6D
89
TX: 82 10 F1 21 84 28
RX: 99 F1 10 61 84 00 7D FF
9C 02 00 23 6A 6A 5D 5D
A5 00 00 32 00 00 00 00
00 00 6D 4A D8
how to decode the following code to explain it to me
Thanks
TX: 82 10 F1 21 25
RX: 95 F1 10 61 81 00 7E FF
9C 00 00 02 00 23 6D 6D
5B 5B A5 00 00 31 00 6D
89
TX: 82 10 F1 21 84 28
RX: 99 F1 10 61 84 00 7D FF
9C 02 00 23 6A 6A 5D 5D
A5 00 00 32 00 00 00 00
00 00 6D 4A D8
02-15-2011, 09:49 AM
#48
Supreme Member
Join Date: Jul 1999
Location: Baton Rouge, LA, USA
Posts: 1,577
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 T/A
Engine: 441 SBC 12.5:1 0.680" Lift
Transmission: T-56
Axle/Gears: 4.10 TruTrac Moser 9"
Re: PCM hacking 101 - The step by step approach
It appears to be a snippet of a request/response series in ISO/KWP.
A brief Google search for that request string yielded the following link where the same preamble is used and discussed:
http://www.mp3car.com/engine-managem...ta-packet.html
Hope this helps,
Craig
A brief Google search for that request string yielded the following link where the same preamble is used and discussed:
http://www.mp3car.com/engine-managem...ta-packet.html
Hope this helps,
Craig
10-26-2011, 07:11 PM
#50
Junior Member
Join Date: Oct 2011
Posts: 1
Likes: 0
Received 0 Likes
on
0 Posts
Re: PCM hacking 101 - The step by step approach
Good info, thanks a bunch. I have been working on a PCM from aa '99 Saturn for some time now. Just got a chance to get back in the last few days. I finally have a bit of time and my logic analyzers with good cables at the same time. I do want to get a reverse assembler program together for my 68HC11 I have so I can quickly turn the bits into opcodes since I cant seem to find one. A couple fun problems I am dealing with with this thing though was the bank switching of 3 different upper memory blocks and the good folks at Saturn scrambled some of the address lines from the cpu to the flash.
You can see more of my notes on the project here :
http://delcohacking.net/forums/viewt...94f581261bb6ef
Again thanks for the good info
You can see more of my notes on the project here :
http://delcohacking.net/forums/viewt...94f581261bb6ef
Again thanks for the good info
