where is the tach "filter"?
#1
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: VA
Posts: 1,295
Likes: 0
Received 0 Likes
on
0 Posts
Car: '91 Z28
Engine: L98 5.7L TPI
Transmission: 700R4
Axle/Gears: 323's
where is the tach "filter"?
supposedly there is a filter in the tach circuit, and i was wondering if it's integrated in to the tach itself, or is it a stand-alone item somewhere? or actually in the ignition module?
KAM
KAM
#2
Supreme Member
Join Date: Feb 2004
Location: Greenville, SC
Posts: 1,231
Likes: 0
Received 1 Like
on
1 Post
Car: 1991 Chevy Camaro
Engine: 305 TBI
Transmission: 700R4
Axle/Gears: 3.42

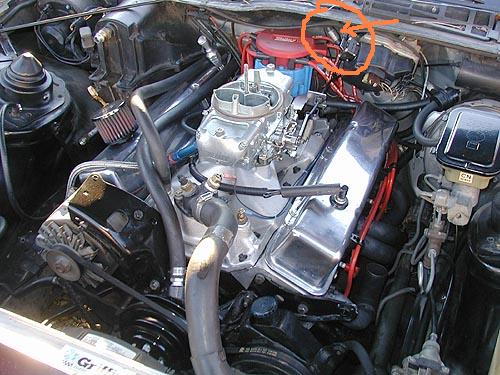

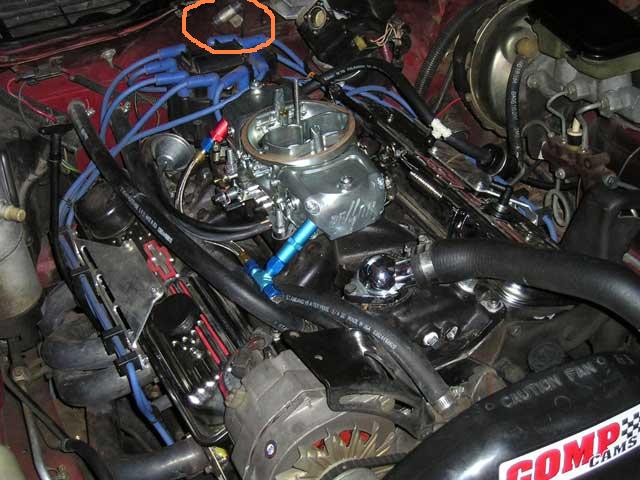

I can't say for sure if it's like this on all the 3rd gens, but on mine, the tach filter is located on the white wire coming out of the gray connector on the ignition coil. It is about 3" or 4" down past the connector on the coil. The tach filter just looks like a single gray one-wire connector. It's usually kinda hard to see, since it's back in between the motor and the firewall.
Last edited by Benm109; 07-06-2005 at 09:09 PM.
#4
Supreme Member
Join Date: Feb 2004
Location: Greenville, SC
Posts: 1,231
Likes: 0
Received 1 Like
on
1 Post
Car: 1991 Chevy Camaro
Engine: 305 TBI
Transmission: 700R4
Axle/Gears: 3.42
Originally posted by Big AL91
B-109, you have actually seen this filter, please? Thanks
B-109, you have actually seen this filter, please? Thanks
#5
Junior Member
Join Date: Jul 2004
Location: SE Ga
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Car: '91 Camaro
Engine: 305ciV8LO3TBI
Transmission: Auto.
Thanks again. So informed that the filter is not where you say it is, in the wiring loom a short distance from the Distributor connector. '91 LO3TBI305 in my case. The picture would be great and appreciated.
#6
Supreme Member
Thread Starter
Join Date: Jun 2000
Location: VA
Posts: 1,295
Likes: 0
Received 0 Likes
on
0 Posts
Car: '91 Z28
Engine: L98 5.7L TPI
Transmission: 700R4
Axle/Gears: 323's
yea, i'd like to see it, too, so i know what i'm looking for. all i know of is the diagnostic connector...
Trending Topics
#9
Supreme Member
Join Date: Feb 2004
Location: Greenville, SC
Posts: 1,231
Likes: 0
Received 1 Like
on
1 Post
Car: 1991 Chevy Camaro
Engine: 305 TBI
Transmission: 700R4
Axle/Gears: 3.42
Originally posted by thunderstick
yea, i'd like to see it, too, so i know what i'm looking for. all i know of is the diagnostic connector...
yea, i'd like to see it, too, so i know what i'm looking for. all i know of is the diagnostic connector...
What I thought was the tach filter is really just that diagnostic connector, C114. After looking through my service manual, I realized my mistake. What's odd to me is that the service manual mentions a tach filter, but doesn't give any clue as to where it is, integrated or not.
But, according to this thread, there are no tach filters after 87 (go down to Trickster's posts):
https://www.thirdgen.org/techbb2/sho...ight=autometer
And in this thread, it says the tach filter is integrated into the electronics of the tach:
https://www.thirdgen.org/techbb2/sho...ht=tach+filter
I'm truly sorry about this mix-up.
Last edited by Benm109; 07-08-2005 at 10:58 AM.
#10
Junior Member
Join Date: Jul 2004
Location: SE Ga
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Car: '91 Camaro
Engine: 305ciV8LO3TBI
Transmission: Auto.
B-109, thanks for the update. If a human doesn't do anything, no mistakes are made, appreciate the try. Just to let you know I have the manual for the '91 and the Tach filter is shown where you originally stated although in the loom harness. However The Trickster pointed out it did not exist there but on the printed circuit board of the inst. cluster. As info, my pointer stays at about 7000 with the switch off and pegs about 1500 RPMs. So, even if the filter is faulty and corrected, there is the problem of recalibration, some just carefully remove and reapply the pointer with statements I understand is about as good as it will get. Unless, you were lucky enough to get a tach put together by someone Tues, Weds or Thurs whom cared.
#13
Junior Member
Join Date: Jul 2004
Location: SE Ga
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Car: '91 Camaro
Engine: 305ciV8LO3TBI
Transmission: Auto.
Thanks all; the point of my remarks is that the LO3 engine wiring section Camaro Service Manual 6D5-9 shows a Tach Filter in full view. The fact that its not there is disappointing to those of us who rely on the Service Manual especially DIYs.
#14
TGO Supporter
Join Date: Sep 2003
Location: conway, s.c.
Posts: 6,127
Likes: 0
Received 7 Likes
on
7 Posts
Car: 1989 Iroc-Z
Engine: 5.7L TPI
Transmission: 700R4
If you go through the pages there for all the engines in section 6d5 for the 91 camaros, you will find the tach filter listed. However if you go to the schematics section for each of those engines, you will find it listed as the tachometer diagnostic connector
#17
Moderator
iTrader: (2)
Join Date: May 2001
Location: Sac, CA
Posts: 5,241
Likes: 0
Received 10 Likes
on
7 Posts
Car: '89 GTA
Axle/Gears: 3.27/9-bolt
trying to find out why i have a bouncy idle at WOT, i have a msd setup including the 6AL.
sooo since i have an '89 i don't have a tach filter, but i could possibly have to replace this capicitor behind the guage huh?
i didn't read why. ..they just go bad sporadically?
sooo since i have an '89 i don't have a tach filter, but i could possibly have to replace this capicitor behind the guage huh?
i didn't read why. ..they just go bad sporadically?
#18
Supreme Member
Join Date: Feb 2005
Location: Fort Lauderdale, FL
Posts: 1,034
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 Camaro RS
Engine: 305 TBI
Transmission: 700R4
Axle/Gears: 2.73 Posi w/Disc
I haven't read up on this particular circuit, but I can tell you that when electrolytic caps fail, they usually leak their electrolyte. Not always -- but usually. if that component went bad, it's usually for a reason and the replacement will probably die from the same reason if you do not find the cause. It could have simply been old age or a defentive component to start with, but this is unlikely. If it were me, I'd replace the defective part & if it went bad again, then I'd find out why. Remember, polarized electrolytic caps do not like AC current or any reverse-biasing (More-or-less: current flowing against the expected direction of current flow.).
#19
Supreme Member
iTrader: (2)
Join Date: Jul 2003
Location: Dallas, TX area
Posts: 3,205
Likes: 0
Received 0 Likes
on
0 Posts
Car: 91 Formula WS6 (Black, T-Tops)
Engine: 383 MiniRam (529 HP, 519 TQ - DD2K)
Transmission: Built '97 T56, Pro 5.0, CF-DF
Axle/Gears: 4.11 posi Ford 9"
If your tach is acting weird with an MSD ignition, try connecting the tach port on the ignition box to the tach wire from the coil )disconnect it from the coil and drive it from the ignition box). That's what I had to do on my Digital 6+ anyway....
