88 Camaro alternator
Hi there,
Has anyone got a wiring diagram on how an alternator wires into an 88 Camaro 350TPI? I would search but it's not working at the moment...
Has anyone got a wiring diagram on how an alternator wires into an 88 Camaro 350TPI? I would search but it's not working at the moment...
#2
Junior Member
Join Date: Feb 2005
Location: Long Island
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Trans Am/ Recaro w/webbed headrests (AS5)?
Engine: Code F
Transmission: 700, shame, ain't it?
Axle/Gears: 3.27 Borg-Warner posi
manual
Your best bet would be a Haynes, or possibly a Chillton's manual. At the rear of the manual are basic wiring diagrams.
#3
Senior Member
Thread Starter
Join Date: Apr 2003
Location: Christchurch, New Zealand
Posts: 500
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Trans Am
Engine: 1989 305 TPI
Transmission: 700-R4
Axle/Gears: 2.77 10 bolt
Re: manual
Originally posted by crapper_mekanic
Your best bet would be a Haynes, or possibly a Chillton's manual. At the rear of the manual are basic wiring diagrams.
Your best bet would be a Haynes, or possibly a Chillton's manual. At the rear of the manual are basic wiring diagrams.
#6
Junior Member
Join Date: Feb 2005
Location: Long Island
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Trans Am/ Recaro w/webbed headrests (AS5)?
Engine: Code F
Transmission: 700, shame, ain't it?
Axle/Gears: 3.27 Borg-Warner posi
true...
With no search enabled, you'd have to go my way, and compare diagrams. Patience is a virtue, as they say...
Trending Topics
#8
Senior Member
iTrader: (1)
Join Date: Jul 2001
Location: Leesburg, VA
Posts: 581
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Camaro Sport Coupe
Engine: 2.8L V6
Transmission: 700R4
After I read back over your post I saw you needed 87. This one by the way is for an 88 VIN F or 8. It's worth a shot to see if the wiring matches up.
#9
Junior Member
Join Date: Feb 2005
Location: Long Island
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 Trans Am/ Recaro w/webbed headrests (AS5)?
Engine: Code F
Transmission: 700, shame, ain't it?
Axle/Gears: 3.27 Borg-Warner posi
Nice Josh, I don't have those service manuals myself, education, research, and seat o' my pants...
#11
Senior Member
Thread Starter
Join Date: Apr 2003
Location: Christchurch, New Zealand
Posts: 500
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Trans Am
Engine: 1989 305 TPI
Transmission: 700-R4
Axle/Gears: 2.77 10 bolt
Originally Posted by JoshDT91
Hopefully this file attaches, let me know if you need more.
#12
Senior Member
iTrader: (1)
Join Date: Jul 2001
Location: Leesburg, VA
Posts: 581
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Camaro Sport Coupe
Engine: 2.8L V6
Transmission: 700R4
It says it is attached but does not show up, not sure what happened. I could e-mail it to you if you want.
Depending on what you are doing a good resource might be this site, http://www.alternatorparts.com/. They helped me get a 140A alternator for my car. Maybe if you describe what you are doing we can help better.
Depending on what you are doing a good resource might be this site, http://www.alternatorparts.com/. They helped me get a 140A alternator for my car. Maybe if you describe what you are doing we can help better.
#13
Senior Member
Thread Starter
Join Date: Apr 2003
Location: Christchurch, New Zealand
Posts: 500
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Trans Am
Engine: 1989 305 TPI
Transmission: 700-R4
Axle/Gears: 2.77 10 bolt
Originally Posted by JoshDT91
It says it is attached but does not show up, not sure what happened. I could e-mail it to you if you want.
#15
Senior Member
Thread Starter
Join Date: Apr 2003
Location: Christchurch, New Zealand
Posts: 500
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Trans Am
Engine: 1989 305 TPI
Transmission: 700-R4
Axle/Gears: 2.77 10 bolt
Originally Posted by JoshDT91
It is showing back up again.
#16
Senior Member
iTrader: (1)
Join Date: Jul 2001
Location: Leesburg, VA
Posts: 581
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 Camaro Sport Coupe
Engine: 2.8L V6
Transmission: 700R4
Unfortunately I do not have that but I know where you can buy one. Visit www.helminc.com the part number you need is ST36887 and is $75. Not a bad set of books to have around.
#17
Junior Member
Join Date: Jun 2004
Location: Sydney, Australia
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1986 Pontiac Trans Am
Engine: LB9 305 TPI (soon to fit 383 Vortec)
Transmission: 700R4
I assume yourr alternator looks like this:
[HTML]http://www.wai-wetherill.com/products/partimage.cfm?wai_num=20-167-31-1[/HTML]
If so, your alternator is known as a Delco CS130. They are very common an late 1980s up to mid 1990s GM cars and light trucks.
A quick google search for CS130 wiring has come up with this website:
[HTML]http://www.chevelles.com/techref/tecref14.html[/HTML]
On this website, under the heading "General information on "CS130" alternators;", lists which wire goes to which terminal on the alternator. BTW, there are two basic types of CS130 regulator, and this wiring diagram will work on your 88 Camaro.
Cheers,
Andrew
[HTML]http://www.wai-wetherill.com/products/partimage.cfm?wai_num=20-167-31-1[/HTML]
If so, your alternator is known as a Delco CS130. They are very common an late 1980s up to mid 1990s GM cars and light trucks.
A quick google search for CS130 wiring has come up with this website:
[HTML]http://www.chevelles.com/techref/tecref14.html[/HTML]
On this website, under the heading "General information on "CS130" alternators;", lists which wire goes to which terminal on the alternator. BTW, there are two basic types of CS130 regulator, and this wiring diagram will work on your 88 Camaro.
Cheers,
Andrew
#18
Senior Member
Thread Starter
Join Date: Apr 2003
Location: Christchurch, New Zealand
Posts: 500
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 Trans Am
Engine: 1989 305 TPI
Transmission: 700-R4
Axle/Gears: 2.77 10 bolt
Thanks for the links, but I made a wee mistake with the title of this thread and actually need the wiring for an 87 alternator. I looked at the links but the information contained there in didn't seem useful. The 87 alternator has 3 wires coming from it, two of them are brown and tan/white. I can't remember off the top of my head what the third colour is.
If anyone had one, a scan from a factory manual of the alternator wiring and what it connects to on the firewall C100 connector would be appreciated.
If anyone had one, a scan from a factory manual of the alternator wiring and what it connects to on the firewall C100 connector would be appreciated.
#20
Supreme Member

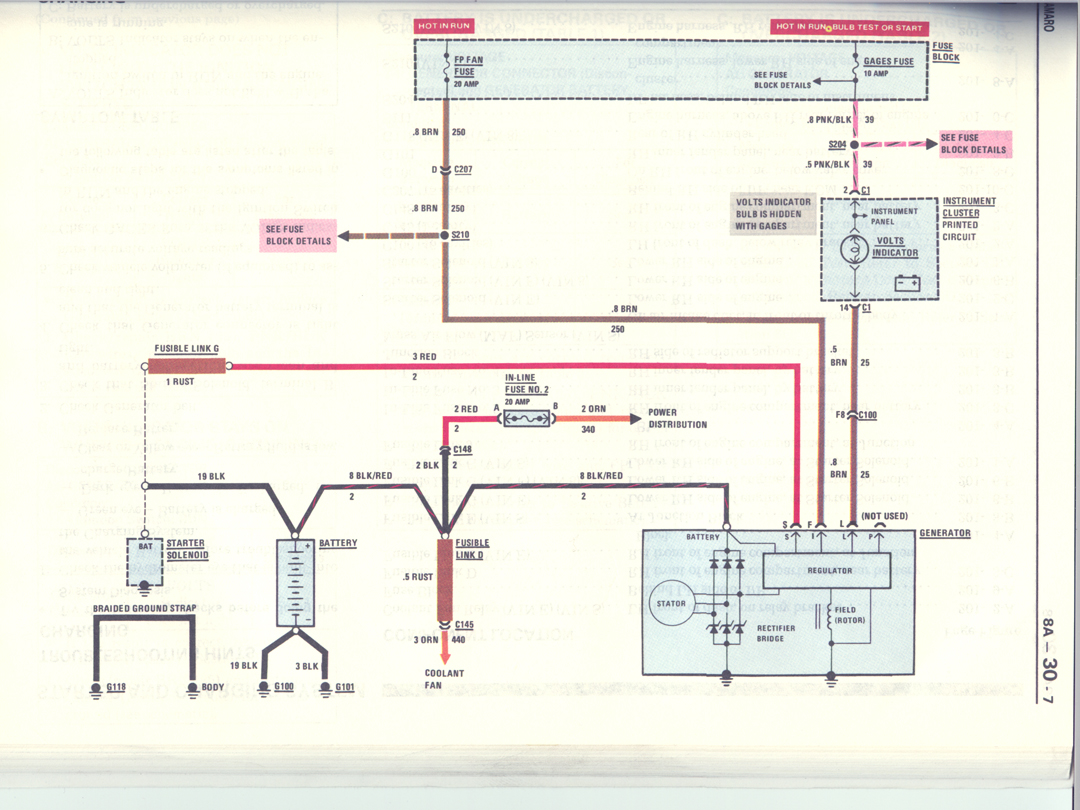

Sorry, won't upload good enough to read.
----------
