need help with ac compressor clutch wiring
06-05-2006, 11:47 PM
#1
Member
Thread Starter
need help with ac compressor clutch wiring
i have an 89 iroc 305 tpi and i have a residual ac charge. the problem is that the plug for the ac clutch is inexplicably missing. can someone thell me where the wires for this come from so i can either rewire one in or find the actual plug i have looked for about 10 minutes but i cant find it. its the plug that plugs into the front of the compressor that control the magnetics for the compressor pully.
any help would be appreciated.
any help would be appreciated.
06-06-2006, 12:04 AM
#2
Junior Member
Join Date: Jul 2004
Posts: 61
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 Monte Carlo SS
Engine: 406 TPI
Transmission: T56 6-speed
It is a green wire and it is usually in a harness and it goes over near the accumulator and the 'cycling switch'.. you can buy a new connector at any auto parts, make sure you use one as they have a diode across the terminal to prevent the clutch from hanging up and staying engaged.
06-06-2006, 01:44 PM
#4
Member
Thread Starter
im still at a loss heres some pics to help me explain.
this is a picture of my compressor the plug in the middle has no plug going to it and no plug in sight.
this is the plug with the green wire and the diode. as you can see it will not fit into the plug shown above. i just got back from the yard and most of the compressors had this plug plugged into them. do i just have a strange compressor or something w.
what can i do to get it working to see if my system works.
thanks in advance
this is a picture of my compressor the plug in the middle has no plug going to it and no plug in sight.
this is the plug with the green wire and the diode. as you can see it will not fit into the plug shown above. i just got back from the yard and most of the compressors had this plug plugged into them. do i just have a strange compressor or something w.
what can i do to get it working to see if my system works.
thanks in advance
06-06-2006, 02:27 PM
#5
Supreme Member
iTrader: (2)
Join Date: Feb 2003
Location: Chicago
Posts: 1,583
Likes: 0
Received 1 Like
on
1 Post
Car: Only a daily driver, but comin home
Engine: I have one that runs ;)
Transmission: Caged hamster that runs really fast
Axle/Gears: They are round, I know that much

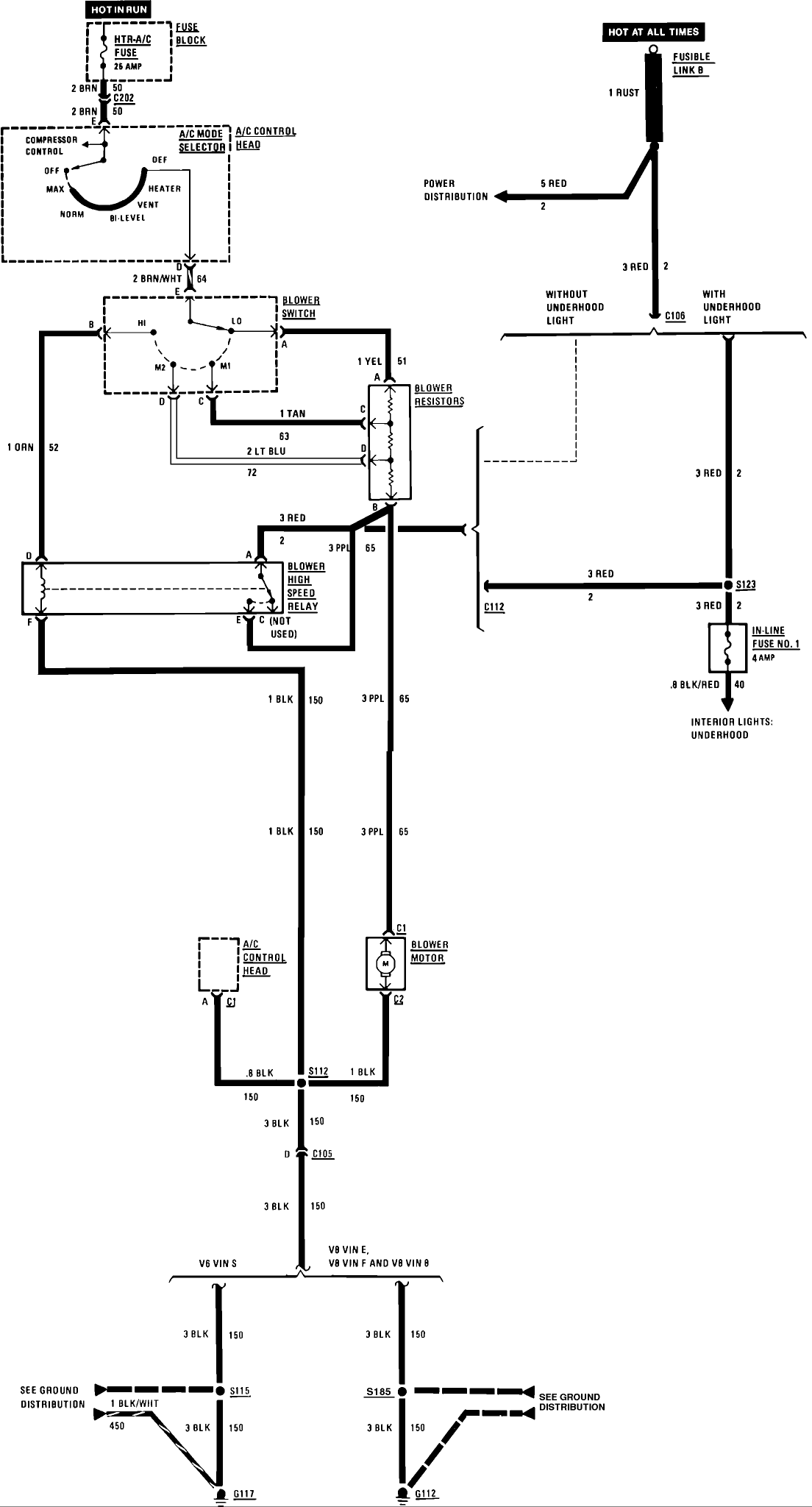

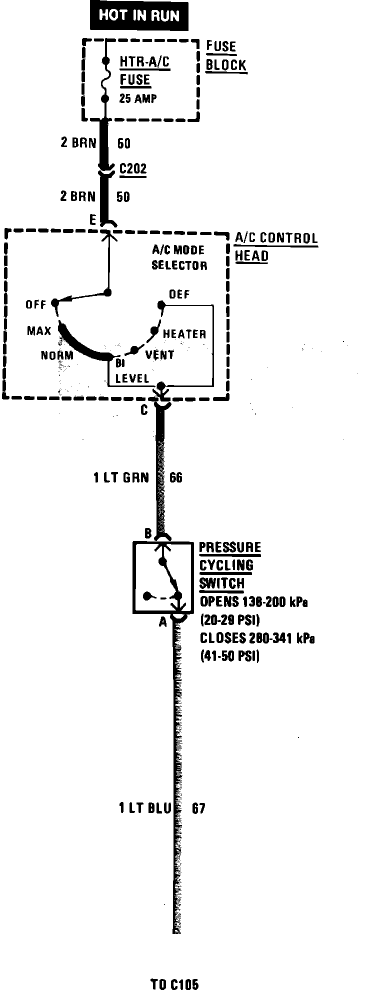

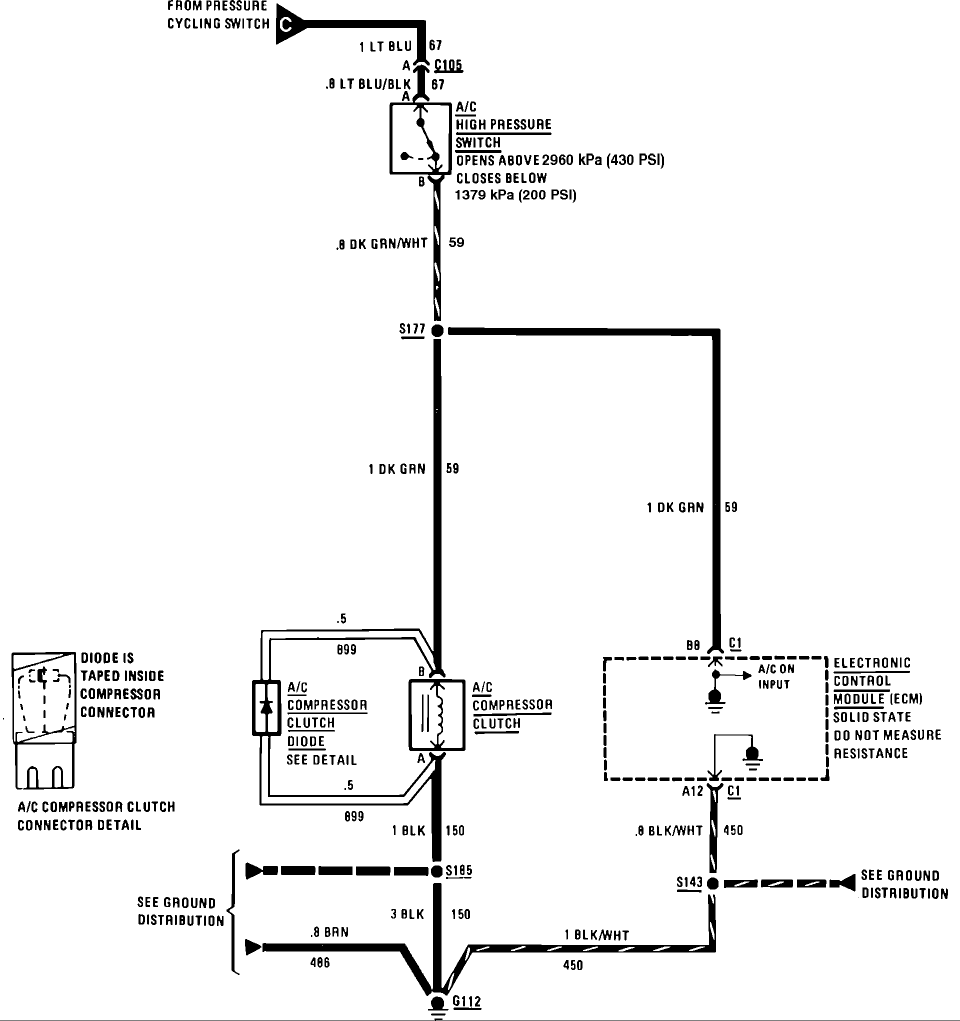

Here are some diagrams if this helps at all
06-06-2006, 03:06 PM
#6
Senior Member
iTrader: (2)
Join Date: Nov 2001
Location: AL,USA
Posts: 920
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 Formula
Engine: 95 LT1
Transmission: T56
Axle/Gears: Weak 7.5 with 4.10s
That is the plug for the compressor, but it is for the older clutches. parts stores sell an adapter if you don't want to cut wires. It is made by murray and the part number is 37218. The pigtail to splice in is 37215. Both are availible through O'Reillys
06-06-2006, 08:01 PM
#7
Member
Thread Starter
i dont mind cutting wires its not too hard my question is what car should i look for for getting the right connector for my compressor.
