starter and ignition wiring from scratch.
#1
Member
Thread Starter
Join Date: Mar 2006
Location: Ellis Grove Il
Posts: 445
Likes: 0
Received 1 Like
on
1 Post
Car: 1989 Camaro RS/ 1992 Camaro z28
Engine: 383 Stroker/ ls3 e-rod
Transmission: borge warner t-56/ tremech t-56
Axle/Gears: 10 bolt, 3.55/ dayna 44(viper) 3.07
starter and ignition wiring from scratch.
Ok for starters im dropping my 383 in my car finally after 3 years. I once had it all wired up but it was stolen from me and as i was chasing the thiefts down, the whole engine was knocked around and wires torn off. So anyways that was 3 years ago and i forgot all how to wire the starter and ignition up. Keep in mind i have eleminated the stock wiring harness so i have no wires to tap into, all needs to be ran new. Act as if it was on an engine cradle being fired up for the first time. I do want to add a push button start and toggle switch for ignition. If you can explaine to me where the wire come from and go to that would be fine for me. Thanks everyone.
#2
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,890
Likes: 0
Received 59 Likes
on
43 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: starter and ignition wiring from scratch.
Are you missing the engine side at the C100 bulkhead near the booster or is the dash harness gone too?
If its just the engine bay side, Id grab another from a junkyard. V6 harnesses will work, cut out all the EFI stuff
If its just the engine bay side, Id grab another from a junkyard. V6 harnesses will work, cut out all the EFI stuff
#3
Member
Thread Starter
Join Date: Mar 2006
Location: Ellis Grove Il
Posts: 445
Likes: 0
Received 1 Like
on
1 Post
Car: 1989 Camaro RS/ 1992 Camaro z28
Engine: 383 Stroker/ ls3 e-rod
Transmission: borge warner t-56/ tremech t-56
Axle/Gears: 10 bolt, 3.55/ dayna 44(viper) 3.07
Re: starter and ignition wiring from scratch.
No no. I mean its still all in their along with my 305. Im actually driving the car down the road as i type lol. Im ripping out the whole ecu and getting rid of all the harness. Doing this for two reasons: one i want less wires behind my dash and in the engine bay to give a clean look( keep in mind its a show car) and for two tbis wiring harness is so jacked up and rigged its not even funny. So im going cabed(for now) and putting in a rat rod style steering column from flaming rivers. So i just need a basic wiring diagram. I dont want to use any of the stock harness so please no references to the stock wiring or any of that jibberish. Thanks
#4
Supreme Member
iTrader: (13)
Join Date: Apr 2005
Location: Not in Kansas anymore
Posts: 7,732
Likes: 0
Received 11 Likes
on
11 Posts
Car: 82 Z28
Engine: 383 SP EFI/ 4150 TB
Transmission: T400
Axle/Gears: QP 9" 3.73
Re: starter and ignition wiring from scratch.
Split to Ign switch and starter button
Ign wire runs to coil Pos+
Starter wire runs to S terminal on starter ( goes through P/n or clutch switch 1st )
#5
Member
Thread Starter
Join Date: Mar 2006
Location: Ellis Grove Il
Posts: 445
Likes: 0
Received 1 Like
on
1 Post
Car: 1989 Camaro RS/ 1992 Camaro z28
Engine: 383 Stroker/ ls3 e-rod
Transmission: borge warner t-56/ tremech t-56
Axle/Gears: 10 bolt, 3.55/ dayna 44(viper) 3.07
Re: starter and ignition wiring from scratch.
So i wont need to run a starter solenoid then?
#7
Member
Thread Starter
Join Date: Mar 2006
Location: Ellis Grove Il
Posts: 445
Likes: 0
Received 1 Like
on
1 Post
Car: 1989 Camaro RS/ 1992 Camaro z28
Engine: 383 Stroker/ ls3 e-rod
Transmission: borge warner t-56/ tremech t-56
Axle/Gears: 10 bolt, 3.55/ dayna 44(viper) 3.07
Re: starter and ignition wiring from scratch.

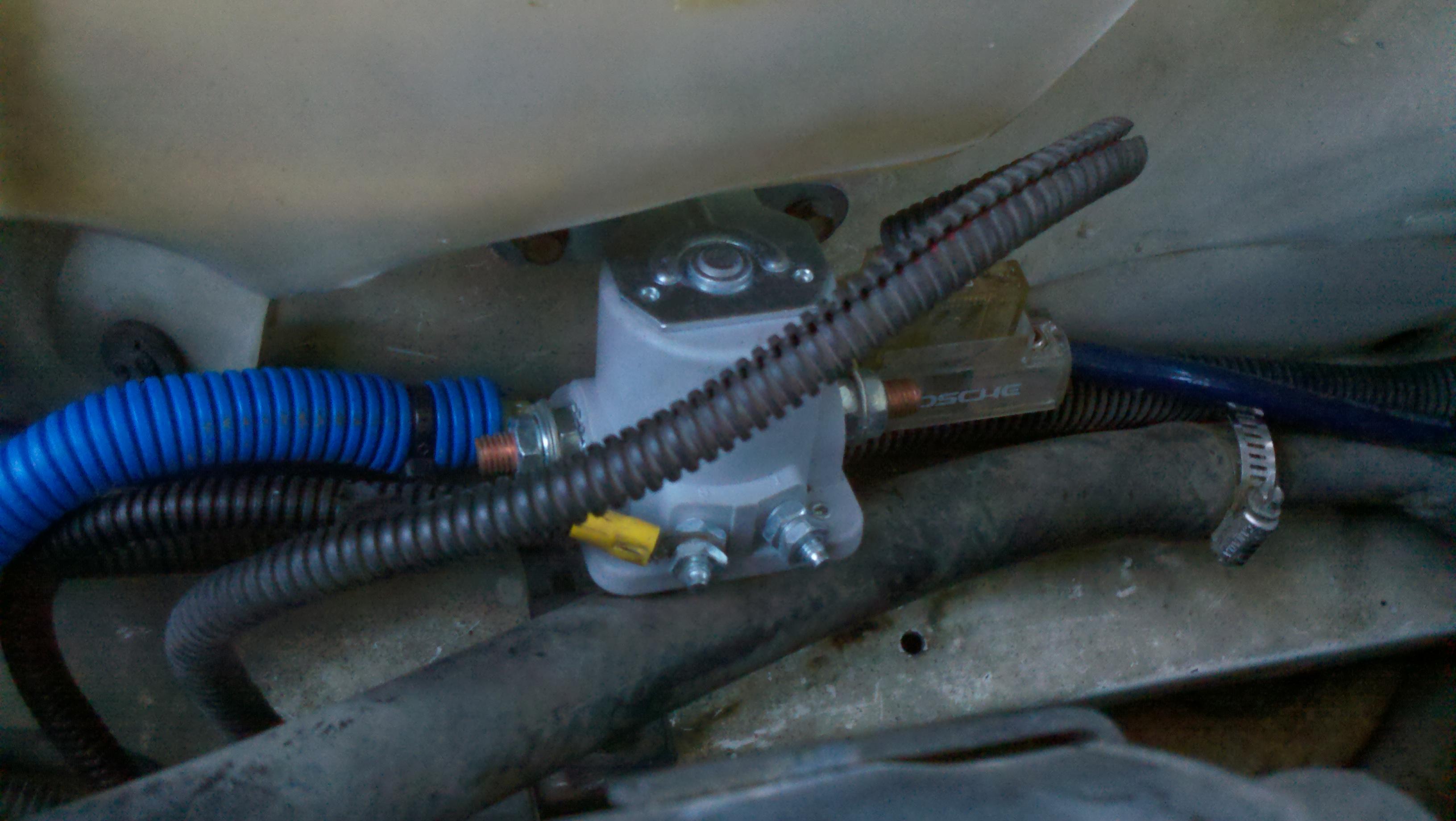

Ok so mine will run key, safety switch, starter solenoid(on remote location), and then to starter solenoid(on starter). I could just delete my remote location one then right? Also i thought their were 3 wires going to the starter? And the negative side of the coil comes from the distributor right?
Trending Topics
#8
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,890
Likes: 0
Received 59 Likes
on
43 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: starter and ignition wiring from scratch.
https://www.thirdgen.org/forums/ltx-...p-3rd-gen.html
There you go
Just a tip, dont go messing with the dash harness, cant see it anyways
There you go
Just a tip, dont go messing with the dash harness, cant see it anyways
#9
Member
Thread Starter
Join Date: Mar 2006
Location: Ellis Grove Il
Posts: 445
Likes: 0
Received 1 Like
on
1 Post
Car: 1989 Camaro RS/ 1992 Camaro z28
Engine: 383 Stroker/ ls3 e-rod
Transmission: borge warner t-56/ tremech t-56
Axle/Gears: 10 bolt, 3.55/ dayna 44(viper) 3.07
Re: starter and ignition wiring from scratch.
No im just taking out the passenger side harness. That is the right one right?
