v belt bracket help!!
#1
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
v belt bracket help!!
i had a junkyard remove the v belt brackets off an 87 GTA 305 for me because i didnt have the correct tools at the time, but now i dont know where everything goes on my 350. help? does anyone have a picture or can tell me where everything goes and what bolts go to what.
Trending Topics
#8
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: v belt bracket help!!
guys both of those pictures helped so much, but do you know or have a picture from the driver side on how the ac bracket mounts? i cant tell if it mounts to where my exhaust manifold goes, if it does that means i need to get to stud bolts off the 87 because mine just have the normal bolts.
#11
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: v belt bracket help!!
Where's the front bracket bolt too? It looks like it bolts to the manifold. I'm taking about the big bracket by the water pump that's squarish.
#13
Supreme Member
Join Date: Jun 2005
Location: Sydney, Australia
Posts: 1,380
Likes: 0
Received 5 Likes
on
5 Posts
Car: '86 TA
Engine: '74 350
Transmission: 700r4
Axle/Gears: 2.77
Re: v belt bracket help!!

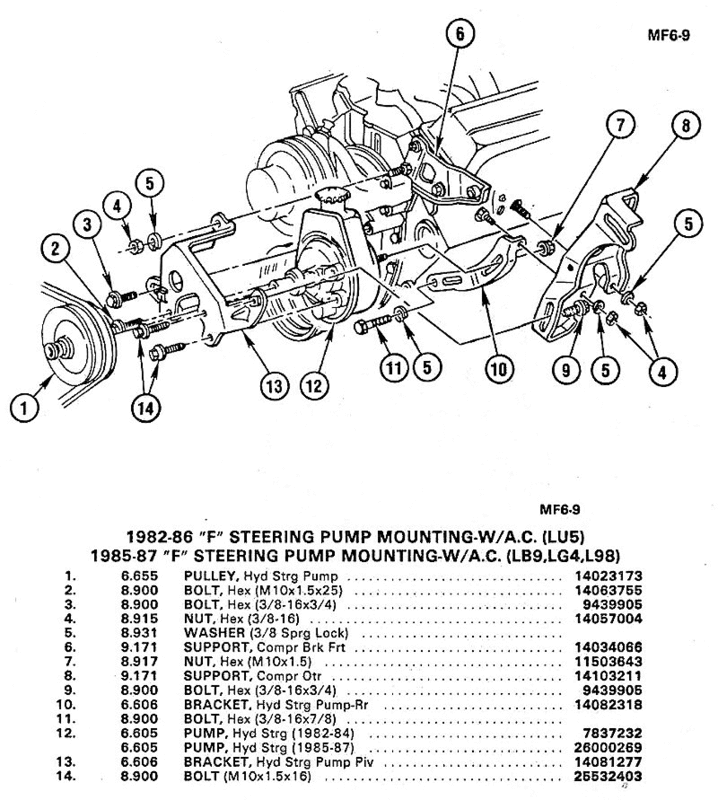

Thanks for the pic and diagrams Vette and Tuned, helped me too. My lb9 was swapped out by a po, but they retained most of the bracketry. The ac and smog arrangement was a bit of a head scratcher as some of it's missing, always wondered how it was supposed to go and what all the pulley grooves did.
Evilemo - which number bracket, in which diagram above, are you referring to? I might be able to take you a clearer pic, since I have no ac compressor in the way.
Evilemo - which number bracket, in which diagram above, are you referring to? I might be able to take you a clearer pic, since I have no ac compressor in the way.
