Recaro Resource Guide

Accidentally posted this in the history section when i meant to post here.. but that aside here you go...

RECARO RESOURCE GUIDE

Click the image to open in full size.

----------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------

I have been noticing a large amount of recaro questions lately and figured i would post this to help people out. Hopefully we can sticky this or have it placed in the faq's. Here is some basic Recaro knowledge, hopefully you guys will appreciate it. I will update this thread as i have the time, still have ALOT to add.

Each Recaro has a basic model number such as A8, LS, SRD. The first 2 letters stand for the back of the seat. The last digit stands for the base of the seat. For example an LX will stand for the back of the seat with its trademark pointy triangular bolsters but an LX-A will be the same back mounted to a flat base. Here is an example of a 3rd gen LX (top picture) and a 3rd gen LX-A (bottom)

Click the image to open in full size.
Click the image to open in full size.

Most of the common recaro seats can be traced through 3 generations, each with their own specific details and differences. For example the first generation LS (also known as the idealseat) has the trademark large rolling upper bolsters but the lower bolsters are very large and the slope is very close to the back of the lower frame. The later generations have a very similar back at first glance but the lower bolster foam is much smaller with the slope of the bolster midway back on the frame as seen here.

Click the image to open in full size.

The construction of the early recaros was very primitive compared to the later generations. Honestly the biggest improvement i have found through the generations is the advancement in the construction of the seats. The gen 1/2 seats are fairly difficult to assemble where as the later 3rd and 4th generations are about as simple as you can imagine.

How to spot a FAKE

Its not always easy to spot a fake but there are a few simple steps you can follow to increase your chances of purchasing a genuine recaro. Here are a few things to keep an eye out for..

- Is the 'RECARO' lettered correctly? If the letters are spaced from eachother? Is the lettering crooked? If it generally looks off chances are you are not dealing with a genuine recaro.

- What style diaphragm does the seat use? You will only find 3 style of supports on genuine recaro seats. The first design was a support strap. They were made of a nylon style material and each seat would have had around 3 of them going horizontally across the base attaching with a U style hook. The second generation used a support diaphragm. It was a single support made with 1-2 large rubber pcs bonded to a burlap style material and attached using a dowel and hook method on each side of the support. The newest recaro seats use a molded plastic but that is pretty self explanatory. Here are a few examples..

  • gen 1 straps (New jjcustominterior strap on top, original in middle)

Click the image to open in full size.

  • gen 2 diaphragm

Click the image to open in full size.

  • FAKE speed as found on ebay (you can also see the material is hog ringed onto the frame, something recaro hasnt done since the 70's.) Honestly there are about 100 things i could pick apart on these seats to show they are fake but this is the easiest to spot. They dont always look like this but this is the most obvious to spot.

Click the image to open in full size.
Click the image to open in full size.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 03:14 PM   #2
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide


Here is another speed that at first glance looked 100% legit short of some "off" recaro stitching but once i removed the insert found this..

Click the image to open in full size.
Click the image to open in full size.

That should do it for now, i will update more as i have the time.. If you have any request or questions feel free to message me


Seats


  • Model C (classic c / orthopad)
(Est. $400 - $2500 depending on specific model / options / condition)

Available as an aftermarket seat dealer option on various european cars. Featuring 8 way adjustable bolsters, heated inserts, power air controlled lumbar support, and speakers in the headrest the Model c was Recaros top of the line and most expensive seat offered in the late 70's and through the 80's. Variations of this seat were optional in e30 bmw's (6k dealer option) Mercedes 190 cosworths, Audi URQuattors (non power), Various Porches, and a few other vehicles that escape me at this time. Variations of this seat are still available from recaro as the Ortho line.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.


---------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------



  • LS (idealseat)
(est. $300-$1500 depending on specific model and condition)

The LS is one of the most popular seats Recaro made through the late 70's/80's/90's. Variations of the LS were found in but not limited to cars made by Ferrari, BMW, Alfa, Volkswagen, Porsche, Ford, and more.. They are most commonly found in mk2 volkswagens and Alfa Romeo milano verdes.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 03:15 PM   #3
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide


---------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------



  • Speed / SRD
(est. $300-2000+ depending on model and condition)

By far the most copied Recaro of all time. Be very cautious when buying these seats as prob 80% of the seats on the market are fake chinese replicas. I would not feel safe putting the replicas in a car as the build quality and materials used are fairly poor. The Recaro speed is prob. the most well known Recaro as it has been available since the 80's and is still in production to this day. They have came in everything from e30 bmw's to Toyota supras along with hondas, nissans, fords, and so on..

Click the image to open in full size.
Click the image to open in full size.

Also here is an easy way to tell the difference between a speed and an srd. Take a close look at the curves of the upper bolster foam.. The SRD has a larger more triangular "shoulder" foam where the speed is smaller and more smooth. Also you can see the speed has a larger headrest section.

speed
Click the image to open in full size.

srd..
Click the image to open in full size.


---------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------



  • LX/SE/Specialist
(est. $300-$1500 depending on specific model and condition)

The recaro LX is one of the oldest recaro variations available along with the LS. The Recaro lx still has a variation in production to this day(specialist). It is commonly found in early to late 80's cars such as the TransAm, Mustang, 300zx, and various other models. The Gen 1 lx has the larger lower bolsters but maintains the same triangular back that is the trademark of the LX.

Another member of the LX/LS/etc family that's often seen, the SE. These were Recaro's "budget" sport seat in the late '90s and early '00s, they also had a decent period-correct look for '70s and '80s cars since they were mostly based on the LX.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

---------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 03:15 PM   #4
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide





  • A8 (gen 1/2)
(est. $600-$3k depending on specific gen, condition, and trim)

The A8 is by far one of the most highly desired recaros available at this time. They are one of the first recaro sport seats to feature a new frame design for passenger vehicles. There were 2 variations of the A8 to be released and they were available as factory options in a select group of exotics. The majority of A8's you will find are of the aftermarket variety.

Gen 1
Click the image to open in full size.
Click the image to open in full size.

Gen 2
Click the image to open in full size.
Click the image to open in full size.


---------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------


General Info

mounting pattern
Click the image to open in full size.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 03:16 PM   #5
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide



available headrest options
*Netted*
Click the image to open in full size.

*Standard Solid*
Click the image to open in full size.

*Wrap around*
Click the image to open in full size.\

*Wrap around w/speakers*
Click the image to open in full size.

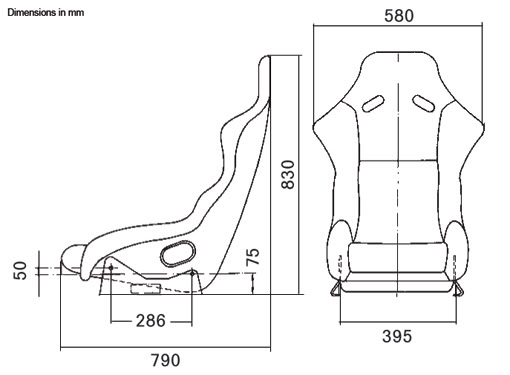

Seat Dimensions
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 03:17 PM   #6
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide



Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 03:18 PM   #7
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide


Brochures / Ads

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

---------
---------

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

  • Audi


Click the image to open in full size.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 03:18 PM   #8
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide


  • Volkswagen (mk2)


Here you can see that VW offered the Model C, LX, and LS as optional seats for the mk2's in europe.
Click the image to open in full size.

  • Ads


Click the image to open in full size.
Click the image to open in full size.

Click the image to open in full size.
-----------------------------------------------------------------------------
-----------------------------------------------------------------------------

If you have any questions or need anything feel free to write me here or shoot me an email - Ron@JJcustominterior.com

I still have a ton to add, hopefully this will come up useful for you guys.

a2coupe2a is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 07:27 PM   #9
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by a2coupe2a View Post

Brochures / Ads




---------
---------




  • Audi

Click the image to open in full size.
now where can I get this seat
__________________

KITT The White Phantom
http://www.thirdgen.org/techboard/vb...=view&id=78092
http://www.cardomain.com/ride/3112754
Knight Rider will never die !!!!
KITT1983 is offline vBGarage Page   Reply With Quote
Old 04-24-2011, 08:47 PM   #10
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

We have 2 sets, might be willing to part with one. Otherwise they pop up on ebay every now and then. That being said you should be ready to pay 1-2k for a nice set. They are pretty ridiculously expensive.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 06-11-2011, 05:51 PM   #11
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by a2coupe2a View Post
We have 2 sets, might be willing to part with one. Otherwise they pop up on ebay every now and then. That being said you should be ready to pay 1-2k for a nice set. They are pretty ridiculously expensive.
got any photos ?
__________________

KITT The White Phantom
http://www.thirdgen.org/techboard/vb...=view&id=78092
http://www.cardomain.com/ride/3112754
Knight Rider will never die !!!!
KITT1983 is offline vBGarage Page   Reply With Quote
Old 08-22-2011, 08:54 PM   #12
Supreme Member

DBLTKE's Avatar

Join Date: Jul 2006
Location: Aloha, Oregon
Posts: 1,106
Car: '91 Camaro Z28, '85 Camaro Z28
Engine: LB9, LB9
Transmission: T5, 700r4
Axle/Gears: Eaton 3.73 Posi, 3.23 Posi

Classifieds Rating: (1)
Send a message via AIM to DBLTKE
Re: Recaro Resource Guide

Awesome post. I saw your other one on VWvortex. Any chance you can expand a little more on the Trans Am Recaros? They're obviously very hard to come by, whereas I see LS's everywhere all the time. Do the Trans Am LX's have different seat rails from the standard seats? Is there anything preventing one from using LS's in a third gen f-body?
__________________
14.21 @ 98mph 60' 2.1
3.73 posi| 36/24mm sway bars | SLP LM2 | TDS wonderbar |AFPR|| Dyno Don headers and dual Y-pipe| | K&N drop in air filters | BBK underdrive pulleys | Koni yellows | Ground Control 800/200 | Y2K Wheels | ||
DBLTKE is offline vBGarage Page   Reply With Quote
Old 08-22-2011, 10:34 PM   #13
Supreme Member

Join Date: Jun 2009
Location: Mid West
Posts: 2,270
Car: '87 Camaro
Engine: '92 Carb'd 350
Transmission: 700r4
Axle/Gears: factory stock

Classifieds Rating: (3)
Re: Recaro Resource Guide

WOW!!

Thanks for the tips on helping spot fakes!!

The first pic looks great!!
t-top havoc is offline vBGarage Page   Reply With Quote
Old 08-24-2011, 12:27 PM   #14
Junior Member

GPSkinzhut's Avatar

Join Date: Apr 2009
Location: Knoxville, TN
Posts: 86
Car: 87 IROC Z, 2010 2LT
Engine: 305 TPI, 3.6 V6
Transmission: 5-Spd, 6-Spd
Axle/Gears: G92 3.45

Classifieds Rating: (2)
Re: Recaro Resource Guide

Quote:
Originally Posted by DBLTKE View Post
Awesome post. I saw your other one on VWvortex. Any chance you can expand a little more on the Trans Am Recaros? They're obviously very hard to come by, whereas I see LS's everywhere all the time. Do the Trans Am LX's have different seat rails from the standard seats? Is there anything preventing one from using LS's in a third gen f-body?
I'm sure someone will correct me if I'm wrong, but looks like the T/A rails use an adapter on the factory mounts/sliders. Not real clear from these pics but it's black piece that's bolted on top. Looks like it could be a piece of cake to fab too.

Click the image to open in full size.

LS's fit nice in the 3rd gen and hug you like a glove. Much more comfortable than the '97 T/A seats I had in there but sit a little bit higher.

Click the image to open in full size.
Click the image to open in full size.
GPSkinzhut is offline vBGarage Page   Reply With Quote
Old 09-03-2011, 04:35 PM   #15
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

Quote:
Originally Posted by KITT1983 View Post
got any photos ?
I can snap some for you if you are still interested
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 09-03-2011, 04:37 PM   #16
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

Quote:
Originally Posted by DBLTKE View Post
Awesome post. I saw your other one on VWvortex. Any chance you can expand a little more on the Trans Am Recaros? They're obviously very hard to come by, whereas I see LS's everywhere all the time. Do the Trans Am LX's have different seat rails from the standard seats? Is there anything preventing one from using LS's in a third gen f-body?
The transam recaro is a generation 3 lx hybrid. They used the lx frame and foam but a unique insert. The bases are pictured above. I actually have a set here that are up for grabs and ready to be recovered. We also have new lower bolster foam for the lx's and ls's gen 3 or newer (like the transam and later foxbody mustang seats)
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 09-03-2011, 04:39 PM   #17
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

Quote:
Originally Posted by GPSkinzhut View Post
I'm sure someone will correct me if I'm wrong, but looks like the T/A rails use an adapter on the factory mounts/sliders. Not real clear from these pics but it's black piece that's bolted on top. Looks like it could be a piece of cake to fab too.

Click the image to open in full size.

LS's fit nice in the 3rd gen and hug you like a glove. Much more comfortable than the '97 T/A seats I had in there but sit a little bit higher.

Click the image to open in full size.
Click the image to open in full size.

Im happy you like them, i think they look great in your car. I also sourced a back seat if you want us to recover them as well. Oh and thanks for posting pics
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 09-03-2011, 04:40 PM   #18
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

Side note i still have a ton to add to this thread and ill try to get to it sooner then later.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 09-03-2011, 05:20 PM   #19
Supreme Member

Bullydawg's Avatar

Join Date: Nov 2006
Location: Chico, Ca/ Misawa, Japan
Posts: 3,470
Car: 88 Formula 350
Engine: 5.7
Transmission: T-56
Axle/Gears: 9 Bolt 3.27

Classifieds Rating: (5)
Send a message via AIM to Bullydawg
Re: Recaro Resource Guide

Awesome info! My subaru here in Japan has a set of Red Recaro SR* series that I plan on bringing back to the US for my Formula.
__________________
88 Firebird Formula 350 89k miles
Trick Flow 195 heads, Comp 268XFI, Superram, T56 w/ twin disk clutch, Moser 9" 3.89.
Awaiting install: ATI Procharger
1993 GMC Typhoon Garnet Red #1519 *Stock*
1990 Ford Mustang GT *Stock *
Not putting miles on your ride so it will be more appealing to the next owner is like not having sex with your girlfriend so she will be more appealing to her next boyfriend.
Bullydawg is offline vBGarage Page   Reply With Quote
Old 09-03-2011, 08:13 PM   #20
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by a2coupe2a View Post
I can snap some for you if you are still interested
sure but i just want to see what they look like
__________________

KITT The White Phantom
http://www.thirdgen.org/techboard/vb...=view&id=78092
http://www.cardomain.com/ride/3112754
Knight Rider will never die !!!!
KITT1983 is offline vBGarage Page   Reply With Quote
Old 10-02-2011, 10:42 AM   #21
Junior Member

Join Date: Apr 2000
Location: Norwalk, CT USA
Posts: 26

Classifieds Rating: (1)

Re: Recaro Resource Guide

can you restore foam and bolsters on a 84 15th T/A? here is a pic of damage. thanks!
Click the image to open in full size.
Pete's 89 GTA is offline vBGarage Page   Reply With Quote
Old 10-02-2011, 05:44 PM   #22
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by Pete's 89 GTA View Post
can you restore foam and bolsters on a 84 15th T/A? here is a pic of damage. thanks!
Click the image to open in full size.
Yes, you can fix it. I did the same area on my 1983 Daytona 500. But the leather on my seat was only cracked. A good upholstery shop can fix it and it cost me $300

try http://ssnake-oyl.com/ for the seatbelt buckles.
__________________

KITT The White Phantom
http://www.thirdgen.org/techboard/vb...=view&id=78092
http://www.cardomain.com/ride/3112754
Knight Rider will never die !!!!

Last edited by KITT1983; 10-02-2011 at 05:53 PM.
KITT1983 is offline vBGarage Page   Reply With Quote
Old 10-02-2011, 06:39 PM   #23
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

We can make a whole new set of jackets from a synthetic for around 400 so paying 300 just to fix the one bolster cover would be steep.

Yes we can fix the foam, we also have new lower bolster foam..
www.jjcustominterior.com
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 10-02-2011, 07:38 PM   #24
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by a2coupe2a View Post
We can make a whole new set of jackets from a synthetic for around 400 so paying 300 just to fix the one bolster cover would be steep.

Yes we can fix the foam, we also have new lower bolster foam..
www.jjcustominterior.com
that was to replace the leather and some foam and straps
KITT1983 is offline vBGarage Page   Reply With Quote
Old 10-02-2011, 07:55 PM   #25
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

I guess it depends how bad the foam was. I know we sell new strap kits (both seats) for 45 shipped and new covers (both seats) for 400. But regardless if you had a decent amount of foam damage that would make sense.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 10-02-2011, 08:05 PM   #26
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by a2coupe2a View Post
I guess it depends how bad the foam was. I know we sell new strap kits (both seats) for 45 shipped and new covers (both seats) for 400. But regardless if you had a decent amount of foam damage that would make sense.
do you have any seat parts for 1982 -1984 PMD seats though
__________________

KITT The White Phantom
http://www.thirdgen.org/techboard/vb...=view&id=78092
http://www.cardomain.com/ride/3112754
Knight Rider will never die !!!!
KITT1983 is offline vBGarage Page   Reply With Quote
Old 10-02-2011, 09:23 PM   #27
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

pmd?
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 10-03-2011, 05:42 AM   #28
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by a2coupe2a View Post
pmd?
Click the image to open in full size.
KITT1983 is offline vBGarage Page   Reply With Quote
Old 10-03-2011, 07:11 AM   #29
Junior Member

Join Date: Apr 2000
Location: Norwalk, CT USA
Posts: 26

Classifieds Rating: (1)

Re: Recaro Resource Guide

A2Coupe what would it cost for that bolster damage and foam from the pic above? in matching lt sand grey leather? Also do you have the **** for the side of the recaro?
Also can you re dye the shift **** lt sand grey?
Click the image to open in full size.

Last edited by Pete's 89 GTA; 10-03-2011 at 07:26 AM.
Pete's 89 GTA is offline vBGarage Page   Reply With Quote
Old 10-03-2011, 06:05 PM   #30
Supreme Member

one92rs's Avatar

Join Date: Jan 2009
Location: league city
Posts: 2,923
Car: 92 camaro rs-project car
Engine: 305 tbi
Transmission: 700r4
Axle/Gears: 3.23

Classifieds Rating: (5)
Re: Recaro Resource Guide

now that is a lot of darn nice information.
__________________
one92rs is offline vBGarage Page   Reply With Quote
Old 10-04-2011, 04:11 PM   #31
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

Ahh, pmd seats are not recaros so we dont carry parts for them. I was speaking of the seats he posted which are recaro lx's.
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 10-04-2011, 07:19 PM   #32
Supreme Member

KITT1983's Avatar

Join Date: Mar 2008
Location: Boston, MA
Posts: 2,461
Car: 1983 Pontiac Trans Am Daytona 500
Engine: Crossfire 305ci V8
Transmission: 700R4 4 speed Automatic
Axle/Gears: 3.23 limited slip/posi

Classifieds Rating: (2)
Send a message via Yahoo to KITT1983
Re: Recaro Resource Guide

Quote:
Originally Posted by a2coupe2a View Post
Ahh, pmd seats are not recaros so we dont carry parts for them. I was speaking of the seats he posted which are recaro lx's.
I have the same recaro seats as Pete's 89 GTA in my 1983 Daytona 500 Edition and I thouight you carried various other seats than just recaros. Do you have a power seat track the recaro lxs?
__________________

KITT The White Phantom
http://www.thirdgen.org/techboard/vb...=view&id=78092
http://www.cardomain.com/ride/3112754
Knight Rider will never die !!!!

Last edited by KITT1983; 10-04-2011 at 07:22 PM.
KITT1983 is offline vBGarage Page   Reply With Quote
Old 10-04-2011, 07:51 PM   #33
Supreme Member

82tarecaro's Avatar

Join Date: Aug 2003
Location: NYC
Posts: 2,093
Car: 1982 Recaro TA, 1989 TTA#948

Classifieds Rating: (4)

Re: Recaro Resource Guide

A2coupe2a - I think if you figured out a way to have the original material reproduced for the Recaros - you would definitely get some business. I need a set for my 1982 Recaros, but my seats aren't in terrible shape. I don't want to run the risk of cannibalizing the seat for material, and then the repro material doesn't look right. Is there any way of getting a swatch of material? Do you have any of the material that you removed from the seats you are looking to sell? If you have a way of having the material made, I am in for a set of covers.
82tarecaro is offline vBGarage Page   Reply With Quote
Old 10-04-2011, 10:27 PM   #34
Junior Member

Join Date: Sep 2009
Posts: 22

Classifieds Rating: (0)
Re: Recaro Resource Guide

What are the chances of reproducing the fabric for the 15th Anniversary Recaro seats?
SWTWCGTA is offline vBGarage Page   Reply With Quote
Old 10-05-2011, 08:01 PM   #35
Junior Member

Join Date: Apr 2000
Location: Norwalk, CT USA
Posts: 26

Classifieds Rating: (1)

Re: Recaro Resource Guide

well i found the cloth
Click the image to open in full size.
Its pricey! But its available!
Pete's 89 GTA is offline vBGarage Page   Reply With Quote
Old 10-05-2011, 08:40 PM   #36
Supreme Member

82tarecaro's Avatar

Join Date: Aug 2003
Location: NYC
Posts: 2,093
Car: 1982 Recaro TA, 1989 TTA#948

Classifieds Rating: (4)

Re: Recaro Resource Guide

That's awesome! I still haven't had any luck with the 1982 Parella cloth. I have been looking on and off for a few years.
82tarecaro is offline vBGarage Page   Reply With Quote
Old 10-07-2011, 04:55 PM   #37
Junior Member

Join Date: Apr 2011
Posts: 44

Classifieds Rating: (0)
Re: Recaro Resource Guide

Im assuming you found the fabric through sms?
a2coupe2a is offline vBGarage Page   Reply With Quote
Old 10-07-2011, 05:03 PM   #38
Supreme Member

82tarecaro's Avatar

Join Date: Aug 2003
Location: NYC
Posts: 2,093
Car: 1982 Recaro TA, 1989 TTA#948

Classifieds Rating: (4)

Re: Recaro Resource Guide

Not sure if he found that fabric from SMS, but I tried them, and they sent me everything but the correct fabric. For a company that claims they have their finger on the pulse of auto upholstery, they sure are clueless with Thirdgens.
82tarecaro is offline vBGarage Page   Reply With Quote
Old 10-07-2011, 05:07 PM   #39
Junior Member

Join Date: Apr 2000
Location: Norwalk, CT USA
Posts: 26

Classifieds Rating: (1)

Re: Recaro Resource Guide

yes sms has it. thats their sample pic, i sent them a closeup pic of the cloth, they matched it!
Pete's 89 GTA is offline vBGarage Page   Reply With Quote
Old 10-07-2011, 05:07 PM   #40
Junior Member

Join Date: Apr 2000
Location: Norwalk, CT USA
Posts: 26

Classifieds Rating: (1)

Re: Recaro Resource Guide

A2Coupe what would it cost for that bolster damage and foam from the pic above? in matching lt sand grey leather? Also do you have the **** for the side of the recaro?
Also can you re dye the shift **** lt sand grey?
Pete's 89 GTA is offline vBGarage Page   Reply With Quote
Old 10-07-2011, 06:23 PM   #41
Member

J0hn_J0hn08's Avatar

Join Date: Jun 2010
Location: SE Houston TX
Posts: 482
Car: 1986 Iroc-Z
Engine: 355
Transmission: 700R4

Classifieds Rating: (2)
Re: Recaro Resource Guide

lots of good info here man, thanks for posting.
J0hn_J0hn08 is offline vBGarage Page   Reply With Quote
Old 01-27-2012, 02:39 AM   #42
Supreme Member

DBLTKE's Avatar

Join Date: Jul 2006
Location: Aloha, Oregon
Posts: 1,106
Car: '91 Camaro Z28, '85 Camaro Z28
Engine: LB9, LB9
Transmission: T5, 700r4
Axle/Gears: Eaton 3.73 Posi, 3.23 Posi

Classifieds Rating: (1)
Send a message via AIM to DBLTKE
Re: Recaro Resource Guide

Where can one source the adapters for the rails? I'm getting a pair of LS's from a '91 GTI and would like to be able to install them in my Camaro as soon as possible.
__________________
14.21 @ 98mph 60' 2.1
3.73 posi| 36/24mm sway bars | SLP LM2 | TDS wonderbar |AFPR|| Dyno Don headers and dual Y-pipe| | K&N drop in air filters | BBK underdrive pulleys | Koni yellows | Ground Control 800/200 | Y2K Wheels | ||
DBLTKE is offline vBGarage Page   Reply With Quote
Old 01-27-2012, 02:39 AM
ThirdGen
1992 Camaro




Paid Advertisement


Reply

Go Back   Third Generation F-Body Message Boards > Tech Boards > Interior

Tags
1980s, bottom, correct, e30, lx, make, mk2, period, pictures, recaro, recaros, repair, seat, seats, style, vw
Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 10:38 PM.


Powered by vBulletin® Version 3.7.5
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
All content copyright 1997 - 2014 ThirdGen.org. All rights reserved. No part of this website may be reproduced without the expressed, documented, and written consent of ThirdGen.org's Administrators.

Emails & Contact Details
