Unable to Fault Find Check Engine (SES) Light - Help Needed
Hey Guys,
I've been unable to resolve an inoperative Check Engine Light on my 85 Trans Am. Its an LG4 Carb 5.0 V8
I can only get it to come on if i ground pin D on the ALDL.
Here is what i know
The car runs EXACTLY the same with the ECM plugged in or out, does that mean my ECM is also fried? Or is that because of the lamp driver?
So lost....
I've been unable to resolve an inoperative Check Engine Light on my 85 Trans Am. Its an LG4 Carb 5.0 V8
I can only get it to come on if i ground pin D on the ALDL.
Here is what i know
- I've been troubleshooting and it has lead me down the path in yellow in the diagram.
- I'm not sure what test for "open" means, but when i grounded terminal "D" i got 12 volts - does that mean its not open? i.e i need to replace the Lamp Driver.
The car runs EXACTLY the same with the ECM plugged in or out, does that mean my ECM is also fried? Or is that because of the lamp driver?
So lost....
#3
Member
Thread Starter
Join Date: Apr 2015
Location: Santa Monica, CA
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 TA http://bit.ly/1EadkbO
Engine: 5.0 V8 LG4 BBL
Transmission: 5 Speed Manual
Re: Unable to Fault Find Check Engine (SES) Light - Help Needed
Any way to repair it? I'll try to find one online today.
Do you think my ECM is fried also? (Seeing as there is no difference between having it plugged in or out), or is that because of the lamp driver?
Do you think my ECM is fried also? (Seeing as there is no difference between having it plugged in or out), or is that because of the lamp driver?
#5
Member
Thread Starter
Join Date: Apr 2015
Location: Santa Monica, CA
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 TA http://bit.ly/1EadkbO
Engine: 5.0 V8 LG4 BBL
Transmission: 5 Speed Manual
Re: Unable to Fault Find Check Engine (SES) Light - Help Needed
#6
Member
Thread Starter
Join Date: Apr 2015
Location: Santa Monica, CA
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 TA http://bit.ly/1EadkbO
Engine: 5.0 V8 LG4 BBL
Transmission: 5 Speed Manual
Re: Unable to Fault Find Check Engine (SES) Light - Help Needed
Can confirm - No clicking with ECM disconnected.
I think i may have found the culprit for the check engine light though.

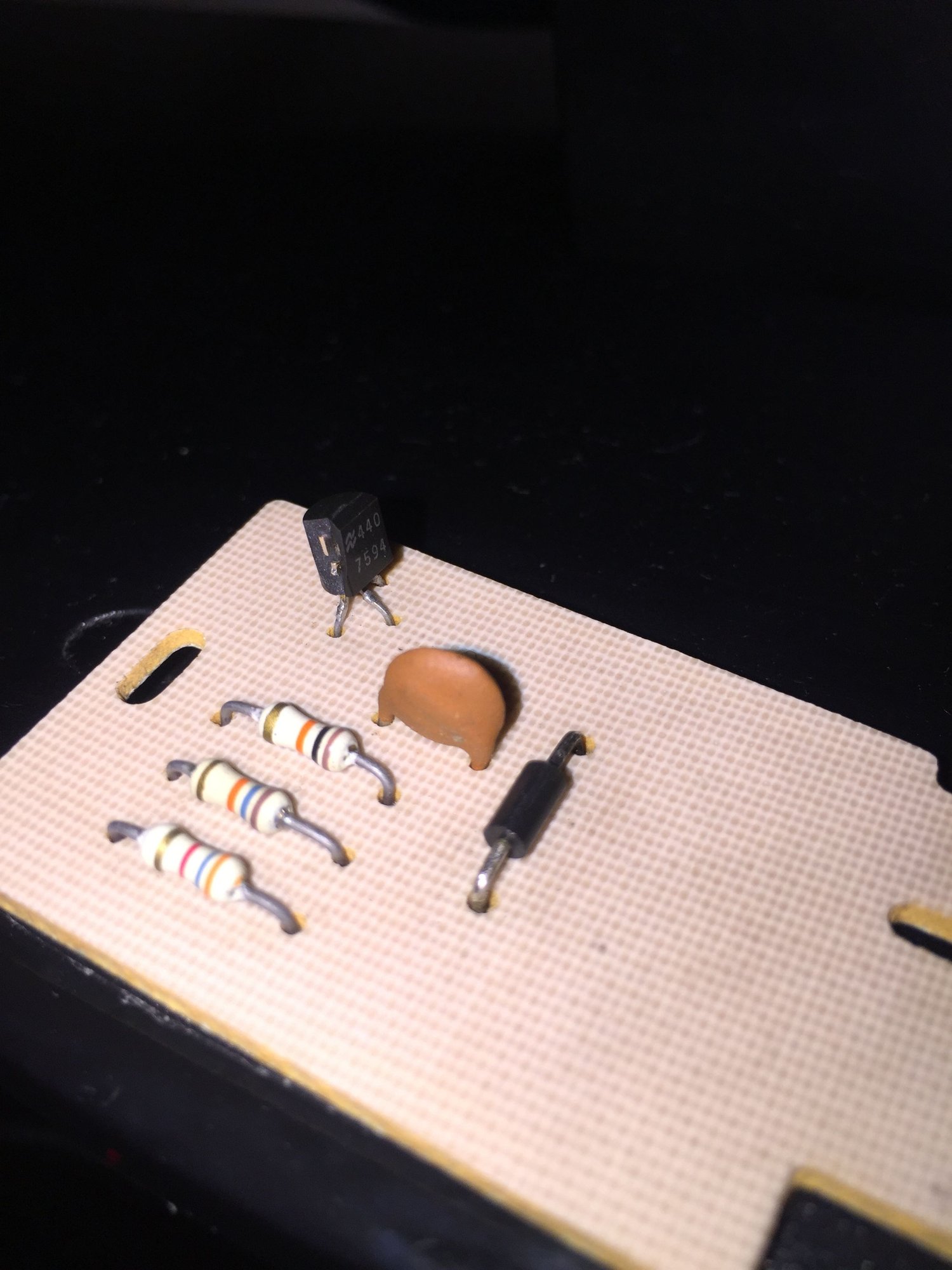

Looks like a transistor on the Lamp Driver is blown, i never noticed it before.
Check it out... I've already ordered a whole Lamp Driver module from Amazon, but maybe i could have just gotten the transistor.
I think i may have found the culprit for the check engine light though.
Looks like a transistor on the Lamp Driver is blown, i never noticed it before.
Check it out... I've already ordered a whole Lamp Driver module from Amazon, but maybe i could have just gotten the transistor.
#7
Sponsor
iTrader: (92)
Re: Unable to Fault Find Check Engine (SES) Light - Help Needed
That's a easy circuit. Makes you wonder why it wasn't incorporated into the ECM.
You may have better luck identifying the transistor on the new LDM or can unsolder it and see if it's a npn or Pnp or just instal a 2n2222 and give it a try.
You may have better luck identifying the transistor on the new LDM or can unsolder it and see if it's a npn or Pnp or just instal a 2n2222 and give it a try.
Trending Topics
#8
Member
Thread Starter
Join Date: Apr 2015
Location: Santa Monica, CA
Posts: 193
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1985 TA http://bit.ly/1EadkbO
Engine: 5.0 V8 LG4 BBL
Transmission: 5 Speed Manual
Re: Unable to Fault Find Check Engine (SES) Light - Help Needed
Update - this was a faulty lamp driver. ECM was perfect - passed smog today!
