I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I just came back from the first test drive after installing an aftermarket "Torque Lock" Torsen (Helical Gear) LSD in my Borg Warner 9-bolt rear!
It began with me reading the 9-bolt facts thread, and some guy wrote that there was this company "Supa F Series Spares" in Australia that sells a Posi for a "VL" Holden Commodore that will fit the 9-bolt. I e-mailed them and they were sceptical about an australian made diff fitting an american car, so I sent another mail with photos that I took of my stock Borg Warner Separated Cone-LSD when I had it apart the last time. He then replied "it will fit". YES!
I ordered the diff for 495 Australian Dollars (approx 367 USD) + shipping. The total amount charge was about 527 US Dollars. Then the Swedish government wanted import tax and customs fee, so I paid approx 166 USD for that.
I also ordered new diff bearings from a local company, and a "SK SS10" Super Shim Kit from Rockauto because I had read somewhere that was what I needed. It was a USA Standard Gear part number USA55001, but the bag the kit came in said "Yukon Gear SKSS10". I had to replace the wheel bearings and seals too, as the seals were leaking since i last took the rear apart to replace my cones.
There was two problems that had to be solved to fit the diff. Number 1, that I knew of beforehand, and number 2 that I discovered myself.
1. The pinion teeth hit the case. You should machine the pinion to get clearance. I used and angle grinder to "machine" my pinion because I didn't want to remove it and have to do the "setup procedure".
2. The carrier bearing cups that are listed at parts vendors for a BW 9-bolt is LM102910. That's what I bought. The cups that were installed in the rear from the factory said LM102911, and were slightly wider.
The problem with the smaller cups was that you couldn't tap the spacers in place with the smaller bearing cups because the roller cage and carrier bearing seat were sticking out farther than the cup.
I eventually solved it by putting two of the shims between the spacer and the bearing cup, and a thick shim closest to the spacer so that it wouldn't get damaged as easily when tapping the spacer in place.
Here are some pics from the install!
The diff box, very anonymous. No mark, make or brand name anywhere. I still don't know which company that make these.

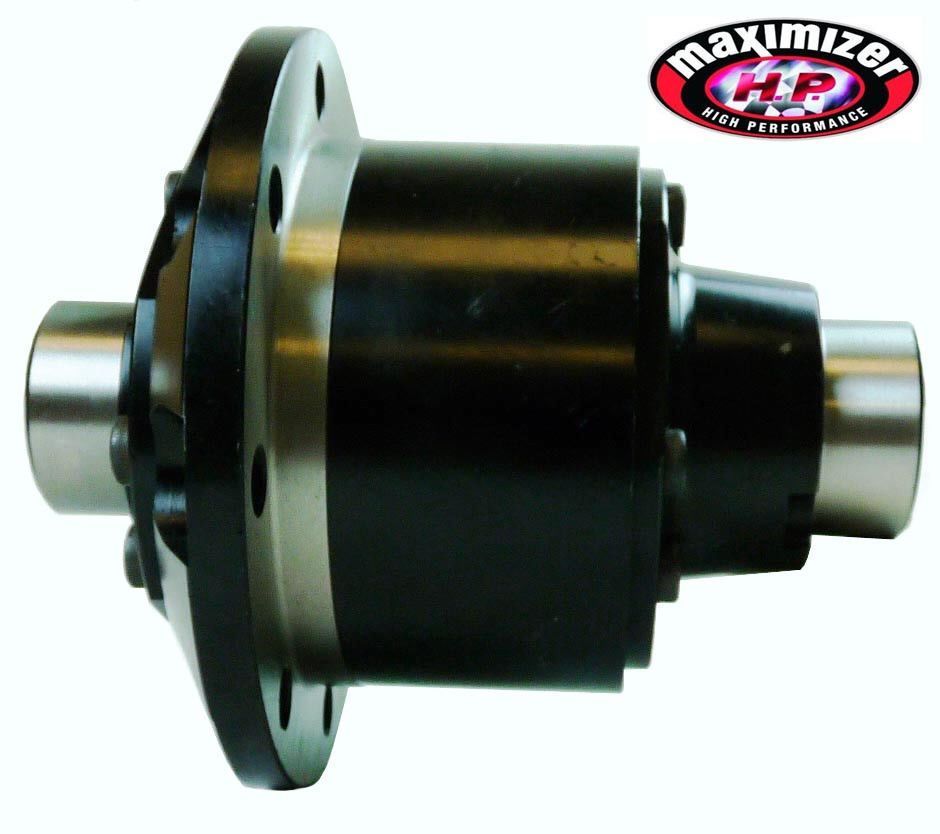

The diff as it looked just out of the box. It had corrosion protection on it.
Here I put the new diff beside the original Borg Warner Cone LSD to check if the ring gear seemed to be in the same place. It matched perfectly.
Here is a picture of the Yukon Gear SK SS10 Super Shim Kit. It consists of two 2-piece spacers that you fill up with shims to get the thickness you want. When put together they can be handled like a solid spacer (tapped in place between axle housing and side bearing cup). On the ziplock bag you see one 2-piece spacer to the right, and some shims to the left.
This is the modification you have to make to the Pinion so that it doesn't hit the new diff's barrel-shaped housing (that is fatter than the stock BW Cone diff). I used an angle grinder and removed material little by little until I could spin the diff freely when put in place with no ring gear on it.
This shows the old bearing cup LM102911, and the new bearing cup LM102910.
Here you can see the difference in width between the LM102910 (right) and the LM102911 (left) bearing cups. Note that I tried using the old larger bearing cups, but with them the new spacers were too thick to fit, even with only one shim in them.
Here is a picture of how I solved the problem with the new smaller bearing cups preventing me from tapping the last spacer in place.
Here is a picture of the new diff installed, side bearing preload and backlash set, caps torqued down.
And here, the photo you've all been waiting for. Does it work? Yes. It works.
So far everything seems good. I drove approx 20 miles tonight, did two burnouts and nothing has exploded yet. Cross your fingers for it staying that way!
Feel free to ask any questions about the install. As far as I know, I'm the first thirdgen owner to install an aftermarket diff in a 9-Bolt. At least I haven't found any thread about it anywhere when searching online! I'm really tired right now (its 12:19 AM in Sweden right now), but I was so excited after the test drive so I just had to post this!
It began with me reading the 9-bolt facts thread, and some guy wrote that there was this company "Supa F Series Spares" in Australia that sells a Posi for a "VL" Holden Commodore that will fit the 9-bolt. I e-mailed them and they were sceptical about an australian made diff fitting an american car, so I sent another mail with photos that I took of my stock Borg Warner Separated Cone-LSD when I had it apart the last time. He then replied "it will fit". YES!
I ordered the diff for 495 Australian Dollars (approx 367 USD) + shipping. The total amount charge was about 527 US Dollars. Then the Swedish government wanted import tax and customs fee, so I paid approx 166 USD for that.
I also ordered new diff bearings from a local company, and a "SK SS10" Super Shim Kit from Rockauto because I had read somewhere that was what I needed. It was a USA Standard Gear part number USA55001, but the bag the kit came in said "Yukon Gear SKSS10". I had to replace the wheel bearings and seals too, as the seals were leaking since i last took the rear apart to replace my cones.
There was two problems that had to be solved to fit the diff. Number 1, that I knew of beforehand, and number 2 that I discovered myself.
1. The pinion teeth hit the case. You should machine the pinion to get clearance. I used and angle grinder to "machine" my pinion because I didn't want to remove it and have to do the "setup procedure".
2. The carrier bearing cups that are listed at parts vendors for a BW 9-bolt is LM102910. That's what I bought. The cups that were installed in the rear from the factory said LM102911, and were slightly wider.
The problem with the smaller cups was that you couldn't tap the spacers in place with the smaller bearing cups because the roller cage and carrier bearing seat were sticking out farther than the cup.
I eventually solved it by putting two of the shims between the spacer and the bearing cup, and a thick shim closest to the spacer so that it wouldn't get damaged as easily when tapping the spacer in place.
Here are some pics from the install!
The diff box, very anonymous. No mark, make or brand name anywhere. I still don't know which company that make these.
The diff as it looked just out of the box. It had corrosion protection on it.
Here I put the new diff beside the original Borg Warner Cone LSD to check if the ring gear seemed to be in the same place. It matched perfectly.
Here is a picture of the Yukon Gear SK SS10 Super Shim Kit. It consists of two 2-piece spacers that you fill up with shims to get the thickness you want. When put together they can be handled like a solid spacer (tapped in place between axle housing and side bearing cup). On the ziplock bag you see one 2-piece spacer to the right, and some shims to the left.
This is the modification you have to make to the Pinion so that it doesn't hit the new diff's barrel-shaped housing (that is fatter than the stock BW Cone diff). I used an angle grinder and removed material little by little until I could spin the diff freely when put in place with no ring gear on it.
This shows the old bearing cup LM102911, and the new bearing cup LM102910.
Here you can see the difference in width between the LM102910 (right) and the LM102911 (left) bearing cups. Note that I tried using the old larger bearing cups, but with them the new spacers were too thick to fit, even with only one shim in them.
Here is a picture of how I solved the problem with the new smaller bearing cups preventing me from tapping the last spacer in place.
Here is a picture of the new diff installed, side bearing preload and backlash set, caps torqued down.
And here, the photo you've all been waiting for. Does it work? Yes. It works.
So far everything seems good. I drove approx 20 miles tonight, did two burnouts and nothing has exploded yet. Cross your fingers for it staying that way!
Feel free to ask any questions about the install. As far as I know, I'm the first thirdgen owner to install an aftermarket diff in a 9-Bolt. At least I haven't found any thread about it anywhere when searching online! I'm really tired right now (its 12:19 AM in Sweden right now), but I was so excited after the test drive so I just had to post this!
The following 2 users liked this post by keykey:
george88gta (09-18-2022), Tidan (04-24-2020)
#2
Member
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
wow, awesome job, glad to see somebody explore new uncharted high-risk territory with the high tariffs, even if driven by necessity. congrats!
though, kind of surprised you didn't go whole-hog by adding a TA diff cover, with the 3/8" studs for the bearing caps, but i guess the Swedish govt makes that a too-pricey proposition, and perhaps not driven by necessity. just one of those "while you're at it" things.
again, good job. thanks for sharing the endeavor and results.
edit: and thanks to dave999 for also being a true pioneer.
though, kind of surprised you didn't go whole-hog by adding a TA diff cover, with the 3/8" studs for the bearing caps, but i guess the Swedish govt makes that a too-pricey proposition, and perhaps not driven by necessity. just one of those "while you're at it" things.
again, good job. thanks for sharing the endeavor and results.
edit: and thanks to dave999 for also being a true pioneer.
Last edited by RPOL98; 07-12-2015 at 07:59 PM.
#3
Supreme Member
iTrader: (4)
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I wondered about the Aussie market continuation of the design with changes and what could be swapped in "with a little effort."
Great job figuring out the races and clearance! I can honestly say if I had a 9-bolt, I'd be in for this swap!
Great job figuring out the races and clearance! I can honestly say if I had a 9-bolt, I'd be in for this swap!
#4
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
wow, awesome job, glad to see somebody explore new uncharted high-risk territory with the high tariffs, even if driven by necessity. congrats!
though, kind of surprised you didn't go whole-hog by adding a TA diff cover, with the 3/8" studs for the bearing caps, but i guess the Swedish govt makes that a too-pricey proposition, and perhaps not driven by necessity. just one of those "while you're at it" things.
again, good job. thanks for sharing the endeavor and results.
edit: and thanks to dave999 for also being a true pioneer.
though, kind of surprised you didn't go whole-hog by adding a TA diff cover, with the 3/8" studs for the bearing caps, but i guess the Swedish govt makes that a too-pricey proposition, and perhaps not driven by necessity. just one of those "while you're at it" things.
again, good job. thanks for sharing the endeavor and results.
edit: and thanks to dave999 for also being a true pioneer.
I might be adding the cover and not use the girdle, just to get more fluid capacity, better cooling, better looks and a drain plug.
And yes, a special thanks goes to dave999 for telling us about this diff!
Thanks!
#6
Supreme Member
Join Date: Jun 2005
Location: huntsville, al
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 IROC
Engine: 6.8 HSR N2O
Transmission: TKO 600
Axle/Gears: 9" Moser 3.50 True trac
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Super job and I too am impressed you took the chance. If this holds up we owe you a debt.
With my low mileage, shimmed stock posi unit I can get 2 wheel marks all day long. Where it sometimes falls short is accelerating out of a turn, especially a right handed turn. Also, if I attempt a donut it will sometimes want to spin the inside wheel. (not that I do a lot of donuts lol) Anyway, I anticipate hearing more as you put miles on your setup and specifically how the new unit performs in turns.
With my low mileage, shimmed stock posi unit I can get 2 wheel marks all day long. Where it sometimes falls short is accelerating out of a turn, especially a right handed turn. Also, if I attempt a donut it will sometimes want to spin the inside wheel. (not that I do a lot of donuts lol) Anyway, I anticipate hearing more as you put miles on your setup and specifically how the new unit performs in turns.
#7
Supreme Member
iTrader: (4)
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
We DEFINITELY owe you a debt!
There's only so far we can make these old carriers go... I've machined my cones down for more life, but I have a bit of work and money invested in it... I'd like to keep it. Im not drag racing, Im autocrossing, and a Torsen carrier in a lighter diff is EXACTLY what I want!
Can you post some links or part numbers for the carrier? How is it acquired?
These guys? http://www.supafspares.com.au/differ...e-brisbane.htm
There's only so far we can make these old carriers go... I've machined my cones down for more life, but I have a bit of work and money invested in it... I'd like to keep it. Im not drag racing, Im autocrossing, and a Torsen carrier in a lighter diff is EXACTLY what I want!
Can you post some links or part numbers for the carrier? How is it acquired?
These guys? http://www.supafspares.com.au/differ...e-brisbane.htm
Last edited by InfernalVortex; 07-13-2015 at 04:01 PM.
Trending Topics
#8
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
We DEFINITELY owe you a debt!
There's only so far we can make these old carriers go... I've machined my cones down for more life, but I have a bit of work and money invested in it... I'd like to keep it. Im not drag racing, Im autocrossing, and a Torsen carrier in a lighter diff is EXACTLY what I want!
Can you post some links or part numbers for the carrier? How is it acquired?
These guys? http://www.supafspares.com.au/differ...e-brisbane.htm
There's only so far we can make these old carriers go... I've machined my cones down for more life, but I have a bit of work and money invested in it... I'd like to keep it. Im not drag racing, Im autocrossing, and a Torsen carrier in a lighter diff is EXACTLY what I want!
Can you post some links or part numbers for the carrier? How is it acquired?
These guys? http://www.supafspares.com.au/differ...e-brisbane.htm
Already invested in new brakes for the 9-bolt, replaced the cones once but they bottomed out again. I just knew I would get sick and tired of continuing to screw around with the horrible cone diff. Both times i took it apart the oil was full of metal flakes that was a pain to clean up. Can't possibly be good for the bearings either so I knew it was time for another solution.
That's the company. I had an e-mail conversation with them, and when it was time to order, they already had my address and all I had to do was match the time difference for a phone call, so I called them early in the morning before i started work and in Australia it was afternoon. Gave the guy my Credit Card info, and he took care of the rest. Shipping was really quick, it only took a few days!
The part number listed on the packing slip was simply "TLVL" like it says on the box.
edit: I saw that you have 3.70 gears, I'm not sure but you should mention that and ask if they fit the carrier! Different gears fit different carriers! My ring gear is called 0578 and that's what I told them!
Last edited by keykey; 07-13-2015 at 04:32 PM. Reason: 3.70 gears
#9
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I went on a roadtrip to my home town to see some friends and take a longer "test drive". The total distance for the trip was about 600 km (373 miles). No problems. I drove it really hard the whole way too, lots of kickdowns and full throttle overtakes. The whole driveline feels tighter since the old diff had a big play between the spider gears and side gears. I no longer get a clunk/delay everytime the car goes from coast to drive, and that's very nice.
I did a couple of kickdowns in the wet, and a full throttle launch around a corner on dry pavement and the rear end kicks out now so that's fun too .
Since both wheels are driving now I can launch way quicker from a stop. Did a small burnout on the way home too and so far, no one wheel peels. Spins both wheels everytime! I'm very happy with this diff and can recommend it to anyone that has bottomed out their cones or just wants to upgrade to a helical gear setup.
I did a couple of kickdowns in the wet, and a full throttle launch around a corner on dry pavement and the rear end kicks out now so that's fun too .
Since both wheels are driving now I can launch way quicker from a stop. Did a small burnout on the way home too and so far, no one wheel peels. Spins both wheels everytime! I'm very happy with this diff and can recommend it to anyone that has bottomed out their cones or just wants to upgrade to a helical gear setup.
#10
Supreme Member
iTrader: (2)
Join Date: Jul 2005
Location: Guilford, Connecticut
Posts: 1,428
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1988 IROC-Z camaro
Engine: 355 TPI
Transmission: tko 500
Axle/Gears: Dana 44 3.31 posi pbr brakes
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
WOW. I think this is my solution for a better rear over what i have. I rebuilt my posi a few years back with new cones and it still sucks sometimes lol. I will have to look into doing this.
The following users liked this post:
CKone (04-24-2020)
#13
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,692
Received 746 Likes
on
505 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Glad to see another tire hater, Outstanding!!!!!
I think my 89 formula 350 asc vert rearend is ready to let go and I was grasping for a solution and now I have one thanks to you.
Thanks !!!
I think my 89 formula 350 asc vert rearend is ready to let go and I was grasping for a solution and now I have one thanks to you.
Thanks !!!
Last edited by TTOP350; 09-22-2015 at 03:22 PM.
#14
Supreme Member
Join Date: Jun 2005
Location: huntsville, al
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 IROC
Engine: 6.8 HSR N2O
Transmission: TKO 600
Axle/Gears: 9" Moser 3.50 True trac
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I'd say she (& the car) passes the "turns" test. That is probably the type of situations were the stock one has problems. Especially going from "right tire loaded" to "left tire loaded" transitions and back.
I presume you used stock axels. I wonder how it would all hold up with better axles and gears too. I know the ring is still only 7.75" but when the power is below 700 or so it should hold up to the occasional abuse. I have been looking into the 8.8 as well. Lots of aftermarket. But still a lot to put in a different rear. I know the obvious choice is the 9"/12 bolt route but I still think the 9 bolt has some advantages.
I presume you used stock axels. I wonder how it would all hold up with better axles and gears too. I know the ring is still only 7.75" but when the power is below 700 or so it should hold up to the occasional abuse. I have been looking into the 8.8 as well. Lots of aftermarket. But still a lot to put in a different rear. I know the obvious choice is the 9"/12 bolt route but I still think the 9 bolt has some advantages.
#15
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I'd say she (& the car) passes the "turns" test. That is probably the type of situations were the stock one has problems. Especially going from "right tire loaded" to "left tire loaded" transitions and back.
I presume you used stock axels. I wonder how it would all hold up with better axles and gears too. I know the ring is still only 7.75" but when the power is below 700 or so it should hold up to the occasional abuse. I have been looking into the 8.8 as well. Lots of aftermarket. But still a lot to put in a different rear. I know the obvious choice is the 9"/12 bolt route but I still think the 9 bolt has some advantages.
I presume you used stock axels. I wonder how it would all hold up with better axles and gears too. I know the ring is still only 7.75" but when the power is below 700 or so it should hold up to the occasional abuse. I have been looking into the 8.8 as well. Lots of aftermarket. But still a lot to put in a different rear. I know the obvious choice is the 9"/12 bolt route but I still think the 9 bolt has some advantages.
The axles are stock, they look like new at the splined end so they will hold up with no problems since my engine is stock.
All in all I'm very satisfied with this purchase, I can have a LOT of fun with the car now as you can see in the video . The only thing I have to be careful about now is not to be busted by the cops...
#16
Member
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Subbed!
I have a well functioning 9 bolt, but always good to know the options.
Thanks!
I have a well functioning 9 bolt, but always good to know the options.
Thanks!
#18
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I ordered from a guy named David, his email is
Dave [at] supafspares.com.au
Replace [at] with @.
Dave [at] supafspares.com.au
Replace [at] with @.
#19
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Thanks, David is who I emailed about this, and mentioned I got the info from you and your Fbody swap. Crazy thing is, when I pulled my rearend apart today it looked great in there. The cone has over 60/1000ths clearance from the case. The gear oil was free of any metal trash.
It has a 2.77 gear. What gear will fit the Holden carrier?
It has a 2.77 gear. What gear will fit the Holden carrier?
Last edited by Blizzard Bill; 11-27-2015 at 07:35 PM.
#20
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Your 2.77 is on a 2 series differential. As far as I know the 2.77 is all that will fit on it (there might be a 3.08 that will fit). You will need a 3 series differential to use a 3.27, 3.45 or 3.70 gear.
#22
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,692
Received 746 Likes
on
505 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
This should be a sticky since the search feature is questionable in its operation.
#23
Senior Member
Join Date: Apr 2006
Location: Pgh PA
Posts: 835
Received 0 Likes
on
0 Posts
Car: 89 5.7 IROC/95 LT1 Corvette
Engine: All 5.7's
Transmission: 700R4 (Roessler)/ZF6
Axle/Gears: 10 bolt Zexel 3.23's. CTW 17" wheel
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
This should be a sticky.
#24
Member
iTrader: (2)
Join Date: Jun 2006
Location: Dallas, TX
Posts: 181
Likes: 0
Received 4 Likes
on
3 Posts
Car: 1982 Z-28
Engine: 5.7L Crossfire
Transmission: TH-350
Axle/Gears: GM Posi, 3.73
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Just sent them an e-mail... didn't see that part number on their website when I did a search. Hopefully still available.
#25
#26
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
"TLVL" is surely short for "TorqueLock VL" which means that it's a TorqueLock diff for a "VL"-body Holden Commodore, which is a very common car in Australia. I would be quite surprised if they suddenly stopped selling diffs for VL Commodores
#27
Senior Member
iTrader: (3)
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I'm sure it is, I never saw the number on any of their sites either. I just told them about my application and what type of borg warner axle a 9-bolt really is, and they sent me this. Never saw any pictures of it either.
"TLVL" is surely short for "TorqueLock VL" which means that it's a TorqueLock diff for a "VL"-body Holden Commodore, which is a very common car in Australia. I would be quite surprised if they suddenly stopped selling diffs for VL Commodores
"TLVL" is surely short for "TorqueLock VL" which means that it's a TorqueLock diff for a "VL"-body Holden Commodore, which is a very common car in Australia. I would be quite surprised if they suddenly stopped selling diffs for VL Commodores
#28
Supreme Member
Join Date: Apr 2013
Location: North Salt Lake
Posts: 1,353
Likes: 0
Received 1 Like
on
1 Post
Car: '86 Camaro, '94 Camaro, 3 others
Engine: LG4 ->L29, L32->LR4, L36, LG4, L31
Transmission: 700R-4, T5WC, 4L80E, SM465, 4L60E
Axle/Gears: 3.42, 3.23, WTB/WTT 2.93
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I wonder how it would all hold up with better axles and gears too. I know the ring is still only 7.75" but when the power is below 700 or so it should hold up to the occasional abuse. I have been looking into the 8.8 as well. Lots of aftermarket. But still a lot to put in a different rear. I know the obvious choice is the 9"/12 bolt route but I still think the 9 bolt has some advantages.
#30
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I found this on ebay. http://www.ebay.com/itm/361358656713...%3AMEBIDX%3AIT Aussie Company. Emailed asking about shipping to the states. Really tempted to try this, my 9 bolt only provides one tire of fire currently due to worn cones.
#31
Supreme Member
Join Date: Jun 2005
Location: huntsville, al
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 IROC
Engine: 6.8 HSR N2O
Transmission: TKO 600
Axle/Gears: 9" Moser 3.50 True trac
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I don't claim to have 700HP at the ground. I've not had my current combo on the dyno yet so I really have no idea. But the motor build has the potential of 500 at the crank and I have a nitrous kit with jets up to 200HP so I generally attempt to select or at least consider driveline components with that number in mind. I think the 9 bolt BW axle would be hard pressed to hold 700 net at the ground with traction. More than once anyway.
#32
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,692
Received 746 Likes
on
505 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Bump
#34
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,692
Received 746 Likes
on
505 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
NP, It should be a sticky !!
#35
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Since I love doing burnouts, and you guys love watching burnout videos I asked my gf to film me when I got a couple of last burnouts out of my old tires .
I went back to the same strip of asphalt where I tested my TorqueLock LSD for the first time . Still works very well as you can see!
I went back to the same strip of asphalt where I tested my TorqueLock LSD for the first time . Still works very well as you can see!
#36
Supreme Member
Join Date: Jun 2005
Location: huntsville, al
Posts: 1,440
Likes: 0
Received 0 Likes
on
0 Posts
Car: 89 IROC
Engine: 6.8 HSR N2O
Transmission: TKO 600
Axle/Gears: 9" Moser 3.50 True trac
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I just notice that "9 bolt.com" is selling this diff.
http://9bolt.com/carrierspares.html
Looks a few dollars less than the ebay site. I'm going to check it out.
http://9bolt.com/carrierspares.html
Looks a few dollars less than the ebay site. I'm going to check it out.
#37
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,692
Received 746 Likes
on
505 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I need to get this ordered
#38
Supreme Member
iTrader: (11)
Join Date: Sep 1999
Location: NJ
Posts: 4,345
Received 298 Likes
on
234 Posts
Car: 92 Firebird
Engine: 4.8 LR4
Transmission: T56
Axle/Gears: 3.45 9 Bolt
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I just notice that "9 bolt.com" is selling this diff.
http://9bolt.com/carrierspares.html
Looks a few dollars less than the ebay site. I'm going to check it out.
http://9bolt.com/carrierspares.html
Looks a few dollars less than the ebay site. I'm going to check it out.
#39
Junior Member
Join Date: Sep 2015
Location: San Antonio
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 Iroc Z28
Engine: L98 5.7
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Awesome job. Im looking to do this mod on my 90 IRoc and my question is how did you set preload exactly?
#40
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
It was kinda like, I tried one thin shim and felt it was way too easy to tap the spacer in, then tried thicker and thicker until I couldn't tap it in because I didn't dare to tap harder, then I took the shim that was one step thinner.
I think I read somewhere here on the forums in an installation thread that it is very unlikely that you are able get the preload so tight on carrier bearings that it becomes a problem or damages them. I also read that too little preload will be a way bigger problem than "a little too tight".
So basically I just trusted installation tips that I read here from "Diff gurus" that I decided that I could trust based on their experience, and it seems that it worked well.
edit:

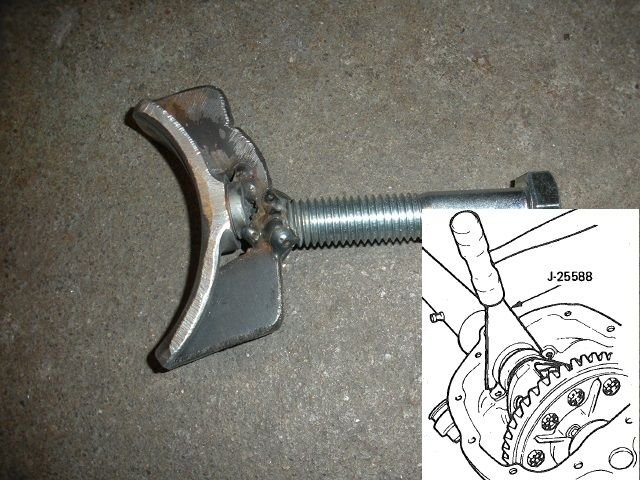

You're supposed to use a special tool from Kent Moore for tapping the spacers/shims. I made my own tool to save that money.
Last edited by keykey; 01-30-2017 at 02:34 PM. Reason: the tool
The following users liked this post:
red rock (06-18-2020)
#41
Member
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
on your tool, what did you use for the curved "saddle" part?
hey, if it works, then it's a good tool!
hey, if it works, then it's a good tool!
Last edited by RPOL98; 01-30-2017 at 02:56 PM.
#42
Member
Thread Starter
Join Date: Sep 2013
Location: Sweden
Posts: 122
Likes: 0
Received 11 Likes
on
9 Posts
Car: 1988 Trans Am GTA
Engine: 350 TPI (L98)
Transmission: TH700R4
Axle/Gears: 3.27 9-bolt w/ Torsen LSD
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I welded the plug to a piece of scrap metal that i cut to a shape which would work as a reinforcement to the aluminium piece, then I welded it to a bolt so I could tap the tool with a hammer while holding it.
#43
Junior Member
Join Date: May 2015
Location: Lenexa, KS
Posts: 91
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC Z L98 G92
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.27 G92
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Any one know if one of these carriers might work for the 9-bolt? I found this TT912A642 GM 7.75" (Borg Warner), 28 Spline Eaton Truetrac Limited-Slip Differential made by Eaton that fits a 2004-2006 Pontiac GTO. ($560) I also found a Maximizer 04-06 GTO 28 Spline 7.75" Borg Warner IRS Slip Differential LSD for $279. If the Supa F Series Spares Torsen (Helical Gear) LSD can be made to fit like mentioned above, then I don't see why one of these wont fit. What say any of you?
#44
Junior Member
Join Date: Sep 2015
Location: San Antonio
Posts: 3
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 Iroc Z28
Engine: L98 5.7
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I was just researching the same thing and then I saw A post saying that the maximizerS are a joke but for $300 im willing to at least try and see. Since my 9 bolt is currently removed I may be the guinea pig.
#45
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
The GTO rear end has a different offset for the ring gear flange. IF the gear will bolt on you won't be able to set the backlash because of the different offset.
#46
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,692
Received 746 Likes
on
505 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
Would there be a shimable solution or is it a machining operation? Just wondering which way the flange would need to go.
#47
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
I had them sitting side by side several years ago and I can't remember which way it was off. Seems like there was quite a bit of difference.
#48
Junior Member
Join Date: May 2015
Location: Lenexa, KS
Posts: 91
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC Z L98 G92
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.27 G92
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
On this same subject, are the rear wheel/ axle bearings and or seals hard to replace? How do the axles come out of these 9 bolts?
#49
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
They are harder than other GM rear ends. You need a pretty good size press to change them. The axle bolt in. There are 4 bolts in each housing end that hold the brakes on and hold the axles in.
#50
Junior Member
Join Date: May 2015
Location: Lenexa, KS
Posts: 91
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC Z L98 G92
Engine: 5.7
Transmission: 700R4
Axle/Gears: 3.27 G92
Re: I just successfully installed a "TrueTrac style" Torsen LSD/Posi in my BW 9-Bolt!
So if I understand you correctly, the 4 bolts that hold the axles in are where the wheels are by the break caliper?.Unlike the 10 bolt where the clip hold the axle in place in the differential... I have a 20 ton press at home. I would think that that would be big enough.
