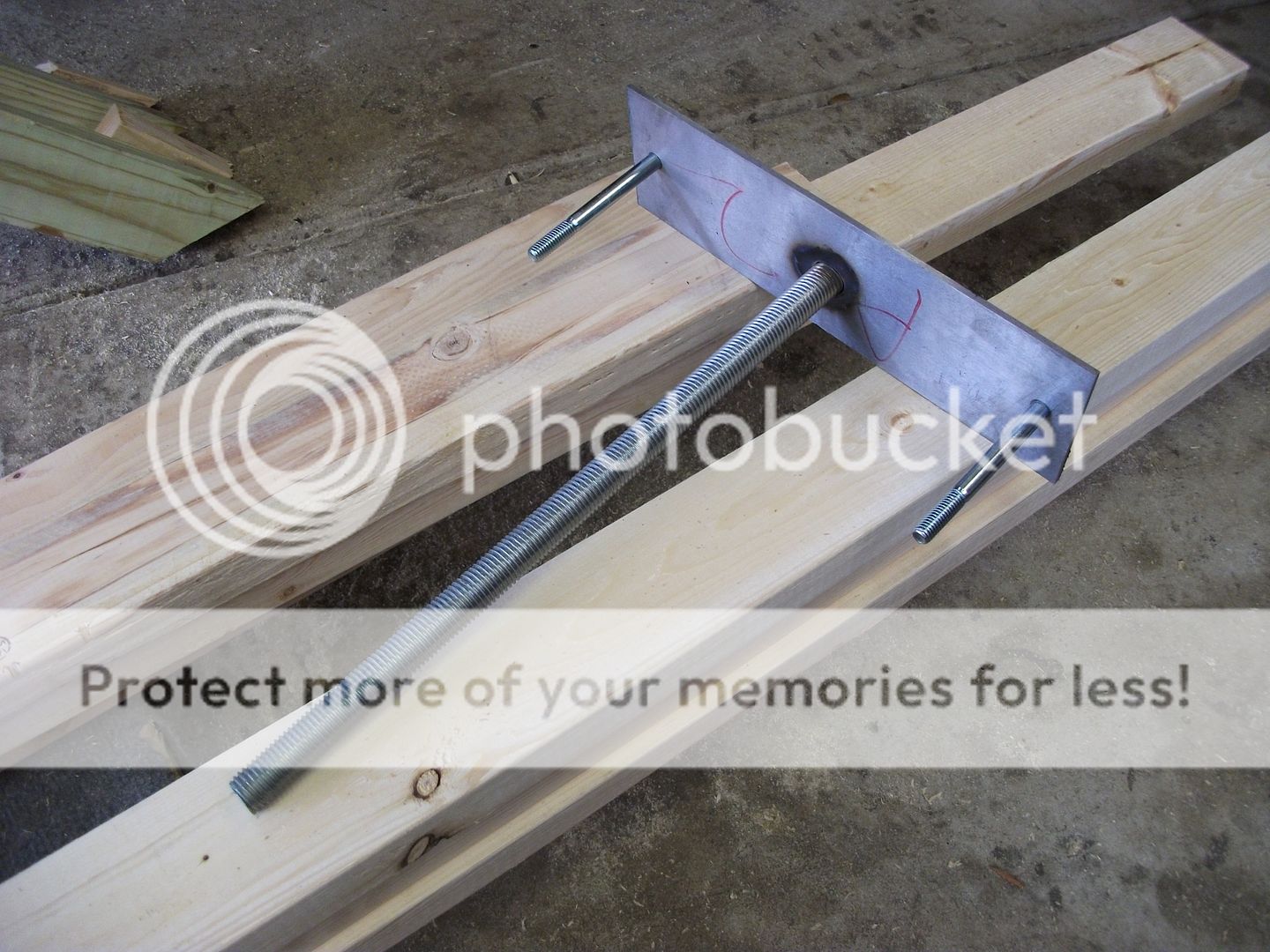

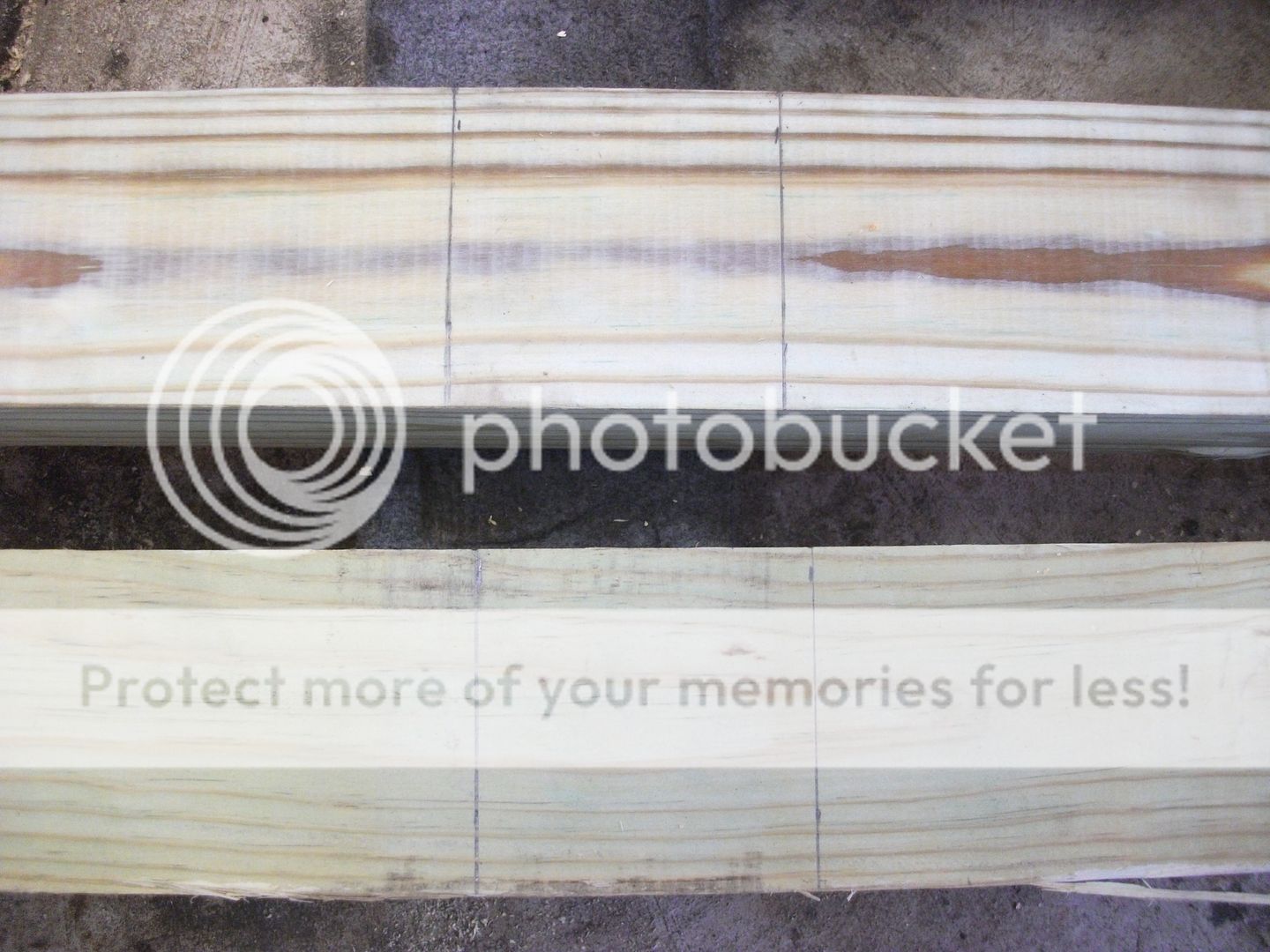

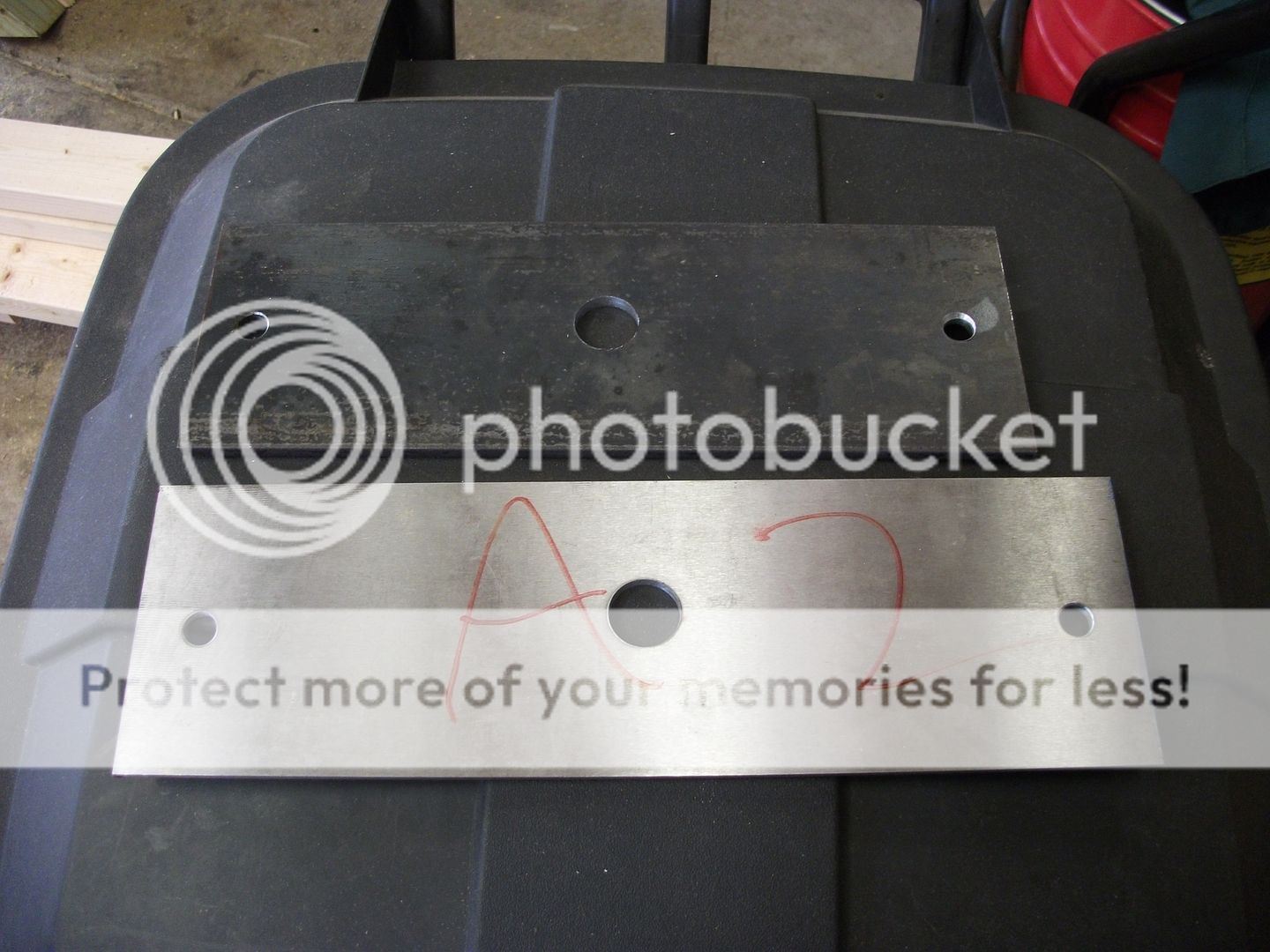

Building a wooden body rotisserie (pics)

I finished up last night just in time for it to rain..........so I turned the car over this morning to let all the water drain out. I'm not letting that happen again, but it's not the end of the world. Gotta move some things so it'll fir in the garage now.

This took 4 days to build, mostly because I was being lazy, working very slowly, and making frequent trips to the hardware store.

I need to get back to work before it starts raining again, but I'll be back to discuss any tools/material/details/dimensions you guys would like.












[url=http://s816.photobucket.com/user/robguitargod12/media/rotisserie/DSCF8170_zps033dee35.jpg.html]
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 09:57 AM   #2
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

[/url]











robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 10:00 AM   #3
Member

mac86's Avatar

Join Date: Apr 2007
Location: Sparta, NJ
Posts: 339
Car: 1989 Camaro RS
Engine: 350 TBI
Transmission: 700R4
Axle/Gears: B&W 3:27 Posi

Classifieds Rating: (1)
Re: Building a wooden body rotisserie (pics)

thats awesome man! i really want to do a rotissery resto on my car someday... it needs it lol....well... the undercarriage does haha
mac86 is online now vBGarage Page   Reply With Quote
Old 05-31-2013, 10:05 AM   #4
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

I'm even spoiled enough to have a 4-post lift in my garage.......but working overhead sucks and I want the floor of this car to be perfect. I don't want to NOT be able to drive the car in rain/snow/cold weather. Even though I don't have to drive it in bad weather, I don't want rust worry to be a reason.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 10:12 AM   #5
Supreme Member

Join Date: Sep 2010
Location: Sebastopol CA
Posts: 1,705
Car: Base 91 'bird
Engine: 3.1 v6
Transmission: 4L60
Axle/Gears: 9-bolt 3.27 & PBR

Classifieds Rating: (1)
Re: Building a wooden body rotisserie (pics)

Looks great. Could maybe use some triangulation from one or more of the end X pieces to the lengthwise lower ties.
Base91 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 10:38 AM   #6
Senior Member

Join Date: Dec 2012
Location: San Antonio, Texas
Posts: 637
Car: 1987 Camaro Z28
Engine: lb9
Transmission: 700r4 auto

Classifieds Rating: (1)
Re: Building a wooden body rotisserie (pics)

subscribed
Javier87z28 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 11:32 AM   #7
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by Base91 View Post
Looks great. Could maybe use some triangulation from one or more of the end X pieces to the lengthwise lower ties.
Done. It's the only thing I didn't finish last night.

It also fits in my garage next to my lift, on it's side too!

Pics uploading now.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 11:55 AM   #8
Senior Member

texascat2's Avatar

Join Date: May 2010
Location: Baytown, Tx
Posts: 629
Car: 1989 Forumla 350 WS6
Engine: 5.7 TPI:Bosch III's 22#'s
Transmission: 700-R4
Axle/Gears: BW 9 Bolt Posi- 3:27

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

Subscribed!
texascat2 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 12:02 PM   #9
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)












robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 12:05 PM   #10
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)







robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 12:21 PM   #11
Supreme Member

Join Date: Sep 2010
Location: Sebastopol CA
Posts: 1,705
Car: Base 91 'bird
Engine: 3.1 v6
Transmission: 4L60
Axle/Gears: 9-bolt 3.27 & PBR

Classifieds Rating: (1)
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by robguitargod1 View Post
Done. It's the only thing I didn't finish last night.

It also fits in my garage next to my lift, on it's side too!

Pics uploading now.
Good job. Now we can rest easier about your safety and some rust not being your biggest problem. BTW I want your garage. And lift. And welder. Probably a bunch of other stuff too!
Base91 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 12:58 PM   #12
Senior Member

texascat2's Avatar

Join Date: May 2010
Location: Baytown, Tx
Posts: 629
Car: 1989 Forumla 350 WS6
Engine: 5.7 TPI:Bosch III's 22#'s
Transmission: 700-R4
Axle/Gears: BW 9 Bolt Posi- 3:27

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

Awesome!
texascat2 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 01:51 PM   #13
Supreme Member

6SIX6's Avatar

Join Date: Aug 2006
Location: Mississauga,Ont,Canada
Posts: 1,470
Car: 89 IROC
Engine: LSX 6.0 370, TU2 Cam, Fast intake
Transmission: T56 w/ lots of goodies
Axle/Gears: 8.8, Posi, 4.10, 31 Spline

Classifieds Rating: (35)
Send a message via MSN to 6SIX6
Re: Building a wooden body rotisserie (pics)

Wow thats a first ive seen it out of wood. Now anyone can afford to make one and redo their car. I was gonna make one out of spare box tube I had from my old car trailer I cut up. I think you have given me the inspiration to do so. thanks
6SIX6 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 02:02 PM   #14
Junior Member

Join Date: Feb 2012
Location: Sneads, Fl.
Posts: 41
Car: 90 Formula Firebird WS6
Engine: 305 TBI
Transmission: 700R4

Classifieds Rating: (1)
Re: Building a wooden body rotisserie (pics)

Never thought about building one out of wood. Looks great!
Capt. P is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 03:07 PM   #15
Senior Member

igotta355z28's Avatar

Join Date: Dec 2006
Location: Bedford Tx
Posts: 941
Car: 1991 Z28 1LE
Engine: L98
Transmission: 700R4
Axle/Gears: 3.23 10bolt

Classifieds Rating: (1)
Re: Building a wooden body rotisserie (pics)

WOW, I must admit when reading this title I thought "F$#^#$ IDIOT".... looks good... very resourceful....no where near as sketchy as I thought it was gonna be...
__________________
2 Owner 1991 Arctic White L98 1LE
Previously Owned Third Gens
83 Z28, 85 Z28, 89 RS, 89 IROC
igotta355z28 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 07:09 PM   #16
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

I just added up my receipts and the total build cost is $200.

I had some of the lumber already but not everything. Hardware from ACE cost the most!

The casters came from Harbor Freight and were half of what Menards wanted.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 07:16 PM   #17
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Here's what the rotisserie was built for:

robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 08:47 PM   #18
Senior Member

l_dis_travlr's Avatar

Join Date: Jan 2006
Location: League City, TX
Posts: 677
Car: 90 Formula -- tot resto in progress
Engine: 350
Transmission: 700R4 w/ 2500 stall, by Owen @ ARD
Axle/Gears: 3.23 posi disc

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

Truly impressive.

Is what I see
-- rear wheel wells have already been tubbed,
-- GFX brackets on the sill panels
-- welding repair around the front unibody frame rails


What are the long range plans?

Good luck, and keep us posted on the progress.
l_dis_travlr is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 09:07 PM   #19
Senior Member

texascat2's Avatar

Join Date: May 2010
Location: Baytown, Tx
Posts: 629
Car: 1989 Forumla 350 WS6
Engine: 5.7 TPI:Bosch III's 22#'s
Transmission: 700-R4
Axle/Gears: BW 9 Bolt Posi- 3:27

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

One of the best information posts of a long time! Harbor Freight has some good deals every now and then!

$200? Just plain inexpensive!
__________________
texascat2 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 09:21 PM   #20
Member

punkmaster98's Avatar

Join Date: Aug 2011
Location: Manalapan, NJ
Posts: 445
Car: 92 Firebird
Engine: stock 305......for now
Transmission: 700r4....busted sprag :/
Axle/Gears: 3.23 posi 9 bolt

Classifieds Rating: (2)
Re: Building a wooden body rotisserie (pics)

subscribed
punkmaster98 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 09:37 PM   #21
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by l_dis_travlr View Post
Truly impressive.

Is what I see
-- rear wheel wells have already been tubbed,
-- GFX brackets on the sill panels
-- welding repair around the front unibody frame rails


What are the long range plans?

Good luck, and keep us posted on the progress.
The rust repair is documented here:

http://www.thirdgen.org/techboard/bo...-repair-w.html (Floor rust repair w/ PICS)

I bought the car because it had the fewest rust issues I could find. Here's some rust repair I did on the '86Z I'd previously been building. I bought the '91 that's on the rotisserie to replace the '86 that had too much rust.

http://www.thirdgen.org/techboard/bo...ower-rust.html (Fixing strut tower rust (with pics))

The car was already mini-tubbed when I bought it. Not a bad install, but I need to fix/finish a few areas still.

It's a '91 so the GFX mounting brackets are stock AFAIK.

PLANS:

LS1/T56/Currie 9" - I parted a '99Z that the LS1/T56 and plastic fuel tank came from. I already had the 9" in the '86.

I want this car to be something I'm not afraid to drive anytime. I want it to have all the comforts and luxuries that a lot of people leave off their cars. I'm talking about GOOD A/C, heat, power antenna, remote start, cruise control.......stuff lie that.

But for now I'm in the tough stretch, doing all the work that actually matters but will never be seen. The floors of this car have to stand up to Chicago salt abuse, and not rust.

I've been grinding away on the floor to get as much surface rust off as possible before I start with the POR-15. Only rusty areas will get it, then the entire borrow will get the rustoluem paint.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 09:40 PM   #22
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by texascat2 View Post
One of the best information posts of a long time! Harbor Freight has some good deals every now and then!

$200? Just plain inexpensive!
I know, that's what I paid for the car too......

Also I'm the only person that was involved in building the rotisserie, just myself. I'm 148lbs so I'm sure anyone can do it!
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 05-31-2013, 10:08 PM   #23
Senior Member

texascat2's Avatar

Join Date: May 2010
Location: Baytown, Tx
Posts: 629
Car: 1989 Forumla 350 WS6
Engine: 5.7 TPI:Bosch III's 22#'s
Transmission: 700-R4
Axle/Gears: BW 9 Bolt Posi- 3:27

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by robguitargod1 View Post
I know, that's what I paid for the car too......

Also I'm the only person that was involved in building the rotisserie, just myself. I'm 148lbs so I'm sure anyone can do it!
You are definitely used to working by yourself, that's why every move is planned ahead of time. Admiration here from Texas!
texascat2 is offline vBGarage Page   Reply With Quote
Old 06-01-2013, 10:33 PM   #24
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Car has been sideways for 2 days now and all is well. It's been raining everyday here in Chicago so I'm very glad it fits in the garage.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-01-2013, 10:38 PM   #25
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by texascat2 View Post
One of the best information posts of a long time! Harbor Freight has some good deals every now and then!

$200? Just plain inexpensive!
They sure do, and the reviews are always helpful. The 20% off coupon is nice also.

I also bought a paint gun there to spray the bottom with:

http://www.harborfreight.com/20-oz-h...gun-47016.html

Click the image to open in full size.

Here's the castors that are on the rotisserie:

http://www.harborfreight.com/3-1-2-h...ter-41524.html

Click the image to open in full size.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 01:42 AM   #26
Senior Member

l_dis_travlr's Avatar

Join Date: Jan 2006
Location: League City, TX
Posts: 677
Car: 90 Formula -- tot resto in progress
Engine: 350
Transmission: 700R4 w/ 2500 stall, by Owen @ ARD
Axle/Gears: 3.23 posi disc

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

Paint gun aside, since I'm sure you'll find other good uses for it...
Since you've got this much EFFORT into repair/restoration of the
bottom, have you considered Lizard-Skin? It might be a bit pricey,
but it looks like a really good product. (Power Block programs on
Spike use it a lot...)
I found that wherever the original GM gray primer was still intact,
it's a very tough epoxy finish, so I left it in place, cleaned & sprayed
over it. (I used a bed-liner spray -- brain-cramp can remember
what brand on the under-carriage, and an epoxy black for the fender
wells, which should be easy to clean.

Awesome work, kudos on keeping the breed alive.


PS
I just checked the other threads...
--The workmanship is outstanding, but for all the time & effort, you could have come
south & picked up a lot of less cancerous beater from which to start...
(can't find the LOL smiley while editing)
I get parts from a guy in Fla. who turns a lot of these, and usually has 2 or 3 available.
-- The visual quality of my welds is due more to my skill w/ a Harbor Freight
grinder, than the Lincoln Weld-Pak 100. (Again LOL..., and Kudos)

Last edited by l_dis_travlr; 06-02-2013 at 01:56 AM.
l_dis_travlr is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 08:14 AM   #27
Senior Member

texascat2's Avatar

Join Date: May 2010
Location: Baytown, Tx
Posts: 629
Car: 1989 Forumla 350 WS6
Engine: 5.7 TPI:Bosch III's 22#'s
Transmission: 700-R4
Axle/Gears: BW 9 Bolt Posi- 3:27

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

That gun got great reviews! $15! I might get one just for paint projects!
We have a Harbor Freight store about 20 minutes from my house, need to go and look!


l_dis_trvlr, you ever get yours out on the street yet?
texascat2 is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 08:23 AM   #28
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by texascat2 View Post
That gun got great reviews! $15! I might get one just for paint projects!
We have a Harbor Freight store about 20 minutes from my house, need to go and look!


l_dis_trvlr, you ever get yours out on the street yet?
I figured it'd be just fine for shooting the bottom of the car.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 08:27 AM   #29
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by l_dis_travlr View Post
Paint gun aside, since I'm sure you'll find other good uses for it...
Since you've got this much EFFORT into repair/restoration of the
bottom, have you considered Lizard-Skin? It might be a bit pricey,
but it looks like a really good product. (Power Block programs on
Spike use it a lot...)
I found that wherever the original GM gray primer was still intact,
it's a very tough epoxy finish, so I left it in place, cleaned & sprayed
over it. (I used a bed-liner spray -- brain-cramp can remember
what brand on the under-carriage, and an epoxy black for the fender
wells, which should be easy to clean.

Awesome work, kudos on keeping the breed alive.


PS
I just checked the other threads...
--The workmanship is outstanding, but for all the time & effort, you could have come
south & picked up a lot of less cancerous beater from which to start...
(can't find the LOL smiley while editing)
I get parts from a guy in Fla. who turns a lot of these, and usually has 2 or 3 available.
-- The visual quality of my welds is due more to my skill w/ a Harbor Freight
grinder, than the Lincoln Weld-Pak 100. (Again LOL..., and Kudos)
The car was only $200 and was already mini-tubbed so I couldn't pass it up. Chicago winters KILL floors so this one was in good shape compared to others I'd seen.

I'm going to start by pressure washing it today.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 08:34 AM   #30
Supreme Member

ternandes's Avatar

Join Date: Jan 2009
Location: Moneta, VA
Posts: 1,079
Car: 88 GTA
Engine: 305 TPI
Transmission: WC T5
Axle/Gears: BW 9-bolt 3.27 posi

Classifieds Rating: (7)
Send a message via AIM to ternandes
Re: Building a wooden body rotisserie (pics)

Wow... I was skeptical, but it looks like you really thought this one out. Curious if you looked into what the steel would have cost to weld one up?

Also jealous of your 4-post lift.
ternandes is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 08:51 AM   #31
Supreme Member

92RS_Ttop's Avatar

Join Date: Jun 2007
Location: Pennsylvania
Posts: 2,066
Car: 1992 Camaro RS
Engine: Rebuilt 350 going in after paint
Transmission: WCT5, 7k & counting behind the 350
Axle/Gears: 4thgen disc rear w/ 3.73 Posi

Classifieds Rating: (3)
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by robguitargod1 View Post
The rust repair is documented here:

http://www.thirdgen.org/techboard/bo...-repair-w.html (Floor rust repair w/ PICS)

I bought the car because it had the fewest rust issues I could find. Here's some rust repair I did on the '86Z I'd previously been building. I bought the '91 that's on the rotisserie to replace the '86 that had too much rust.

http://www.thirdgen.org/techboard/bo...ower-rust.html (Fixing strut tower rust (with pics))

The car was already mini-tubbed when I bought it. Not a bad install, but I need to fix/finish a few areas still.

It's a '91 so the GFX mounting brackets are stock AFAIK.

PLANS:

LS1/T56/Currie 9" - I parted a '99Z that the LS1/T56 and plastic fuel tank came from. I already had the 9" in the '86.

I want this car to be something I'm not afraid to drive anytime. I want it to have all the comforts and luxuries that a lot of people leave off their cars. I'm talking about GOOD A/C, heat, power antenna, remote start, cruise control.......stuff lie that.

But for now I'm in the tough stretch, doing all the work that actually matters but will never be seen. The floors of this car have to stand up to Chicago salt abuse, and not rust.

I've been grinding away on the floor to get as much surface rust off as possible before I start with the POR-15. Only rusty areas will get it, then the entire borrow will get the rustoluem paint.
Rotisserie looks great! I was also dreading seeing some half-***, dangerous hack job when I first started reading this. I wish my garage was large enough for something like this. Having a 6' ceiling sucks. Don't forget to add subframe connectors while its on there.

One thing though, having a manual transmission means you can't have a remote starter for 2 reasons - 1 you're supposed to leave it in gear when parked, and 2 there is a switch on the clutch pedal that won't let you start the car till the clutch pedal is fully depressed.

Last edited by 92RS_Ttop; 06-02-2013 at 08:55 AM.
92RS_Ttop is online now vBGarage Page   Reply With Quote
Old 06-02-2013, 09:01 AM   #32
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

You should be using your parking brake with a manual transmission, and yes a remote start can be installed safely. Here's an example:


If you don't follow the correct sequence, the vehicle won't remote start. Also since I'm building the harness, adding the remote start provision will be much easier than installing one on an existing vehicle.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 09:07 AM   #33
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Here's another good explanation:

http://www.mobileedgeonline.com/can-...-transmission/
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 09:21 AM   #34
Senior Member

texascat2's Avatar

Join Date: May 2010
Location: Baytown, Tx
Posts: 629
Car: 1989 Forumla 350 WS6
Engine: 5.7 TPI:Bosch III's 22#'s
Transmission: 700-R4
Axle/Gears: BW 9 Bolt Posi- 3:27

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

I love this thread!

Well thought out for all the naysayers!
texascat2 is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 10:30 AM   #35
Supreme Member

92RS_Ttop's Avatar

Join Date: Jun 2007
Location: Pennsylvania
Posts: 2,066
Car: 1992 Camaro RS
Engine: Rebuilt 350 going in after paint
Transmission: WCT5, 7k & counting behind the 350
Axle/Gears: 4thgen disc rear w/ 3.73 Posi

Classifieds Rating: (3)
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by robguitargod1 View Post
You should be using your parking brake with a manual transmission, and yes a remote start can be installed safely. Here's an example:
If you don't follow the correct sequence, the vehicle won't remote start. Also since I'm building the harness, adding the remote start provision will be much easier than installing one on an existing vehicle.
Yes, I did not mention the parking brake should be set. If the engine is cranked while the car is in gear, it will still lurch even if the parking brake is on. I was always taught to leave it in gear as well, especially on hills.

While the method in the video should work safely, I still think its a risk. I only have on-street parking where I live, and if my camaro were to move at all when the starter cranks, it will hit one of my neighbor's cars. With a brand new Nissan Juke on one side, and a 2012 Chevy Pickup on the other, I can't afford it.

And not being able to get in your car without disabling the remote starter is a bummer. Just my
92RS_Ttop is online now vBGarage Page   Reply With Quote
Old 06-02-2013, 07:41 PM   #36
Junior Member

Boosted_Ecotec's Avatar

Join Date: Apr 2013
Location: North Carolina
Posts: 29
Car: 1991 Firebird under the knife
Engine: undecided
Transmission: stock
Axle/Gears: Stock

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

@robguitargod1,

Way to go, man! That's how it's done.

Don't forget about the cover sheets for those TPS reports.

Quote:
Originally Posted by 92RS_Ttop View Post
Yes, I did not mention the parking brake should be set. If the engine is cranked while the car is in gear, it will still lurch even if the parking brake is on. I was always taught to leave it in gear as well, especially on hills.

While the method in the video should work safely, I still think its a risk. I only have on-street parking where I live, and if my camaro were to move at all when the starter cranks, it will hit one of my neighbor's cars. With a brand new Nissan Juke on one side, and a 2012 Chevy Pickup on the other, I can't afford it.

And not being able to get in your car without disabling the remote starter is a bummer. Just my
There are many ways to set up a remote starting system with a manual transmission. It sure is nice when it's cold outside and the HVAC controls are already set to heat or cool depending on the time of year.
Boosted_Ecotec is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 08:59 PM   #37
Supreme Member

92RS_Ttop's Avatar

Join Date: Jun 2007
Location: Pennsylvania
Posts: 2,066
Car: 1992 Camaro RS
Engine: Rebuilt 350 going in after paint
Transmission: WCT5, 7k & counting behind the 350
Axle/Gears: 4thgen disc rear w/ 3.73 Posi

Classifieds Rating: (3)
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by Boosted_Ecotec View Post
@robguitargod1,

Way to go, man! That's how it's done.

Don't forget about the cover sheets for those TPS reports.



There are many ways to set up a remote starting system with a manual transmission. It sure is nice when it's cold outside and the HVAC controls are already set to heat or cool depending on the time of year.
I agree with the cold mornings. I've installed a couple remote start systems over the years and do like them, don't get me wrong. My camaro gets garaged over the winter though. I've spent too much time patching rust holes to expose it to another PA winter. It also gives me several months to install upgrades and mods.
92RS_Ttop is online now vBGarage Page   Reply With Quote
Old 06-02-2013, 09:50 PM   #38
Senior Member

Join Date: Oct 2012
Location: Columbia, SC
Posts: 607
Car: '87 IROC-Z
Engine: LB9
Transmission: 700R4

Classifieds Rating: (3)
Re: Building a wooden body rotisserie (pics)

Spiffy!
__________________
EAT. SLEEP. IROC-Z. Repeat
---------------------------
IROCgiraffe is offline vBGarage Page   Reply With Quote
Old 06-02-2013, 10:02 PM   #39
Supreme Member

chazman's Avatar

Join Date: Dec 2001
Location: Chicagoland
Posts: 3,086
Car: 1989 IROC-Z. Original owner
Engine: LB9. Dual Cats. Big Cam
Transmission: World Class T-5
Axle/Gears: BW 3.45

Classifieds Rating: (3)

Re: Building a wooden body rotisserie (pics)

Nice job! You were the guy that bought that red '89, G92, 5 speed from Wisconsin, right?
__________________
1989 IROC-Z, LB9, T-5, 3.45 -- 11K miles
1983 Z/28, LU5, 700R4 T5, 2.93 -- 102K miles
1985 IROC-Z, LB9, 700R4, 3.42 -- 41K miles
chazman is online now vBGarage Page   Reply With Quote
Old 06-02-2013, 10:18 PM   #40
Junior Member

Join Date: May 2013
Location: Terre Haute, Indiana
Posts: 57
Car: 1987 Trans Am gta
Engine: LT1 350
Transmission: 700R4
Axle/Gears: Posi 3:73

Classifieds Rating: (0)
Send a message via Yahoo to Renegade-Z28 Send a message via Skype™ to Renegade-Z28
Re: Building a wooden body rotisserie (pics)

Do you think you could post a list of the lumber sizes and nut and bolt sizes? The would be awesome.
Renegade-Z28 is offline vBGarage Page   Reply With Quote
Old 06-03-2013, 08:41 AM   #41
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by chazman View Post
Nice job! You were the guy that bought that red '89, G92, 5 speed from Wisconsin, right?
That's right! See this pic I posted eariler........well that's the car:



I've LITERALLY driven the car 5 times since I bought it, and I hate myself for letting it sit. The only time I'm in it is to move it off the lift so I can work on something else. 88K original miles, and all it does is sit because I have so many other cars to work on.

It's unofficially for sale........I'd just rather someone enjoy her. Here's how she sits today:

robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-03-2013, 08:44 AM   #42
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by Renegade-Z28 View Post
Do you think you could post a list of the lumber sizes and nut and bolt sizes? The would be awesome.
I sure could! There's not much to it really. 24 bolts total. Let me get to my workout, then I'll get a list together.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-03-2013, 09:02 AM   #43
Supreme Member

chazman's Avatar

Join Date: Dec 2001
Location: Chicagoland
Posts: 3,086
Car: 1989 IROC-Z. Original owner
Engine: LB9. Dual Cats. Big Cam
Transmission: World Class T-5
Axle/Gears: BW 3.45

Classifieds Rating: (3)

Re: Building a wooden body rotisserie (pics)

I'll get the word out to some local guys who might be interested in it. If I wasn't so full up on 3rd gens, I'd come look it over myself.
__________________
1989 IROC-Z, LB9, T-5, 3.45 -- 11K miles
1983 Z/28, LU5, 700R4 T5, 2.93 -- 102K miles
1985 IROC-Z, LB9, 700R4, 3.42 -- 41K miles

Last edited by Steve86TA; 06-12-2013 at 05:55 PM.
chazman is online now vBGarage Page   Reply With Quote
Old 06-03-2013, 04:30 PM   #44
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by Renegade-Z28 View Post
Do you think you could post a list of the lumber sizes and nut and bolt sizes? The would be awesome.
The 4X4 for the X frames are 8' long

Overall length for the long 2X6's is 187" (just under 16')

2x4's are used as braces and to build the castor mounts.

Each bumper mounting location has 3 large holes and 1 smaller hole. For the front the bigger holes use 7/16" X 3" bolts, and the smaller holes use 5/16" X 3" bolts.

For the rear the lengths are 6" for everything because they have to go through more wood to space the 2X12 far enough from the rear of the body.

The wood I used is:

3 - 2X12X8'
4 - 4x4x8'
2 - 2x6x16'
various 2x4's

You also need a 1"x3' threaded rod and 1"x3' pipe for it to spin in. The nuts are 7/8" and you'll also want a washer and lock washer front and back.

Last you'll need 2 - 3/16" steel plates and 4 - 7/16" bolts to hold the plates to the 2x12's. The threaded rod is welded to the steel plate of course.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-03-2013, 05:03 PM   #45
Supreme Member

Join Date: Apr 2011
Location: Huntsville, AL
Posts: 1,049
Car: 89 Black IROC-Z convertible
Engine: 305 TBI
Transmission: Auto

Classifieds Rating: (0)
Re: Building a wooden body rotisserie (pics)

Nice job.
Richboll is offline vBGarage Page   Reply With Quote
Old 06-04-2013, 02:01 PM   #46
Member

Join Date: May 2008
Location: Cincinnati, OH
Posts: 172

Classifieds Rating: (1)
Re: Building a wooden body rotisserie (pics)

Nice work! I'm thinking this could be made knock-down for storing.

When you rotate the car is it hard to do? One man job? How do you get it to stay in one position once it's rotated? Don't know to find the balance point so that it would rotate easily.
__________________
Bob
'91 T/A
'68 Firebird 350HO
'68 GTO convert.
fyrebird68 is offline vBGarage Page   Reply With Quote
Old 06-04-2013, 02:18 PM   #47
Junior Member

Join Date: May 2013
Location: Terre Haute, Indiana
Posts: 57
Car: 1987 Trans Am gta
Engine: LT1 350
Transmission: 700R4
Axle/Gears: Posi 3:73

Classifieds Rating: (0)
Send a message via Yahoo to Renegade-Z28 Send a message via Skype™ to Renegade-Z28
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by robguitargod1 View Post
The 4X4 for the X frames are 8' long

Overall length for the long 2X6's is 187" (just under 16')

2x4's are used as braces and to build the castor mounts.

Each bumper mounting location has 3 large holes and 1 smaller hole. For the front the bigger holes use 7/16" X 3" bolts, and the smaller holes use 5/16" X 3" bolts.

For the rear the lengths are 6" for everything because they have to go through more wood to space the 2X12 far enough from the rear of the body.

The wood I used is:

3 - 2X12X8'
4 - 4x4x8'
2 - 2x6x16'
various 2x4's

You also need a 1"x3' threaded rod and 1"x3' pipe for it to spin in. The nuts are 7/8" and you'll also want a washer and lock washer front and back.

Last you'll need 2 - 3/16" steel plates and 4 - 7/16" bolts to hold the plates to the 2x12's. The threaded rod is welded to the steel plate of course.
Thanks. It's going to be a great project. Won't be able to finish as fast as you though. Lol
Renegade-Z28 is offline vBGarage Page   Reply With Quote
Old 06-04-2013, 03:17 PM   #48
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by fyrebird68 View Post
Nice work! I'm thinking this could be made knock-down for storing.

When you rotate the car is it hard to do? One man job? How do you get it to stay in one position once it's rotated? Don't know to find the balance point so that it would rotate easily.
Rotating is very easy. All I do is get the outer nuts tightened enough so that the car stays in whatever position I put it in while it's being rotated. That of course makes it a little more difficult to rotate, but it's nothing. Once I get the car positioned where I want it, I just tighten down the nuts.

I'd like to add a locking pin, but this way works perfectly. The cars been sideways for days now, so it's not going anywhere.

I'll have to make a short video of the car being rotated.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-04-2013, 03:33 PM   #49
Senior Member

robguitargod1's Avatar

Join Date: Oct 2008
Location: Niles, IL
Posts: 760
Car: 86 Camaro, 89 IROC, 87 Cadillac
Engine: 355 SBC
Transmission: T56
Axle/Gears: Currie 9" 4.57 gear, detroit locker

Classifieds Rating: (4)
Send a message via AIM to robguitargod1 Send a message via Yahoo to robguitargod1
Re: Building a wooden body rotisserie (pics)

Quote:
Originally Posted by Renegade-Z28 View Post
Thanks. It's going to be a great project. Won't be able to finish as fast as you though. Lol
Should only take you a day at most. I kept screwing off so it took me longer.

I only used a chop saw and circular saw too.
robguitargod1 is offline vBGarage Page   Reply With Quote
Old 06-05-2013, 07:40 AM   #50
Supreme Member

ternandes's Avatar

Join Date: Jan 2009
Location: Moneta, VA
Posts: 1,079
Car: 88 GTA
Engine: 305 TPI
Transmission: WC T5
Axle/Gears: BW 9-bolt 3.27 posi

Classifieds Rating: (7)
Send a message via AIM to ternandes
Re: Building a wooden body rotisserie (pics)

I don't mean to hijack this thread, but I am curious about your four-post lift. Can you tell us what brand/model it is, and how happy are you with it? would you buy the same one again?

I also think this thread might be worthy of becoming a sticky.
ternandes is offline vBGarage Page   Reply With Quote
Old 06-05-2013, 07:40 AM
ThirdGen
1992 Camaro




Paid Advertisement


Reply

Go Back   Third Generation F-Body Message Boards > Tech Boards > Body

Tags
auto, body, build, car, iroc, make, making, plans, restoration, rotiss, rotisserie, truck, wood, wooden, woodenopeners
Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off




1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 12:28 PM.


Powered by vBulletin® Version 3.7.5
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
All content copyright 1997 - 2014 ThirdGen.org. All rights reserved. No part of this website may be reproduced without the expressed, documented, and written consent of ThirdGen.org's Administrators.

Emails & Contact Details
