A/C compressor connector w/ resistor. . . Why?

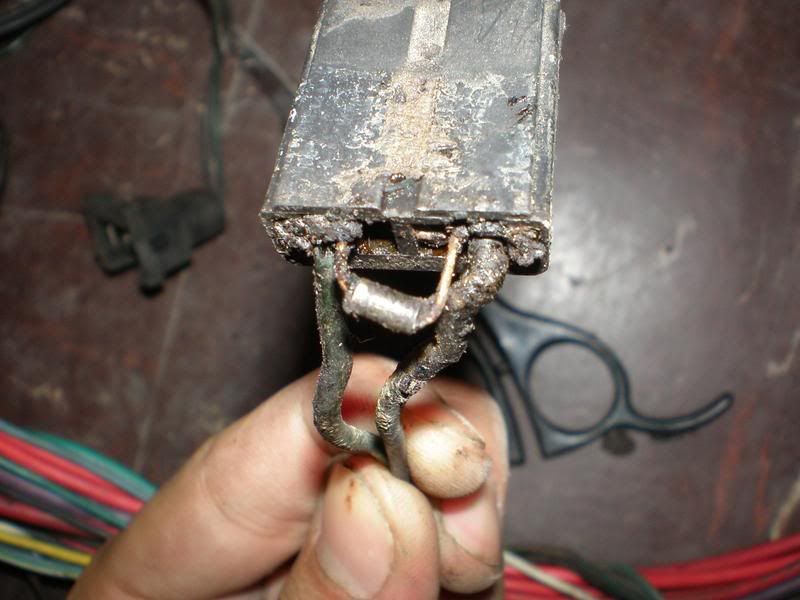

Hows it going? I'm in the process of replacing the engine harness in my '89 GTA (with the correct one this time lol ) but before I do, replace the dirty brittle factory convoluted tubing that protects the wires as well which I'm doing so at the momnt. Today as I was doing what appears to be the a/c compressor wiring, I noticed it had a few layers of dry brittle electrical tape wrapped around the connector were the wires go into it. I decided to unwrap it and found a small resistor plugged into both terminals of the connector. Anyone know why it was placed there? Heres some pics of what I'm talking about:

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

Thanks in advance for the info!

Later,
Phoenix
The_Phoenix is offline vBGarage Page   Reply With Quote
Old 10-22-2008, 07:31 AM   #2
Senior Member

Toehead's Avatar

Join Date: Jul 2005
Location: North Central Mass.
Posts: 2,123
Car: 1985 Berlinetta
Engine: Megasquirted TPI
Transmission: Transgo 700R4
Axle/Gears: 3.42

Classifieds Rating: (0)
Send a message via AIM to Toehead
Re: A/C compressor connector w/ resistor. . . Why?

I believe it is a diode.

When you shut off a soenoid the magnetic field collapses and creats a pulse of current that can go back up the wires. If the compressor is attatched to something sensitive, say the ecm, it can fry things. The diode is there to bleed off the inductive pulse when the solenoid disengages.
Toehead is offline vBGarage Page   Reply With Quote
Old 10-22-2008, 09:24 AM   #3
Supreme Member

BigBadLou's Avatar

Join Date: Jul 2004
Posts: 2,972
Car: '91 Z28 convertible
Engine: TPI
Transmission: T5
Axle/Gears: 3.27 posi disc

Classifieds Rating: (3)
Re: A/C compressor connector w/ resistor. . . Why?

Toehead is right, it's the flyback diode that prevents the inductive spike from traveling up the wires to the ECM.
Leave it in there if you want to keep your ECM from burning up.

Lou
__________________
'91 Z28 convertible w/305TPI WC T5 (no more auto)
"Nothing screams more of poor craftsmanship than wrinkles in your duct tape!"
BigBadLou is offline vBGarage Page   Reply With Quote
Old 10-24-2008, 10:42 AM   #4
Senior Member

The_Phoenix's Avatar

Join Date: Feb 2007
Location: Tucson, Az
Posts: 659
Car: Don't
Engine: have
Transmission: it
Axle/Gears: anymore

Classifieds Rating: (3)
Send a message via MSN to The_Phoenix
Re: A/C compressor connector w/ resistor. . . Why?

So the diode (not resistor) must be in there from the factory then correct? Since it was wrapped up in dry electrical tape and looked somewhat 'bootlegged', I thought someone might of put it in there due to an electrical problem they had or something. IMO, the connector and wires look like they need replacing so I'll look into tpiparts.net for a new one and wire it in b/c not even my old harness' a/c connector looked this bad lol. I'll definately leave it in for now since frying my new (rebuilt) ecm isn't an option. Thanks again guys.

Later,
Phoenix
The_Phoenix is offline vBGarage Page   Reply With Quote
Old 10-24-2008, 03:53 PM   #5
Senior Member

The_Phoenix's Avatar

Join Date: Feb 2007
Location: Tucson, Az
Posts: 659
Car: Don't
Engine: have
Transmission: it
Axle/Gears: anymore

Classifieds Rating: (3)
Send a message via MSN to The_Phoenix
Re: A/C compressor connector w/ resistor. . . Why?

I forgot to ask. Anyone know the part # to a new a/c pigtal connector like the one pictured? Thanks in advance.

Phoenix
The_Phoenix is offline vBGarage Page   Reply With Quote
Old 11-03-2008, 05:23 PM   #6
Senior Member

The_Phoenix's Avatar

Join Date: Feb 2007
Location: Tucson, Az
Posts: 659
Car: Don't
Engine: have
Transmission: it
Axle/Gears: anymore

Classifieds Rating: (3)
Send a message via MSN to The_Phoenix
Re: A/C compressor connector w/ resistor. . . Why?

I picked up a good used connector at the junk yard today and wired it into the harness. All systems go .

L8R,

Phoenix
