Manual Brake Installation with Pictures

I mocked up a prototype manual brake system on a 1991 Firebird. This system requires a 2.0” hole to be drilled in the firewall and a 31/64” hole to be drilled in the pedal.

Name:  IMG_0212.jpg
Views: 5425
Size:  37.5 KB

The 2.0” hole drilled in the firewall allows the use of the upper two holes that the brake booster bracket utilized and allows a master cylinder to bolt up. This arrangement allows for a 6 to 1 pedal ratio.

Name:  IMG_0213.jpg
Views: 5409
Size:  40.0 KB

With a true 6 to 1 pedal ratio and using the upper bolt holes in the firewall, you also get good pushrod alignment with the master cylinder piston.

The 31/64” hole, that will be drilled into the brake pedal arm, is good for the ” stud/pin to be pressed into the pedal with an optimal interference fit with zero stud/pin play.

To utilize the ” stud/pin that is pressed into the brake pedal arm, I made a custom clevis with a ” hole for the stud/pin. The clevis is machined to use a 5/16” diameter pushrod with fine threads.

Here are the items used for the pushrod assembly.

Name:  a991a030-bc2a-41eb-a17d-b746fe7845ed.jpg
Views: 5435
Size:  22.5 KB

A custom CNC aluminum plate was machined to cover up the original power booster hole and allow GM, Ford, or Mopar style master cylinder to be utilized in the upper holes. A retention cup will also be fabricated and pressed into the plate to retain the pushrod so it doesn't fall out the back of the master cylinder.

Here is the plate bolted to the firewall.

Name:  IMG_0216.jpg
Views: 5414
Size:  37.4 KB
Name:  IMG_0217.jpg
Views: 5408
Size:  44.2 KB
Name:  IMG_0218.jpg
Views: 5418
Size:  42.0 KB

To utilize a Ford or Mopar style master cylinder, the upper passenger side mounting bolt hole in the firewall will have to drilled out to a ” in diameter (before the adapter plate is installed) because these master cylinders have a narrower bolt pattern than a GM master cylinder.

Because the third generation F-bodies have significant firewall flex, the prototype manual brake setup utilizes a ” thick aluminum plate under the dash between the firewall and the brake pedal assembly. This plate overlaps the contours of the firewall to reduce firewall flex significantly.

I will utilize a 7/8” bore master cylinder because the smaller diameter bore allows for greater pressure in the system and is sized to provide great clamping forces for the stock 2.5” piston calipers.

Here is the system mocked up on the firewall utilizing an old 7/8” bore Mopar style master cylinder I had lying around.

Name:  127855db-1c6a-4370-b7c9-a79a84578830.jpg
Views: 5499
Size:  73.9 KB

Name:  e9cd48b5-7f27-49bb-a473-9cb92634d1ab.jpg
Views: 5439
Size:  79.0 KB

Name:  127855db-1c6a-4370-b7c9-a79a84578830.jpg
Views: 5499
Size:  73.9 KB



Name:  8e755d00-0230-4c03-87ef-3faf4201919c.jpg
Views: 5397
Size:  45.7 KB

From the factory, the stock calipers are LOW drag. LOW drag calipers will require a step bore master cylinder. Step bore master cylinders have two bores. The secondary, pressure bore is 24mm, which in my opinion, is too large to operate manual brakes. Also, the master cylinder does not have a mechanism to retain the pushrod. If the pushrod falls away from the master cylinder piston, the car will loose all its brakes.

NON low drag (normal) calipers are available that will bolt in to systems utilizing the stock 10.5" front brakes. I like the Centric brand rebuilt units. The part numbers are 14162066 and 14162065 (left and right hand side) and have the stock 2.5” piston diameters. AFCO just released some brand new cast iron castings with stock 2.5” bore. The part numbers for these are 6635003 and 6635004 for left and right hand side calipers.

The ports on the Mopar style master cylinder are 3/8-24 and will utilize this size line to mate up to the stock prop valve. I just need to figure out the prop valve inlet thread size to see if there are any adapters to mate to the 3/8-24 line fittings.
Attached Images
File Type: jpg 127855db-1c6a-4370-b7c9-a79a84578830.jpg (73.9 KB, 17 views)

Last edited by malibudave; 01-15-2017 at 11:53 AM.
malibudave is offline   Reply With Quote
Old 09-25-2015, 09:42 AM   #2
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

I did some measuring of the brake pedal assembly to find out what the stock power assist, vacuum booster pedal ratio would be. I also did the calculations of the manual brake system output at the master cylinder using different pedal ratios and master cylinder bore sizes.

Stock pedal length from center of pivot point to center of pedal pad is 12.0”

BOOSTED PEDAL RATIO

Distance from center of pivot point to center of power booster pin/stud location is 3.75”
12 3.75 = 3.2 to 1 pedal ratio


MANUAL BRAKE PEDAL RATIO

On the F-body pedal, I moved the pin/stud location up on the pedal where it was 2.0” down from the pivot point.

12 2 = 6 to 1 pedal ratio

I wanted to make sure my manual brakes have enough pedal ratio to create the greatest amount of leverage with roughly 1.0” of master cylinder piston travel. In this case, the 6 to 1 ratio worked out to be 1.0” (give or take a 1/16 of an inch).

After reading some of the other posts on their manual brake conversion, they moved the stud up 1.0” from the power boosted pin location.

12 2.75 = 4.4 to 1 pedal ratio

For most brake systems, a 7/8” bore master cylinder will work well and create greater pressure than the larger 1.03” bore master cylinders.
Area of master cylinder bore:

• 7/8” bore master cylinder – 0.601 square inches
• 24mm bore master cylinder – 0.701 square inches
• 1-1/32” bore master cylinder – 0.836 square inches

If 100 pounds of pressure is applied to the brake pedal and a 6 to 1 pedal ratio:
• 7/8” bore master cylinder will create 998 psi of manual pressure
• 24mm bore master cylinder will create 886 psi of manual pressure
• 1-1/32” bore master cylinder will create 720 psi of manual pressure

If 100 pounds of pressure is applied to the brake pedal and a 4.4 to 1 pedal ratio:
• 7/8” bore master cylinder will create 732 psi of manual pressure
• 24mm bore master cylinder will create 628 psi of manual pressure
• 1-1/32” bore master cylinder will create 528 psi of manual pressure


VACUUM BOOSTED BRAKES PSI

If 100 pounds of pressure is applied to the brake pedal and a 3.2 to 1 pedal ratio:
• 24mm (stock size) secondary bore master cylinder will create 456 psi of manual pressure
• Area of a 9.0” dual diaphragm vacuum booster – 127.12 square inches
• 18 in Hg of vacuum converted to psi – 8.8 psi
• 127.12 square inches multiplied by 8.8 psi equals 1119 psi of vacuum boosted pressure
456 psi of manual pressure plus 1119 psi of vacuum boosted pressure is 1575 psi of pressure

Hopefully the vacuum boosted pressure is accurate. I am assuming that both diaphragms have the same area.

Last edited by malibudave; 09-28-2015 at 08:01 AM.
malibudave is offline   Reply With Quote
Old 09-27-2015, 07:26 PM   #3
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

Here is the brake pedal assembly mocked up with the manual brake setup off the car. I wanted to make sure that here was no contact with the pushrod retention cup. The pushrod retention cup makes sure that the pushrod does not fall away from the back of the master cylinder piston. If the pushrod falls away from the back of the master cylinder piston, you will have ZERO brakes. For this mock up, the bottom stainless steel button head bolts for the adapter plate where not needed.

From left to right:
7/8" Bore Master Cylinder
1/8" Thick Aluminum Adapter Plate with Pushrod Retention Cup that installs in engine bay
1/2" Thick Aluminum Firewall Brace that will install under dash
Stock Brake pedal Assembly Bracket.

Name:  fbc4821d-9607-41a0-95ff-60103eb2faa7.jpg
Views: 5499
Size:  60.1 KB

Last edited by malibudave; 11-22-2016 at 06:23 PM.
malibudave is offline   Reply With Quote
Old 10-10-2015, 11:43 AM   #4
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

Stock third generation (1982-1992) F-body front 10.5” front brake rotors and front brake calipers interchange with:
• 1978-1988 RWD A/G-body Cars (1978 and some 1979 g-body rotors used smaller outer wheel bearings and will not interchange with newer models)
• 1982-2003 RWD S10 Trucks and SUVs with 10.5” rotors

From 1978 -1981 A/G-body cars used normal front brake calipers and a 7/8” strait bore (normal) master cylinder in factory manual brake equipped cars. Vacuum assisted cars used a 24mm strait bore (normal) master cylinder. The manual brake equipped vehicles came with a 6 to 1 pedal ratio.

After 1982, there were no manual brake equipped g-bodies from the factory. After 1982, the brake calipers on third generation f-bodies, g-bodies, and S10 trucks/SUVs where manufactured with low drag seals and were commonly called LOW drag calipers. These LOW drag calipers were designed with a seal with a beveled edge. This beveled edged seal “pulled” back the caliper piston further into the brake caliper bore and increase the amount of space between the rotor and the brake pad. This was an effort to increase gas mileage.

Because the LOW drag caliper “pulled” the pads farther away from the rotor, more brake fluid volume is needed to get the pads back up against the rotor. To remedy this, GM engineers used a step bore master cylinder which had two different size bores. The primary, larger bore to move the volume and a smaller, secondary bore to create pressure. When the brake pedal is pressed, the larger bore moved the volume of fluid needed to get the pads back up against the rotor without additional pedal travel. Once a certain pressure is reached inside the master cylinder, an internal bypass valve would activate, and the smaller, secondary bore would allow sufficient pressure to clamp the pads against the rotors and stop the car.

First generation S10 trucks came from the factory with manual brakes, LOW drag calipers, and a step bore master cylinder. The step bore master cylinder’s smaller secondary bore of the manual brake equipped master cylinder was 24mm.

In my opinion, you do not want to try and make a step bore master cylinder work with any manual brake setup. The step bore master cylinder is:
• more complicated to bleed because of the internal bypass valve
• secondary, 24mm bore is too large for the stock size of the calipers being used to create enough pressure
• the internal bypass valve may and can malfunction
• no way to retain the pushrod against the back of the master cylinder piston
• New step bore master cylinders are cast iron
• Step bore master cylinders are physically larger than most other master cylinders

A good, simple matched system for manual brakes would be:
• Stock size (2.5” piston) front calipers (new and rebuilt units are most likely normal, NON low drag)
• A normal, 7/8” strait bore master cylinder
• 6 to 1 pedal ratio.

Last edited by malibudave; 10-10-2015 at 11:47 AM.
malibudave is offline   Reply With Quote
Old 10-19-2015, 09:48 PM   #5
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

The 7/8" master cylinder that I will be using has 3/8-24 inch outlets. These outlets will have to mate up to 12x1.5 inlet on the proportioning valve for the rear brakes (front port on the proportioning valve) and 11x1.5 inlet on the proportioning valve for the front brakes (rear inlet port on the proportioning valve).

For the rear brake lines running from the front port of the master cylinder to the front port of the proportioning valve, use Edelmann part number 265000 installed in the front inlet port of the proportioning valve. I will then bend up a 20" hard line of 3/16" diameter tubing with 3/8-24 inch fittings. The hard line is Edelmann Part # 320PVF

For the front brake lines running from the rear port of the master cylinder to the rear port of the proportioning valve, use Edelmann part number 264000 installed in the rear inlet port of the proportioning valve. I will then bend up a 20" hard line of 3/16" diameter tubing with 3/8-24 inch fittings. The hard line is Edelmann Part # 320PVF

Here are the part numbers you need to mate the master cylinder with 3/8-24 inch outlets to a proportioning valve with 12x1 and 11x1.5 inlet sizes.

2 each of Edelmann Part # 320PVF - 20 inch long, 3/16 inch outside diameter tube with 3/8-24 inch fittings.

Edelmann Part # 265000 - 12x1 bubble flare male to 3/8-24-24 inch inverted flare female.

Edelmann Part # 264000 - 11x1.5 bubble flare male to 3/8-24 inch inverted flare female.

Last edited by malibudave; 10-25-2015 at 11:28 AM.
malibudave is offline   Reply With Quote
Old 10-20-2015, 08:15 AM   #6
Supreme Member
iTrader: (3)

loneroad's Avatar

Join Date: Sep 2007
Location: St.cloud fl.
Posts: 1,020
Car: 90RS Conv.
Engine: 383 w/ small shot
Transmission: th400
Axle/Gears: moser 9in


Re: Manual Brake Installation with Pictures

I like the plate that you made. I wish I would have moved mine up like you did. I killed a wildwood master because the push rod wasn't going straight in. I plan on re-doing mine in the near future. If you want to sell another plate,id be interested. pm me.
loneroad is offline   Reply With Quote
Old 10-20-2015, 04:18 PM   #7
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

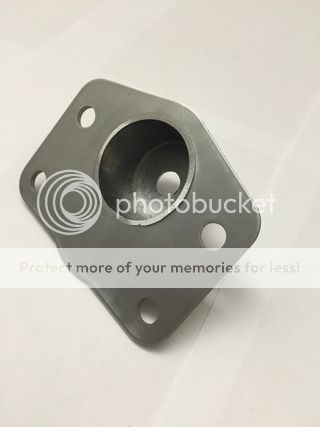

Here are different views the finished manual brake adapter plate if looking at it from the engine bay side. A pushrod retention cup is added to make sure the pushrod does not fall away from the back of the master cylinder piston if brake fluid pressure is lost. The “bump” at the bottom of the adapter plate is to completely cover the hole that the brake booster bracket used.

Name:  5E81F263-29FD-42A5-B4E1-4CFB6EF3CA4A.jpg
Views: 5414
Size:  22.6 KBName:  78DF6170-BB8C-4171-947F-D9FF1C2E10F6.jpg
Views: 5402
Size:  21.1 KB


The below picture is the backside of the adapter plate that will mount against the firewall. The pushrod retention cup will install through the 2.0" hole drilled in the firewall.

Name:  E57841C1-5718-4E5C-9C14-C10216CC2BDC.jpg
Views: 5398
Size:  21.4 KB

The below picture is the matching gasket for the manual brake adapter plate. The gasket will be sandwiched between the firewall after it is slid over the top of the retention cup in the above picture.

Name:  63CAAF94-564E-450E-94B3-2414B26883E0.jpg
Views: 5404
Size:  20.6 KB

The below picture is the manual brake adjustable pushrod installed in the retention cup. The pushrod has provisions to keep it captured inside the pushrod retention cup. You would see this view from the engine bay before the master cylinder is installed and after you installed your adjustable pushrod assembly to the brake pedal arm.

Name:  A6FCFD8B-8E76-4A48-88A2-13076BA69539.jpg
Views: 5496
Size:  20.2 KB

The below picture is the manual brake adjustable pushrod installed in the cup. You would see this view from under the dash after the adjustable pushrod assembly is installed on the brake pedal arm.

Name:  25E2A49F-503D-43FD-AE40-B6841E414F38.jpg
Views: 5399
Size:  19.0 KB

The below picture is the 1/2" thick aluminum firewall brace. It is installed under the dash, between the firewall and the brake pedal assembly bracket. The firewall brace is extended toward the driver side and bottom do take advantage of the stamped portion of the firewall. It significantly reduces firewall flex.

Name:  36BF9EA5-5E47-455E-B610-27A29A1F736C.jpg
Views: 5395
Size:  18.2 KB

Last edited by malibudave; 11-22-2016 at 06:22 PM.
malibudave is offline   Reply With Quote
Old 02-18-2016, 12:19 PM   #8
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

Below is an analysis using the Brake Torque Calculator found on Pro-Touring.com. This calculator will give you an idea of what brake torque is for a certain front and rear setups. I am just going to show the changes from the stock, third generation front f-body brake system and compare them to a stock LS1 Camaro brake swap, a LS1 Camaro brake swap with Corvette calipers

Page 7, Post #140

http://www.pro-touring.com/threads/1...of-KORE3/page7
This entire post is a really good read if you are interested about brakes.


Here are the inputs that are the same for ALL different types of brake systems shown below.
• 6 to 1 pedal ratio
• 26” tall tire
• 100 ft/lb pedal pressure
• Manual Brakes – NO POWER ASSIST
• Pad Coefficient of Friction - .45
• Use of stock type (tandem) master cylinder

____________________________________________________
Stock G-body/S10/3rd Generation F-body Front Brake System
• Rotor Diameter – 10.5”
• 7/8” Bore Master Cylinder Area - .601 sq-in
• Line Pressure – 998 psi
• Front Caliper Piston Area – 4.909 sq-in
• Front Clamping Pressure – 4899 pounds
Front Rotor Torque – 964 ft/lb
• Tire Forces – 890 lb
____________________________________________________
Stock LS1 Camaro/Firebird Front Brake System
• Rotor Diameter – 12”
• 7/8” Bore Master Cylinder Area - .601 sq-in
• Line Pressure – 998 psi
• Front Caliper Piston Area – 4.931 sq-in
• Front Clamping Pressure – 4921 pounds
Front Rotor Torque – 1107 ft/lb
• Tire Forces – 1022 lb
____________________________________________________
Stock LS1 Camaro/Firebird Front Brake System with Corvette Calipers with 7/8” bore master cylinder
• Rotor Diameter – 12”
• 7/8” Bore Master Cylinder Area - .601 sq-in
• Line Pressure – 998 psi
• Front Caliper Piston Area – 3.994 sq-in
• Front Clamping Pressure – 3986 pounds
Front Rotor Torque – 897 ft/lb
• Tire Forces – 828 lb

Stock LS1 Camaro/Firebird Front Brake System with Corvette Calipers with 21mm bore master cylinder
• Rotor Diameter – 12”
• 21mm Bore Master Cylinder Area - .537 sq-in
• Line Pressure – 1117 psi
• Front Caliper Piston Area – 3.994 sq-in
• Front Clamping Pressure – 4461 pounds
Front Rotor Torque – 1004 ft/lb
• Tire Forces – 927 lb


Rating from best to worst:
1. LS1 Camaro / Firebird stock front brakes with 7/8" bore master cylinder.
2. LS1 Camaro / Firebird front brakes with Corvette brake calipers and a 21mm bore master cylinder. NOTE: A 21mm master cylinders are fairly rare and hard to find.
3. Stock g-body/S10/3rd Generation F-body stock front brake system with 7/8" bore master cylinder.
4. LS1 Camaro / Firebird front brakes with Corvette brake calipers and a 7/8” bore master cylinder.

Last edited by malibudave; 02-18-2016 at 01:25 PM.
malibudave is offline   Reply With Quote
Old 02-19-2016, 10:50 AM   #9
Supreme Member
iTrader: (3)

loneroad's Avatar

Join Date: Sep 2007
Location: St.cloud fl.
Posts: 1,020
Car: 90RS Conv.
Engine: 383 w/ small shot
Transmission: th400
Axle/Gears: moser 9in


Re: Manual Brake Installation with Pictures

how big of a difference is there from a 7/8 mc to a 1in mc?


im using the strange 1-1/8 now, but im going to send my 1in wilwood back to get rebuilt.


im using these on the front
http://www.speedwaymotors.com/Wilwoo...per,24192.html


are those non low drag?
loneroad is offline   Reply With Quote
Old 02-19-2016, 11:46 AM   #10
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

Quote:
Originally Posted by loneroad View Post
how big of a difference is there from a 7/8 mc to a 1in mc?
im using the strange 1-1/8 now, but im going to send my 1in wilwood back to get rebuilt.
im using these on the front
http://www.speedwaymotors.com/Wilwoo...per,24192.html
are those non low drag?
Wilwood-120-8924 has a 2.75" diameter piston and is NON low drag. These WILL NOT work with 7/8" bore master cylinders. A 7/8" bore master cylinder cannot supply the volume of fluid needed for the larger piston. A 24mm is the smallest you can use with this caliper.

Here are the inputs that are the same for ALL different types of brake systems shown below.
• 6 to 1 pedal ratio
• 26” tall tire
• 100 ft/lb pedal pressure
• Manual Brakes – NO POWER ASSIST
• Pad Coefficient of Friction - .45
• Use of stock type (tandem) master cylinder

____________________________________________________
2.5” Piston Caliper with 7/8” bore master cylinder. Stock G-body/S10/3rd Generation F-body Front Brake System.
• Rotor Diameter – 10.5”
• 7/8” Bore Master Cylinder Area - .601 sq-in
• Line Pressure – 998 psi
• Front Caliper Piston Area – 4.909 sq-in
• Front Clamping Pressure – 4899 pounds
Front Rotor Torque – 964 ft/lb
• Tire Forces – 890 lb
____________________________________________________
2.75” Piston Caliper with 24mm bore master cylinder. Stock G-body/S10/3rd Generation F-body Front Brake System.
• Rotor Diameter – 10.5”
• 24mm Bore Master Cylinder Area - .701 sq-in
• Line Pressure – 856 psi
• Front Caliper Piston Area – 5.94 sq-in
• Front Clamping Pressure – 5085 pounds
• Front Rotor Torque – 1001 ft/lb. This is a 3.83% INCREASE over stock caliper and 7/8” bore master cylinder.
• Tire Forces – 924 lb
____________________________________________________
2.75” Piston Caliper with a 1.0” bore master cylinder. Stock G-body/S10/3rd Generation F-body Front Brake System.
• Rotor Diameter – 10.5”
• 1.0” Bore Master Cylinder Area - .785 sq-in
• Line Pressure – 764 psi
• Front Caliper Piston Area – 5.94 sq-in
• Front Clamping Pressure – 4538 pounds
• Front Rotor Torque – 893 ft/lb. This is a 7.37% DECREASE over stock caliper and 7/8” bore master cylinder.
• Tire Forces – 824 lb

____________________________________________________
2.75” Piston Caliper with a 1.125” bore master cylinder. Stock G-body/S10/3rd Generation F-body Front Brake System.
• Rotor Diameter – 10.5”
• 1.0” Bore Master Cylinder Area - .994 sq-in
• Line Pressure – 604 psi
• Front Caliper Piston Area – 5.94 sq-in
• Front Clamping Pressure – 3588 pounds
• Front Rotor Torque – 706 ft/lb. This is a 26.76% DECREASE over stock caliper and 7/8” bore master cylinder.
• Tire Forces – 652 lb


I tested the 2.75" Wilwoods with the 24mm bore master cylinder. I did get a slightly longer pedal stroke with the 2.75" calipers and 24mm bore master cylinder over the 2.5" caliper and 7/8" bore master cylinder, but there was not a big difference in performance between the two setups.

David Schultz
www.manualbrakes.com - PROUD THIRDGEN.ORG SPONSOR
MANUAL BRAKE KITS

Last edited by malibudave; 02-19-2016 at 11:51 AM.
malibudave is offline   Reply With Quote
Old 02-19-2016, 12:24 PM   #11
Supreme Member
iTrader: (3)

loneroad's Avatar

Join Date: Sep 2007
Location: St.cloud fl.
Posts: 1,020
Car: 90RS Conv.
Engine: 383 w/ small shot
Transmission: th400
Axle/Gears: moser 9in


Re: Manual Brake Installation with Pictures

does the formulas change if I have the 2.75 on all four corners? I have the 9in weld on disc kit w/ ebrake. I have had continuous problems with those calipers. Im thinking of taking those off and running the wilwoods all around.


Will your kit require residual valves?

Last edited by loneroad; 02-19-2016 at 12:41 PM.
loneroad is offline   Reply With Quote
Old 02-19-2016, 02:54 PM   #12
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

Quote:
Originally Posted by loneroad View Post
does the formulas change if I have the 2.75 on all four corners? I have the 9in weld on disc kit w/ ebrake. I have had continuous problems with those calipers. Im thinking of taking those off and running the wilwoods all around
In short, the output will most likely change because you will be using a different diameter rotor for the rear than the front. But if the rotor size is the same front and rear, then the rotor torque value will be the same.

Goto:

http://www.pro-touring.com/threads/1...of-KORE3/page7

Page 7, Post #140

Click on the link to load the excel file and you can input all your data. You can plug all of your information and get a total tire force when the front and the rear brake systems are added together.

Keep in mind that the calculations will not let you know if the size of the master cylinder chosen will work for your brake system. You can put in a small value for the master cylinder bore diameter and get outstanding braking performance, but can this bore size of that master cylinder supply the fluid needed to fill the calipers up complete and apply fluid pressure to stop the car.

David Schultz
www.manualbrakes.com - PROUD THIRDGEN.ORG SPONSOR
MANUAL BRAKE KITS
malibudave is offline   Reply With Quote
Old 06-18-2016, 09:20 PM   #13
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

Customer's manualbrakes.com manual brake conversion installation.

Name:  3rd%20Gen%20Master%20Setup.jpg
Views: 5411
Size:  67.2 KB

Last edited by malibudave; 08-26-2016 at 04:07 PM.
malibudave is offline   Reply With Quote
Old 05-10-2017, 12:31 PM   #14
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

Master Cylinder Bleeding Proceedures for a strait bore master cylinder.

NOTE: DO NOT bench bleed a master cylinder on the car. There may not be enough piston travel when bolted on the car. Use a vise to hold the master cylinder level to the ground to bleed the master cylinder of all its air.

I like to use plugs to bleed the master cylinder of air instead of the procedure that uses hoses to recirculate the fluid from the master cylinder ports back up to the reservoir.

Why?

When using plugs to close off the ports of the master cylinder, this procedure will let you know if all the air is out of the master cylinder AND if the master cylinder is bad. You don't want to find out your master cylinder is bad after you have it installed and are trying to bleed the rest of the system. You most likely will not get all the air out of the system when your master cylinder is bad. New or rebuilt, it is always good to make sure your master cylinder is in good working order before bolting it onto the car. It will be one less thing you have to trouble shoot if you run into other issues when you are trying to trouble shoot braking issues.

Steps to bleeding a master cylinder:
1. Mount the master cylinder in a vise with the bore of the master cylinder level with the ground. Do not use the top of the reservoir as a guide because is may not be level with the bore of the master cylinder. It may be at an angle versus the bore of the master cylinder.
2. Use the appropriate size solid plugs to plug the outlets of the master cylinder so no fluid can escape the ports.
3. Fill the master cylinder with the appropriate amount of brake fluid.
4. Use a rod to SLOWLY cycle the master cylinder piston in its bore. DO NOT use a flat head or phillips heat screwdriver because they have sharp edges and could harm the bore of the master cylinder. I usually use a nut driver that is used for drive sockets as a rod because the end does not have any sharp edges and there is a handle to hold onto.
5. After cycling the master cylinder piston SLOWLY a few times, the piston should become rock solid and only move about 1/16 of an inch or less down the bore.
6. After the piston becomes rock solid, push in on the master cylinder piston and hold for 45 seconds. If the piston slowly moves down the bore of the master cylinder, you have a bad master cylinder. If the piston says rock solid and does not move, you master cylinder is good.
7. Mount to your car and bleed the rest of your system starting with the brakes furthest away (passenger rear) from the master cylinder and working your way to the closest (drivers front) brake.
malibudave is offline   Reply With Quote
Old 06-28-2017, 01:56 PM   #15
Sponsor
Thread Starter

Join Date: Mar 2004
Location: Houston, Texas
Posts: 89
Car: 1980 El Camino
Engine: Turbocharged 305
Transmission: TH350 (future 4L80E)
Axle/Gears: stock 2.56 posi


Re: Manual Brake Installation with Pictures

I pulled this information from the CPP website. I include this information on this thread because, during a manual brake conversion, the differential valve in the proportioning/combination valve may be triggered and cause only one side of the system to work resulting in poor braking performance.

The differential valve is built into most GM prop valves. It is for safety. If one side, front or rear, of the brake system looses pressure, the differential valve is triggered blocking off the low pressure side of the brake system so that the master cylinder can still provide pressure to the other side of the brake system. This ensures that there is some for of braking as a way to stop the vehicle. If a differential valve was not part of the braking system, and there is a loss of pressure in one side of the system, the master cylinder would not be able to build pressure. This would result in NO brakes.

Combination/Proportioning Valve Test

Use a test light by attaching a clip to a positive contact on the vehicle and touch the point of the tester to the electrical connection of the combination valve. If the the light does NOT come on, the valve system is operating correctly and no further testing is required.

If the light does come on, this indicates that the pressure differential valve is stuck in the front or rear position.

Bleed the brake system to determine if the front or rear lines are blocked off. Set up one front wheel and one rear wheel for bleeding at the same time. Crack both bleeder screws and gently pump the pedal a few times.

The blocked side will trickle fluid out when the bleeder screw is cracked and the pedal pressed. An unblocked line will squirt fluid out the bleeder.
The lines that are clear must be left open and the blocked lines should have the bleeder screws tight to cause pressure to build up on that side. Be sure to use the standard bleeding procedures to prevent air from entering the system.

Slowly press the pedal with steady pressure a number of times until the light goes out; this will center the differential valve. You may also hear a pop come from the proportioning valve. This is the metering valve returning to its equalized position. When the light goes out, close the bleeder screw. (See fig. below)


Name:  Prop%20Valve.gif
Views: 5457
Size:  6.7 KB
malibudave is offline   Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
List of 71 original GM 3rd Gen Part Numbers!! 1992 Trans Am History / Originality 20 11-05-2017 01:57 PM
[IL] 1990 Camaro RS Modified Frozer!!! Camaros for Sale 26 11-01-2017 02:06 AM
[TN] FS 1992 CHP EVOC B4c/1LE Camaro Vintageracer Camaros for Sale 8 10-21-2015 11:26 PM
1989 iroc z28 camaro 5 speed manual 5500$ kyleb24 Camaros for Sale 2 08-15-2015 09:24 AM
[CA] Complete Parts Car- For T56 & LT1 Transplant to a Third Gen!!!! THIS WEEKEND ONLY 1992 Trans Am Engine/Drivetrain/Suspension Parts for Sale 1 08-08-2015 09:16 PM


Go Back   Third Generation F-Body Message Boards >

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


Advertising
Featured Sponsors
Vendor Directory

1982 Camaro '82 || 1983 Camaro '83 || 1984 Camaro '84 || 1985 Camaro '85 || 1986 Camaro '86 || 1987 Camaro '87 || 1988 Camaro '88 || 1989 Camaro '89 || 1990 Camaro '90 || 1991 Camaro '91 || 1992 Camaro '92


All times are GMT -5. The time now is 03:01 PM.


All content copyright 1997 - 2014 ThirdGen.org. All rights reserved. No part of this website may be reproduced without the expressed, documented, and written consent of ThirdGen.org's Administrators. We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
