Pictures of Driver's Side Rear Brake Line Needed!

Reply

Thread Tools Search this Thread
Old 11-12-2017, 04:30 PM   #1
Junior Member
Thread Starter

Join Date: Jan 2017
Location: Massachusetts
Posts: 24
Car: 88 Trans Am
Engine: L98
Transmission: 700R4

Pictures of Driver's Side Rear Brake Line Needed!

Hi, I've been doing work on my 88 TA, and I noticed something.......odd. By "odd", I mean "The previous owner had a cranium full of gravel". Turns out, the brake line to the driver's side rear caliper is HARD LINED, instead of having the hard line leading to a rubber tube, as is SAFE AND OPERABLE. Anyhow, in reconstructing my poor, victimized brakes, I'd like to see if any of you could provide a picture of the end of the brake line leading to the driver's side rear caliper, where the hard line attaches to the soft line, so that I can rebuild this the proper way.

Any help is greatly appreciated!
ottothesilent is offline   Reply With Quote
Old 11-12-2017, 06:07 PM   #2
Supreme Member
iTrader: (18)

Drew's Avatar

Join Date: Jul 1999
Location: Salina, KS
Posts: 14,311


Re: Pictures of Driver's Side Rear Brake Line Needed!

That's normal, and how the Delco Moraine rear calipers were plumbed.
Drew is offline   Reply With Quote
Old 11-13-2017, 11:33 AM   #3
Member
iTrader: (4)

jkris53406's Avatar

Join Date: Jan 2003
Location: Raymond, Wi
Posts: 223
Car: 87 Formula, 86 iroc
Engine: 355 tpi, 305tpi
Transmission: 700r4, 700r4


Re: Pictures of Driver's Side Rear Brake Line Needed!

What Drew said
jkris53406 is offline   Reply With Quote
Old 11-13-2017, 03:13 PM   #4
Junior Member
Thread Starter

Join Date: Jan 2017
Location: Massachusetts
Posts: 24
Car: 88 Trans Am
Engine: L98
Transmission: 700R4

Re: Pictures of Driver's Side Rear Brake Line Needed!

Well, my passenger rear caliper has a soft line (about 6" long) leading from the hard line to the caliper. The driver's side is just plumbed directly into the caliper, and is obviously hacked together.
ottothesilent is offline   Reply With Quote
Old 11-13-2017, 03:40 PM   #5
Member
iTrader: (4)

jkris53406's Avatar

Join Date: Jan 2003
Location: Raymond, Wi
Posts: 223
Car: 87 Formula, 86 iroc
Engine: 355 tpi, 305tpi
Transmission: 700r4, 700r4


Re: Pictures of Driver's Side Rear Brake Line Needed!

That is the way GM pumped them out of the factory. The Driver side was hard lined from the tee but the passenger for some reason had a hose from the caliper. This is not hacked together, it is from the factory. Try looking up a brake hose for it and you will only get the center hose and the and the passenger.
jkris53406 is offline   Reply With Quote
Old 11-13-2017, 03:45 PM   #6
Supreme Member
iTrader: (1)

Bob88GTA's Avatar

Join Date: Apr 2000
Location: Huntsville AL
Posts: 3,431
Car: 88GTA
Engine: 5.7TPI
Transmission: Auto
Axle/Gears: 3.27


Re: Pictures of Driver's Side Rear Brake Line Needed!

That is the way GM pumped them out of the factory. It's correct....for the 4th time
Bob88GTA is offline   Reply With Quote
Old 11-13-2017, 04:31 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2017
Location: Massachusetts
Posts: 24
Car: 88 Trans Am
Engine: L98
Transmission: 700R4

Re: Pictures of Driver's Side Rear Brake Line Needed!

Can someone provide pictures so that I can compare an absolutely correct example to my own car? I realize my poor explanation may be frustrating, so before I **** anyone else off, I'd like to close this topic with a definitive, non-verbal example. I really respect everyone on here, so I'd like to avoid burning any bridges with this helpful community.
ottothesilent is offline   Reply With Quote
Old 11-14-2017, 10:38 AM   #8
Supreme Member

gt4373's Avatar

Join Date: Nov 2011
Location: CT
Posts: 1,600
Car: 1984 Chevrolet Camaro Z28
Engine: 5.0 Liter 4-BBL V8 High Output
Transmission: 5-Speed Manual
Axle/Gears: 3.73

Re: Pictures of Driver's Side Rear Brake Line Needed!

Was Working Under The Car Yesterday,Took A Couple Pics The Hard Brake Line Comes Down From The Axle,Does A 180 And Bolts To The Caliper.





gt4373 is offline   Reply With Quote
Old 11-14-2017, 12:29 PM   #9
Supreme Member
iTrader: (1)

Bob88GTA's Avatar

Join Date: Apr 2000
Location: Huntsville AL
Posts: 3,431
Car: 88GTA
Engine: 5.7TPI
Transmission: Auto
Axle/Gears: 3.27


Re: Pictures of Driver's Side Rear Brake Line Needed!

I was going to take a picture of my TTA rear brake line till I seen it has the hose. 1LE brakes are different. My GTA was in storage so I couldn't get a picture of it either.
Bob88GTA is offline   Reply With Quote
Old 11-14-2017, 12:54 PM   #10
Member
iTrader: (1)

Join Date: Dec 2016
Location: cincinnati ohio
Posts: 173
Car: 1987 Trans am GTA
Engine: 5.7 liter
Transmission: 700r4
Axle/Gears: 3.27

Re: Pictures of Driver's Side Rear Brake Line Needed!


original hard line to driver side

this is a pic of my original driver side brake line next to a new one. for some reason a hard line to the rear driver side delco moraine is correct
jworks is offline   Reply With Quote
Old 11-14-2017, 03:26 PM   #11
Supreme Member
iTrader: (4)

TEDSgrad's Avatar

Join Date: Sep 2010
Location: Double Bratville
Posts: 1,363
Car: '89 Formula
Engine: LS2
Transmission: 4L65E
Axle/Gears: MW 3.42 12 Bolt

Re: Pictures of Driver's Side Rear Brake Line Needed!

Stock 9bolt
TEDSgrad is offline   Reply With Quote
Old 11-14-2017, 03:28 PM   #12
Supreme Member
iTrader: (4)

TEDSgrad's Avatar

Join Date: Sep 2010
Location: Double Bratville
Posts: 1,363
Car: '89 Formula
Engine: LS2
Transmission: 4L65E
Axle/Gears: MW 3.42 12 Bolt

Re: Pictures of Driver's Side Rear Brake Line Needed!

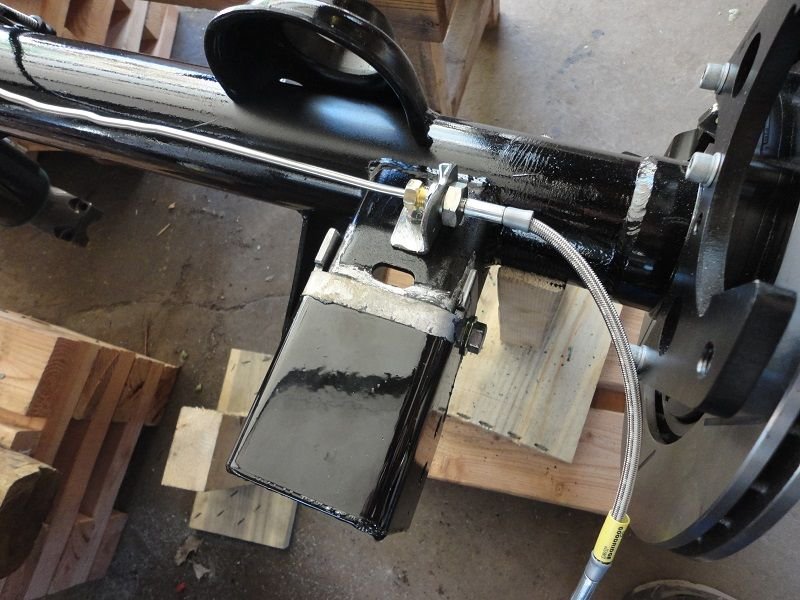

Mark Williams 12 bolt:




TEDSgrad is offline   Reply With Quote
Old 11-14-2017, 08:03 PM   #13
Junior Member
Thread Starter

Join Date: Jan 2017
Location: Massachusetts
Posts: 24
Car: 88 Trans Am
Engine: L98
Transmission: 700R4

Re: Pictures of Driver's Side Rear Brake Line Needed!

Thanks very much, and thanks for your patience!
