need help with heater blower motor wiring

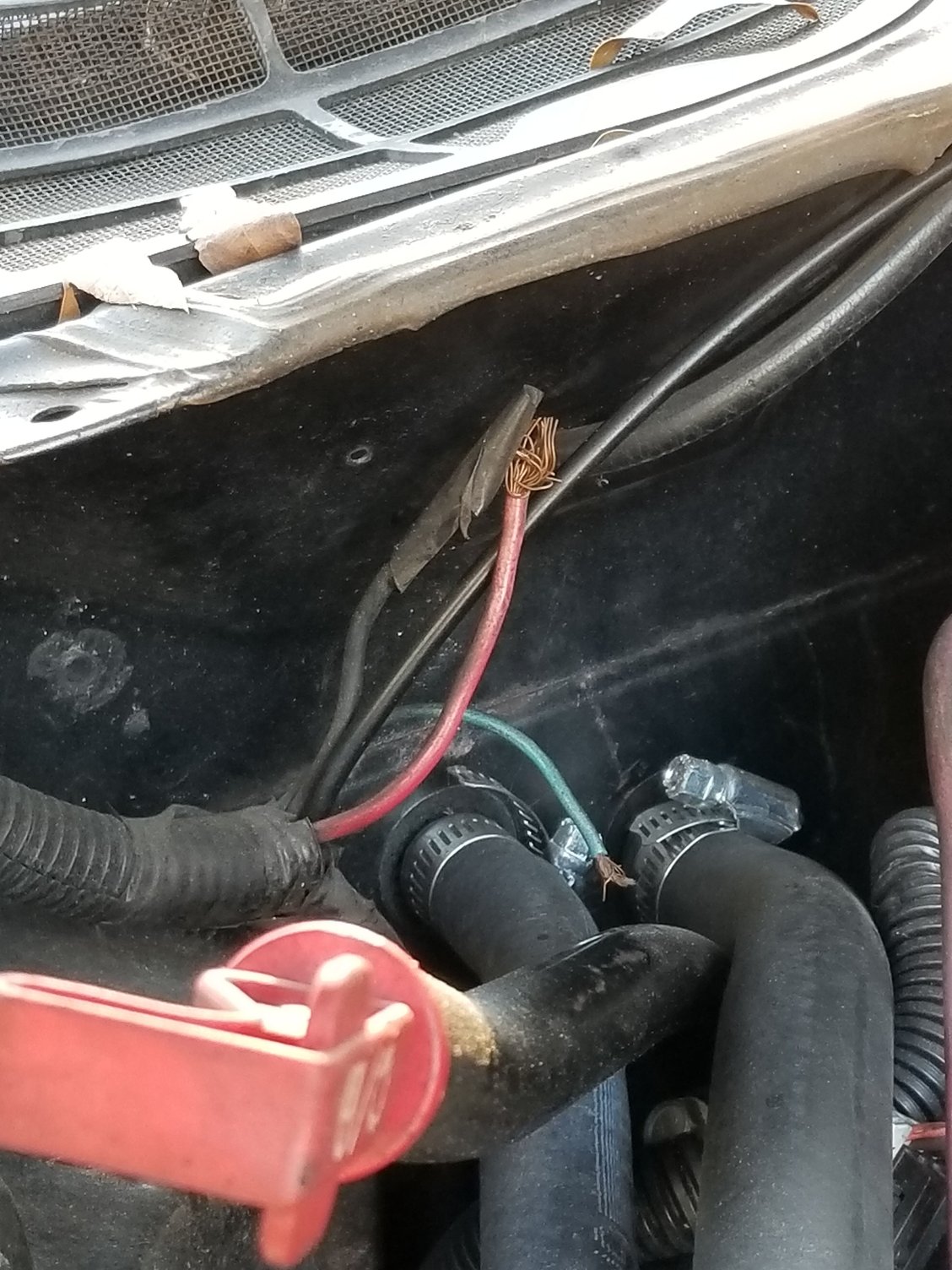

I did an la swap. problem is I did what pocket told me not to do. I cut my old harness before everything was sorted. stereo works, console lights, everything basically works except the horn, heater. compressors not in, but not deleted. can someone help me fix this plz. it's getting cold down south. thankswires from blower

Last edited by hugdaturns; 11-14-2017 at 04:25 AM. Reason: bad title
hugdaturns is offline   Reply With Quote
Old 11-15-2017, 09:24 AM   #2
Supreme Member
iTrader: (137)

John in RI's Avatar

Join Date: Aug 1999
Location: RI
Posts: 3,668
Car: 1984 Camaro Berlinetta
Engine: LT1
Transmission: T56 6-speed
Axle/Gears: 4.11 LS1 Rear End


Re: need help with heater blower motor wiring

Red wire gets full time power; Should have originally come from the starter post, thru a fusible link, and up to the cut wire shown in your picture.

Black wire is ground for the motor and the relay. Splice an "EYE" at the end of that wire & screw it to the body.

Blue wire: IIRC ( AKA = I THINK! ) is AC signal from the AC pressure switch. Double check to be sure !


So; connect power and ground, then try to turn on the blower.


John in RI is offline   Reply With Quote
