1992 RS 6.0 4L80E Swap
#1
1992 RS 6.0 4L80E Swap

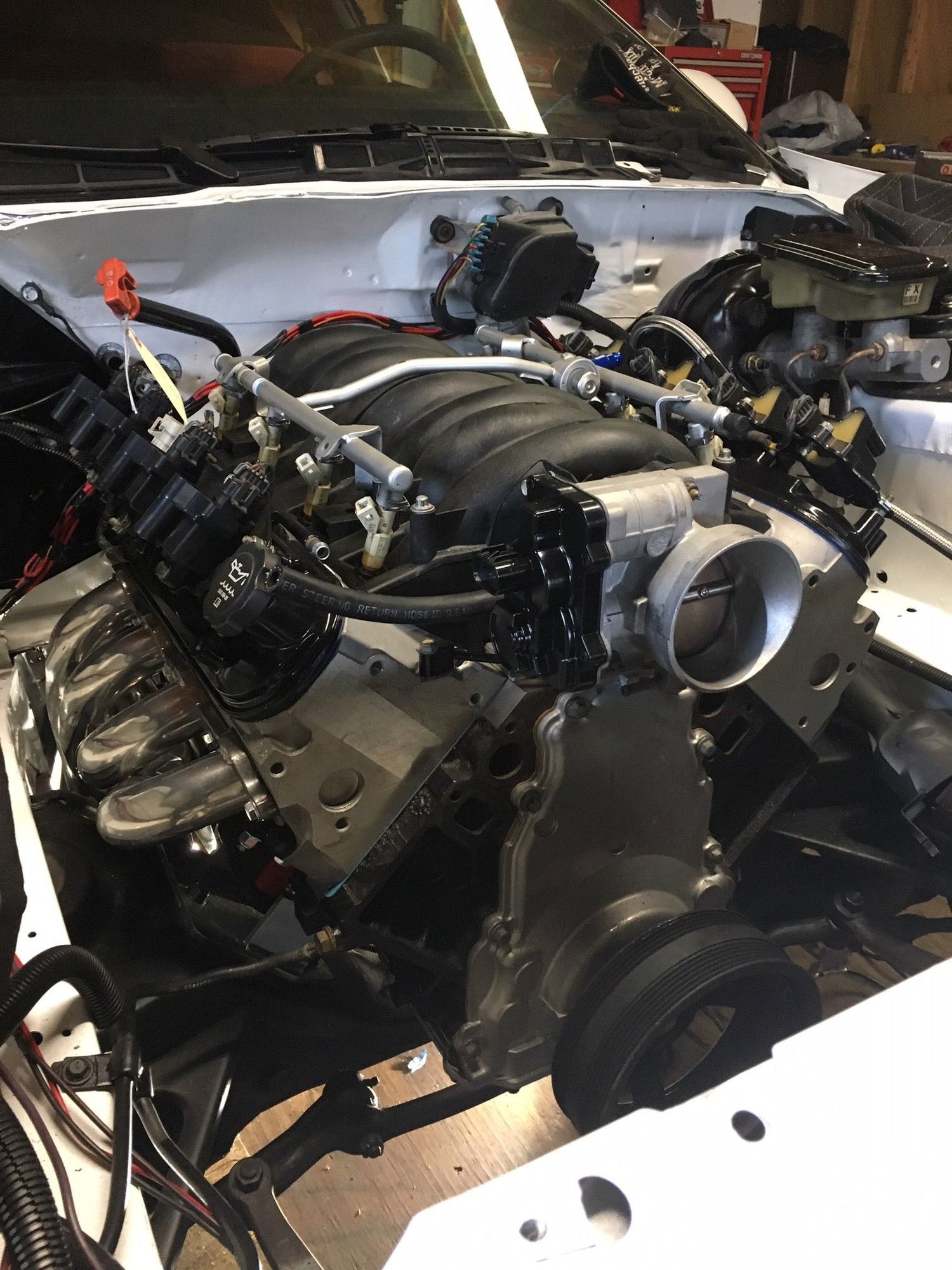

Hey all, just wanted to get a thread going on my 92 LS swap to document some things and get some info/tips/input from you guys doing the same work. I've been at it a few months now so I'll upload a bunch of pictures and keep tracking progress from there. Any help/tips are appreciated!
Build is as follows

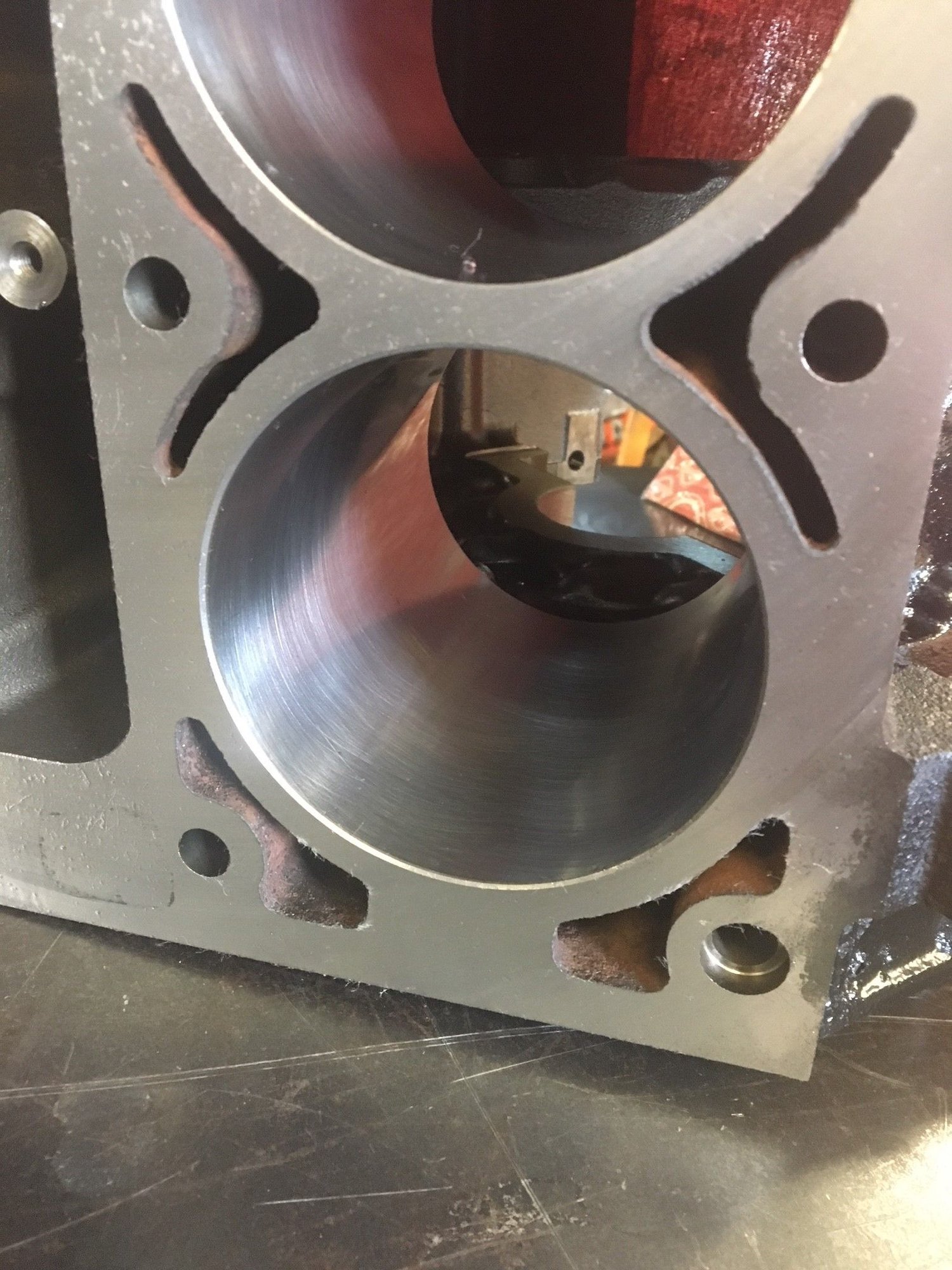

6.0 lq4 bored 0.030, ls6 intake, stock crank, eagle forged rods, mahle forged pistons 11:1, custom grind comp cam, factory 243 heads with manley 0.660 dual valve spring kit, trunion upgrade with stock rockers, walbro 255 fuel pump, corvette regulator

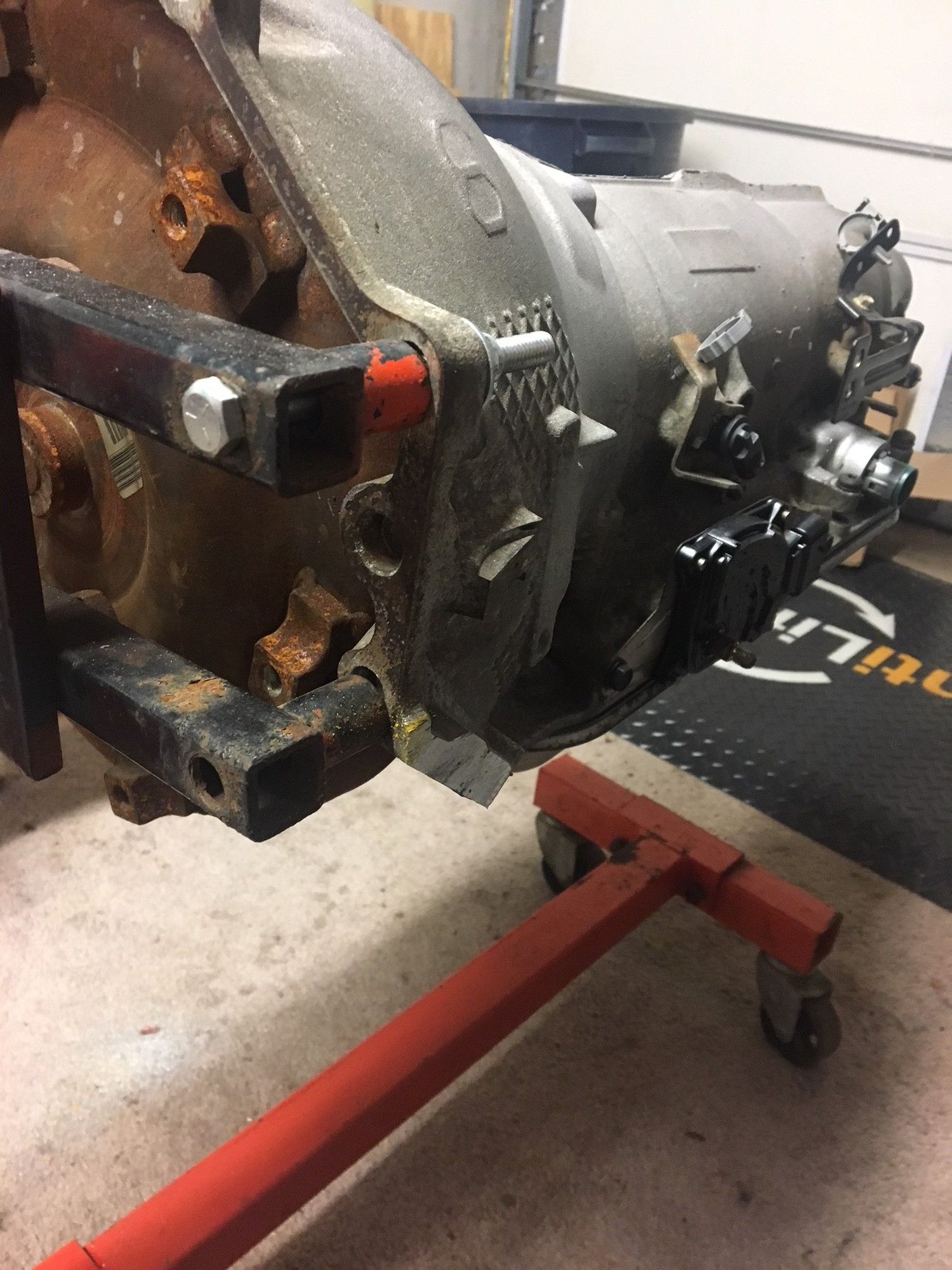

4L80E with transgo shift kit
All motor mounts / crossmember / exhaust will he holley's LS swap system
Build is as follows
6.0 lq4 bored 0.030, ls6 intake, stock crank, eagle forged rods, mahle forged pistons 11:1, custom grind comp cam, factory 243 heads with manley 0.660 dual valve spring kit, trunion upgrade with stock rockers, walbro 255 fuel pump, corvette regulator
4L80E with transgo shift kit
All motor mounts / crossmember / exhaust will he holley's LS swap system
Last edited by irishhockey34; 08-16-2018 at 07:06 PM.
#2
Re: 1992 RS 6.0 4L80E Swap
donor motor, lq4 4l80e 2wd
harness as taken out from donor truck
and cleaned up / ready for interface with thirdgen harness. found a great writeup over at http://lt1swap.com/2004vortec_pcm.htm
this site is a HUGE help in determining pinouts and all things wiring related. I just did the normal stuff (ac delete, emmissions delete, yadda yadda)
harness as taken out from donor truck
and cleaned up / ready for interface with thirdgen harness. found a great writeup over at http://lt1swap.com/2004vortec_pcm.htm
this site is a HUGE help in determining pinouts and all things wiring related. I just did the normal stuff (ac delete, emmissions delete, yadda yadda)
#4
Re: 1992 RS 6.0 4L80E Swap

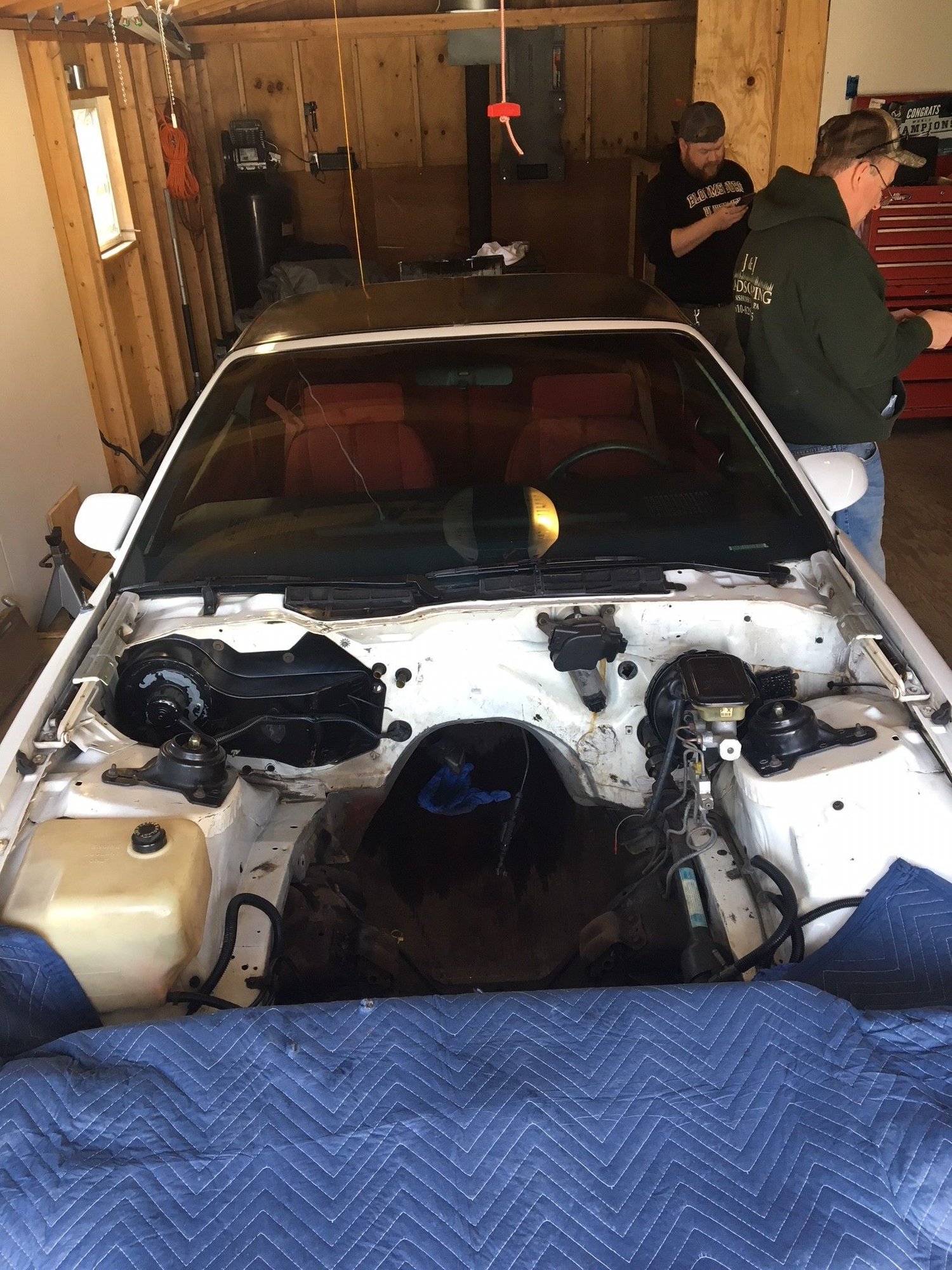

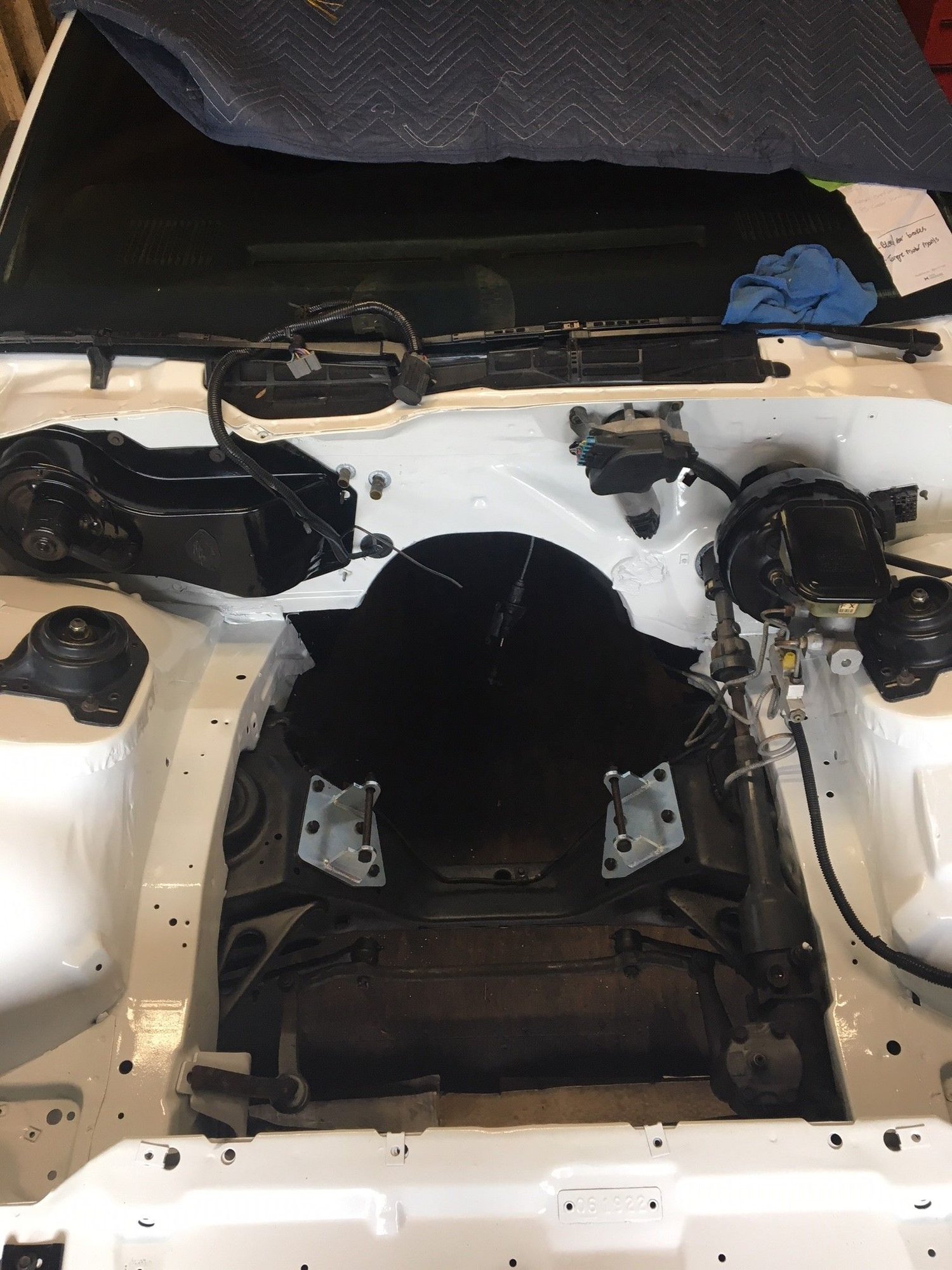

wanted to get the engine bay painted while everything was out. went with a sherwin williams artic white single stage. turned out great, was very pleased with this being my first actual automotive (not rattlecan) painting project.
#5
Re: 1992 RS 6.0 4L80E Swap

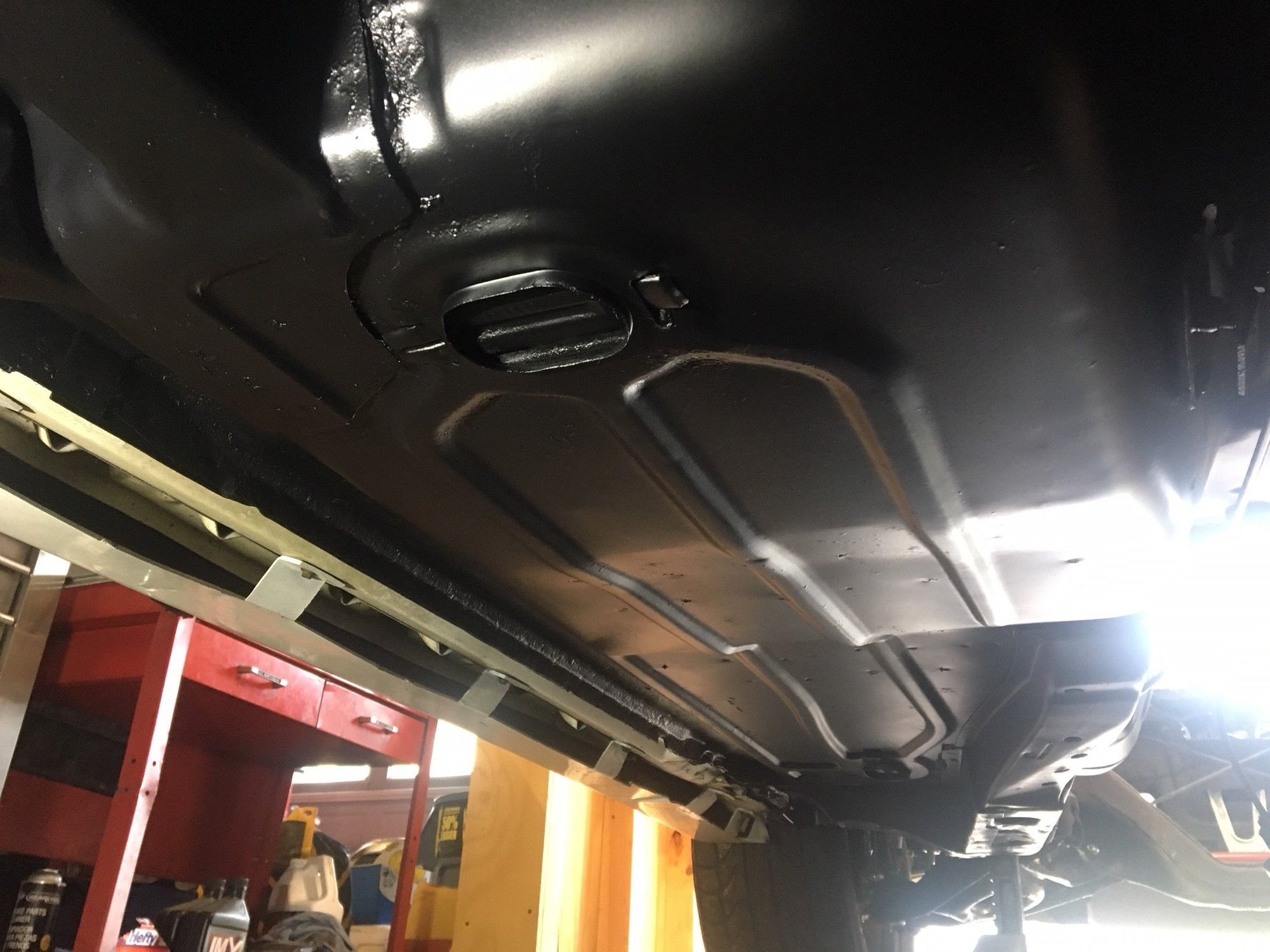

now onto the undercarriage. I ended up going with Eastwoods Underbody Rust Encapsulator prodcut after much debate with por15. I'm happy with the result, went on easy and looks great. Time will tell on durability. Took about 6 cans to do the whole undercarriage and k member
#6
Re: 1992 RS 6.0 4L80E Swap
onto the fuel system. ended up going with a walbro 255 pump, corvette filter/regulator combo with -6an adapters, and running all new -6an PTFE line from the factory fittings to the fuel rail. Had all lines made up at the local hydraulic shop (this is the way to go people! don't mess with cutting your own lines and putting fittings on. I was in and out in 30 mins and price was just a little higher than if I bought hose and hose ends myself)
