So i started to work on my project car and like a dumbass, made a rookie mistake and didn't label or categorize what i took off. So if you know where any of these pieces go or what hooks into them, would take any advice. I had to change the intake manifold gasket.

Its a 91 5.0 TPI if that makes a difference

http://imgur.com/a/Yi2IH



lil less fuzzy pics would nice nice for us old folk



Also if anyone could tell me or link to a pic of the order the spark plugs go on the distributor that would be great.

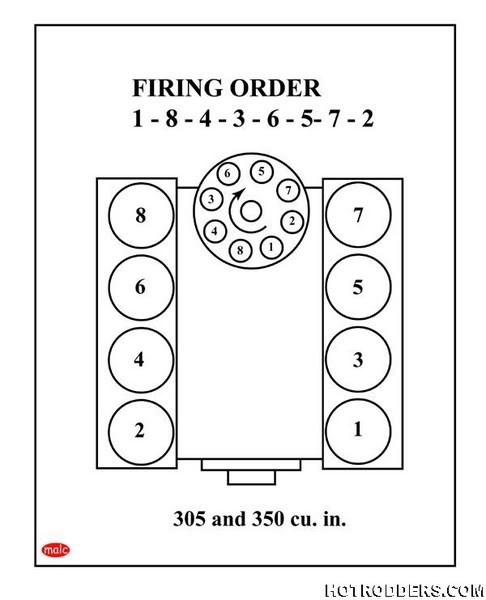

The plugs are 1,8,4,3,6,5,7,2
On engine the driver side is odd cylinders, passenger side is the even
As for distributor , if looking at it from directly above the cap, #1 should be at like 5 o'clock then go clock wise to each cylinder.



thanks so much helps a lot.



Np the 5 o'clock thing was meant if looking down on the dist cap from the front of the car. Hope the pic helps give ya an idea what I meant



Yeah i got that and it still wont start like it cranks but wont turn over its like its not getting fuel i think i dont have something hooked up right.



OMG... I love it!!! Just kiddin Vert.
Hang on, and here goes.

1st pic- Line goes to rear plenum port, drivers side, to brake booster
2nd pic- Fuel pressure regulator hose to rear of plenum, pass. side, small port
5th pic-Check valve connects to rear, pass side plenum port, should tee before check to go to heater hard line in harness by coil on fire wall, then to drivers side vacuum ball in fender.
6th pic- connect to connector on coil along with the pink/white connector, side by side.

LABLES ARE REALLY CHEAP. Try that next time! Kidding, but they do help!! Good luck!

Bob



if someone could post pics of their passenger engine bay with all the vaccum lines that would be great as a point of reference.



I got more



It won't start until you plug the plug I mentioned above itno the top of the coil





pic 1 is your vacuum line from brake booster to the back bottom of your intake plenum.
pic 2 is your vacuum line from your fuel regulator valve to the intake plenum.
pic 3 is your fuel regulator
pic 4 is your EGR valve.
pic 5 is a vacuum check valve that connects the charcol cannister and heater to the intake plenum.
pic 6 & 8 not sure... it looks like the pig tail that connects to a sensor under the intake plenum to the wiring harness at fire wall.
pic 7 looks like your EGR solenoid valve that connects to your check valve and to the bottom of you intake plenum near front driverside.
I hope this helps some. I am a newby myself, but just went through and replaced pretty much everything that you listed.



Pic 6&8 is the pigtail that hooks up to the Air Intake Temp Switch under rear of plenum and connects to that connector that is now hanging behind the motor.......



k i got a few things in just a couple left, thanks for all the help.

http://imgur.com/a/xE0az



PM SENT TO YA. WHERE ARE YOU LOCATED?

Bob



So I think I got everything put back but it's still not starting, I think my timing is off. I marked the rotor when I took it out and replicated it when I put it back in, but every time I try to start it, it moves the rotor on its own and then it's way off does anyone know how to fix it?



The rotor is gonna turn, its connected to the dizzy shaft, which is turned by the cam. Does it try? Backfire? Are you sure you are in time?

Bring #1 up TDC on compression stroke, and look at rotor. Is it pointing to #1?
If not, pull dizzy and re-stab. And snuggly tighten dizzy holddown

Do you have spark?



I have spark and I have fuel, it tries and turns over but it doesn't start. And if I have to bring #1 up to tdc, how do I do that, how do I turn the crank when there's no power?



You say no power??? Does it CRANK and Turn over??? If it turns over, you must have power. Pull #1 plug and have someone crank/bump. Engine over till it blows your thumb/finger off the #1 plug hole. Then look at dizzy after pulling cap and look at the rotor. Is it pointing at #1?? If not, pull dizzy and restab, replace cap and redo wires starting at #1. It has to start.



Look at balancer and after you finger pops of, it SHOULD be at zero. Rotate crank with socket to fine tune TDC. Then prceed with above
