Devin Riddle July 31, 2019

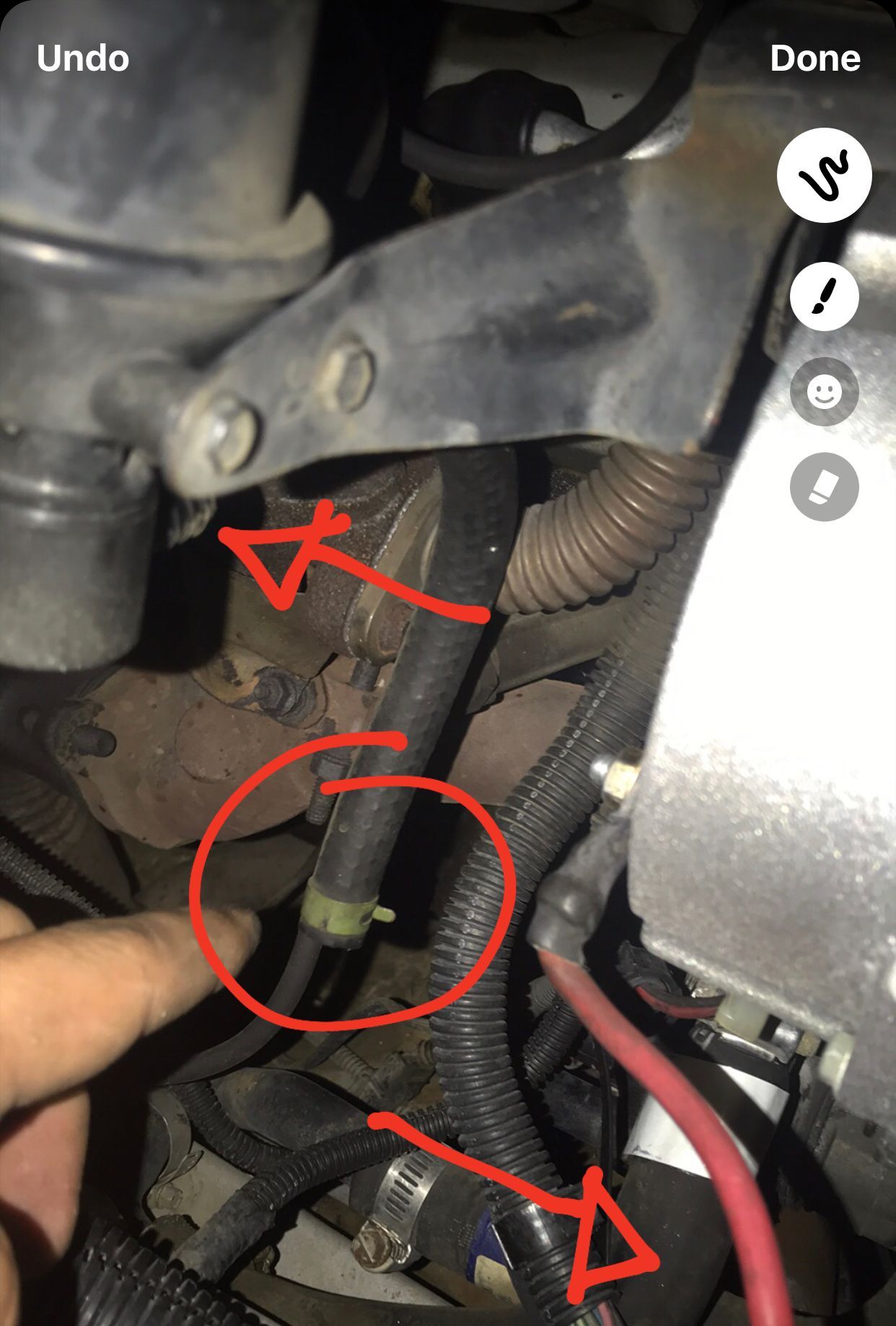

Arrow on left is pointing at decel valve arrow on right points to air pump. (No hose attached just venting into engine) Circled is a hose hanging from middle connection of decel valve Top hose meets the back of intake and turns into brake boost on other side Bottom hose missing I have a very high idle after pressure washing engine just tryna figure out where those hoses are supposed to go and if they could be the cause of the vacuum leak
