here is the back story

Car was originally tpi i cut the harness many years ago and made it carb
-- mechanicel fuel pump and all i left the efi pump in the tank
-- all of the engin bay harness from the tpi are gone

i put a holley stealthram with a commander 950 ecu and complete harness most sensors
i bought it used

i suck at wiring without a diagrahm .

so my question is. the fuel pump relay harness is gone what do i need to know about putting another one in. diagrahms would be awesome or any intel electrical is my week point



what color wire is the fuel pump prime wire?



Without knowing exactly what you pulled and left I'm just shooting in the dark. Did you remove the entire engine side of the C100 connector on the drivers side of the firewall?



The fuel pump wire is the TAN/WHITE wire that comes out of the "C100" connector on the driver side firewall (next to brake booster). Give it +12V and the fuel pump will run.



Thats all thats left other then the wiper plug

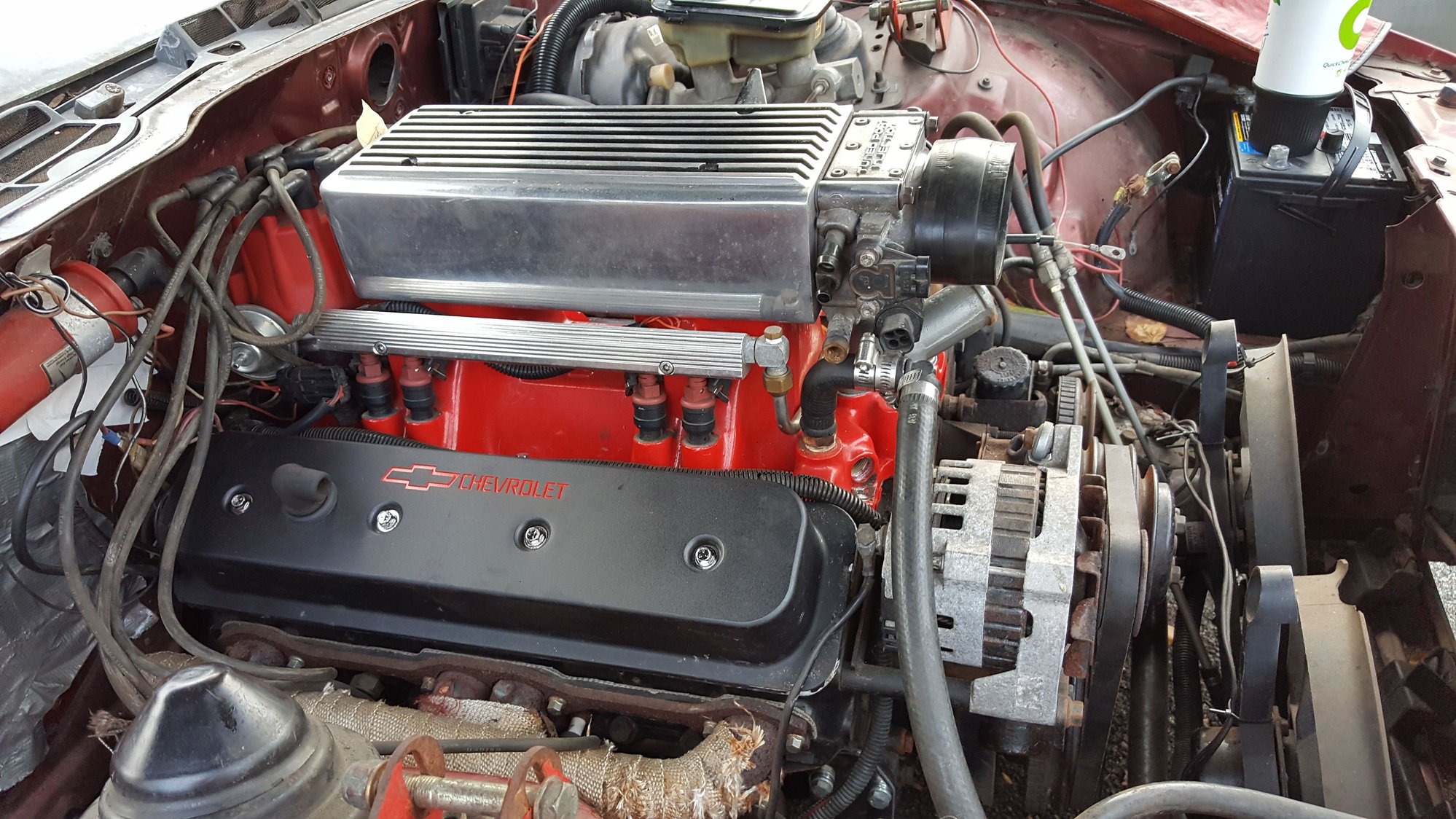

C100 is the big wad of wires coming through the firewall, just under the white container in the picture.



Ok i see which one it is.



No good checked & changed the fuse too. Im going tontake a power probe to the connector under the car.

What is that above the brake booster



That is the module for the pop-up headlights.



Dam i was hoping to remove it ill just relocate it.



The fuel pump fuse isn't connected to that wire any more because you eliminated the original fuel pump relay.

Unplug the connector behind the back seat and check wires at C100 until it passes a continuity check (Ohm meter).



Hmm good point didn't think about that. That's why i was going to use my power probe

The car hs always been a wiring. It was cut spliced by previous owners 17 years ago before i got it then i went carburated then so i cut alot out.

I got a smoking deal on this so i pulled the carb off
