Horn relay location
Hey all, trying to find the horn relay on my 88 L98 IROC. Can’t find any diagrams online. Can someone point me in the right direction?
Reply
0
Old Apr 29, 2022 | 04:57 PM
Share
  #2
Tuned Performance's Avatar
Tuned Performance
Sponsor
20 Year Member
Community Builder
Community Influencer
Community Favorite
iTrader: (94)

Joined: Dec 2004
Posts: 16,734
Likes: 993
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Horn relay location

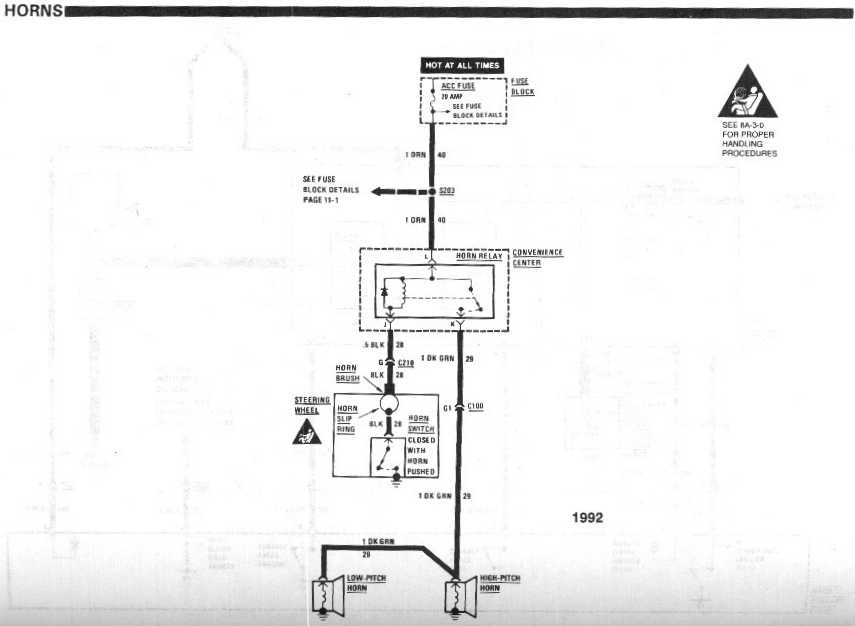

http://www.austinthirdgen.org/mkport...1992_horns.jpg

92 might be close
Reply
0
Old Apr 29, 2022 | 05:55 PM
Share
  #3
vorteciroc's Avatar
vorteciroc
Supreme Member
15 Year Member
Loved
Community Favorite
Top Answer: 1

Joined: Jul 2006
Posts: 2,859
Likes: 785
From: 212 is up in this Bit@#
Car: Resto-Mod 1987 IROC-Z Clone
Engine: Alky fed L92 Vortec Twin-Turbo 6.8L
Transmission: My own built/ design 4L80M
Axle/Gears: Custom 12 bolt (4.10:1)
Re: Horn relay location
It is located in the "Driver Convenience Center".
The Flasher Module and Chime Module are also located there.

The Driver Convenience Center is above the Driver's Feet, behind the Hush-Panel.
It is on the Passenger Side of the Steering-Column...
Forward (towards the Windshield) of the ALDL Port.

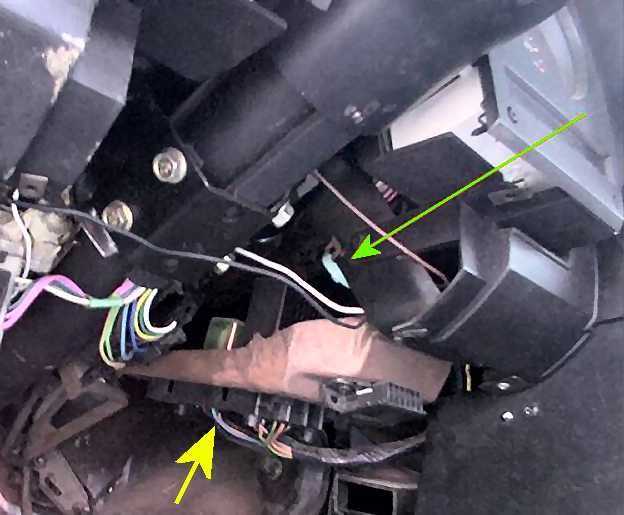

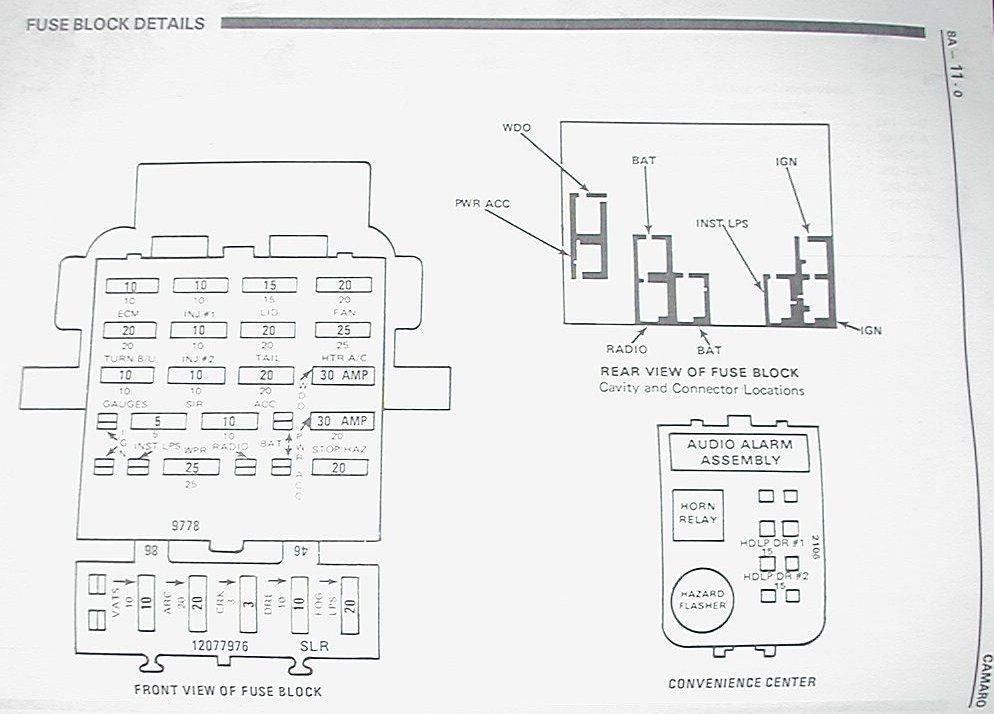

Here are some Images:
