V-Belt Bracket Pics

Does anyone have any good pics of the locations of the v-belt brackets? After I pulled mine apart 3 months ago I lost my hard drive with all the digital pics.

Any help would be greatly appreciated.

Thanks!
Reply
Old Sep 14, 2005 | 10:26 PM
  #2
five7kid's Avatar
Moderator
25 Year Member
iTrader: (14)

Joined: Mar 2000
Posts: 43,187
Likes: 43
From: Littleton, CO USA
Car: 82 Berlinetta/57 Bel Air
Engine: L92/LQ4 (both w/4" stroke)
Transmission: 4L80E/4L80E
Axle/Gears: 12B-3.73/9"-3.89
Check out the later pages of the "Father/Son Swap" stickied on the Engine Swap forum. Kurt posted some excellant pics.
Reply
Old Sep 14, 2005 | 10:46 PM
  #3
Air_Adam's Avatar
TGO Supporter

Joined: Oct 2002
Posts: 9,067
Likes: 1
From: Saskatoon, SK, Canada
Car: '83 Z28, '07 Charger SRT8
Engine: 454ci, 6.1 Hemi
Transmission: TH350, A5
Axle/Gears: 2.73 posi, 3.06 posi
My '83 Z28

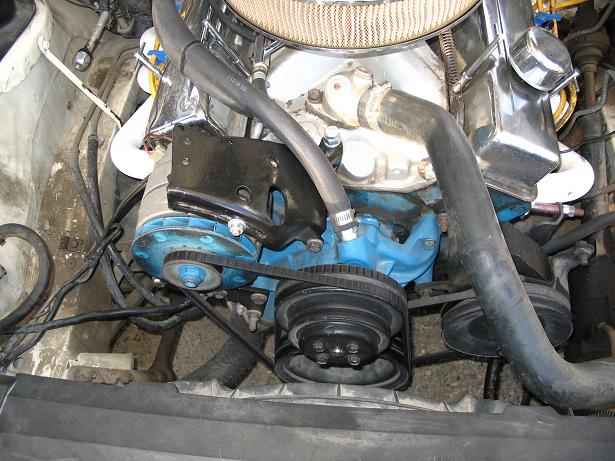

Attached Thumbnails V-Belt Bracket Pics-pullies.jpg
