Please help.
Hi, I have just bought a 1990 305 camaro (Carb) as a non runner and I want to get it back on the road but I found this laying in the top of the engine connected to the cars electrics but no hoses connected.>
First question is what is it?
second question is where does it go?


Reply
0
Old Jul 9, 2017 | 03:34 PM
Share
  #2
Tuned Performance's Avatar
Tuned Performance
Sponsor
20 Year Member
Community Builder
Community Influencer
Community Favorite
iTrader: (95)

Joined: Dec 2004
Posts: 16,929
Likes: 1,016
From: Mile High Country !!!
Car: 1967 Camaro, 91 z28
Engine: Lb9
Transmission: M20
Axle/Gears: J65 pbr on stock posi 10bolt
Re: Please help.
Looks like tbi not carb, that's the diverter valve it mounts to the air pump, the hoses go to the air check valves on the exhaust manifolds.
Reply
0
Old Jul 9, 2017 | 04:00 PM
Share
  #3
Vader's Avatar
Vader
Moderator
25 Year Member
Liked
Loved
Community Favorite

Joined: Jan 2000
Posts: 19,684
Likes: 317
Re: Please help.
I can just see the next question... "What air pump?"
Reply
0
Old Jul 9, 2017 | 04:05 PM
Share
  #4
Vader's Avatar
Vader
Moderator
25 Year Member
Liked
Loved
Community Favorite

Joined: Jan 2000
Posts: 19,684
Likes: 317
Re: Please help.
Yank - Welcome Aboard!

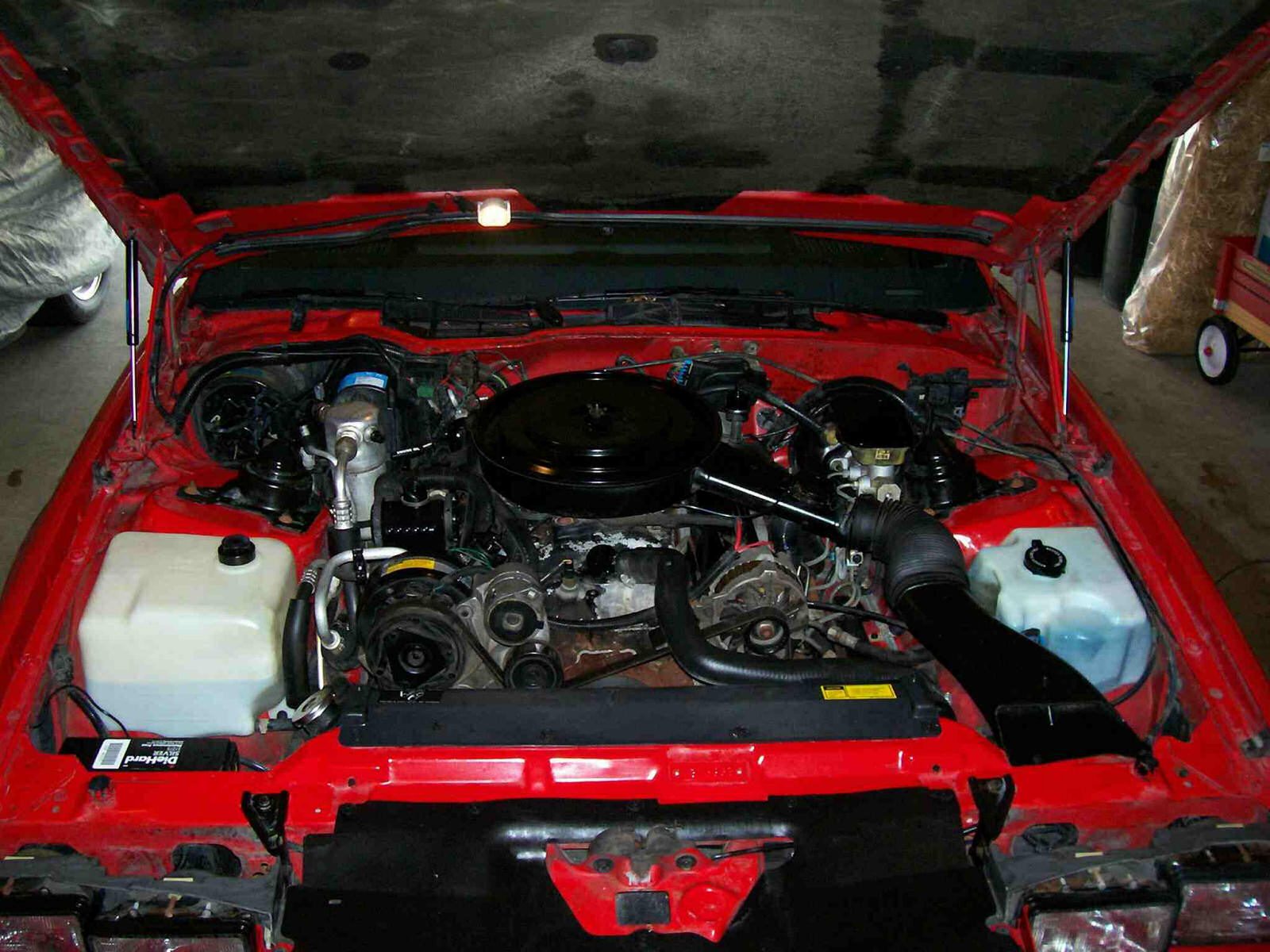

It should look a little like this (minus all the red):

Reply
0
Old Jul 10, 2017 | 10:39 AM
Share
  #5
bornagainyank's Avatar
bornagainyank
Thread Starter
Junior Member

Joined: Jul 2017
Posts: 18
Likes: 0
From: London
Car: 1990 camaro RS 305 auto
Engine: small block 305
Transmission: automatic
Re: Please help.
Thanks everyone for their help. Do you have any close ups of the hose routing please? Please excuse the fact that I'm a bit of a novice(or thicko) with these cars.
Reply
0
Old Jul 10, 2017 | 06:38 PM
Share
  #6
Vader's Avatar
Vader
Moderator
25 Year Member
Liked
Loved
Community Favorite

Joined: Jan 2000
Posts: 19,684
Likes: 317
Re: Please help.
Maybe a diagram would help?

Reply
0
Old Jul 11, 2017 | 01:24 PM
Share
  #7
bornagainyank's Avatar
bornagainyank
Thread Starter
Junior Member

Joined: Jul 2017
Posts: 18
Likes: 0
From: London
Car: 1990 camaro RS 305 auto
Engine: small block 305
Transmission: automatic
Re: Please help.
Brilliant. thanks.And you were right about what pump..it ain't there no more!
