1984 Camaro RHS/LSx 427 Twin 76mm build up
#101
Senior Member
Join Date: Apr 2006
Location: Murphy, TX
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 formula
Engine: 433 sbf + turbos
Transmission: powerglide
Axle/Gears: fab9, 3.50
#105
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Still need to locate my OEM power steering pump (I can't remember if I sold it or kept it) But the speedway alt relocation bracket fits great.
Plan is to run the driver side header down under the PS pump and alternator. Should leave room for a downpipe too. driver side will run high, but still need to determine room for downpipe. My A/C compressor is still at my grandparents, so I need to pick it up to mock up later today. Waiting on my turbo flanges and collectors so I can figure out primary routing. I'd like to order tubing and bends for the primaries by next weekend.
I should be picking up rust free doors a section of passenger side quarter panel and a lower core support this weekend to address most of the body issues. Need to order a new passenger side battery tray since its heavily rusted, but those are available new on the aftermarket
Plan is to run the driver side header down under the PS pump and alternator. Should leave room for a downpipe too. driver side will run high, but still need to determine room for downpipe. My A/C compressor is still at my grandparents, so I need to pick it up to mock up later today. Waiting on my turbo flanges and collectors so I can figure out primary routing. I'd like to order tubing and bends for the primaries by next weekend.
I should be picking up rust free doors a section of passenger side quarter panel and a lower core support this weekend to address most of the body issues. Need to order a new passenger side battery tray since its heavily rusted, but those are available new on the aftermarket
#107
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
mocked up the 4th gen A/C system. I'm going to basically replicate what ghettocruiser did by grafting together a 3rd gen and 4th gen HVAC boxes to "fit" a 4th gen evaporator.
#109
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Might have found a solution for the high-side AC pressure sensor in the 4th gen lines (for those who don't want the A/C PCM controlled). I am not going to run an OEM PCM (running aftermarket BigStuff3) so I needed something different. After researching the issue I found that the shraeder valve threads (what the pressure sensor attaches to) are 10mm. I did some google hunting and found a binary pressure switch that is listed as having 10mm threads. About $50 dollars
Female binary (M-10 port fitting) off at 350 +-3, on at 227 +-3
low pressure off at 28.5 +-2
low pressure off at 28.5 +-2
#111
Senior Member
Join Date: Apr 2006
Location: Murphy, TX
Posts: 510
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 formula
Engine: 433 sbf + turbos
Transmission: powerglide
Axle/Gears: fab9, 3.50
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Have you done any street driving with the atomizer injectors? What is the minimum pulse width you can run them at?
#112
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
no street driving, but they were essentially a drop in replacement for my bosch 160s. I don't recall the PW at idle, but they had no issues keeping a clean AFR at idle on my 427.
#113
Supreme Member
Join Date: Mar 2004
Location: In the Garage
Posts: 2,519
Likes: 0
Received 4 Likes
on
3 Posts
Car: Camaro
Engine: 6.2L
Transmission: T56
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Fireball?
Guys like you used to thrash on guys like me in the tech glory days for building a mullit mobile! LOL ( yes thats MULLIT dammit i got ****** when i spelled it right. I guess thats a bad word around here now from all the ***** talk over the years )
Welcome back.
AC? Wow..... I ditched mine this time around. I never used it on the last set up. Besides T-tops are for the true ballers
Seriously kick *** build man I wanna ride when shes done woot!!!
Guys like you used to thrash on guys like me in the tech glory days for building a mullit mobile! LOL ( yes thats MULLIT dammit i got ****** when i spelled it right. I guess thats a bad word around here now from all the ***** talk over the years )
Welcome back.
AC? Wow..... I ditched mine this time around. I never used it on the last set up. Besides T-tops are for the true ballers
Seriously kick *** build man I wanna ride when shes done woot!!!
#114
Senior Member
iTrader: (5)
Join Date: Dec 2008
Location: Alabama
Posts: 719
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1986 camaro
Engine: ls2
Transmission: FLT stage 6 60e
Axle/Gears: 8.8 with 3.73's
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
if he's giving rides and charging 20$ a ride im sure he could pay off whatever this build is costing him lol
#115
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Scored a HVAC box in reasonable shape....broken in a small area but nothing a bit of fiberglass and time can't fix. I'm going to graft the 4th gen HVAC front section to it anyhow . tad snug around #8, but I think there's enough room to easily work with it
.
Started playing around with my header collectors and positioned my header build guide (holds the 4 primaries in perfect position to weld on the collector...
Driver side...I think I'll kick it outboard beside the alternator. currently there's a proportioning valve assembly for the OEM drum brakes in the way, but thats definately coming out :jest:. this leaves the area under the alternator/PS pump to snake a 3" downpipe through.
Passenger side. Keep collector up high so a downpipe can fit between the collector and the AC compressor. this is just an approximate position...I used one of the OEM threaded holes in the head to temporarily hold the plate. It looks like the AC lines should easily run over this area without interference.
.
Started playing around with my header collectors and positioned my header build guide (holds the 4 primaries in perfect position to weld on the collector...
Driver side...I think I'll kick it outboard beside the alternator. currently there's a proportioning valve assembly for the OEM drum brakes in the way, but thats definately coming out :jest:. this leaves the area under the alternator/PS pump to snake a 3" downpipe through.
Passenger side. Keep collector up high so a downpipe can fit between the collector and the AC compressor. this is just an approximate position...I used one of the OEM threaded holes in the head to temporarily hold the plate. It looks like the AC lines should easily run over this area without interference.
#116
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
I think I'm really liking the weld racing Weldstar wheels (black anodized center). I like the looks of the 3pc RT over the one piece RTS wheels.
For the front "track" wheels they have 4" width. Can also pick up some wider ones for cruising if I want...
If I leave the 9" rear 4th gen length and run the 7.5" back space
But II do have shortened Moser axles from my previous setup that will accomodate a 4" narrowing so I can run a 3.5" back space
For the front "track" wheels they have 4" width. Can also pick up some wider ones for cruising if I want...
If I leave the 9" rear 4th gen length and run the 7.5" back space
But II do have shortened Moser axles from my previous setup that will accomodate a 4" narrowing so I can run a 3.5" back space
Last edited by Fireball; 08-05-2012 at 08:22 AM.
#117
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Since it was so crappy out yesterday, I spent some time digging for parts.
Found a set of grey interior plastics for sale (mine are tan) and a harwood 3" fiberglass bolton hood too. Really want to run the stock hood, but there just isn't enough clearance to run a proflo type intake. Its not a bad looking hood. Fortunately, parts are local and I pick them up tomorrow
Found a set of grey interior plastics for sale (mine are tan) and a harwood 3" fiberglass bolton hood too. Really want to run the stock hood, but there just isn't enough clearance to run a proflo type intake. Its not a bad looking hood. Fortunately, parts are local and I pick them up tomorrow
#119
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Thanks for the pics!
Mocked up a pro-flo intake (thanks for letting me borrow this 1fast bird). Definately wouldn't fit under stock hood, by about 2 1/2 inches . Mounted the cowl hood and have about 1" of clearance now
Mocked up a pro-flo intake (thanks for letting me borrow this 1fast bird). Definately wouldn't fit under stock hood, by about 2 1/2 inches . Mounted the cowl hood and have about 1" of clearance now
#121
Supreme Member
iTrader: (4)
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Will keep following! If you have any questions about the a/c setup, feel free..although judging by your skill levels I doubt you'll have any issues figuring it out haha.
Clearance on #8 will be tight. Not a whole lot you can do there except move the coil up some. Or mount the coils remotely. If you do that, you wont have any issues.
Good luck!
J.
#122
Supreme Member
Join Date: Mar 2004
Location: In the Garage
Posts: 2,519
Likes: 0
Received 4 Likes
on
3 Posts
Car: Camaro
Engine: 6.2L
Transmission: T56
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Glad to see that GOOD idea of mine is still helping some of you guys out! Im loving this build so far. I love how youre scrounging parts up and piecing things together. Its a happy medium between someone cobbling something together, and someone that throws gobbs of money at something! Its how I like to do things!
Will keep following! If you have any questions about the a/c setup, feel free..although judging by your skill levels I doubt you'll have any issues figuring it out haha.
Clearance on #8 will be tight. Not a whole lot you can do there except move the coil up some. Or mount the coils remotely. If you do that, you wont have any issues.
Good luck!
J.
Will keep following! If you have any questions about the a/c setup, feel free..although judging by your skill levels I doubt you'll have any issues figuring it out haha.
Clearance on #8 will be tight. Not a whole lot you can do there except move the coil up some. Or mount the coils remotely. If you do that, you wont have any issues.
Good luck!
J.
#123
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Glad to see that crazy idea of mine is still helping some of you guys out! Im loving this build so far. I love how youre scrounging parts up and piecing things together. Its a happy medium between someone cobbling something together, and someone that throws gobbs of money at something! Its how I like to do things!
Will keep following! If you have any questions about the a/c setup, feel free..although judging by your skill levels I doubt you'll have any issues figuring it out haha.
Clearance on #8 will be tight. Not a whole lot you can do there except move the coil up some. Or mount the coils remotely. If you do that, you wont have any issues.
Good luck!
J.
Will keep following! If you have any questions about the a/c setup, feel free..although judging by your skill levels I doubt you'll have any issues figuring it out haha.
Clearance on #8 will be tight. Not a whole lot you can do there except move the coil up some. Or mount the coils remotely. If you do that, you wont have any issues.
Good luck!
J.
pic of what I did on the 4th gen...
#124
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
these big billet atomizer 220lb injectors fit pretty snug on the proflo....
back of driver side rail is pretty close to the windshield wiper motor too...I think it'll fit with a 90* adapter fitting on the return line though.
back of driver side rail is pretty close to the windshield wiper motor too...I think it'll fit with a 90* adapter fitting on the return line though.
#125
Supreme Member
iTrader: (4)
Join Date: Nov 2003
Location: santa barbara,ca
Posts: 1,194
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 iroc z
Engine: LSX 376 F1A
Transmission: 4l60e
Axle/Gears: 12 bolt 3.42
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Here is what I did and I just bought some remote coil brackets on ebay.
#127
Supreme Member
iTrader: (1)
Join Date: Mar 2007
Location: Apopka, Florida
Posts: 1,237
Likes: 0
Received 7 Likes
on
6 Posts
Car: 1989 Pontiac Trans Am GTA
Engine: cammed LS1
Transmission: Monster SS 4L65E
Axle/Gears: 9 bolt posi w/ 3.70 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Yeah, I like it too! Any way we can get a side picture of it sticking up over the fenderline? Seems like that might be helpful.
#129
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Looks like a good weekend to blow the dust off the tig and start firing off some welds... gonna hack up my old stainless headers and crossover from the 4th gen and repurpose the bends and tubing as a mock up a new set of headers for this project.
cost of stainless bends is pretty high so I want to mock it up and buy an exact amount or maybe just use the old bends and call it a day
I do have new header and turbo flanges and collector components already
cost of stainless bends is pretty high so I want to mock it up and buy an exact amount or maybe just use the old bends and call it a day
I do have new header and turbo flanges and collector components already
Last edited by Fireball; 08-19-2012 at 11:22 AM.
#130
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Mounted PS pump...mocked turbos where i want them....not nearly as much room as I hoped. Looks like the charge pipes will have to go down and under the frame rail. connecting the heads to the turbine is gonna be fun
I need to fab up some sort of mount to lock the turbo into position...may use some plate welded to the shock tower and attach using the compressor cover bolts...not sure yet
may also have to notch the shock tower...need to move turbo back a hair to make sure a 3" downpipe can clear the radiator/fan shroud.
I need to fab up some sort of mount to lock the turbo into position...may use some plate welded to the shock tower and attach using the compressor cover bolts...not sure yet
may also have to notch the shock tower...need to move turbo back a hair to make sure a 3" downpipe can clear the radiator/fan shroud.
#132
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
problem is the condensor hardline is a fixed length. I think I have room, just need to get it all figured out. Need to pick up a good rad for it for mockup now I think....just using the OEM rad for fitting at this moment.
#134
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
I think solution is to put the turbos on a slight angle...this clocks the downpipe outlet away from the rad. Passenger side is gonna be tricky. I think the turbine inlet can go over the A/C hard line and under the line from the dryer. Plenty of room to work on the driver side

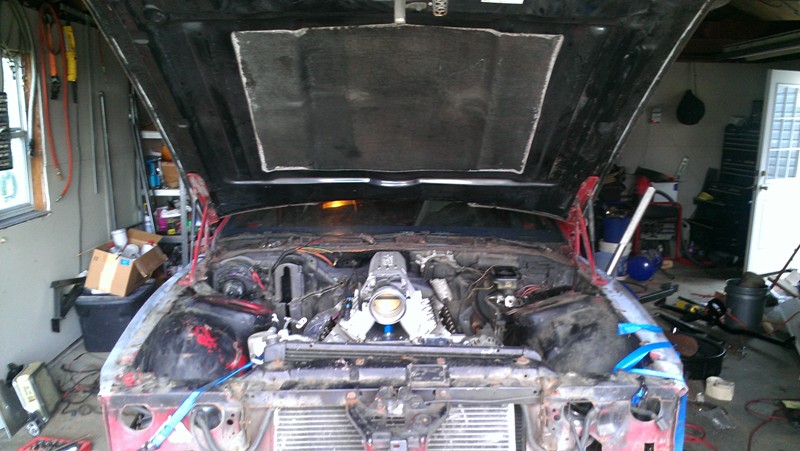

Mocked up the fenders and have about 7" of room from compressor inlet to the fender so I ordered some 6" Airaid conical filters to see what I can work with...
Mocked up the fenders and have about 7" of room from compressor inlet to the fender so I ordered some 6" Airaid conical filters to see what I can work with...
Last edited by Fireball; 08-19-2012 at 10:20 AM.
#141
Member
Thread Starter
iTrader: (2)
Join Date: Mar 2001
Location: Cecil County Raceway, MD
Posts: 190
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Camaro Sport Coupe
Engine: RHS/LSx 427
Transmission: Powerglide
Axle/Gears: Fab9 3.00 gears
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Some companies with their LSx turbo kits says they get better mpg.
http://www.youtube.com/watch?v=_ZVBgQU-mCs
http://www.youtube.com/watch?v=_ZVBgQU-mCs
#142
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
What you think is possible to build lt1 turbo setup with better fuel economy than stock lt1?
Is lt1 wider than ls1?
Is lt1 wider than ls1?
Last edited by haisud; 08-19-2012 at 11:55 AM.
#144
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Can anyone help me out I got a 89 Iroc 5.7 tpi and i can't get the oil pan out I've been trying for weeks I've unhooked the exhaust and unbolted the starter and took off the torque converters dust cover and took out the motor mount bolts and raised the engine slightly but I still can get enough clearance to get it out.. can anyone help
#146
Supreme Member
iTrader: (13)
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Can anyone help me out I got a 89 Iroc 5.7 tpi and i can't get the oil pan out I've been trying for weeks I've unhooked the exhaust and unbolted the starter and took off the torque converters dust cover and took out the motor mount bolts and raised the engine slightly but I still can get enough clearance to get it out.. can anyone help
back to the original topic at hand please!
#148
Supreme Member
iTrader: (20)
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
Yeah seriously whats with ppl asking generic questions in very specific build threads?
Fireball heres how i mounted my turbos. Made a brace to the wells.
but instead of those poly bushings which melt easier than expected, i used 2 nuts to take up the room to space the bracket out.
It hangs well with 90 deg coupler off compressor inlet stuffed in fender. 3.5" pipe and filter inlet
Fireball heres how i mounted my turbos. Made a brace to the wells.
but instead of those poly bushings which melt easier than expected, i used 2 nuts to take up the room to space the bracket out.
It hangs well with 90 deg coupler off compressor inlet stuffed in fender. 3.5" pipe and filter inlet
Last edited by Orr89RocZ; 08-21-2012 at 10:35 AM.
#150
Senior Member
iTrader: (4)
Re: 1984 Camaro RHS/LSx 427 Twin 76mm build up
If you need them to align with the body on an angle, a quick file job to one end makes them fit perfect.
BTW - Awesome build.
