Hey guys, just wanted to post up some reference pictures for anyone dumb enough to remove these brackets to clean and rust-proof them, but neglected to take any before pictures. There's not a lot of information on the wwwebs to be found, so here's my drop in the bucket. Hope this helps someone!

right front

left front

right rear

left rear

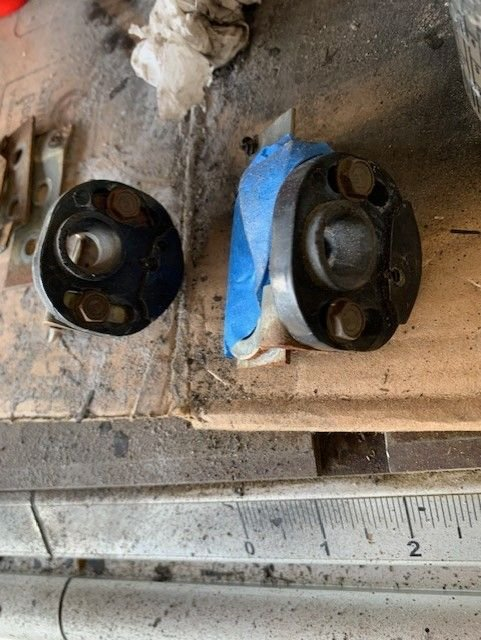

these are t top brackets,I never seen the ones your showing.



Indeed, what you picture are the plastic receivers for the rods inside the T-Top rail. What I posted are the actual brackets that these receivers bolt to. You can see them in the photo you provided, one is covered in blue tape.

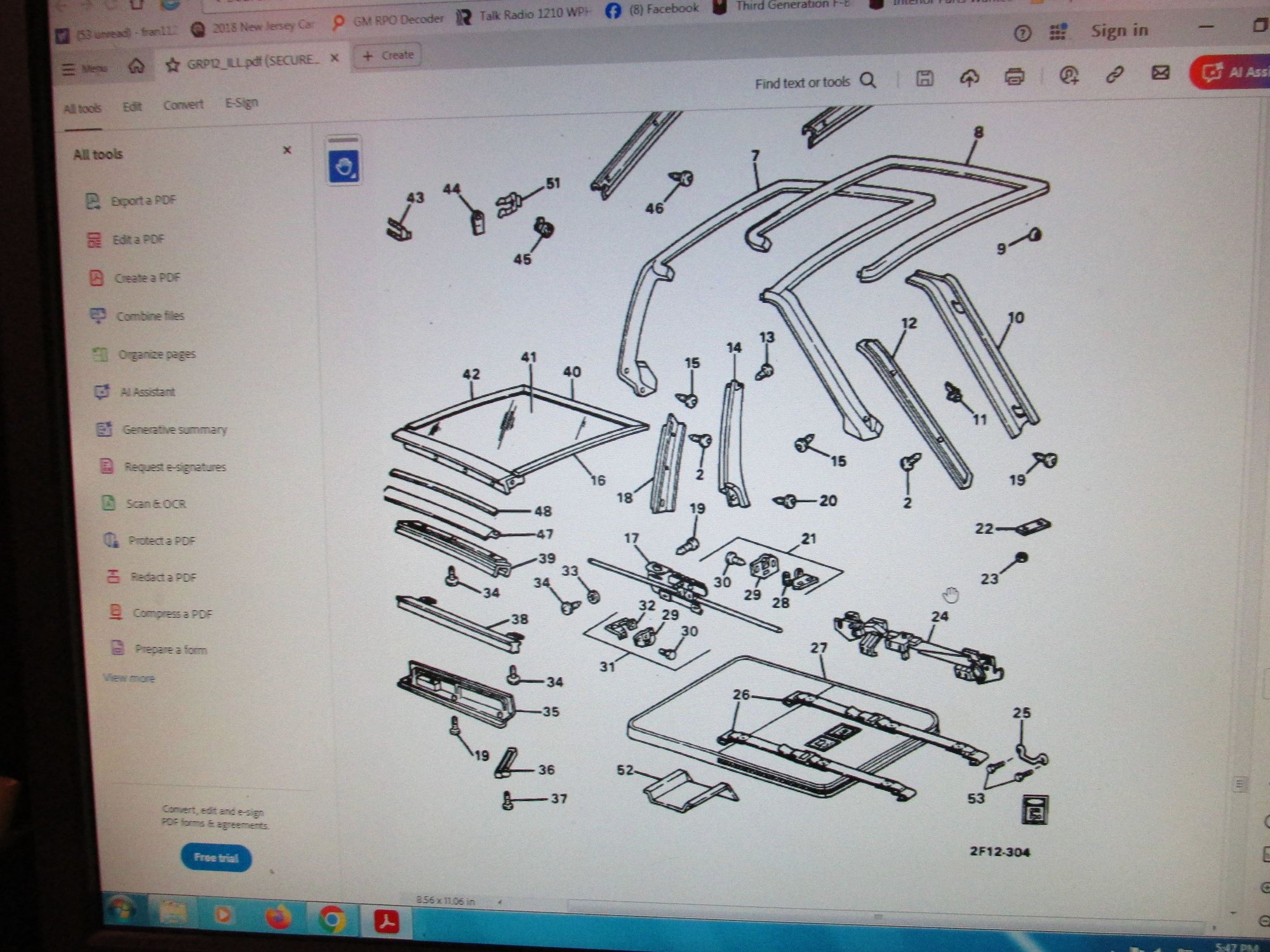

is that part in the diagram i posted ? I don't see it
never mind i do see it it's #28



#'s 32 and 28 depending on which pillar they attach to. A-pillar is #32, B-pillar is #28
