Anyone have pics of their 3 relays for their headlight motors?
Thread Starter
Member
Joined: Apr 2003
Posts: 270
Likes: 0
From: Cedartown, Georgia
Car: 86 T/A
Engine: 305
Transmission: 700-R4 Auto
Anyone have pics of their 3 relays for their headlight motors?
I need to know what all three look like and where there located. The actuator relays and the isolation relay isnt it? Thanks. I have an 86 T/A.
Member
Joined: Oct 2002
Posts: 386
Likes: 0
From: Edmonton AB Canada
Car: 86 Firebird
Engine: 355 4 bbl
Transmission: TKO 600
Axle/Gears: 3.73 L/S
I can't get you pics but the relays are black plastic cubes (about 1" on a side) that live near / under the nose of the car. My '86 Firebird was missing the metal clips that mount them to the body so they were hanging upside down and filled with water.
They should be mounted to the inner fender or under the nose of the car not too far from the headlight motors.
They should be mounted to the inner fender or under the nose of the car not too far from the headlight motors.
Member
Joined: Jun 2003
Posts: 221
Likes: 0
From: Gainesville, Fl.
Car: 86 TA
Engine: 305 Carbed. Mainly stock Not running
Transmission: stock

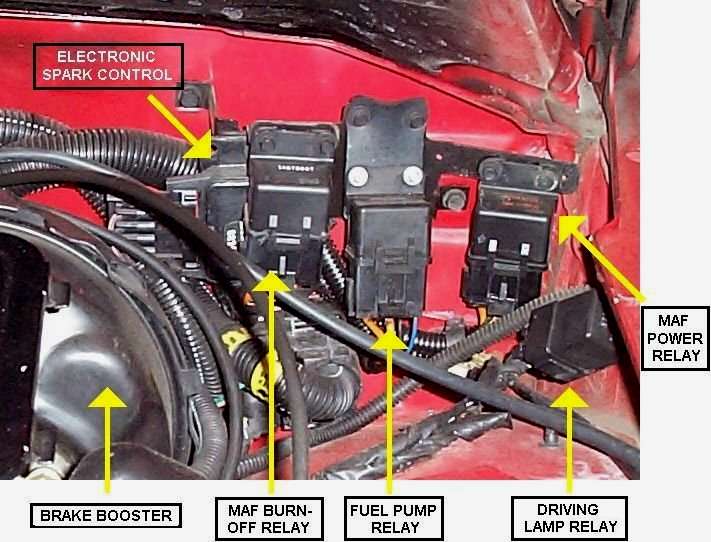

This is not my car but this may help for one of them. I don't remember whose car this is but I don't think they will mind me posting it again. This has been discussed before so you may want to do a search also.
