Help Please! 91 GTA firewall plug diagram
Thread Starter
Supreme Member
Joined: Jul 2003
Posts: 1,236
Likes: 0
From: KY
Car: 87IROC, 740iBMW, 328iBMW, 86GMC
Engine: 5.7, 4.4LV8, 2.8, 6.0
Transmission: Manuals & Auto's
Axle/Gears: 3.27, 3.42
Help Please! 91 GTA firewall plug diagram
Would anyone happen to have a wiring diagram or schematic for the female firewall connector for a 91 GTA? I would really appreciate it!
Thanks!
Wade
Thanks!
Wade
Thread Starter
Supreme Member
Joined: Jul 2003
Posts: 1,236
Likes: 0
From: KY
Car: 87IROC, 740iBMW, 328iBMW, 86GMC
Engine: 5.7, 4.4LV8, 2.8, 6.0
Transmission: Manuals & Auto's
Axle/Gears: 3.27, 3.42
Originally posted by Klortho
Which one are you referring to, the bulkhead connector?
Which one are you referring to, the bulkhead connector?
I should have been more specific. Thanks for the quick reply!
Supreme Member
Joined: May 2004
Posts: 2,924
Likes: 1
From: Kingston, Tn
Car: 1987 GTA
Engine: LT1
Transmission: T56
Axle/Gears: 9 bolt 3.70 posi

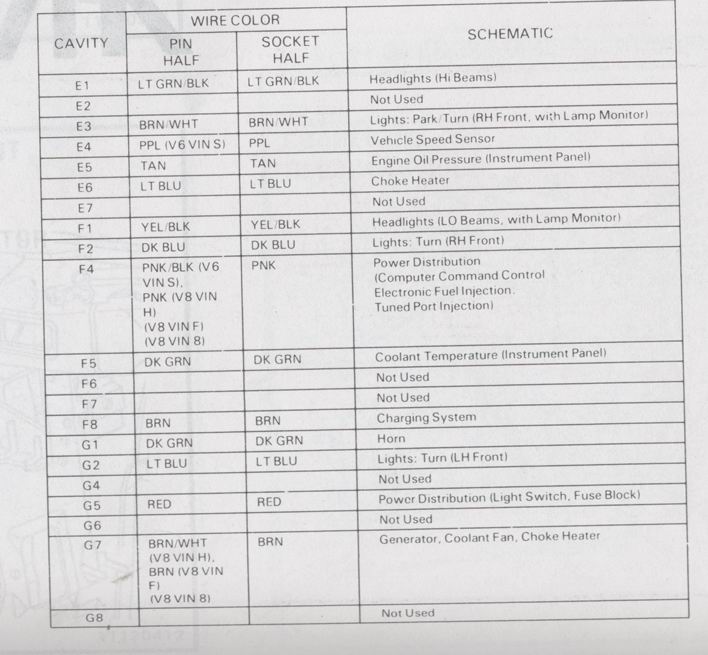

Alot of them have different wiring on them, but here is what I have, it should cover alot that is there, it did on the 91 T/A wiring I put in my car.
