having some hatch issues
#51
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
The motor won't stay down if the slider doesn't connect to the bracket through the motor housing, which is obviously broken to pieces.
If the hatches are locked, it's simple to get them open. Move any crap you have to to get the rear seat folded down, lay down and crawl into the hatch, pop the light out of the rear panel, insert a screwdriver into the slot that is exposed, and turn the screwdriver. Hatch will pop, and you have a motor assembly.
BTW, I know I was going to send you the stock intake air box, but I'm using it at the moment because I'd rather not damage my new MAF by knocking the elbow off of it. I'm going to try to get some more intake piping and fab something up, but my hours just got cut again and I have to watch my spending.
If the hatches are locked, it's simple to get them open. Move any crap you have to to get the rear seat folded down, lay down and crawl into the hatch, pop the light out of the rear panel, insert a screwdriver into the slot that is exposed, and turn the screwdriver. Hatch will pop, and you have a motor assembly.
BTW, I know I was going to send you the stock intake air box, but I'm using it at the moment because I'd rather not damage my new MAF by knocking the elbow off of it. I'm going to try to get some more intake piping and fab something up, but my hours just got cut again and I have to watch my spending.
and ill try that, just have to make sure i get a 90 style hatch moter right?, iv read that there are a few different styles
#52
Supreme Member
iTrader: (8)
Join Date: Aug 2003
Location: LeRoy, NY
Posts: 7,240
Likes: 0
Received 5 Likes
on
4 Posts
Car: 2003 Hyundai Tiburon GT
Engine: 2.7L V6
Transmission: 6-speed
Axle/Gears: 4.41
Re: having some hatch issues
Yeah, the air filter can and everything between it and the intake bellows (with the exception of the MAF)...
Anyways, the hatch motor is the same style found on cars between 86 and 90/91 model years. I believe that in either 90.5 or 91.5 model year, GM went to a different design for the pulldown unit.
Anyways, the hatch motor is the same style found on cars between 86 and 90/91 model years. I believe that in either 90.5 or 91.5 model year, GM went to a different design for the pulldown unit.
#53
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
Yeah, the air filter can and everything between it and the intake bellows (with the exception of the MAF)...
Anyways, the hatch motor is the same style found on cars between 86 and 90/91 model years. I believe that in either 90.5 or 91.5 model year, GM went to a different design for the pulldown unit.
Anyways, the hatch motor is the same style found on cars between 86 and 90/91 model years. I believe that in either 90.5 or 91.5 model year, GM went to a different design for the pulldown unit.
#54
Supreme Member
iTrader: (17)
Re: having some hatch issues
dave you should know better than anyone that my car is in parts right now so i doubt ill be driving it for awhile, can anyone post a list of ALL the cars that have the same time of hatch moter assemblys as ours? and i have two junkyards that are close to me that have SEVERAL and i mean over 20 trans ams and camaros each but most of the hatchs are locked so its hard to pull the moter off like that lol
#55
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
what black box are you talking about?, as you can tell im not very good with this kind of stuff
#56
Member
Join Date: Nov 2009
Location: Sarasota, FL
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 400 CI
Transmission: 700R4
Re: having some hatch issues
They did change the pulldown assembly, but the motor and housing was still the same. Just bring your old one with you and compare it at the JY. All you have to do is put your old pulldown assembly onto the new motor.
#57
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
ok, thats a good idea, i didnt even think of taking it with me to compair them
#58
Senior Member
Join Date: Nov 2009
Posts: 419
Likes: 0
Received 1 Like
on
1 Post
Car: 1986 Trans Am
Engine: 5.0
Transmission: 700r4
Axle/Gears: beats me
Re: having some hatch issues
I fought a hatch motor assembly yesterday afternoon. The keys were lost. So I unbolted the top hinges, removed the hatch bolts, then removed the entire assembly. Then I could easily unlock the catch. Would have been much easier if I could have accessed the 2 trim panel screws on either side of the lock
I wish this thread came along a day sooner. I would have been looking for Caddys.
I wish this thread came along a day sooner. I would have been looking for Caddys.
#59
Supreme Member
iTrader: (8)
Join Date: Aug 2003
Location: LeRoy, NY
Posts: 7,240
Likes: 0
Received 5 Likes
on
4 Posts
Car: 2003 Hyundai Tiburon GT
Engine: 2.7L V6
Transmission: 6-speed
Axle/Gears: 4.41
Re: having some hatch issues
Since nobody's said yet, there are 3 13mm bolts holding the bracket to the tail panel of the car... And a 10mm bolt on the lock cable assembly, and another bolt for the ground wire... Not to mention you'll need either a philips screwdriver or 7mm nut driver to get the rear trim panel off just to get at the thing.
#60
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
yeah i know how to get the trim pannel off, just needed to know which bolts are holding the moter onto the car so i can pull it off., and blind driver this thread has been around forever, since last december i believe is when i made it
#61
Senior Member
Join Date: Nov 2009
Posts: 419
Likes: 0
Received 1 Like
on
1 Post
Car: 1986 Trans Am
Engine: 5.0
Transmission: 700r4
Axle/Gears: beats me
Re: having some hatch issues
If its closed, all you have to do is climb inside and crawl to the back. Tear apart the plastic cover that hides the pull down motor. Then remove the black box that (piggybacks the pull down assembly that mounts with one bolt) has a long black plastic covered cable. Then insert a flat head screw driver into the slot and turn. Pop goes the weasel. the trunk is now open. That little slot is for the aftermarket lock cylinder rod.
Motor was free from my old boss.
#63
Supreme Member
iTrader: (17)
Re: having some hatch issues
Last edited by Chevy86 IROC-Z; 03-14-2010 at 11:22 PM.
#64
Member
Join Date: Nov 2009
Location: Sarasota, FL
Posts: 338
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1988 GTA
Engine: 400 CI
Transmission: 700R4
Re: having some hatch issues
I read in another post that all you have to do to manually pop the hatch from inside is pull out the cargo light. Then you can use a screwdriver to pop the hatch. Haven't tried it myself though.
#66
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
well i bought a new moter but i dont know what year, it looks like mine but my lock isnt coming out the side, it was bolted onto the latch, so i need to take my old one and switch them over.
#67
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
is there any way for me to take that cable off my old latch to put it on my new latch?, i was just going to take the latch off but its rivited on so i cant take it off.
#69
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
im going to upload some pictures of my new moter, if you can tell me if i can do this, i took off the old lock because i forgot mine had the cable.
#73
Senior Member
Join Date: Nov 2009
Posts: 419
Likes: 0
Received 1 Like
on
1 Post
Car: 1986 Trans Am
Engine: 5.0
Transmission: 700r4
Axle/Gears: beats me
Re: having some hatch issues
You can probably just grind/drill the rivits and install new rivits/bolts depending how much clearance there is.
#74
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
thats what im talking about, on the left side of the moter thats on my car now it has the black cable running from it to my lock, but this one doesnt, it had a silver lock on the front of it before i took it off at the junkyard.
#75
Supreme Member
iTrader: (8)
Join Date: Aug 2003
Location: LeRoy, NY
Posts: 7,240
Likes: 0
Received 5 Likes
on
4 Posts
Car: 2003 Hyundai Tiburon GT
Engine: 2.7L V6
Transmission: 6-speed
Axle/Gears: 4.41
Re: having some hatch issues
Let's go back a bit. Does your car still have the lock riveted to the tail panel, and is the nylon cable end attached to it? If not, reattach the lock to the tail panel (will need to remove the tail lights and the license bracket to do this), and push the nylon cable end onto the lock, engaging the pawl in the cable with the shaft on the lock.
After the cable and lock are set, mount the pulldown unit to the tail panel with the 3 13mm bolts, loosely, and connect up all the cables. The motor should return to the full up position. If not, you will need to push down on the switch until the motor comes to the bottom and flips the reversing switch, and release the position switch so that the motor will come to the full up position. Then, take the pulldown end of the lock cable, engage the tangs on the housing with the slots in the motor and the release tab inside where this sits, and push the remaining part towards the screw hole until it lines up.
It's too dark to take pics or a vid now, but I can try tomorrow if you'd prefer. :edit: However, I have an assembly that will look a bit different from yours since I also have installed the hatch release solenoid. Just an FYI.
After the cable and lock are set, mount the pulldown unit to the tail panel with the 3 13mm bolts, loosely, and connect up all the cables. The motor should return to the full up position. If not, you will need to push down on the switch until the motor comes to the bottom and flips the reversing switch, and release the position switch so that the motor will come to the full up position. Then, take the pulldown end of the lock cable, engage the tangs on the housing with the slots in the motor and the release tab inside where this sits, and push the remaining part towards the screw hole until it lines up.
It's too dark to take pics or a vid now, but I can try tomorrow if you'd prefer. :edit: However, I have an assembly that will look a bit different from yours since I also have installed the hatch release solenoid. Just an FYI.
#76
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
yeah the black cable is still on my car running to my lock and to my hatch moter.
#77
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
i need to take this cable here and put it on my new moter.
#79
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
then i can just put the cable on my new moter, ok thanks guys
#80
Supreme Member
iTrader: (17)
Re: having some hatch issues
You really dont need the cable/case thingy. All it is is just the housing for the original lock cylinder. I have mine just hanging inside the cargo cover. It also serves a good purpose if the motor burns out while the lid is closed. Happened to me once. I just removed my spare tire panel cover and turned the rectangle slot inside the round case and pop. I got my hatch open.
#81
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
well its on the moter for a reason and i dont know, im weird like that, i was everything to look like it should or be like it should
#82
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
besides how would it unlock the hatch if its not attached to the moter?
#83
Supreme Member
iTrader: (17)
Re: having some hatch issues
Easy. the rectangular slot inside the round white cylinder turn either weft or right (forgot which way). SO once it turns, it'll pull a metal wire/cable that is inside the black plastic tube/cable. WHen the wire gets pulled, it'll pull a piece of latch that'll catch and other latch that is inside of the motor assembly which will in turn, unlock the latch. SO no, you dont need it. You can always go with a aftermarket lock cylinder that suppies a lock shaft that extends into the slot on the assembly.
#87
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
sounds good to me, im going to bed soon anyways, its rainy here so that always makes a slow day, normally when i get out of school i check on my post and PMs here before i go out and for on my car so i should get them some time tomorrow
#88
Supreme Member
iTrader: (17)
Re: having some hatch issues
OK. lock the latch like if you just closed the hatch. Now right in were the yellow circle is at, there is a little catch/lever. push the lever and the latch will unlock. It's purpose is for the factory lock that is incased with the white cylinder/black cable/ case that piggy backs the whole lock assembly.
#89
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
yeah i know how to lock and unlock that manually, that picture is of my new moter, so the main question im asking is if i can take that black cable that on my old moter, i have it circled in red in a picture, and put it on my new moter.
#90
Supreme Member
iTrader: (17)
Re: having some hatch issues
Yes. Its just part of the factory lock mechanism. You really dont need it. I took mine off and I put in a electric solenoid from a 87 IROC-Z so that I can open my trunk wirelessly with my alarms remote. Sorry if I gave you the run around.
#91
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
its fine, you along with the other members were just trying to help, i thought i messed up because i took of the silver lock solenoid off because i thought the lock on my car would fit, then i noticed that my new one didnt have that black cable so i felt like i got screwed
#93
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
tomorrow im getting my new battery and putting in the new moter and my new hatch light and hope they work.
#94
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
another thing, i pulled this off a car that had all the power options even the power hatch so that wont effect anything will it?
#95
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues

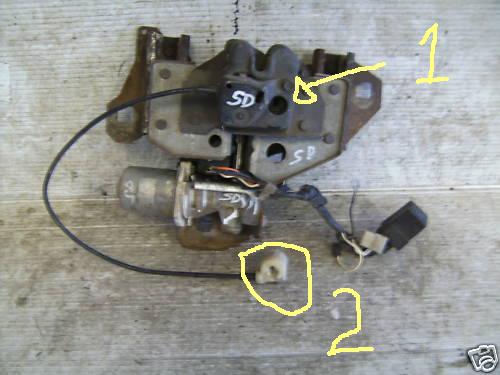

well i got the moter installed and everything hooked up except that one damn wire, i cant figure out where it goes, so can anyone look back at it and try to tell me where it goes? i have everything else hooked up and i cant get the moter to do anything so i think its that wire.
#96
Senior Member
Join Date: Nov 2009
Posts: 419
Likes: 0
Received 1 Like
on
1 Post
Car: 1986 Trans Am
Engine: 5.0
Transmission: 700r4
Axle/Gears: beats me
Re: having some hatch issues
well i got the moter installed and everything hooked up except that one damn wire, i cant figure out where it goes, so can anyone look back at it and try to tell me where it goes? i have everything else hooked up and i cant get the moter to do anything so i think its that wire.
There is a blue and a white wire. I forgot where the white goes, but I think the blue is positive? I think the blue goes to the red wire coming in from the sail panel.
I hope someone else chimes in for the fun
#97
#99
Supreme Member
iTrader: (8)
Join Date: Aug 2003
Location: LeRoy, NY
Posts: 7,240
Likes: 0
Received 5 Likes
on
4 Posts
Car: 2003 Hyundai Tiburon GT
Engine: 2.7L V6
Transmission: 6-speed
Axle/Gears: 4.41
Re: having some hatch issues
I'll look at mine after work tomorrow if the rain quits sometime here... Either that or I'm going to have to rearrange the stuff in the garage again .
#100
Supreme Member
Thread Starter
iTrader: (6)
Join Date: Aug 2009
Location: Elwood, IN
Posts: 3,670
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1986 camaro Sports Coupe
Engine: L31 350
Transmission: 89 700R4
Axle/Gears: 3.42 gov lock
Re: having some hatch issues
my garage is full of parts, so i cant put my car in there sadly, so i need to replace my weatherstripping soon :/, anyways i even replaced the hatch fuse and checked al the conections on the moter and they seem to be good, i have power running to everywhere else so it has to be that single plug!
