what are these connectors for?
Thread Starter
Member
Joined: Jun 2002
Posts: 491
Likes: 1
From: Hockessin, Delaware
Car: Red 91 RS Camaro
Engine: LO3 with Comp Cam
Transmission: 700R4
Axle/Gears: 4th gen rear
what are these connectors for?

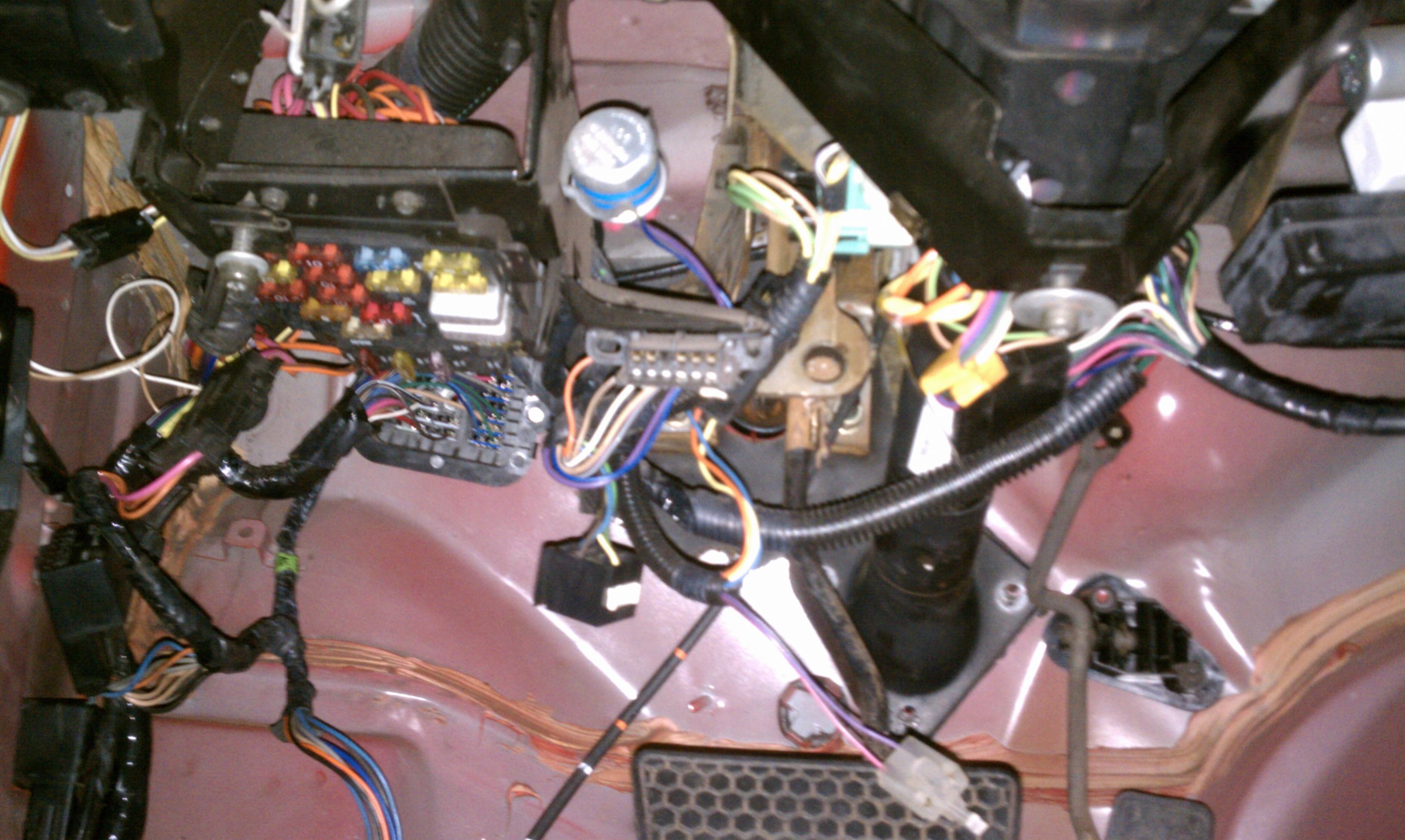

I have reinstalled my dash in my 91 camaro and I have a few connectors that I can not remember where they go or if they are even used. Ive attached two pics. Also thereis a female plug on the stop light switch and it has 2 pins inside it but I can not locate a male plug to it. It already has a plug plugged into it at a 90 degree angle.
Last edited by iggy1991; Aug 3, 2011 at 10:06 PM.
Supreme Member
Joined: Sep 2002
Posts: 9,192
Likes: 19
From: Cary, North Carolina
Car: 1992 RS
Engine: Carbed 350
Transmission: 700R4
Axle/Gears: 3.42 posi
Re: what are these connectors for?
http://www.austinthirdgen.org/index.php?pid=19
Wiring diags - scroll way down, tons of 1992 diags (all the same for your 1991 car) - trace the wire colors to see what's what to help locate (if they are even used).
Wiring diags - scroll way down, tons of 1992 diags (all the same for your 1991 car) - trace the wire colors to see what's what to help locate (if they are even used).
Supreme Member
iTrader: (8)
Joined: Aug 2003
Posts: 7,240
Likes: 6
From: LeRoy, NY
Car: 2003 Hyundai Tiburon GT
Engine: 2.7L V6
Transmission: 6-speed
Axle/Gears: 4.41
Re: what are these connectors for?
The clear one goes on an add-on brake switch and is for the cruise control and the other looks like a relay connector, possibly for the starter enable relay.
Supreme Member
iTrader: (4)
Joined: Sep 1999
Posts: 1,716
Likes: 0
From: Upland Pa
Car: Camaro Vert
Engine: 355 HSR
Transmission: A4
Axle/Gears: 3.73 S60
Re: what are these connectors for?
White one is the brake switch cruise control and the other goes to the cruise control module and the diaphragm out in the engine.
