MSD Ignition Wiring Schematics (maybe this time)
I installed a MSD ignition system on my 91 305 TBI Formula and drew the four stages of schematic diagrams as I installed. Depending on what MSD components you are installing, you can choose which stage to use.
The schematics should be useful during installation and for trouble shooting, especially when you don't have to re-invent the wheel to determine how the ignition system is wired. I have noticed that some of the 3rd gen wire colors are different, so you may need to check out the wiring as you install.
The schematics should be useful during installation and for trouble shooting, especially when you don't have to re-invent the wheel to determine how the ignition system is wired. I have noticed that some of the 3rd gen wire colors are different, so you may need to check out the wiring as you install.

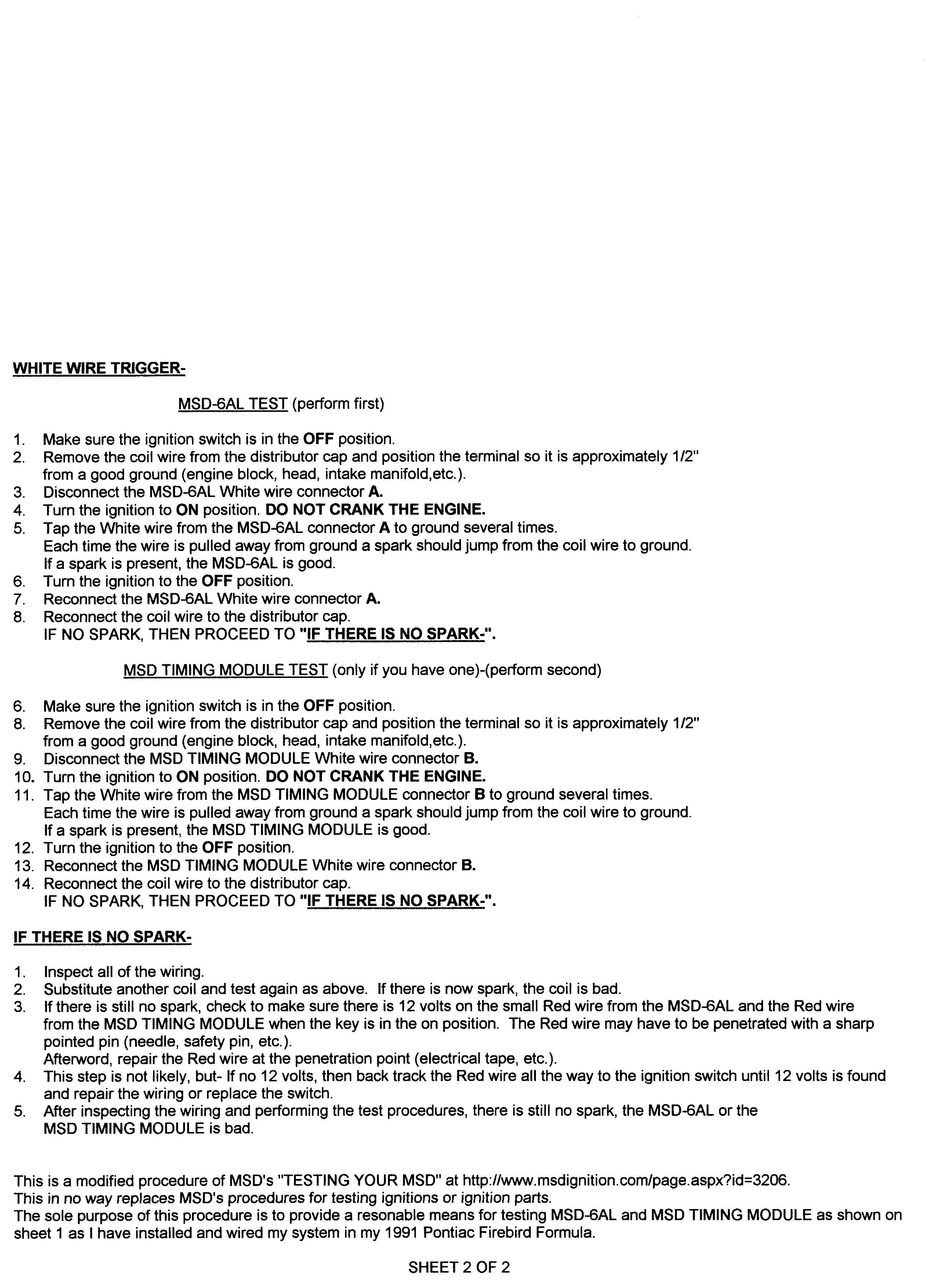

Last edited by 305TBI; Nov 25, 2013 at 12:29 PM. Reason: Updated schematics, notes, added sheet 2 testing.
