External AC Diode?
Hi All,

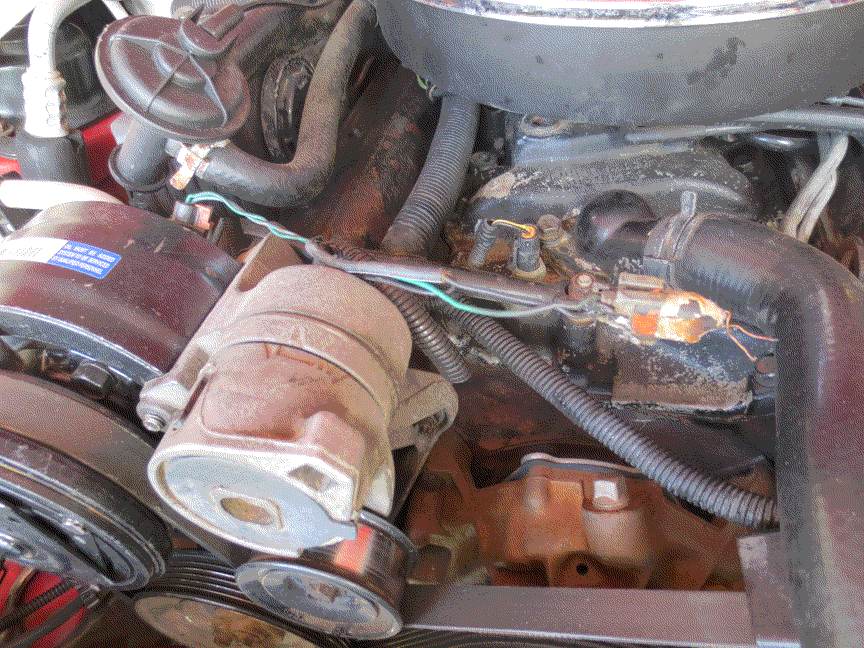

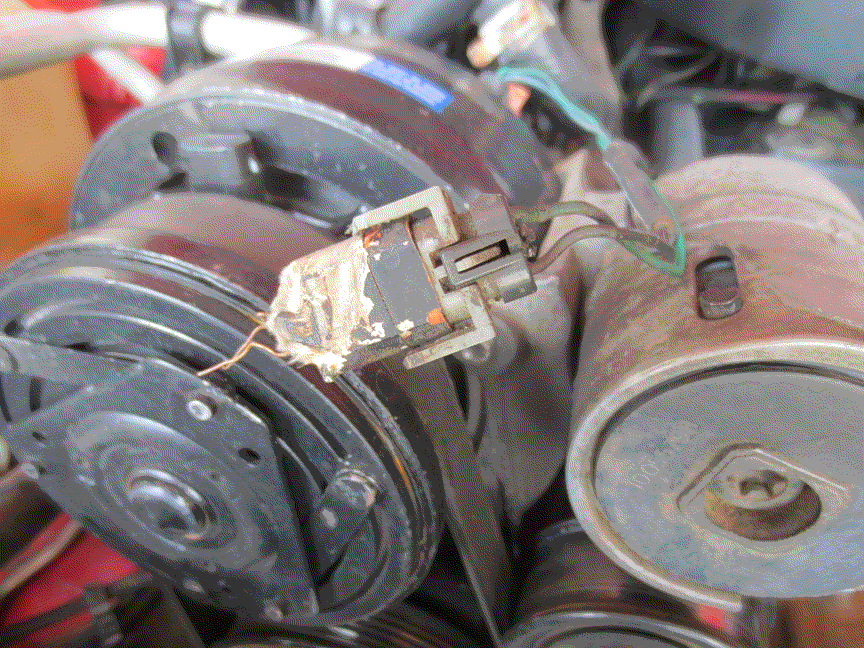

I'm in the early stage of restoring a 92 RS 305 TBI and have a question. I came across a two conductor electrical connector that is completely fried located in the front of the engine in the same wiring harness as the AC. But there is no place I can find to plug it in? Haynes wiring diagram does not show anything remotely close to this...
Can an this be an external diode for the AC compressor?
Thanks,
Ron
I'm in the early stage of restoring a 92 RS 305 TBI and have a question. I came across a two conductor electrical connector that is completely fried located in the front of the engine in the same wiring harness as the AC. But there is no place I can find to plug it in? Haynes wiring diagram does not show anything remotely close to this...
Can an this be an external diode for the AC compressor?
Thanks,
Ron
Last edited by ronkay; Mar 27, 2014 at 09:14 PM. Reason: update...
Supreme Member
Joined: Jan 2006
Posts: 3,341
Likes: 10
From: Mooresville NC
Car: LOWERED ♦ CRIMSON METALFLAKE
Engine: ► 400 KUBES ◄
Transmission: 765R4
Axle/Gears: EATON POSI 4.56
Diode Abode
Originally Posted by ronkay
………connector………Can an this be an external diode for the AC compressor?
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
Happy Racing !
◙◙◙◙◙◙◙◙◙◙◙◙◙◙◙
I Never Fight In The Pits . . . . . . . . . My Pit Crew Does That For Me
Joined: Jul 2011
Posts: 744
Likes: 5
From: Davison, MI
Car: 89 Camaro
Engine: Dart SHP 400-Holley Terminator EFI
Transmission: Tremec T56 Magnum F
Axle/Gears: Strange S60 3.55:1
Re: External AC Diode?
Looks like that is the connector busted off of a clutch. Disconnect it and command the AC on while you have a test light connected to this connector. My bet is it will light up when you command the AC on.
Joined: Jun 2009
Posts: 832
Likes: 1
From: Lawrence KS
Car: 91 z28
Engine: LS1
Transmission: 4L60e
Axle/Gears: 10 bolt 3.42
Thread Starter
Junior Member
Joined: Aug 2013
Posts: 29
Likes: 0
Re: External AC Diode?
Thanks to all for your help. The mystery has been solved.
The connector is indeed the one that goes to the clutch on the front of the compressor. It actually took a second set of eyes to point that out to me...
Thanks again for the help.
Ron
The connector is indeed the one that goes to the clutch on the front of the compressor. It actually took a second set of eyes to point that out to me...Thanks again for the help.
Ron
Joined: Jul 2011
Posts: 744
Likes: 5
From: Davison, MI
Car: 89 Camaro
Engine: Dart SHP 400-Holley Terminator EFI
Transmission: Tremec T56 Magnum F
Axle/Gears: Strange S60 3.55:1
Re: External AC Diode?
Glad you got it figured out. To answer your question though, yes you could still test it the way I described, but you would have to temporarily disconnect the Low Pressure Cutout switch and bypass it with a jumper wire on the harness connector.
