1987 IROC engine compartment wireing ID

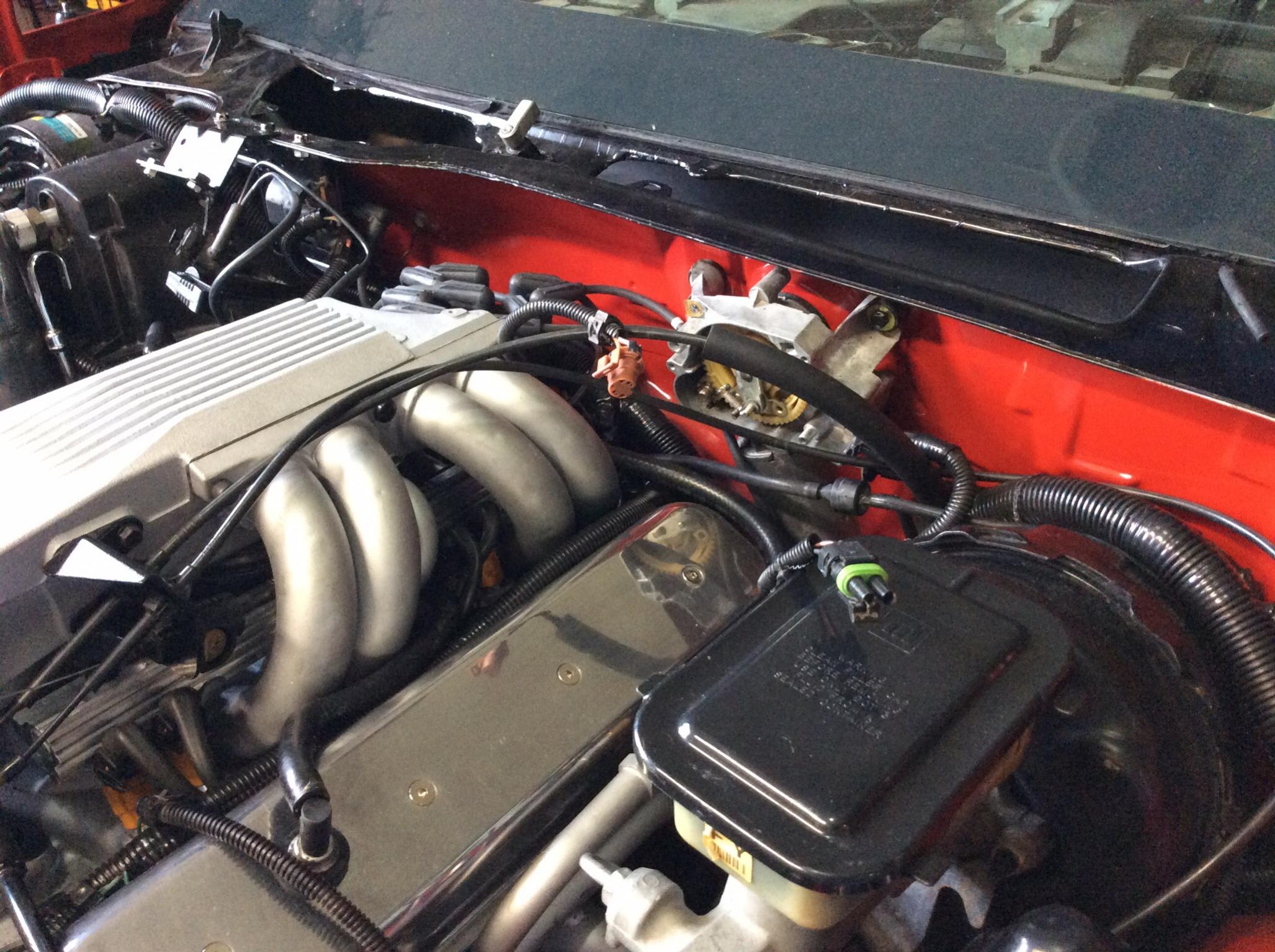

Almost finished with installing a replacement engine in my 1987 IROC, was a basket case. Need help in identifying these remaining connectors, where do the go to. Black connector has pink with black stripe and solid black. The brown connector has solid orange and tan with white stripe. Hopefully you can give me some insight.
#2
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,160
Received 1,697 Likes
on
1,290 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: 1987 IROC engine compartment wireing ID
Pink w black stripe = ECM ckt 12V
Black = ground
Sounds like that one is the "mystery" connector everybody comes across sooner or later; doesn't plug into anything, but rather, was probably used at the factory for some sort of testing (would allow externally the entire ECM system as a stand-alone)
Don't know the other offhand. Would help if you told where it is and where it breaks out of the main harness.
Black = ground
Sounds like that one is the "mystery" connector everybody comes across sooner or later; doesn't plug into anything, but rather, was probably used at the factory for some sort of testing (would allow externally the entire ECM system as a stand-alone)
Don't know the other offhand. Would help if you told where it is and where it breaks out of the main harness.
#3
Re: 1987 IROC engine compartment wireing ID
Brown connector- oil pressure switch for fuel pump, located under the distributor.
Colors on the "mystery" connector correspond to esc connector on the diagram. Bottom left of the page.
Colors on the "mystery" connector correspond to esc connector on the diagram. Bottom left of the page.
#4
Junior Member
Thread Starter
Join Date: Jun 2009
Location: Ann Arbor Michigan
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC Z28
Engine: 355
Transmission: 700R4
Re: 1987 IROC engine compartment wireing ID

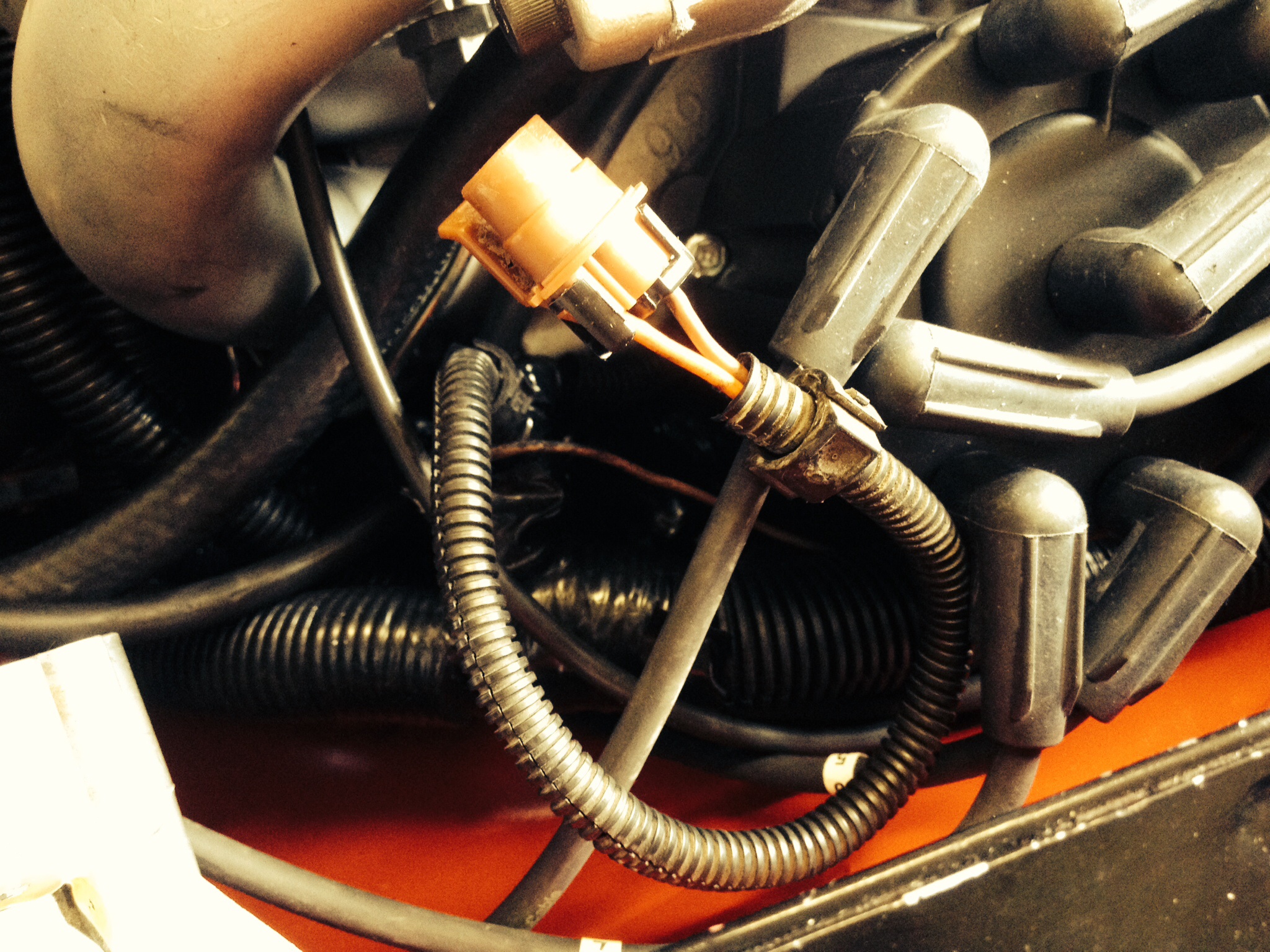

Thanks for the speedy reply, as suggested I'm attaching another picture of the brown connecter location. It's right next to the distributor coming out of the main harness. Very hard to see but it comes out of the harness right in front of where the oil sending units is located. I'm sure as I get closer to testing everything else before starting motor, I will be asking other questions as well.
Thanks everyone for your help.
Thanks everyone for your help.
