89 GTA gauge cluster wiring diagram/pin outs
Thread Starter
Junior Member
Joined: Oct 2021
Posts: 10
Likes: 0
Car: 89 GTA
Engine: Carb swap 305
Transmission: T5
89 GTA gauge cluster wiring diagram/pin outs

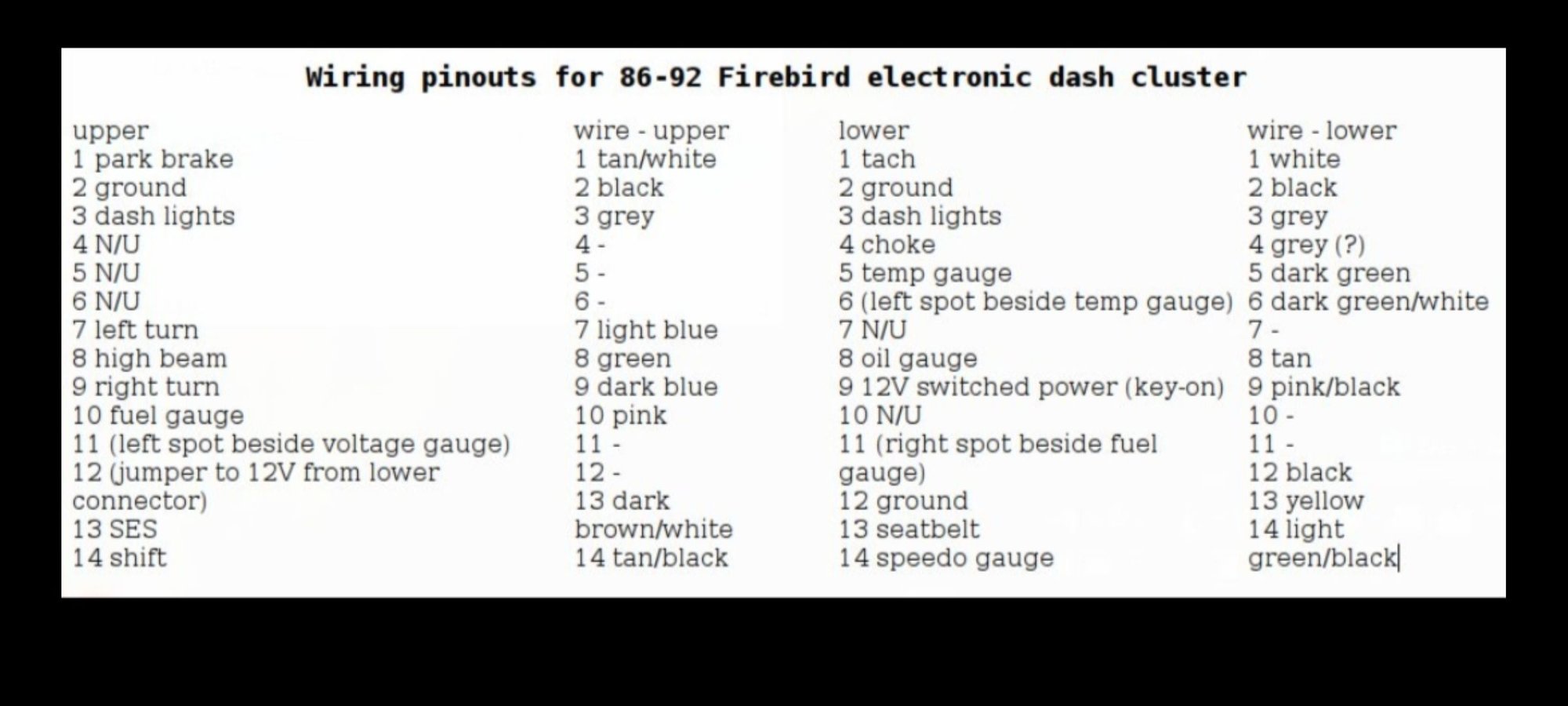

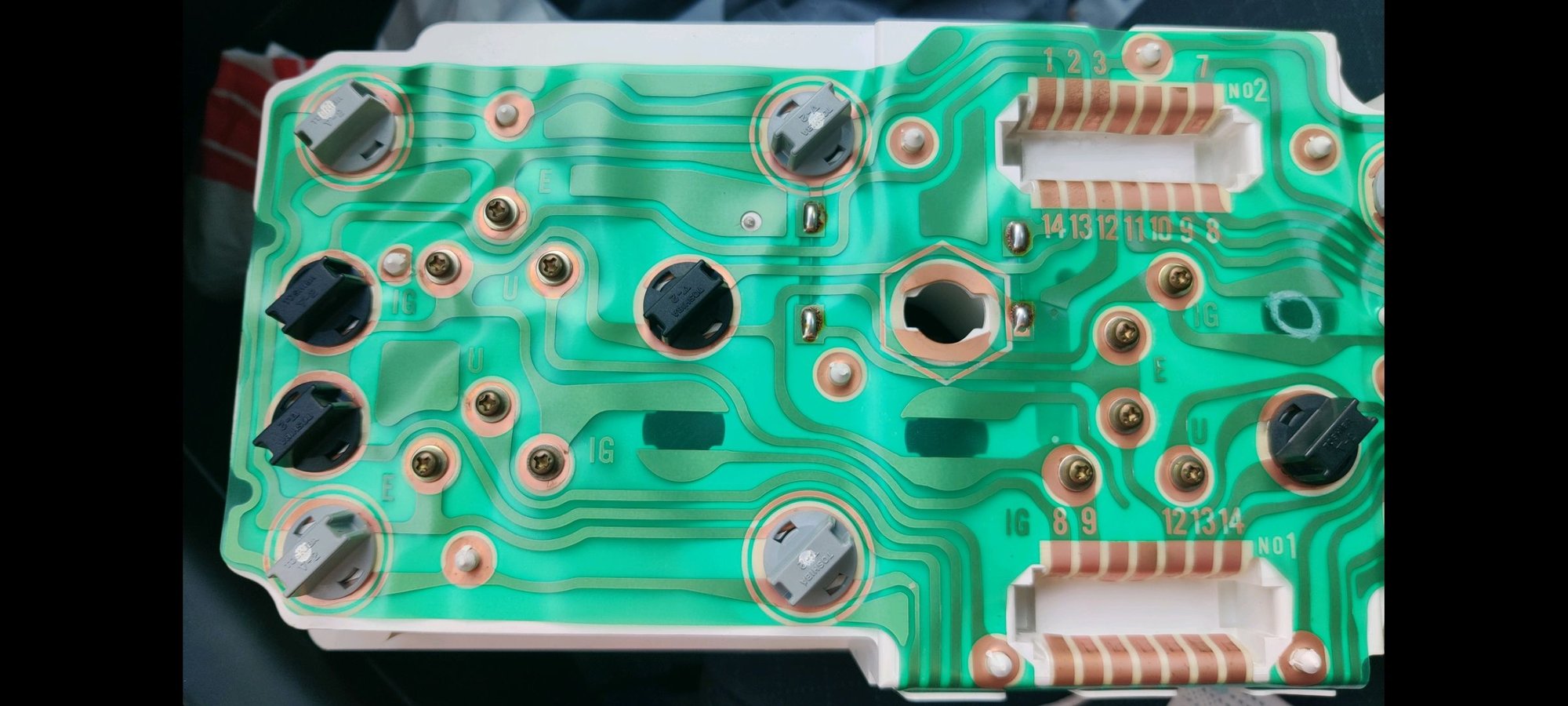

In the middle of making my own custom cluster and I'm having a hard time finding accurate wiring diagram or pin outs to see what has to go where. Any help would be appreciated!
Supreme Member
Joined: Sep 1999
Posts: 3,004
Likes: 813
From: Colorado USA
Car: '83 Firebird (T/A Clone)
Engine: 350 with L-69 components
Transmission: 700R-4, 2000 RPM stall converter
Axle/Gears: 10-bolt/3.73 ..
Re: 89 GTA gauge cluster wiring diagram/pin outs
My '83 service manual shows that information, so I imagine a '89 service manual would also...
Junior Member
Joined: May 2021
Posts: 13
Likes: 4
Joined: Mar 2001
Posts: 10,405
Likes: 2,081
Car: '89 Firebird
Engine: 7.0L
Transmission: T56
Re: 89 GTA gauge cluster wiring diagram/pin outs
