Sensor diagnosis
06-29-2023, 07:55 PM
#1
Junior Member
Thread Starter
Join Date: Sep 2022
Location: Illinois
Posts: 13
Received 0 Likes
on
0 Posts
Car: 1985 Pontiac Firebird Trans AM
Engine: 305 Small block Chevy TPI
Transmission: There
Axle/Gears: Leaking
Sensor diagnosis

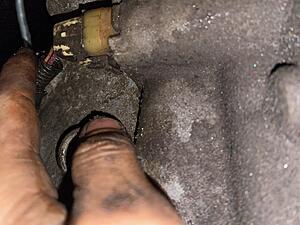

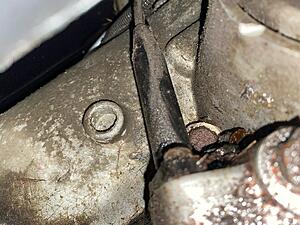

Hello all, I was welding in my new floor pans and lets just say there was an accident and my car became a FIREbird but anyway it was put out but the 2 sensors on my transmission got burnt through it and nothing else I checked everything, I was wondering if someone could tell me what these 2 sensors are so I can replace them, sorry for the bad angle its a tight spot to get a camera in. if someone could tell me that would be great thankyou.
06-29-2023, 08:56 PM
#2
Member
Join Date: Sep 2002
Location: honolulu
Posts: 187
Likes: 0
Received 10 Likes
on
10 Posts
Car: '86MCSS
Engine: 396 .030"
Transmission: M20
Re: Sensor diagnosis
TCC and TV cable.
Some good reference pics...ignore that it's from a corvette...
https://www.thirdgen.org/forums/engi...00r4-sale.html
Some good reference pics...ignore that it's from a corvette...
https://www.thirdgen.org/forums/engi...00r4-sale.html
Last edited by stew'86MCSS396; 06-29-2023 at 09:19 PM.
06-30-2023, 12:00 AM
#3
Junior Member
Thread Starter
Join Date: Sep 2022
Location: Illinois
Posts: 13
Received 0 Likes
on
0 Posts
Car: 1985 Pontiac Firebird Trans AM
Engine: 305 Small block Chevy TPI
Transmission: There
Axle/Gears: Leaking
Re: Sensor diagnosis
Im sorry but what does TCC and TV cable mean, im just trying to make sure I get the correct things for when I order the parts, I think I understand the TV cable but the one that looks like a sensor plug im not sure.
The following users liked this post:
T.L. (06-30-2023)
06-30-2023, 03:35 PM
#5
Supreme Member
Join Date: Jul 2006
Location: 212 is up in this Bit@#
Posts: 2,768
Received 741 Likes
on
567 Posts
Car: Resto-Mod 1987 IROC-Z Clone
Engine: Alky fed L92 Vortec Twin-Turbo 6.8L
Transmission: My own built/ design 4L80M
Axle/Gears: Custom 12 bolt (4.10:1)
Re: Sensor diagnosis
Both of those:
-Throttle-Valve Cable
-Torque-Converter Clutch Circuit
Are very important in regard to the Life of the THM700-R4 Transmission.
The T.V. Cable must be connected and adjusted correctly, otherwise the the Transmission will not have the appropriate Line-Pressure...
And the Transmission will slip, Burn-Up, and Fail.
The Torque-Converter Lock-Up Circuit must be operational to keep the Transmission from Over-Heating while Expressway Driving.
-Throttle-Valve Cable
-Torque-Converter Clutch Circuit
Are very important in regard to the Life of the THM700-R4 Transmission.
The T.V. Cable must be connected and adjusted correctly, otherwise the the Transmission will not have the appropriate Line-Pressure...
And the Transmission will slip, Burn-Up, and Fail.
The Torque-Converter Lock-Up Circuit must be operational to keep the Transmission from Over-Heating while Expressway Driving.
