Headlamp ground location

Anyone know what hole behind the headlamps where the grounds attach to?
Reply
Old Dec 29, 2025 | 01:12 PM
  #2
ACebell's Avatar
Member
Liked
Loved
Community Favorite

Joined: May 2023
Posts: 269
Likes: 95
From: The Villages, FL
Car: 1983 Camaro Z28
Engine: Originally LU5, but now Carb'd
Transmission: TH350
Axle/Gears: 323
Re: Headlamp ground location

You are in luck. I just painted my core support and fender wells this Saturday and started putting the harness back in place on Sunday. There are two grounds points. One wire on the driver's side behind the high beam, the hole closest to the radiator. Two ground wires on the passenger side behind the high beam, the lowest hole.
Reply
Old Dec 29, 2025 | 07:21 PM
  #3
steve40's Avatar
Thread Starter
Junior Member
10 Year Member

Joined: May 2015
Posts: 43
Likes: 1
Re: Headlamp ground location

Originally Posted by ACebell
You are in luck. I just painted my core support and fender wells this Saturday and started putting the harness back in place on Sunday. There are two grounds points. One wire on the driver's side behind the high beam, the hole closest to the radiator. Two ground wires on the passenger side behind the high beam, the lowest hole.

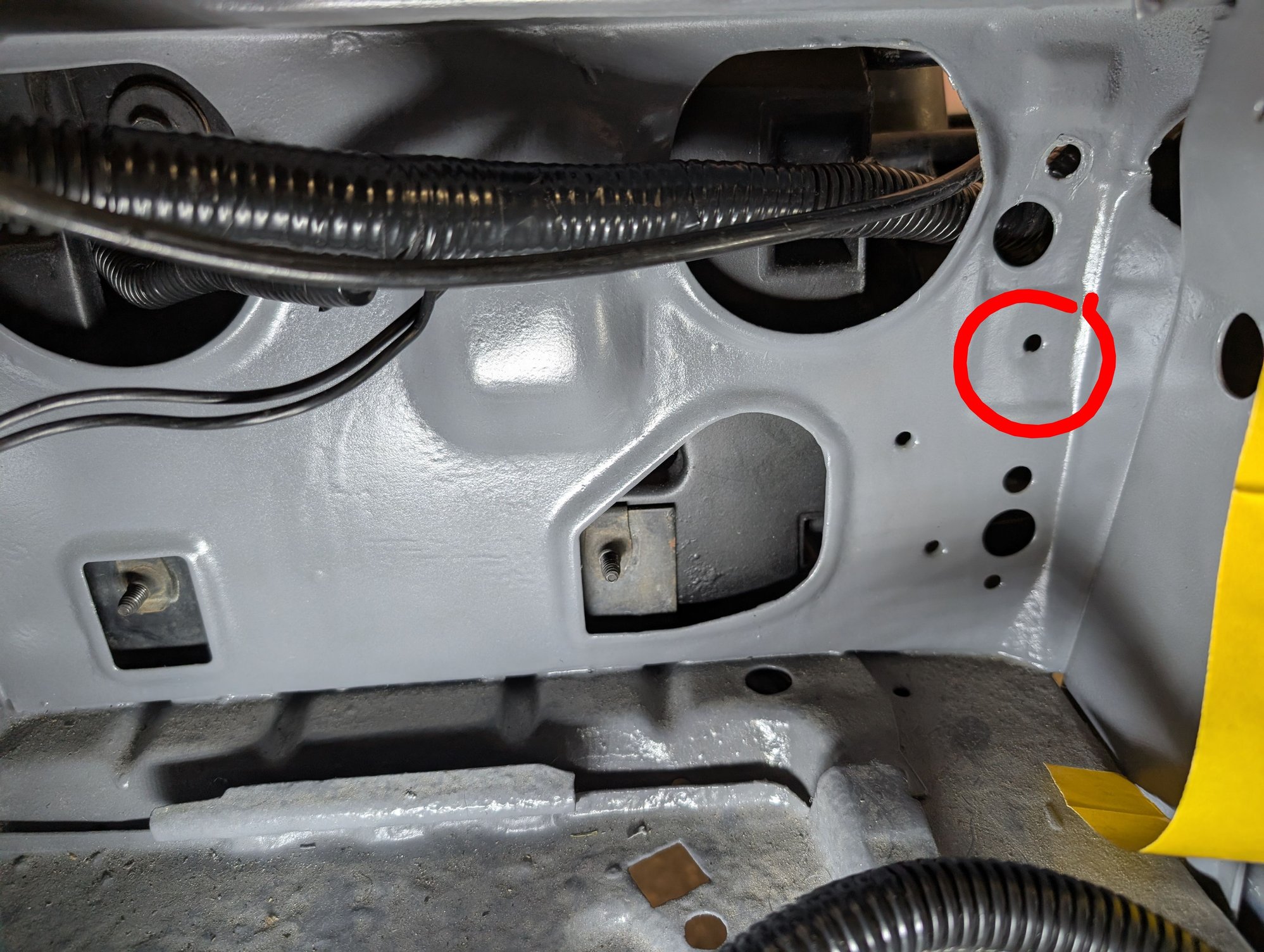

These holes?


Reply
Old Dec 30, 2025 | 09:01 AM
  #4
ACebell's Avatar
Member
Liked
Loved
Community Favorite

Joined: May 2023
Posts: 269
Likes: 95
From: The Villages, FL
Car: 1983 Camaro Z28
Engine: Originally LU5, but now Carb'd
Transmission: TH350
Axle/Gears: 323
Re: Headlamp ground location

Nope - 1st picture, top left hole. Second picture, from your circle, look straight up and there will be a similar hole like the 1st picture.
Reply
Old Dec 31, 2025 | 07:26 PM
  #5
vorteciroc's Avatar
Supreme Member
15 Year Member
Loved
Community Favorite
Top Answer: 1

Joined: Jul 2006
Posts: 2,859
Likes: 785
From: 212 is up in this Bit@#
Car: Resto-Mod 1987 IROC-Z Clone
Engine: Alky fed L92 Vortec Twin-Turbo 6.8L
Transmission: My own built/ design 4L80M
Axle/Gears: Custom 12 bolt (4.10:1)
Re: Headlamp ground location

No matter where you decide to connect the ground wires...

There needs to be a clean, bare metal location (remove any paint) for a good connection with low resistance.

Do Not just attach a Ground Eyelet to any unprepared surface with paint on it!
Reply
Old Jan 2, 2026 | 08:33 AM
  #6
sofakingdom's Avatar
Supreme Member
20 Year Member
Community Builder
iTrader: (1)

Joined: Sep 2005
Posts: 27,861
Likes: 2,427
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Headlamp ground location

And use a star washer between the terminal on the wire and the bare metal surface; and apply something to manage corrosion of bare metal such as NoOx, dielectric grease, etc..
