Chevy 383 motor and extras
**SOLD**

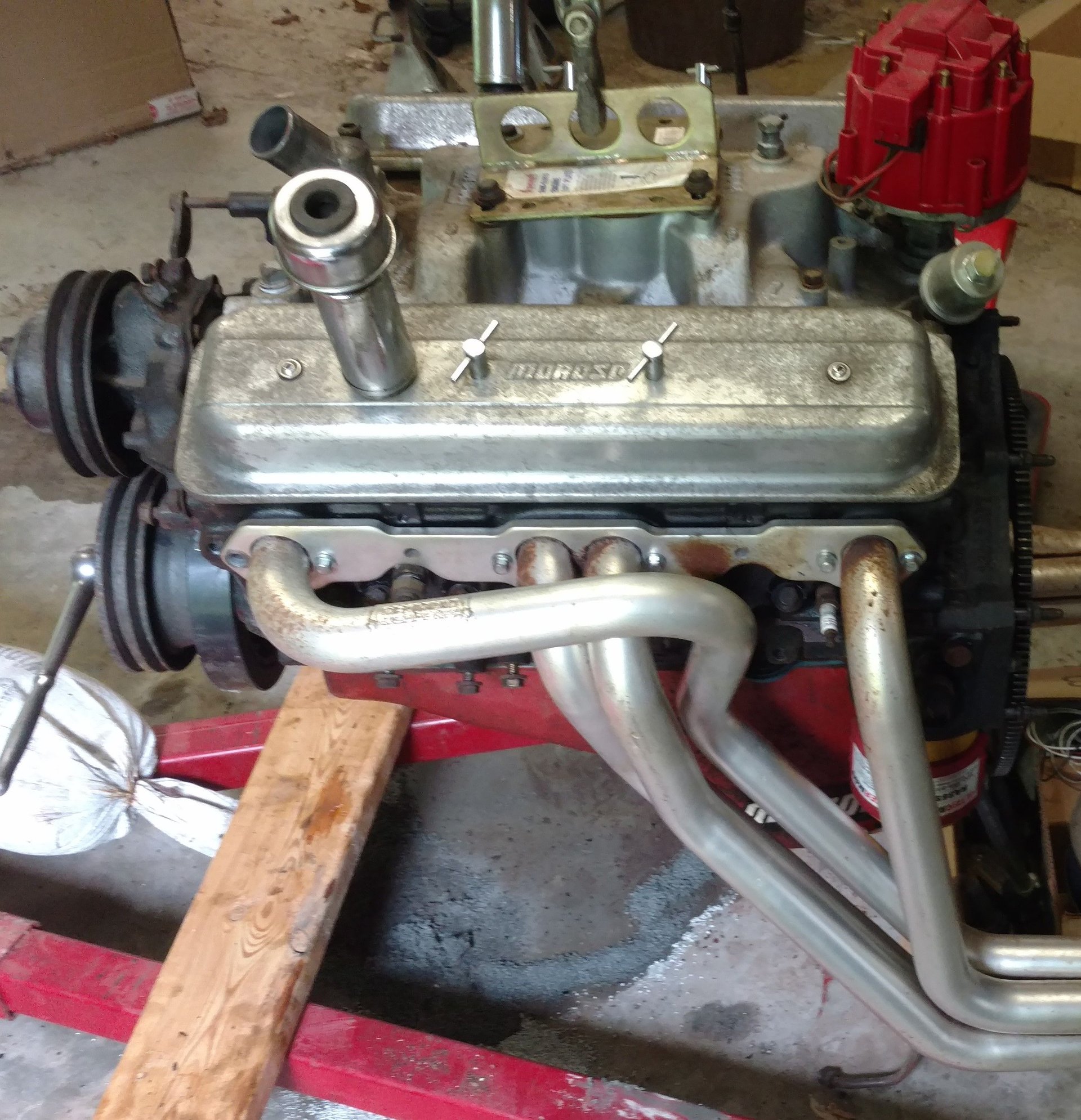

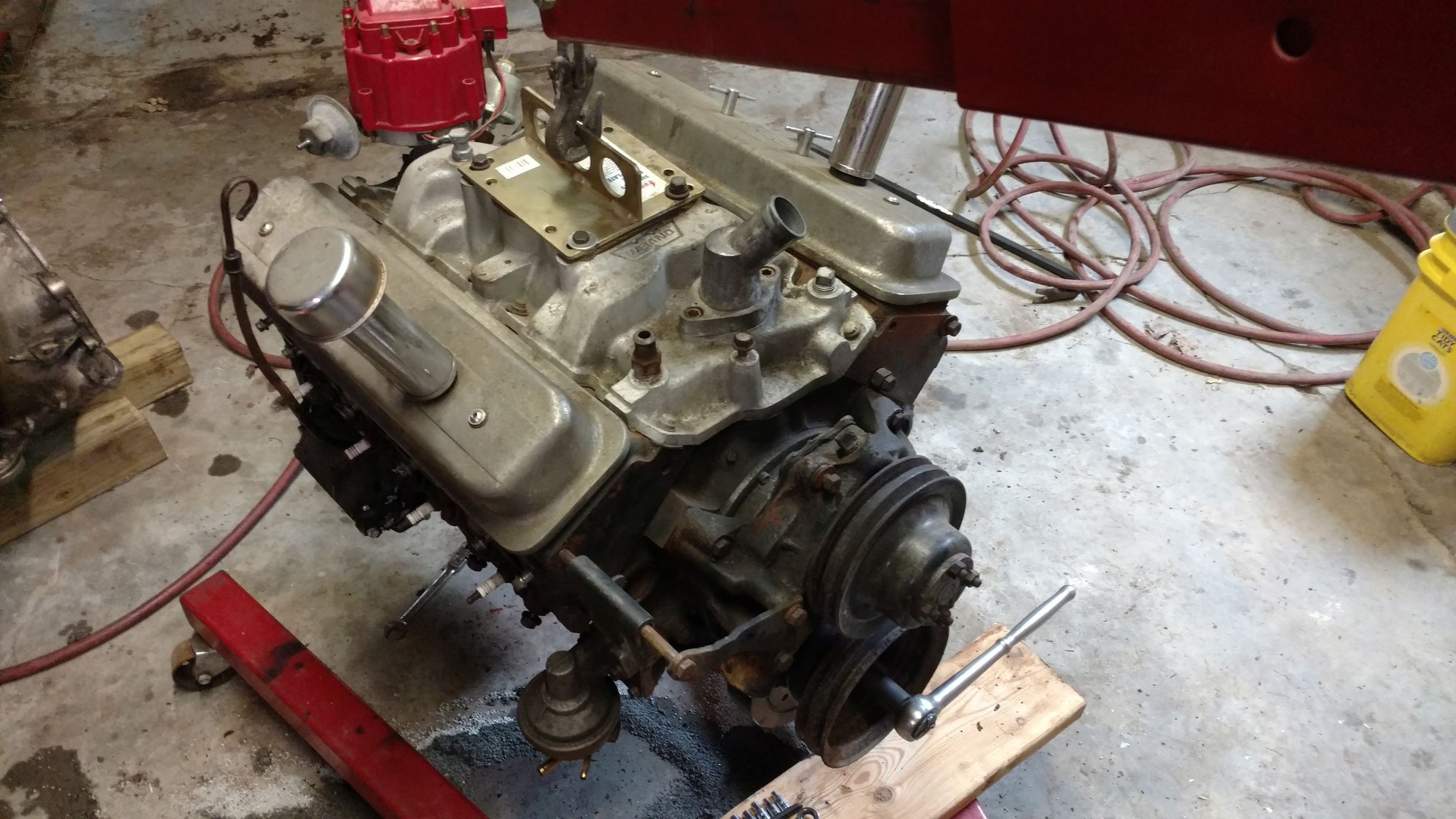

Ran great, 400 ft/lbs off idle. This motor was built for a truck, but would drop in under a TPI nicely since it has the 87-up intake manifold bolt pattern. That was my plan till the vehicle got too rusty.
You could also swap out the pistons for dished ones and run some serious power adders, the motor was built for it.
Outside shows some dirt and corrosion, but I have pulled the valve covers and pan and the inside is pristine. Less than 10K on it as after the rings seated it was just taken on a couple trips and driven on weekends.
Block prepped at Carlquist Competition Engines CT.

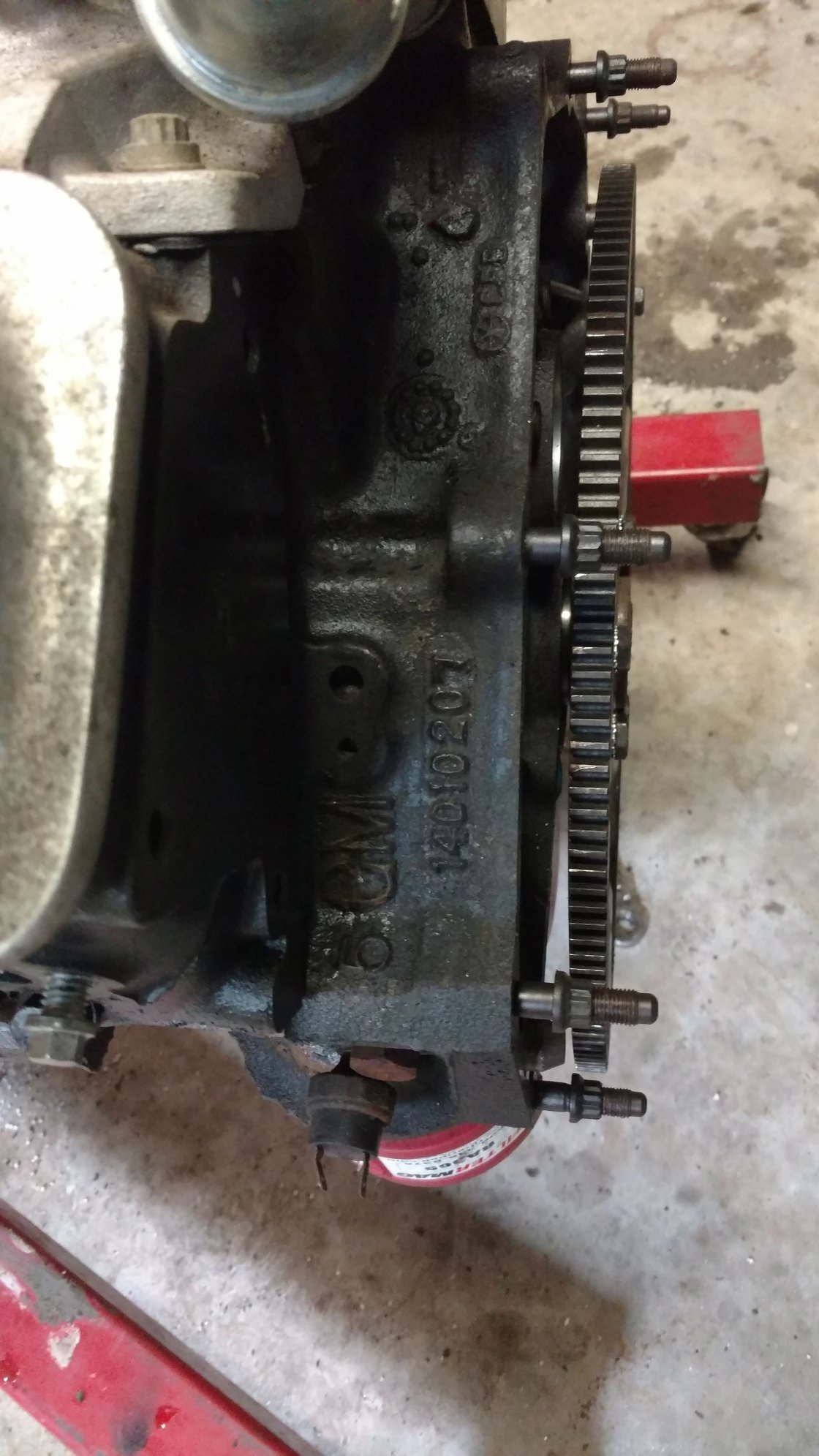

2 bolt mains, .30 over 1981 2 piece rear main seal block.
Completely hand built and blueprinted. CC'ed chambers and hand ported heads to take flat top pistons and still run 87 octane.
Extras you can have if you need for free:
I can take additional photos on request, I have lots of extra parts that I would throw in.
Ran great, 400 ft/lbs off idle. This motor was built for a truck, but would drop in under a TPI nicely since it has the 87-up intake manifold bolt pattern. That was my plan till the vehicle got too rusty.
You could also swap out the pistons for dished ones and run some serious power adders, the motor was built for it.
Outside shows some dirt and corrosion, but I have pulled the valve covers and pan and the inside is pristine. Less than 10K on it as after the rings seated it was just taken on a couple trips and driven on weekends.
Block prepped at Carlquist Competition Engines CT.
2 bolt mains, .30 over 1981 2 piece rear main seal block.
Completely hand built and blueprinted. CC'ed chambers and hand ported heads to take flat top pistons and still run 87 octane.
- World Iron Heads WRL-042770 hand enlarged to 81cc and ported/gasket matched
- Scat Forged Rods SCA-25700
- Scat Forged Crank SCA-435050
- Speed Pro Pistons SLP-H860CP30
- Comp cams Xtreme 4x4 roller Cam CCA-12-411-8
- Comp cams retrofit hydraulic roller Lifters CCA-853-2
- Comp cams Pro-Mag roller Rocker Arms CCA-1601-16
- Trick Flow Chromoly Pushrods TFS-21407350
- Comp cams double roller Timing set CCA-3100
- Cloyes 2-piece timing cover
- Clevite Rod bearings CLE-CB663HNK
- Clevite Main Bearings CLE-MS909HK
- Weiand aluminum dual plane Intake manifold with chrome swivel coolant thermostat housing
- Melling HIPO oil pump 10554
- 7 quart moroso pan 20160
- moroso alum centerbolt valve covers
- Powermaster compact high torque starter 9612
- MSD Knock Alert 8964 (sensor installed in passenger side block drain)
Extras you can have if you need for free:
- Heddman ceramic coated long tube headers 1-5/8" 3" collectors with O2 sensor bung
- HEI coil-in-cap distributor with adjustable vacuum advance and multiple sets of advance weights/springs, Moroso end shim kit
- Spare set of centerbolt cork valve cover seals
- Quadrajet Carb with spare rebuild kit/float/multiple jets/rods, metal fuel tube to connect to fuel pump
- Air cleaner short horn style
- Mechanical Fuel pump or Fuel pump block off plate, new gaskets for both
- Gaskets: Headers (aluminum and paper), fuel pump, valve covers, water pump, timing cover, pan gaskets, intake end walls
- Polyurethane motor mounts with clamshells
- Transmission inspection cover to motor mount struts and hardware (also selling TH350 and NP208 if you are interested)
- Spare Melling Oil Pump
- Oil filter no-bypass mount (if you only use in hot weather)
- Alternator and power steering pump
- Chrome starter heat shield
I can take additional photos on request, I have lots of extra parts that I would throw in.
Last edited by 88305tpiT/A; Jul 14, 2021 at 08:36 AM. Reason: sold
Joined: Feb 2017
Posts: 4,185
Likes: 576
From: Meriden, CT 06451
Car: 84 TA orig. 305 LG4 "H" E4ME
Engine: 334 SBC - stroked 305 M4ME Q-Jet
Transmission: upgraded 700R4 3200 stall
Axle/Gears: 10bolt 4.10 Posi w Lakewood TA Bars
Re: Chevy 383 motor and extras
Damn, what a shame that the car rotted.
You should consider finding another 3rd gen to put this into. You already have all the parts.
You should consider finding another 3rd gen to put this into. You already have all the parts.
Thread Starter
Supreme Member
iTrader: (2)
Joined: Nov 2000
Posts: 1,188
Likes: 2
From: Ft Worth, TX USA
Car: 2016 Ram 1500
Engine: 3.0L Diesel
Transmission: 8sp
Re: Chevy 383 motor and extras
I'm moving across the country soon so I'm trying to get it to someone who'll do just that!
