Hi:

Looking for an Original GM 83-86 Chevy Camaro L69 305G Dual Snorkel Air Cleaner Top Wing Nut & Carburetor Stud. My Camaro GM Book does not list a Part Number for the Wing Nut, all its lists is the following:

Nut - Wing (M6x1)
Carburetor Stud GM Part #: 14048874. Same Stud on the LG4 305H

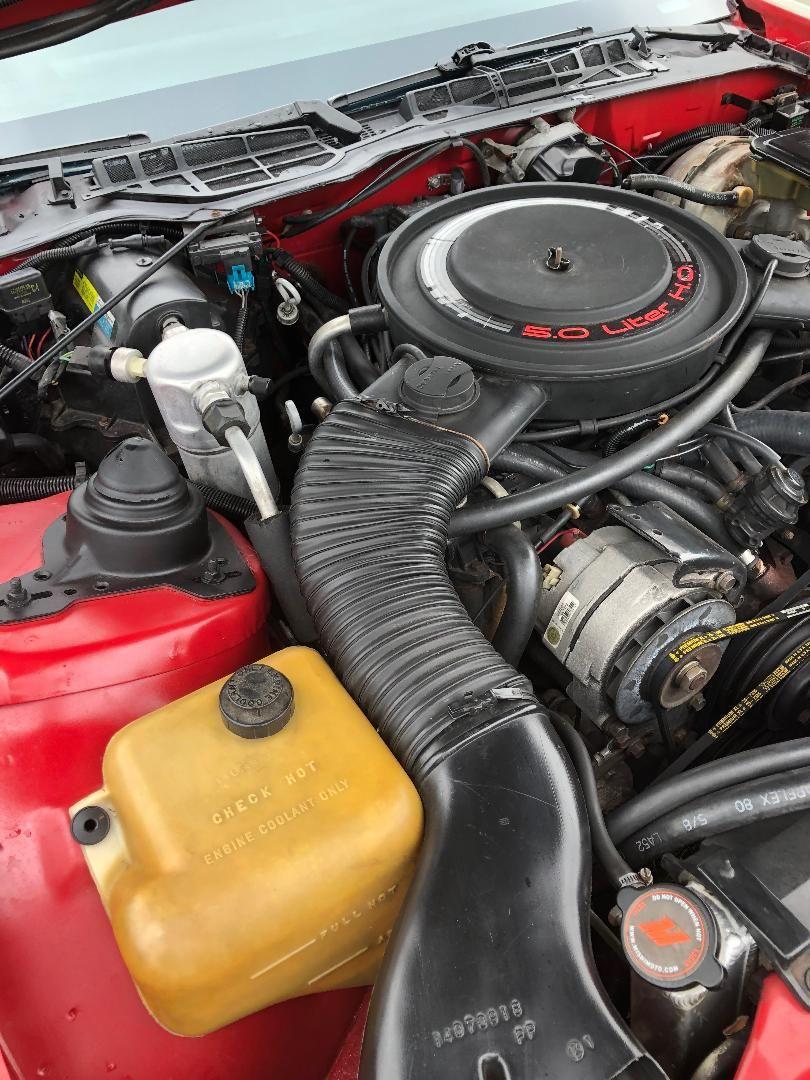

See Original Camaro L69 Photo of the Top Air Cleaner Wing Nut and Stud

Reach out if anyone has a nice set

Thanks
Rob



I believe the wingnut is the same as G-Body 305. Interestingly, my GM parts book for 82-90 B, G, T, X, doesn't list a V8 wingnut for H, G, N engines, either. The wingnut probably was a bulk item, in packs, and didn't need listed how we usually see called out in the parts books.

If you're looking for a new wingnut to fill in a gap, 76-81 C3 is 1/4"-20 and readily available aftermarket, bright, or black. I believe the ~88-up TBI V8 cars went M6-1.0

14048874 is probably shorter than the stud for thicker element air cleaners in other applications. 25509829 was used in some of those.



Great info for sure, thank you for your reply, I really appreciate it

Thank You



I used to have these just laying around. But check eBay and Camaro-specific groups, L69 wing nuts and the GM stud show up there occasionally.
