This looks like a good thread to find out if their are any other 82 S/E WS6 V8 4 Speed Birds out there?

Or anybody with info on how many 82 S/E's came with the WS6 LG4 B/W 4speed setup?

Awesome Site! So many 3rd gens, so much time to check um out



Nice looking car you've got there.



Thanks



that looks like a real sweetheart for an 82. the early camaros and 'birds are a rare sight, let alone a nice one. sorry i cant help you with any info on your car, i dont know if it is rare or not, but i sure dont see them like that around!



holy crap i jsut saw that that thing has the super rare rear wiper! what are your RPO codes?



It is so refreshing to see a clean and rare 82 Firebird S/E.

It is beautiful, please keep it clean (and stock)

The only 82-84 SE's I have ever seen have been in the junkyard



I do Plan on keeping the bird in as original condition as possible, but those hoods from RamAirHood.com sure would give this old bird a little Attitude
and it is a Bolt on part so I could swap back n forth

If my build sheet was in better condition I would scan and post it, but it's tattered up pretty good. I ordered one of the packages from PHS so I will do a scan when it shows up.

Here is partial list using the thirdgen rpo decoder, I hate typin

WS6 : PERFORMANCE PACKAGE, SPECIAL
J65 : BRAKE SYSTEM, PWR, FRT & RR DISC
D42 : SHADE, RR COMPT SECURITY
YR2 : SEAT FRT, CUSTOM
AU3 : LOCK CONTROL, SIDE DR, ELEC
LG4 : ENGINE, GAS, 8 CYL, 5.0L, 4BBL
NK3 : STEERING WHEEL, SPORT, SOFT RIM, SIMULATED LEATHER
C60 : HVAC SYSTEM, AIR CONDITIONER FRT MAN CONTROLS
YS2 : REAR SEAT, DELUXE
A01 : WINDOW, TINTED, ALL SHADED, W/S
Unable to locate code M24 in our database!
N10 : EXHAUST SYSTEM DUAL
T93 : LAMP, TAIL & STOP, SPECIAL
Y06 : RING GEAR, 9.50 IN., SAGINAW, (S.P 0.)
A31 : WINDOW, POWER OPERATED, SIDE
G80 : AXLE POSITRACTION, LIMITED SLIP
N33 : STEERING COLUMN, TILT TYPE
U21 : CLUSTER, INST, OIL, COOL TEMP, VOLTS, TACH
K35 : CRUISE CONTROL, VACUUM RESUME
A90 : LOCK CONTROL, RR COMPT LID, REM CONT ELEC RELEASE
GU5 : AXLE REAR, 3.23 RATIO
N65 : WHEEL & TIRE,SPARE, SPACE SAVER, STEEL
U75 : ANTENNA, POWER, RADIO
Unable to locate code W69 in our database!
B94 : ORNAMENTATION, EXTR EMBLEM, BODY, VAR I
C49 : DEFOGGER, RR WINDOW, ELECTRIC
D80 : SPOILER, RR END PNL
YT1 : BUILD UP DR & QTR
AR9 : SEAT, FRT BKT, EUROPEAN STYLE, PASS A DRIVER RECL
C25 : WIPER SYSTEM, RR WINDOW


The M24 B/W 4 Speed was not in the database, and the W69 rpo, S/E option also

My fingers still hurt after takin that shortcut



That sounds like a pretty nice car. You have the rpo for a 9.5 ring gear, so is it still a ten bolt? I'm a little slow but I thought that all third gens got 10 or 9 bolts with 7.5 or 7.625 ring gears.


Edit: I wish I had searched first I feel really stupid since it was a typo and should be 7.5. Nice car either way.



i have a 10bolt and my rpo says i have 9.5 ring gear also, not sure what it means but i have it, i also have GT4 rpo (3.73 posi)



I did'nt pull out the ruler last year when I changed the gear oil so I cant say for sure that it is in fact a 9.50.

But, do a google for y06 and every site that comes up with a decoder shows that rpo as a 9.50 saginaw.

I may pop the cover this weekend and check it out, I love the smell of gear oil in the morning



Ok, it must be a world wide web rpo typo?!

Here is what I found in my 82-91 f-body illustrated parts book.

82-86 Differential/Locking 7.50 ring gear (Borg-Warner)

1984 Differential/Locking 7.50 ring gear (Eaton)

82-89 asm/axle 7.50 ring rear

90-91 asm/axle 7.625 ring gear

85-90 asm/axle 7.75 ring gear

9.50 ring gears are more common in 1/2 ton trucks


Maybe i'll put off sniffin the gear oil..........

Just looked at the build sheet, Y06 = CPT K/PAD

Captain Krunch Padding????

or maybe, "Y06 CPT K/PAD, PANEL,COWL KICK(CARPETED)"

from a post here several years ago.



Nice car, and welcome to the unoffical "Early Bird Club"



I had no idea you could get the WS6 package on an SE. Sweet!



Yup! on the S/E you could get any of the T/A options except the fuel infection in 82, and with a T/A any S/E options were available.

I am looking for a pair of the S/E sail panel emblems, they were only on the 82-84 S/E's and were color matched more or less to the body.

In 82 they were Blue metallic or Gold wing Metallic, 83-84 came with
Silver gray
White
Royal Blue Metallic
Brier Brown Metallic
Cream Beige
& Red.

Im going to repaint the Bird this summer so it does not matter what color emblems I end up with as they would be painted to match.
The Front fender (Firebird) emblems are near the same color as the body as well as the rear Bird emblem.

And yes, I will be using the original Jadestone color it came with

I this uploads it's a pic of what they should look like.



Here is a shot of the Green Bird



Lets try that again.....



Im still waiting on PHS, but here is a scan of the original build sheet.
It's a little beat up, but I was lucky to get it out from under the drivers seat in 4 or 5 pieces

Birthdate, April 2nd, 1982.



Great news i got your s/e emblems send me a pm



the y06 code that comes back with the "saginaw 9.50" must be an error because on the rpo sheet i have it says "kick pad carp"... i take that as meaning carpeted kick panels

but what does the mean? any clue? i have the same code



Not sure about that one, anybody else have that RPO?



Hey 3rdgenparts! The S/E emblems showed up today and look great

:lala: :lala: :lala:

I thought Iwas going to have to hit the junkyards at least once a week 4 ever before snagging a pair.

Thanks Again



No problem.Glad I can help in someway



Just when you think a part is made out of unobtainium, along comes TGO & 3rdgenparts . Cold ones for everybody



I assume you mean the Crossfire motor?



Sure!

TBI, Throttle Body Infection



what exactly is an SE firebird? I saw one at a local junkyard yesterday. It was an 83. It had different rims than yours though. Like line spokes.



The S/E was a mid level luxury Firebird. Could be had with anything from the Iron Duke to the LG4. Every option except LU5 was avaliable on the S/E.



If it has wheels that looks like this pm im looking for the 15" versions.Not picky on the shape.



actually the base motor in the S/E was the 2.Hate. the iron duke was only available in the BASE model...thank ***, they quarrantined the virus...

Josh



Iron Duke could be had on the S/E. It was a credit delete option.



hmm, must be a special option, because all the original ads i have for the 82-83 Firebirds all say the 2.8 was the base engine. but, ya learn something new every day...

Josh



The LQ9, Iron Duke was a credit delete option on the S/E, But only available on the California models. At least thats what my 1982 Firebird brochure shows.

V6 standard, V8 optional everywhere, but if the S/E was going to be sold in california the Iron duke was available.

Here is a link to a scan of the brochure,

82 S/E options



Ive never seen an F-body with that color before, I saw a late model Buick Riv, 94,95 or so with what looked like the exact same color?
Was the jadestone a 1 year only option or a special order item?



The Light Jadestone was 82 only and from what I understand an S/E only color, At least as far as F-body's. It was available on some other GM cars for many years off and on.



Just received my build sheet from PHS, nice job. too big for the scanner so this is a pic I took of it. Only 13K in 1982 dollars!



just an fyi, that's not a buildsheet. That's your window sticker.



Brain fart
My tattered build sheet is back up a few posts I meant to type window sticker but it came out build sheet

PHS does a nice job, it looks yellow but is in fact white, best I could do with my old digital camera.
I got both a normal one and a laminated one also, they do a great job on the lamination

PHS does not have the build sheets for our cars, only the dealer invoice and window sticker are available, 2 out of 3 aint bad



Now its the second s/e youve seen not not in the junk yard



Hey,I have the same center piece



Yeah,Im in the special rear wiper club too



Thats Kool, I thought the green bird was only used on the Jadestone colored S/E. But now if mine is ever damaged I know it wont be "impossible" to find another one

This means they are made of semi-unobtainium instead of 100% pure unobtainium



Youre car is awsome 82s/ews6,My car was painted about 8 years ago by the previous owner.He said the origanal out of factory color was two tone with blue and gray or silver.Is that true and if it is do you or anyone have any pics of 82 original two tone s/e simalar to the colors I mentioned?



Thats interesting....

What color is your interior? also have you looked at the cowl plate under the hood? Id be curious to know if the original paint was light jadestone metallic like mine?
If so it would look like this, paint codes being 47D 45L 45U

during the day my S/E looks silver, but at night it looks more like a soft blue.

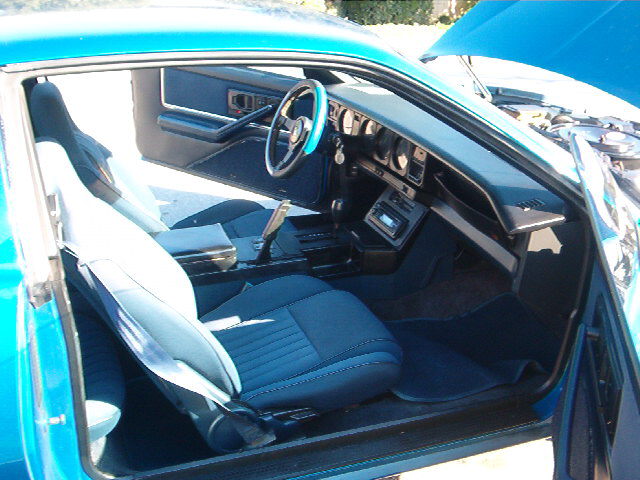

Yeah,your paint is nice ,thats cool how it changes shades of color at night and day.Ill post a pic of the cowl plate tomorrow but heres my interior for now...........I took out the original dark blue
flip down map holder in favor of the black one I have on there now.What color is youre interior?
heres more on my car..........http://files.automotiveforums.com/ga...?ppuser=266650

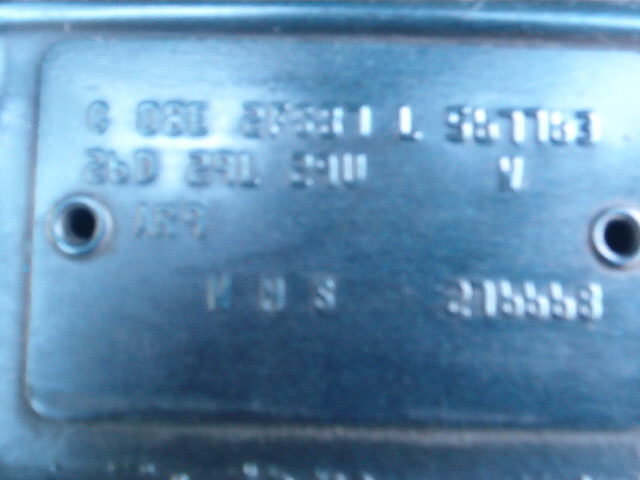

heres the codes



Paint code 29 is Dark Blue Metallic, almost a black. what you have on it now looks like a code 22, Bright Blue Metallic or very close to it for 1982 J2000 only.

What ya have on it now looks better



The interior color is like the exterior, blue or green. Depends on the lighting. The first pic of the open door looks very blue to me, but in the second pic the rear seat area looks green at the upper left with almost direct lighting and turns kinda blue as the lighting is dimmer towards the lower right.

First pic



Second pic



very nice 82 ws6,I guess only a certain number of 82 birds came with the bird logo on the door panel huh?



The bird emblem looks like a plug for a the manual window crank hole for cars with electric windows. That is kind of odd as I would have thought that GM would have made the door panel with out the hole and punch the hole for manual window cars.

I find the chrome strip on the door panel pretty funky though! My 88 is pretty much devoid of any brightwork. Was this an S/E trim detail or was it on all of the early third gens?



1982 only.
