Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
FYI...When GM releases parts (as you see them listed in the parts catalog), there is a list of std. names that they work from. So some part names get close to the theme or idea of what a part is, but may not strike some as being as specific as they should be. But GM has to have some control...you can't issue a new parts name every time a variation on a theme comes down the pike, for the 10k some parts that make up an automobile.
#53
Moderator
Join Date: Mar 2001
Location: Doghouse ······································ Car: 1989 Formula 350 Vert Engine: 350 L98 Transmission: 700R4 Axle/Gears: B&W 3.27
Posts: 14,235
Received 163 Likes
on
118 Posts
Car: 87 Formula T-Top, 87 Formula HT
Engine: 5.1L TPI, 5.0L TPI
Transmission: 700R4, M5
Axle/Gears: Sag 3.73, B&W 3.45
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I picked up one of these open screens and it was plastic. I just used a semi-flat black spray paint and it looks perfect. If for no other reason, it looks good being a little high tech on my 1991 Formula, and I guess it does help in removing heat from the engine when driving because if you put your hand over it in cold weather, even at idle, you can feel the heat coming out.
The Screens I have are both Aluminum... Hmm...
Last edited by okfoz; 03-04-2016 at 10:03 AM.
#54
Member
iTrader: (2)
Join Date: Jun 2006
Location: Piscataway, N.J.
Posts: 241
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1991 Formula 350, 2002 Grand Prix G
Engine: 350 with SLP & Edlebrock mods
Transmission: 4-speed automatic-700 R4
Axle/Gears: 10 bolt with 3:73
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Sounds like a win-win for opening that up on NON functioning Formula hoods. Like I said, it looks good, but might be an idea to keep a piece of tape inside on it IF you know your going to drive in heavy rain. For some of us, driving in rain is NOT an option!
#55
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Interesting to know that there seems not to be a big problem with water entering in the engine compartment. maybe adding the drip rail would lower the risk even more... anyway, good info, thanks guys!
#56
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Yes, for some reason they call it an "Ornament" I guess it is a good of description as any... It is definitely not Steel, take a magnet to it. Pretty sure it is a Zinc, they used to make a ton of small parts out of zinc because it was easily cast. Our mirrors are Zinc for example, Some older car grilles were Zinc, until they went to plastic. Door handles were Zinc (inside and outside)...
I know my 87 is not plastic...
John
I know my 87 is not plastic...
John
#57
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,698
Received 748 Likes
on
507 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
All (8-10) of my screens are aluminum same with the solid block off panels, aluminum. Nothing plastic that I've ever seen.
My 2 89 formulas and 3 92 formulas have a metal cast hood insert.
My 2 89 formulas and 3 92 formulas have a metal cast hood insert.
Last edited by TTOP350; 03-07-2016 at 10:56 AM.
#58
Supreme Member
iTrader: (2)
Join Date: Mar 2014
Location: South Ms
Posts: 4,422
Received 721 Likes
on
490 Posts
Car: 89 Firebird
Engine: 355 TBI
Transmission: 700R4
Axle/Gears: 10 Bolt.Posi-3.73s
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts

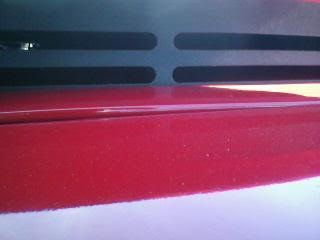

My plate seems to be an aluminum but I have seen a different plate before with small round holes instead of slots.
#61
Supreme Member
iTrader: (2)
Join Date: Mar 2014
Location: South Ms
Posts: 4,422
Received 721 Likes
on
490 Posts
Car: 89 Firebird
Engine: 355 TBI
Transmission: 700R4
Axle/Gears: 10 Bolt.Posi-3.73s
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I duno. It is different than the others I have seen. I do have a spare block off plate that seems to be out of same material. Maybe the PO had it made.
#62
Moderator
Join Date: Mar 2001
Location: Doghouse ······································ Car: 1989 Formula 350 Vert Engine: 350 L98 Transmission: 700R4 Axle/Gears: B&W 3.27
Posts: 14,235
Received 163 Likes
on
118 Posts
Car: 87 Formula T-Top, 87 Formula HT
Engine: 5.1L TPI, 5.0L TPI
Transmission: 700R4, M5
Axle/Gears: Sag 3.73, B&W 3.45
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
It would not be hard to router something like that out of some thin aluminum, I could make them all day long once I got set up. THe little honeycomb would be a pain in the butt tho...
#63
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,698
Received 748 Likes
on
507 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
May be a start
http://www.expandedsheets.com/perforated-sheets.html
https://www.google.com/search?q=hone...eet%20aluminum
http://www.expandedsheets.com/perforated-sheets.html
https://www.google.com/search?q=hone...eet%20aluminum
Last edited by TTOP350; 03-07-2016 at 08:04 PM.
#64
Member
iTrader: (2)
Join Date: Jun 2006
Location: Piscataway, N.J.
Posts: 241
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1991 Formula 350, 2002 Grand Prix G
Engine: 350 with SLP & Edlebrock mods
Transmission: 4-speed automatic-700 R4
Axle/Gears: 10 bolt with 3:73
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I've seen this plate before. I had my STOCK plate cutout (a friend of mine has a machine shop) and made one just like it. Did you buy yours on eBay? If so, that's where I listed it.
#65
Supreme Member
iTrader: (2)
Join Date: Mar 2014
Location: South Ms
Posts: 4,422
Received 721 Likes
on
490 Posts
Car: 89 Firebird
Engine: 355 TBI
Transmission: 700R4
Axle/Gears: 10 Bolt.Posi-3.73s
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
My car was originally from the New Jersey area and was sold to a man in Louisiana whom I bought it from. It had the air-induction and all on it when the PO bought it so..who knows
#66
Member
Join Date: Nov 2001
Location: Huber Heights (DAYTON), Ohio U.S.
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
Car: 83 T/A WS-6
Engine: LG4 305
Transmission: T-5 Manual Clutch
Axle/Gears: 3.73 Positraction
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
What is the part number for the oil pressure switch?
#68
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,698
Received 748 Likes
on
507 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Installed the drip trays in my open scoop cars as well..
#69
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
HI all i have the plastic bit in my hood but thats it i have the lo3 air cleener which the botom is used duz anyone know if the lid with the hole is avalable ? thanks
#71
Moderator
Join Date: Mar 2001
Location: Doghouse ······································ Car: 1989 Formula 350 Vert Engine: 350 L98 Transmission: 700R4 Axle/Gears: B&W 3.27
Posts: 14,235
Received 163 Likes
on
118 Posts
Car: 87 Formula T-Top, 87 Formula HT
Engine: 5.1L TPI, 5.0L TPI
Transmission: 700R4, M5
Axle/Gears: Sag 3.73, B&W 3.45
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
IIRC the ductwork for the hood to the air cleaner is different for the LG4/L69 is different than the Cross Fire. The 4BBL cars had a round hole, the Cross Fire cars was more diamond shaped.
John
John
#72
Supreme Member
iTrader: (58)
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I haven't looked lately, but it seems there are more of the carbed setups available in recent years than there were a decade ago. I suppose it's due to more cars being junked, and more people looking to make a buck, and higher prices, making for more supply, less demand, and items sitting "on the shelf" waiting for the right buyer.
RARE! KNIGHT RIDER KITT 1LE T5 IROCZ
#73
Junior Member
Join Date: Feb 2014
Location: Near Scranton, PA
Posts: 81
Likes: 0
Received 3 Likes
on
2 Posts
Car: 1982 T/A
Engine: 1973 400 Chevy
Transmission: 4 Speed Borg Warner
Axle/Gears: 3:23
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I'm hoping someone has a stash of those rubber gaskets for the top of the air cleaner (carburetor version)
#74
Junior Member
Join Date: Jul 2016
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Car: '79 Pontiac Trans Am
Engine: 400
Transmission: Super T10 4spd
Axle/Gears: 8.5 10 bolt with 2.73 gears
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Very cool read. I've just started looking for one of the carb version air cleaners. I'm interested to see if this would would work on an 80-81 Trans Am hood. I have a '79 Trans Am and I'm working on installing a 454 TBI controlled by a Megasquirt computer.
#75
Junior Member
Join Date: Jul 2016
Posts: 47
Likes: 0
Received 0 Likes
on
0 Posts
Car: '79 Pontiac Trans Am
Engine: 400
Transmission: Super T10 4spd
Axle/Gears: 8.5 10 bolt with 2.73 gears
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
[/QUOTE]Thought I would share the latest on my endeavor...
I tried to be smart by using a 3rd gen cowl induction setup on my 2nd gen hood. Someone I'm friends with on Facebook told me that this setup is completely interchangeable but I think I found otherwise. I'm debating on selling the 3rd gen setup or trying to modify it to work with my hood. Is there something I'm missing here?
'80-'81 Turbo 301 hood.
'80-'81 hood scoop piece removed.
'82-84 Firebird screen vs '80-'81 block off plate. 3rd gen is wider and shorter.
'82-'84 cowl induction unit compared to the '80-'81 opening. You can see the 3rd gen opening is wider than the 2nd gen.
Last edited by F-Body Int; 07-05-2017 at 03:16 PM.
#76
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Thought I would share the latest on my endeavor...
I tried to be smart by using a 3rd gen cowl induction setup on my 2nd gen hood. Someone I'm friends with on Facebook told me that this setup is completely interchangeable but I think I found otherwise. I'm debating on selling the 3rd gen setup or trying to modify it to work with my hood. Is there something I'm missing here?
'80-'81 Turbo 301 hood.
<image>
'80-'81 hood scoop piece removed.
<image>

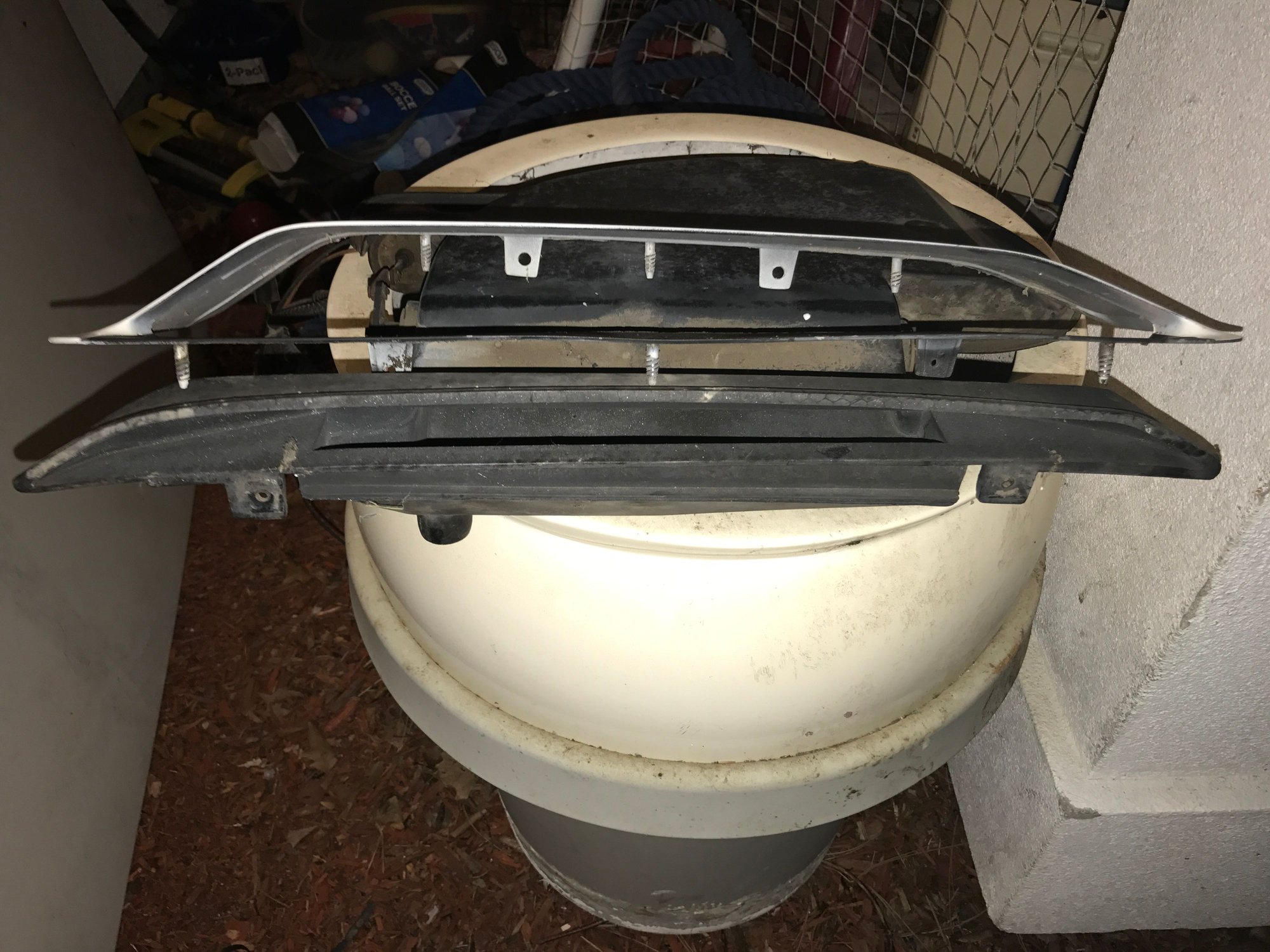

'82-84 Firebird screen vs '80-'81 block off plate. 3rd gen is wider and shorter.
<image>
'82-'84 cowl induction unit compared to the '80-'81 opening. You can see the 3rd gen opening is wider than the 2nd gen.
<image>
I tried to be smart by using a 3rd gen cowl induction setup on my 2nd gen hood. Someone I'm friends with on Facebook told me that this setup is completely interchangeable but I think I found otherwise. I'm debating on selling the 3rd gen setup or trying to modify it to work with my hood. Is there something I'm missing here?
'80-'81 Turbo 301 hood.
<image>
'80-'81 hood scoop piece removed.
<image>
'82-84 Firebird screen vs '80-'81 block off plate. 3rd gen is wider and shorter.
<image>
'82-'84 cowl induction unit compared to the '80-'81 opening. You can see the 3rd gen opening is wider than the 2nd gen.
<image>
I can imagine that the systems are not interchangeable simply because on the second gen Trans Am the hood scoop was not meant for cowl induction but rather to get some clearance for the air cleaner which had to be relocated for the turbo. I believe the PMD engineers had to redesign the system completely for the third generation to get cowl induction working.
Probably reworking the 3rd gen setup to fit in a 2nd gen car would involve a lot of work, all of it would have to be rather well sealed to get the air flow into the carb. Nevertheless that would be an awesome project that I'd love to see!
#77
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
https://www.thirdgen.org/forums/engi...al-gasket.html
#78
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Hi,
New to the boards, but have been reading for a long time.
I have a 1984 Firebird that has a burnt solenoid (part # 10025693). Does anyone know where I can find another one?
BTW, when searching for this issue, I found two Technical Service Bulletins related to this: 83-I-121 and 84-6-241. They both recommend changing the vacuum switch (AIR INT SCOOP DR A/CL, part # 10032130). I know it's near unfindable, but where could it be found if it was still available?
Thanks for the great write-up!
Michael
New to the boards, but have been reading for a long time.
I have a 1984 Firebird that has a burnt solenoid (part # 10025693). Does anyone know where I can find another one?
BTW, when searching for this issue, I found two Technical Service Bulletins related to this: 83-I-121 and 84-6-241. They both recommend changing the vacuum switch (AIR INT SCOOP DR A/CL, part # 10032130). I know it's near unfindable, but where could it be found if it was still available?
Thanks for the great write-up!
Michael
#79
Supreme Member
iTrader: (8)
Join Date: Oct 2001
Location: Il
Posts: 11,698
Received 748 Likes
on
507 Posts
Car: 1989-92 FORMULA350 305 92 Hawkclone
Engine: 4++,350 & 305 CIs
Transmission: 700R4 4800 vig 18th700R4 t56 ZF6 T5
Axle/Gears: 3.70 9"ford alum chunk,dana44,9bolt
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Hi,
New to the boards, but have been reading for a long time.
I have a 1984 Firebird that has a burnt solenoid (part # 10025693). Does anyone know where I can find another one?
BTW, when searching for this issue, I found two Technical Service Bulletins related to this: 83-I-121 and 84-6-241. They both recommend changing the vacuum switch (AIR INT SCOOP DR A/CL, part # 10032130). I know it's near unfindable, but where could it be found if it was still available?
Thanks for the great write-up!
Michael
New to the boards, but have been reading for a long time.
I have a 1984 Firebird that has a burnt solenoid (part # 10025693). Does anyone know where I can find another one?
BTW, when searching for this issue, I found two Technical Service Bulletins related to this: 83-I-121 and 84-6-241. They both recommend changing the vacuum switch (AIR INT SCOOP DR A/CL, part # 10032130). I know it's near unfindable, but where could it be found if it was still available?
Thanks for the great write-up!
Michael
#80
Junior Member
Join Date: Apr 2012
Location: Canada
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1984 Trans Am
Engine: 305
Transmission: 700R4
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Great info, I have most of the parts for my 84 in a box as it had been taken off by the previous owner. Now I know what I'm missing and how to fix it up lol
Thanks
Thanks
#81
Senior Member
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Pretty cool info! I didn't see this thread when it was first posted.
I have an original 1980 Turbo Trans am. No doubt that would have been a clearance problem without the bump in the hood in 1980-81. Good sized heat shield on it too. That under hood get hot as all heck after driving it around for a while. Makes a guy wonder what would have happened if the engineers would have been able to fit it all under the hood without any clearance issues. Would the turbo "bump" exist on the early 3rd gens today?
Even though they were originally designed for the 80-81's I think they look better on the 82+ 3rd gen cars.
I have an original 1980 Turbo Trans am. No doubt that would have been a clearance problem without the bump in the hood in 1980-81. Good sized heat shield on it too. That under hood get hot as all heck after driving it around for a while. Makes a guy wonder what would have happened if the engineers would have been able to fit it all under the hood without any clearance issues. Would the turbo "bump" exist on the early 3rd gens today?
Even though they were originally designed for the 80-81's I think they look better on the 82+ 3rd gen cars.
#82
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I'm late to the party here since I haven't posted in over three years, but I remembered to come on here because someone e-mailed me if I had any parts.
Back in the late 1990s, and through most of the 2000s... I supplemented my income as a computer programmer by pulling parts of cars in the junkyard. For those who may know the place, it's U-PULL-IT in Davie, Florida... now owned by LKQ.
Anyway, this basically being Fort Lauderdale and Miami area, there were always Maseratis, Porsches, Rolls Royces, and any number of fancy cars there. It was pretty common to find loaded vehicles, including 2nd and 3rd gen cars where they had these options on them across the board. Whether it was the factory subwoofer "performance sound" or the cowl induction hoods, etc.
I made it a point to buy up all the cowl components I found in the junkyard. I also saw several Z-28s with fiberglass factory cowl hoods (the ones with the vents down the middle where the flap would open down into the hood).
I still have probably at least a dozen or more complete kits. Unfortunately, they're all stored neatly in boxes, hidden at the far end of a home that I no longer live in, and am currently renting out. The current tenant has no clue, because I carried the boxes to the other end of the attic, but I'm a good 1,400 miles away from there right now. But... if anyone needs some of these... hit me up in 5-6 years and I might be living in South Florida again, hahah.
But I think this write-up is awesome, thanks for posting it. I've always thought this was such a cool idea for the 3rd gen cars!
Back in the late 1990s, and through most of the 2000s... I supplemented my income as a computer programmer by pulling parts of cars in the junkyard. For those who may know the place, it's U-PULL-IT in Davie, Florida... now owned by LKQ.
Anyway, this basically being Fort Lauderdale and Miami area, there were always Maseratis, Porsches, Rolls Royces, and any number of fancy cars there. It was pretty common to find loaded vehicles, including 2nd and 3rd gen cars where they had these options on them across the board. Whether it was the factory subwoofer "performance sound" or the cowl induction hoods, etc.
I made it a point to buy up all the cowl components I found in the junkyard. I also saw several Z-28s with fiberglass factory cowl hoods (the ones with the vents down the middle where the flap would open down into the hood).
I still have probably at least a dozen or more complete kits. Unfortunately, they're all stored neatly in boxes, hidden at the far end of a home that I no longer live in, and am currently renting out. The current tenant has no clue, because I carried the boxes to the other end of the attic, but I'm a good 1,400 miles away from there right now. But... if anyone needs some of these... hit me up in 5-6 years and I might be living in South Florida again, hahah.
But I think this write-up is awesome, thanks for posting it. I've always thought this was such a cool idea for the 3rd gen cars!
#83
TGO Supporter
iTrader: (7)
Join Date: Nov 2002
Location: MA, USA
Posts: 3,460
Likes: 0
Received 5 Likes
on
2 Posts
Car: 83 bird
Engine: 305/383
Transmission: WC T5
Axle/Gears: 3:42
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
This thread was amazing. Thank you for the incredible in-depth information, I love this stuff!
#84
On Probation
iTrader: (8)
Join Date: Jan 2002
Location: Dallas
Posts: 1,434
Likes: 0
Received 6 Likes
on
4 Posts
Car: 1982 Trans Am KITT Replica
Engine: LU5 305 CROSSFIRE
Transmission: TH-350
Axle/Gears: Limited Slip 3:23
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Just to throw it out there. I have a STACK of '82-84 Cowl hood LG4/LU5 air cleaners in case anyone's looking for one
Dave
Dave
#86
Member
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Great information. Thanks,
Louis
Louis
#88
Supreme Member
iTrader: (5)
Join Date: Oct 2002
Location: In the paint booth!
Posts: 2,656
Received 1,160 Likes
on
653 Posts
Car: 1986 Camaro Drag Car
Engine: 383 on Ethanol
Transmission: Automatic
Axle/Gears: 3.90 Currie 9 inch
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
What a great read! I still have both air boxes and air cleaners from an 83 trans am and an 84 trans am that I had 25 years ago lol. Both were l69 cars. I took them off because I liked looking through the scoop at a chrome air cleaner lol
#89
Supreme Member
iTrader: (4)
Join Date: Dec 2001
Location: Chicagoland
Posts: 9,666
Received 546 Likes
on
376 Posts
Car: 1989 IROC-Z. Original owner
Engine: LB9. Dual Cats. Big Cam
Transmission: World Class T-5
Axle/Gears: BW 3.45
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Thanks Cehbra, for linking me to this excellent thread, which I had forgotten about. Will have to re-read it. Excellent work!
#90
Junior Member
#91
Junior Member
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
What is the part number for this drip tray? Not sure it is 20427916. I sure would like to get one of those trays. Would save my air cleaner for sure! I see it mounts with 2 of the screws that hold the shield/ ornament, whatever they called it. Lol thanks, gary
#92
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
The number is GM 10028254, see post 22
or see here: 001
https://nemigaparts.com/cat_spares/e...f/03/2f03-004/
or see here: 001
https://nemigaparts.com/cat_spares/e...f/03/2f03-004/
#93
Junior Member
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Thank you. Thought it was a misprint as all the gm part sites say that number does not exist!
#94
Supreme Member
iTrader: (58)
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Well, GM doesn't generally keep parts in inventory for more than a few years. After 10 years they tend to look at the cost to warehouse an item, vs the potential that it'll sell, and parts get scrapped. Considering the part in question wasn't that common to begin with, it's pretty safe to say it hasn't been available since the 1980's.
#95
Junior Member
Join Date: Mar 2013
Location: Greece
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1982 trans am
Engine: 4bbl carb 305 v8
Transmission: 3 auto
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Try to post clear photos to reveal the complete route in your wiring circuit.
I see no continuation in your photos but a mix up which confuses me.
I see no continuation in your photos but a mix up which confuses me.
Last edited by katrav8; 07-22-2020 at 03:06 PM.
#96
Junior Member
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I have an odd situation i guess. I purchased my 83 T/A from its original owner who said the car is totally original.
It’s an LG4 engine, has an air cleaner with a round opening BUT has the air box cowl opening that is diamond shaped.
is it possible that GM did this? Vin definitely confirms it’s an LG4 car.
It’s an LG4 engine, has an air cleaner with a round opening BUT has the air box cowl opening that is diamond shaped.
is it possible that GM did this? Vin definitely confirms it’s an LG4 car.
#97
Member
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I have an odd situation i guess. I purchased my 83 T/A from its original owner who said the car is totally original.
It’s an LG4 engine, has an air cleaner with a round opening BUT has the air box cowl opening that is diamond shaped.
is it possible that GM did this? Vin definitely confirms it’s an LG4 car.
It’s an LG4 engine, has an air cleaner with a round opening BUT has the air box cowl opening that is diamond shaped.
is it possible that GM did this? Vin definitely confirms it’s an LG4 car.
The following users liked this post:
dmifflin (01-15-2022)
#98
Junior Member
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
I spoke with the original owner and he said he did nothing to car and bought it factory as is. I’m stumped. Wondering if this was a factory screw up.
Either way I need to get my hands on the right setup if anyone is out there selling.
Either way I need to get my hands on the right setup if anyone is out there selling.
#99
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Fail testing the setup
Just revving the engine is not going to activate the solenoid. The engine must be under load i.e. accelerating. But there is a very easy method, which is also described in the 1984 Firebird manual: when the engine is running (oil pressure switch closed) AND the engine is warm (cold override switch closed) then plug off the vacuum line from the vacuum switch. The vac switch closes and current flows to the solenoid, which then should move. If it does, the system is working.
The solenoid makes a lot of noise when activated. With the hood open and me standing next to it it’s really an annoying knock like someone poked the hood with a hammer. Strangely that sound cannot be heard inside the car when the car is moving. I’m actually thinking of adding an LED to the cowl grill that lights up under WOT to know when the system is open when I’m on the road.
Just revving the engine is not going to activate the solenoid. The engine must be under load i.e. accelerating. But there is a very easy method, which is also described in the 1984 Firebird manual: when the engine is running (oil pressure switch closed) AND the engine is warm (cold override switch closed) then plug off the vacuum line from the vacuum switch. The vac switch closes and current flows to the solenoid, which then should move. If it does, the system is working.
The solenoid makes a lot of noise when activated. With the hood open and me standing next to it it’s really an annoying knock like someone poked the hood with a hammer. Strangely that sound cannot be heard inside the car when the car is moving. I’m actually thinking of adding an LED to the cowl grill that lights up under WOT to know when the system is open when I’m on the road.
#100
Member
iTrader: (1)
Join Date: Apr 2010
Location: ct
Posts: 269
Likes: 0
Received 40 Likes
on
37 Posts
Car: 84 Trans Am
Engine: Turbo 301
Transmission: T-5
Axle/Gears: 3.23
Re: Tech Article: Trans Am factory cowl induction (LG4 / L69) in 4 parts
Knew I could find this info on this site. Thanks to Cehbra, and 3rdgen. for keeping this info available. Extremely helpful. Super appreciative.
