Racing seats...
Anyone have them in their car? cant seem to find to many, post pics if you please.
#2
Supreme Member
iTrader: (4)
Join Date: Mar 2005
Location: Home of most 3rd gens Van Nuys, CA
Posts: 1,090
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC
Engine: Turbo 293ci 4.8l
Transmission: T56
Re: Racing seats...
i got some by a brand call "Hunsacker" theyre really nice and fat guy friendly. lol
ill get some pics tomorrow.
ill get some pics tomorrow.
#4
Supreme Member
iTrader: (1)
Join Date: Feb 2005
Location: Pleasant Grove, Utah
Posts: 2,642
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1993 GMC Typhoon
Engine: 4.3 Turbo
Transmission: 4L60
Axle/Gears: 3.42
Re: Racing seats...
im actually using my stock brackets, but i had to modify mine by adding a 1/8" x 2" wide plate welded to the outside rail since the seats site a bit wider. ill take pics and show you tomorrow
#5
Supreme Member
iTrader: (4)
Join Date: Mar 2005
Location: Home of most 3rd gens Van Nuys, CA
Posts: 1,090
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC
Engine: Turbo 293ci 4.8l
Transmission: T56
Re: Racing seats...
ive had a couple sets of ebay seats.just gotta be careful cause theyre hit and miss. some have strong frames and some of them have really thin frames.
heres some ebay ones i had in my old iroc:
heres some ebay ones i had in my old iroc:
#6
Member
Re: Racing seats...
I got these from Arizen Racing they pretty much build it how you want it, you can also order them with custom brackets that fit perfect.
Trending Topics
#8
Member
Thread Starter
Join Date: May 2009
Location: Houma, LA
Posts: 327
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 camaro rs
Engine: 305 tbi
Transmission: 700R4
Axle/Gears: 2.73
Re: Racing seats...
they dont look half bad im wondering cause i might be getting a set that was in a 4th gen TA ~ they look like this http://www.mautofied.com/FX-Tuner-Im...ing/100223819/
#10
Supreme Member
iTrader: (4)
Join Date: Mar 2005
Location: Home of most 3rd gens Van Nuys, CA
Posts: 1,090
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC
Engine: Turbo 293ci 4.8l
Transmission: T56
Re: Racing seats...
theyll probably bolt up but they look wide and might not let you open your center console.
#11
Supreme Member
iTrader: (4)
Join Date: Mar 2005
Location: Home of most 3rd gens Van Nuys, CA
Posts: 1,090
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC
Engine: Turbo 293ci 4.8l
Transmission: T56
Re: Racing seats...
i had STI seats in my 02 z28. they sat a little high though.
3ARacing seats in my 95 z28
and had other seats in a couple other cars ive owned. think i like the current seats i have in my car now the most.
3ARacing seats in my 95 z28
and had other seats in a couple other cars ive owned. think i like the current seats i have in my car now the most.
#12
Supreme Member
iTrader: (10)
Join Date: Oct 2007
Location: Fl.
Posts: 1,881
Likes: 0
Received 2 Likes
on
2 Posts
Car: 83 Trans Am / 96 Jeep XJ
Engine: 355 / 4.0 I6
Transmission: TH350 / Auto
Axle/Gears: 3.23 10-bolt / 4wd
Re: Racing seats...
I was thinking of buying Summit Sport seats, which have brackets that you can buy that make them a direct bolt-in. Only thing is the brackets cost almost as much as the seats! Anyone have the summit seats in their third gens?
#17
Supreme Member
iTrader: (10)
Join Date: Oct 2007
Location: Fl.
Posts: 1,881
Likes: 0
Received 2 Likes
on
2 Posts
Car: 83 Trans Am / 96 Jeep XJ
Engine: 355 / 4.0 I6
Transmission: TH350 / Auto
Axle/Gears: 3.23 10-bolt / 4wd
Re: Racing seats...
Found these in a google search, Summit sport seats in a 91/92 camaro:
They look really really good!
They look really really good!
#19
Supreme Member
iTrader: (5)
Join Date: Mar 2011
Location: Central Texas
Posts: 2,893
Likes: 0
Received 4 Likes
on
4 Posts
Car: GTA
Engine: 350 TPI
Transmission: 700R4
Axle/Gears: Aussie 9-bolt/3.27 posi
Re: Racing seats...
Jeg's sells the SCAT Procar seats for $157 w/velour or $189 w/faux leather. And the direct fit brackets are $67 each. So both brackets together aer still less that 1 seat.
I've had SCAT Rally Recliner seats before & loved them. I would expect the same for the Procars.
http://www.jegs.com/p/Scat/Procar-Sp...ats/772085//-1
http://www.jegs.com/i/Scat/942/81168...oductId=772086
Every time I want to order mine, something else comes up & takes my money I had set aside.
I've had SCAT Rally Recliner seats before & loved them. I would expect the same for the Procars.
http://www.jegs.com/p/Scat/Procar-Sp...ats/772085//-1
http://www.jegs.com/i/Scat/942/81168...oductId=772086
Every time I want to order mine, something else comes up & takes my money I had set aside.
#20
Supreme Member
iTrader: (9)
Join Date: Mar 2007
Location: Raleigh, NC
Posts: 1,804
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1988 Flame Red Trans am GTA
Engine: Forged 355 4 Bolt, FIRST TPI
Transmission: 700r4
Axle/Gears: ls1 torsen 3.42 gear
Re: Racing seats...
man you guys are lucky... i cant find any seats in beechwood...... sucks to have beechwood interior
#21
Supreme Member
Join Date: Apr 2009
Location: Scottsdale, AZ
Posts: 2,852
Likes: 0
Received 1 Like
on
1 Post
Car: 89 GTA/93 S13/91 Si
Engine: 5.7 350 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: Racing seats...
i have beechwood too but i think black seats will look pretty good in it..cuz it'll match the console and dash
#22
Supreme Member
iTrader: (20)
Re: Racing seats...
I agree, as long as the console has back, the carpet can be tan/beechwood and just put some black in the door panels to accent the seats/console.
Thats kinda what I did with mine except red/black. Red seats on an otherwise all black interior worked out when the door panels were accented to match, and the red tones are also found in the brakes, engine, and suspension parts. So it all works out
EDIT:
sorta like this but with blacker seats and the black thirdgen console
https://www.thirdgen.org/forums/post...964-post2.html
Thats kinda what I did with mine except red/black. Red seats on an otherwise all black interior worked out when the door panels were accented to match, and the red tones are also found in the brakes, engine, and suspension parts. So it all works out
EDIT:
sorta like this but with blacker seats and the black thirdgen console
https://www.thirdgen.org/forums/post...964-post2.html
Last edited by Orr89RocZ; 08-15-2011 at 09:17 PM.
#23
Member
Thread Starter
Join Date: May 2009
Location: Houma, LA
Posts: 327
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1990 camaro rs
Engine: 305 tbi
Transmission: 700R4
Axle/Gears: 2.73
Re: Racing seats...
Ya I'm hoping their not too wide. but ill have to see when their brought to my house. Do you need a cage to have the belts that run through the seats?
Last edited by sk8r fer life; 08-15-2011 at 11:55 PM.
#24
Supreme Member
Join Date: Apr 2009
Location: Scottsdale, AZ
Posts: 2,852
Likes: 0
Received 1 Like
on
1 Post
Car: 89 GTA/93 S13/91 Si
Engine: 5.7 350 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: Racing seats...
properly, yes ^^
@Orr
yeah definitely..would have to do some black accenting on the door panels but maybe my cage will contrast enough?
@Orr
yeah definitely..would have to do some black accenting on the door panels but maybe my cage will contrast enough?
#25
Supreme Member
iTrader: (4)
Join Date: Mar 2009
Location: Pepperell, MA
Posts: 3,079
Likes: 0
Received 3 Likes
on
3 Posts
Car: 1987 Trans Am
Engine: LQ9/L92
Transmission: 4L60E
Re: Racing seats...
was looking at those summit seats for something nice on a budget, make actually have to pull the trigger now after seeing them installed....
#27
Supreme Member
iTrader: (10)
Join Date: Oct 2007
Location: Fl.
Posts: 1,881
Likes: 0
Received 2 Likes
on
2 Posts
Car: 83 Trans Am / 96 Jeep XJ
Engine: 355 / 4.0 I6
Transmission: TH350 / Auto
Axle/Gears: 3.23 10-bolt / 4wd
Re: Racing seats...
I'll eventually be buying a set as well. Though I don't think I will buy the brackets, I will find a way to graft them onto 4th gen rails.
#28
Member
iTrader: (1)
Join Date: Sep 2004
Location: Pearland, Texas
Posts: 112
Likes: 0
Received 1 Like
on
1 Post
Car: 1985 Firebird
Engine: 305
Transmission: TH350
Re: Racing seats...
We're running Kirkey Intermediates in our Firebird, but it's a C Prepared Autocross car. They are very comfy to me, though, and I've considered installing one in my DD Impala SS. I'll probably use a spare Corbeau, though, in case someone else wants to drive it.
Gene Beaird,
Pearland, Texas
#29
Supreme Member
iTrader: (56)
Re: Racing seats...
just use factry GM seat rails.2 sets of Pasngr side rails to get the seats a bit lower on the driver side. just swap out the rear legs on the (driver side) also
the flash makes them look almost pink.. but the red is close to the flame red of the cars
insides. note pasngr seat rails on drivers seat
rear rail cap left off for pics
also note: not in photos. the shoulder belt hanger above. is now mounted to rollbar. making for a almost factry looking install.
the flash makes them look almost pink.. but the red is close to the flame red of the cars
insides. note pasngr seat rails on drivers seat
rear rail cap left off for pics
also note: not in photos. the shoulder belt hanger above. is now mounted to rollbar. making for a almost factry looking install.
Last edited by articwhiteZ; 08-28-2011 at 07:47 PM.
#31
Supreme Member
iTrader: (1)
Join Date: Feb 2005
Location: Pleasant Grove, Utah
Posts: 2,642
Likes: 0
Received 2 Likes
on
2 Posts
Car: 1993 GMC Typhoon
Engine: 4.3 Turbo
Transmission: 4L60
Axle/Gears: 3.42
Re: Racing seats...
question???
how do you "swap out legs" when they are rivited on? are you grinding them off them using bolts to secure the legs?, pictures?
how do you "swap out legs" when they are rivited on? are you grinding them off them using bolts to secure the legs?, pictures?
#32
Supreme Member
iTrader: (56)
Re: Racing seats...
swaping seat rail legs:
you drill out the rivets. and use grade 8 bolts to install shorter legs (fiero) rear legs. for guys over 6'4"
using pasgr seat rails on both sides drops the front down low.
using fiero seat rails by the way are 1" taller in front then reg camaro pasngr seat rails. so mixing matching makes for a low set of rails that take all the GM parts. so when finnished the GM end caps also go back on and look good.
have cut the rear legs removing 1"(using a disk) from them and welding them back together..makes them 1 in shorter. also.
see how low and with the GM camaro rail caps back in place.. its all about the small things. note: seat is all the way back.
and yes that carpet is pushing 20 years old.. Lingenfelter 92 Z28. still smells new.. just a bit dusty..
Last edited by articwhiteZ; 08-21-2011 at 05:24 PM.
#36
Supreme Member
iTrader: (4)
Join Date: Mar 2005
Location: Home of most 3rd gens Van Nuys, CA
Posts: 1,090
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1987 IROC
Engine: Turbo 293ci 4.8l
Transmission: T56
Re: Racing seats...
its functional cause the openings are behind the radiator. in my sig the hood isnt finished but it is now. look up japanese heat extractor hood or my build thread in the LSX swap area
#37
Supreme Member
Join Date: Jan 2011
Location: Lynden WA
Posts: 1,929
Likes: 0
Received 8 Likes
on
7 Posts
Car: 84 Trans Am, 84 Fiero, 86 944
Engine: 5.0, 2.5, 2.5
Transmission: 5spd
Re: Racing seats...
i know of heat extractor hoods, got a buddy with an FC that has one but i will check out the thread, love your car
#38
Senior Member
iTrader: (8)
Join Date: Sep 2010
Location: Cincinnati, Ohio
Posts: 732
Likes: 0
Received 0 Likes
on
0 Posts
Car: '89 GTA
Engine: 5.7L LS1
Transmission: 4L60E
Axle/Gears: 9 bolt 3.27
Re: Racing seats...
I second that, you don't see any of these pics with beechwood interior. But I have a love for the GTA seats...I'll just get mine recovered. Those ebay seats don't feel cheap to you guys? I got in a car with them installed one time and did not like them at all. The only thing that could make me change is if I was forced to install a harness for the track.
#39
Supreme Member
Join Date: Apr 2009
Location: Scottsdale, AZ
Posts: 2,852
Likes: 0
Received 1 Like
on
1 Post
Car: 89 GTA/93 S13/91 Si
Engine: 5.7 350 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: Racing seats...

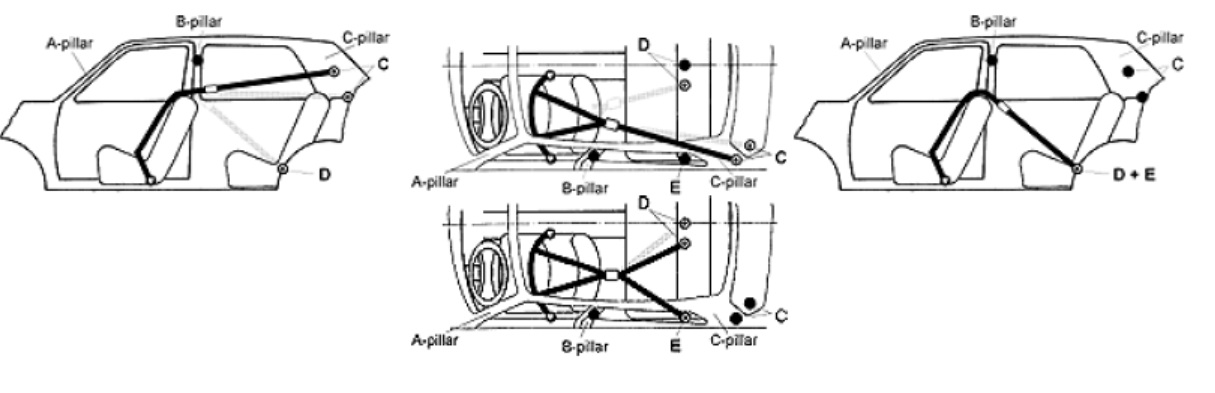

can harnesses be adapted to the GTA seats somehow? thats the only reason i want different seats :P
#40
Supreme Member
iTrader: (9)
Re: Racing seats...
great seats, but since they don't recline, they MUST be used with a roll bar of some sort, which Orr is doing correctly. This is just a note for others' info.
#41
Supreme Member
Join Date: Apr 2009
Location: Scottsdale, AZ
Posts: 2,852
Likes: 0
Received 1 Like
on
1 Post
Car: 89 GTA/93 S13/91 Si
Engine: 5.7 350 TPI
Transmission: 700R4
Axle/Gears: 3.23
Re: Racing seats...
[QUOTE=1MeanZ;5028330]a 5 or 6 point harness can not be safely used with the stock seats. What do you plan to anchor the belts too? The whole seats/harness/rollbar combination has to be carefully considered in a street car so that you don't actually make the car dangerous.
oh okay cool..thats why i asked before i jumped on anything thanks
oh okay cool..thats why i asked before i jumped on anything thanks
#42
Junior Member
Join Date: Jun 2012
Location: Canada
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1982/1984 Firebird Prostreet
Engine: 6.0 lq4
Transmission: t56
Re: Racing seats...
hello, I'm new to this. I was wondering if you would put racing seats plus belts into my 1982 Firebird, would you need a roll cage or could you bolt them to the the ground behind the seats thanks.
#43
Supreme Member
iTrader: (5)
Join Date: Mar 2011
Location: Central Texas
Posts: 2,893
Likes: 0
Received 4 Likes
on
4 Posts
Car: GTA
Engine: 350 TPI
Transmission: 700R4
Axle/Gears: Aussie 9-bolt/3.27 posi
Re: Racing seats...
In Corbeaus words:
It is strongly recommended that the shoulder harnesses be fitted as close to horizontal as possible. It is a must that the angle of the shoulder harness does not exceed 45 degrees in relation to the theoretical horizontal axis of the mounting points. Never anchor straight down behind the back. (See diagram for recommended anchorage points).
The lowest point that MIGHT work is behind the back seats at the bottom of the backrests (behind the bottom cushions) but that is dependent on measuring the specific car. I would recommend using the rear deck behind the rear seat after the mounting point has been approximately reinforced. Simply drilling a hole & mounting it there is NOT adequate.
I highly recommend the C points in the attached pics, if a roll bar/cage with a harness bar is not being used.
Last edited by BlackenedBird; 06-26-2012 at 07:47 PM.
#45
Senior Member
Join Date: Mar 2002
Location: Azusa, CA
Posts: 741
Likes: 0
Received 0 Likes
on
0 Posts
Car: 92 Z28 Camaro
Engine: Procharged 406.
Transmission: T-56
Axle/Gears: Moser 9" 4.11 Gears
Re: Racing seats...
The shoulder straps need to be at a certain height, which is way above the floor. Attach them to the floor & your risking spinal compression in a wreck.
In Corbeaus words:
It is strongly recommended that the shoulder harnesses be fitted as close to horizontal as possible. It is a must that the angle of the shoulder harness does not exceed 45 degrees in relation to the theoretical horizontal axis of the mounting points. Never anchor straight down behind the back. (See diagram for recommended anchorage points).
The lowest point that MIGHT work is behind the back seats at the bottom of the backrests (behind the bottom cushions) but that is dependent on measuring the specific car. I would recommend using the rear deck behind the rear seat after the mounting point has been approximately reinforced. Simply drilling a hole & mounting it there is NOT adequate.
I highly recommend the C points in the attached pics, if a roll bar/cage with a harness bar is not being used.
In Corbeaus words:
It is strongly recommended that the shoulder harnesses be fitted as close to horizontal as possible. It is a must that the angle of the shoulder harness does not exceed 45 degrees in relation to the theoretical horizontal axis of the mounting points. Never anchor straight down behind the back. (See diagram for recommended anchorage points).
The lowest point that MIGHT work is behind the back seats at the bottom of the backrests (behind the bottom cushions) but that is dependent on measuring the specific car. I would recommend using the rear deck behind the rear seat after the mounting point has been approximately reinforced. Simply drilling a hole & mounting it there is NOT adequate.
I highly recommend the C points in the attached pics, if a roll bar/cage with a harness bar is not being used.
#46
Supreme Member
iTrader: (20)
Re: Racing seats...
Mine anchors to points D/E in that picture. Over the roll bar and attaches to the rear seat belt holes.
The seats themselves dont recline but I stuck them on the factory power rails so I do get alittle adjustability with the recline
great seats, but since they don't recline, they MUST be used with a roll bar of some sort, which Orr is doing correctly. This is just a note for others' info
#47
Supreme Member
Re: Racing seats...
i got sum ebay seats but the fabric might as well be toilet paper it's worn really quick . i'll get a pic if you want
#49
Junior Member
Join Date: Jun 2012
Location: Canada
Posts: 5
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1982/1984 Firebird Prostreet
Engine: 6.0 lq4
Transmission: t56
Re: Racing seats...
Is it possible to just weld in a cross bar behind the front seats, or would you need the whole 8pt rollcage?
#50
Supreme Member
iTrader: (5)
Join Date: Mar 2011
Location: Central Texas
Posts: 2,893
Likes: 0
Received 4 Likes
on
4 Posts
Car: GTA
Engine: 350 TPI
Transmission: 700R4
Axle/Gears: Aussie 9-bolt/3.27 posi
Re: Racing seats...
Either try this from a 4th gen (i've never tried to fit me so no clue how well the mount would fit) or build one.
