Hi, new here. Trying to put the spare tire tools in an 89 IROC hatchback back together correctly. Cannister, lugwrench etc.all the bolts and brackets are here, but it was all a jumbled loose mess! Anyone have a nice clear picture of it all put away correctly in the locking compartment? Thanks to anyone willing to take the time!

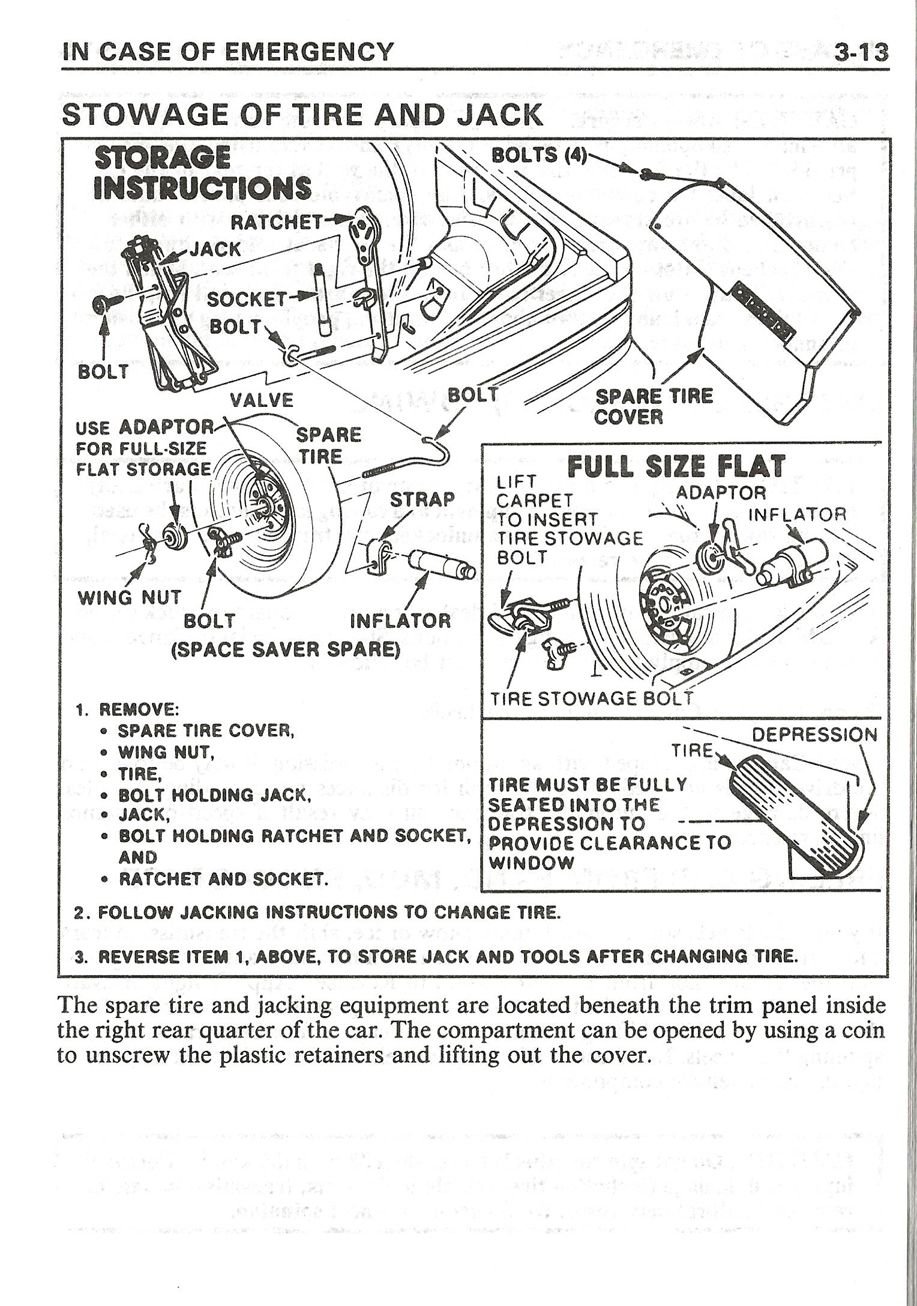

Hopefully this helps a bit. From the 1987 owner's manual. This one is for the scissor jack. Sorry the reference photo doesn't show much. If you have an aluminum space saver there's a plastic "pillow" that fits in the well under the spare.

I think early F-Bodies came with a flat ratchet jack.



I also keep a 1/2" breaker bar + 3/4" socket in the car. Much easier to remove the lug nuts than the pos that comes with the car.



Cool! Thanks this is a good start. I have a factory steel space saver spare, but a good start!



Forgot to mention that there's a plastic spacer that fits in the bottom of the well under the spare tire.

Search for P/N 14090308 to find images.
