I need a parts illustration that is under the door card of 82-89 Firebird. The parts book prices in various sites are crazy. I just need a picture of the parts that are used under the door card. Does anyone have a picture/illustration that they can post or email me through private message. Thanks

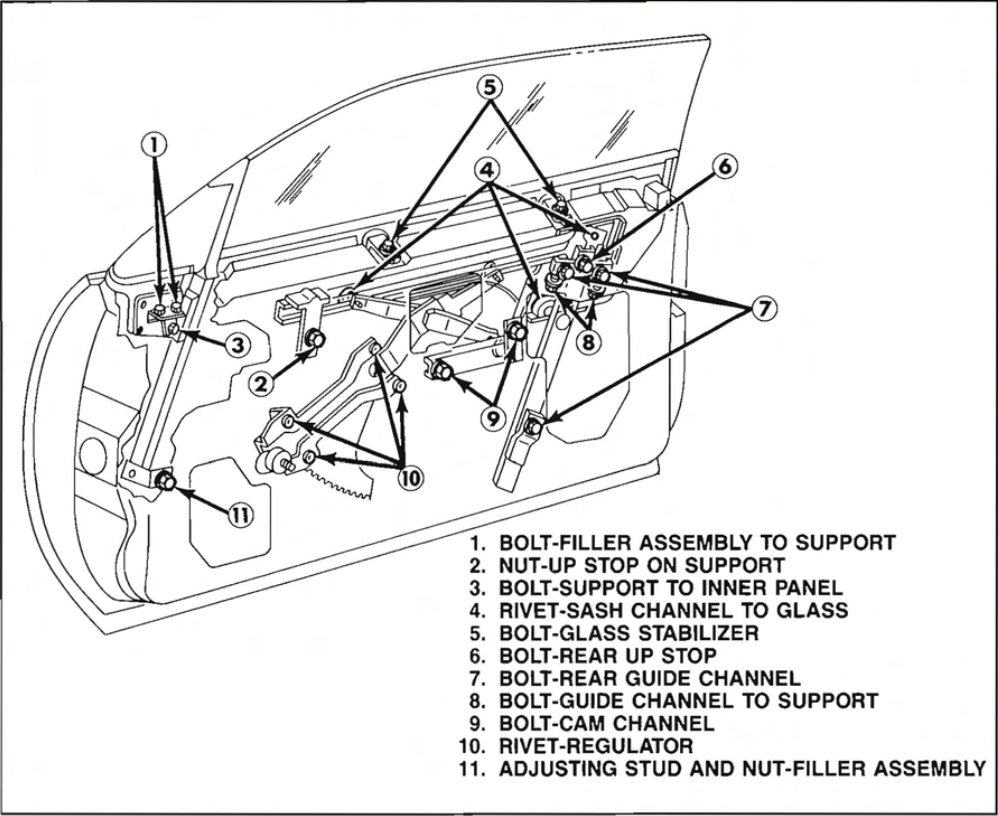

The back of the door panel?



This can be found in the t-top waterleak repair manual. More details to different areas can be found in the service manuals.
Both are floating around the internet, so you can go and find them.



Hit the swap meets for manuals, prices aren’t bad at all,
if you got the car, you need the books.
