Question about LS1 swapp and 3rd steering box????
#1
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2009
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Question about LS1 swapp and 3rd steering box????
Hello
I have a question, i am currently doing a ls1 swap into my 91 camaro but i am running into a issue where the steering box is hitting the engine what can i do to fix this and or what am i doing wrong?
Has anyone ran into this issue where the steering off the 3rd gen is hitting the engine???
Any input would help out alot.
-Mike
I have a question, i am currently doing a ls1 swap into my 91 camaro but i am running into a issue where the steering box is hitting the engine what can i do to fix this and or what am i doing wrong?
Has anyone ran into this issue where the steering off the 3rd gen is hitting the engine???
Any input would help out alot.
-Mike
Last edited by LBC_camaro91; 02-28-2010 at 10:16 PM.
#3
Banned
iTrader: (12)
Join Date: Jul 1999
Location: Bertram (outside Austin), TX
Posts: 12,212
Likes: 0
Received 10 Likes
on
10 Posts
Car: 87 GTA
Engine: L98
Transmission: 700R4
Axle/Gears: Dana M78 3.27 posi
Re: Question about LS1 swapp and 3rd steering box????
You referring to the power steering pump, hitting the K-member? I know that requires relocating the pump, notching the K-member, or going with a tubular K-member.
#4
Supreme Member
iTrader: (30)
Join Date: Sep 2005
Location: O'Fallon, MO
Posts: 6,258
Likes: 0
Received 4 Likes
on
4 Posts
Car: 1991 Z28 convertible built 3/1/1990
Engine: Cammed 6.0L LSX
Transmission: T56
Axle/Gears: custom Ford 8.8", 4.10 gears
Re: Question about LS1 swapp and 3rd steering box????
Since when? Are you talking about using Corvette or GTO accessories or something? I used fbody accessories and the power steering pump is well away from the k-member, it's up top on the motor.
#5
Banned
iTrader: (12)
Join Date: Jul 1999
Location: Bertram (outside Austin), TX
Posts: 12,212
Likes: 0
Received 10 Likes
on
10 Posts
Car: 87 GTA
Engine: L98
Transmission: 700R4
Axle/Gears: Dana M78 3.27 posi
Re: Question about LS1 swapp and 3rd steering box????
My bad.....Looks like it is a AC Compressor fitment problem. Pics at Post #11.
https://www.thirdgen.org/forums/ltx-...ompressor.html
https://www.thirdgen.org/forums/ltx-...ompressor.html
#6
Senior Member
iTrader: (1)
Join Date: Sep 2007
Location: Crestview, FL.
Posts: 533
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z, 1979 Malibu Classic
Engine: LSx 5.3
Transmission: MN12 6-speed, 4L60E
Axle/Gears: 4th gen 3.42
Re: Question about LS1 swapp and 3rd steering box????
Got any pics?
#7
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,896
Likes: 0
Received 82 Likes
on
53 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: Question about LS1 swapp and 3rd steering box????
Fbody accessories clear the steering. Only the AC hits the K-member, do a search on the M-member notch. Fbody stuff with a truck HD alt will hit the steering box
Truck accessories whack the hood
Ive never seen C5 accessories attempted, but Id assume theyd hit the drivers frame with everything shifted that direction
Truck accessories whack the hood
Ive never seen C5 accessories attempted, but Id assume theyd hit the drivers frame with everything shifted that direction
Trending Topics
#8
Supreme Member
iTrader: (4)
Re: Question about LS1 swapp and 3rd steering box????
Pocket's post sums it up nicely.
You shouldnt have ANY clearance issues with the stock steering box. The only thing you might hit on the box is if you use a 4th gen rad with 4th gen fans. You just have to trim the fan housing a tad to clear.
Otherwise, the steering box is free and clear.
Sounds to me like vette accessories are being used, but we need more details/pics.
J.
You shouldnt have ANY clearance issues with the stock steering box. The only thing you might hit on the box is if you use a 4th gen rad with 4th gen fans. You just have to trim the fan housing a tad to clear.
Otherwise, the steering box is free and clear.
Sounds to me like vette accessories are being used, but we need more details/pics.
J.
#9
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2009
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Question about LS1 swapp and 3rd steering box????
Thanks everyone for the help.
Well i think i figured out the issue. I guess when i was putting back the k-member the control arm off the steering box was hitting. I had gotten under the car after the engine was in placed and it seems to be fine now and will bolt up with enough space.
I dont know why for some reason it didnt look like it would fit.
I am going to try to post some pictures of the swap.
Also i had trouble fitting the stock exhaust manifold with the cats it hits.
Well i think i figured out the issue. I guess when i was putting back the k-member the control arm off the steering box was hitting. I had gotten under the car after the engine was in placed and it seems to be fine now and will bolt up with enough space.
I dont know why for some reason it didnt look like it would fit.
I am going to try to post some pictures of the swap.
Also i had trouble fitting the stock exhaust manifold with the cats it hits.
#11
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,896
Likes: 0
Received 82 Likes
on
53 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: Question about LS1 swapp and 3rd steering box????
Fbody LS1 manifolds will clear everything with tons of room left over. All other manifolds will have issues. It sounds like your engine mounts are wrong
For the intake, try intakehoses.com or fab your own with a few bends
For the intake, try intakehoses.com or fab your own with a few bends
#12
Supreme Member
iTrader: (4)
Re: Question about LS1 swapp and 3rd steering box????
I think he's trying to use stock manifolds and cats... The cats are hitting. Youre going to have to modify all that to make it work..4th gen exhaust does not fit like a glove from the headers back to the merge of the catback.
And what pocket said... Intakehoses.com is the best place for custom intake parts IMO.
It would really help us if you would give us a rundown of exactly what all you are trying to do. What motor, what car, what parts you're trying to use..etc.
J.
And what pocket said... Intakehoses.com is the best place for custom intake parts IMO.
It would really help us if you would give us a rundown of exactly what all you are trying to do. What motor, what car, what parts you're trying to use..etc.
J.
#13
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2009
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Question about LS1 swapp and 3rd steering box????
Thanks for the info.
Sorry for the missing info i was rushed when i had posted.
I had gotten a 1999 Z28 auto roller.
Using pretty much everything from the car. To put into my 91 camaro rs i am not running the AC on it. I am trying to do a smog legal swap. The stock manifold with the cats on it wont fit just like (ghettocruiser) said. I am planing on doing some custom exhaust work.
engine
tranny
cats
o2 sensors
rear end
drive shaft
fuel lines
gas tank
radiator
dual fans
harness
pcm/ecu
Parts i got for the swap
spohn motor mounts and tranny cross member
all phy mounts with stock clam shells
One of the issues i have right now is when using the stock manifolds on the driver side the o2 sensor its the k-member is there a way to fix that or do i have to get a smaller aftermarket one???
-Mike
Sorry for the missing info i was rushed when i had posted.
I had gotten a 1999 Z28 auto roller.
Using pretty much everything from the car. To put into my 91 camaro rs i am not running the AC on it. I am trying to do a smog legal swap. The stock manifold with the cats on it wont fit just like (ghettocruiser) said. I am planing on doing some custom exhaust work.
engine
tranny
cats
o2 sensors
rear end
drive shaft
fuel lines
gas tank
radiator
dual fans
harness
pcm/ecu
Parts i got for the swap
spohn motor mounts and tranny cross member
all phy mounts with stock clam shells
One of the issues i have right now is when using the stock manifolds on the driver side the o2 sensor its the k-member is there a way to fix that or do i have to get a smaller aftermarket one???
-Mike
#15
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,896
Likes: 0
Received 82 Likes
on
53 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: Question about LS1 swapp and 3rd steering box????
What holes did you use for the K-member mounts? Front set or rear?
#16
Supreme Member
iTrader: (24)
Join Date: Jun 2005
Location: NC
Posts: 7,896
Likes: 0
Received 82 Likes
on
53 Posts
Car: 92 Firebird
Engine: Supercharged 6.0
Transmission: T56
Axle/Gears: 8.8 3.73
Re: Question about LS1 swapp and 3rd steering box????
TB is 4", 4th gen Fbody MAF is 3.5" truck 5 wire MAF is 4"
4" tubing is hard to fit in the engine bay
4" tubing is hard to fit in the engine bay
#19
Senior Member
iTrader: (1)
Join Date: Sep 2007
Location: Crestview, FL.
Posts: 533
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z, 1979 Malibu Classic
Engine: LSx 5.3
Transmission: MN12 6-speed, 4L60E
Axle/Gears: 4th gen 3.42
Re: Question about LS1 swapp and 3rd steering box????
I bought a 4'' to a 3.5'' reducing elbow. Then I bought a short piece of 3'' PVC, PVC is measured inside diameter so the outside diameter of a 3'' PVC pipe equals 3.5'' and i used that for my straight piece and ran a 45* elbow from there to my MAF and my filter is after that. I'll post some pics when I get them.
Last edited by dynodanmanda79; 03-02-2010 at 10:14 PM.
#20
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2009
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Question about LS1 swapp and 3rd steering box????
I bought a 4'' to a 3.5'' reducing elbow. Then I bought a short piece of 3'' PVC, PVC is measured inside diameter so the outside diameter of a 3'' PVC pipe equals 3.5'' and i used that for my straight piece and ran a 45* elbow from there to my MAF and my filter is after that. I'll post some pics when I get them.
O ok nice sounds like a nice set up.
yeah if you can gets some pictures that could help out alot. Thanks man.
-Mike
#21
Senior Member
iTrader: (1)
Join Date: Sep 2007
Location: Crestview, FL.
Posts: 533
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z, 1979 Malibu Classic
Engine: LSx 5.3
Transmission: MN12 6-speed, 4L60E
Axle/Gears: 4th gen 3.42
Re: Question about LS1 swapp and 3rd steering box????
Hey no problem, I know it sounds kinda ghetto but I promise it looks good! I painted the PVC with a flat black spray paint for plastics.
#23
Supreme Member
iTrader: (4)
Re: Question about LS1 swapp and 3rd steering box????
Is the stock TB really 4"? I thought it was smaller. Im using a 4" for my Nick Williams set up. 4" tubing is big, but you can fit it in the engine bay pretty easy. I was running an elbow off the TB, to a SLP MAF, to an Amsoil filter. IATs were through the roof so I relocated the filter under the drivers side battery tray and added some more tubing/elbows. Doesnt look terrible and my IATs stay near ambient temp all day. The motor likes it
As for the O2 sensor... Do you have your trans mounted and everything bolted down? Or is the motor tilting backwards? I thought the O2s fit with the stock manifolds and k-member...

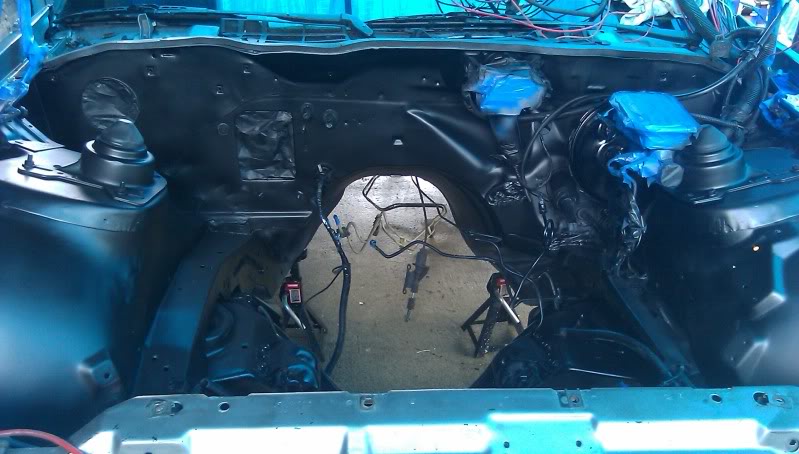

Youre engine bay looks good. I didnt see "dash" listed in your list of parts from the donor. If you need EVAP to function, you'll need the dash. Im not 100% on what you need to pass smog for your area. So Im not sure if you can make the thirdgen evap function instead...but in order to use the 4th gen EVAP, you'll need the PCM controling it...and the PCM cant control it without the fuel level input. And with the PCM using the fuel level, your gas gauge wont work.
You COULD make it all work, but just not run a fuel gauge. Or you could try to run a second, universal sender in the tank, but that kinda scares me. Its a give/take situation unless youre swapping the entire dash and cluster.
J.
As for the O2 sensor... Do you have your trans mounted and everything bolted down? Or is the motor tilting backwards? I thought the O2s fit with the stock manifolds and k-member...
Youre engine bay looks good. I didnt see "dash" listed in your list of parts from the donor. If you need EVAP to function, you'll need the dash. Im not 100% on what you need to pass smog for your area. So Im not sure if you can make the thirdgen evap function instead...but in order to use the 4th gen EVAP, you'll need the PCM controling it...and the PCM cant control it without the fuel level input. And with the PCM using the fuel level, your gas gauge wont work.
You COULD make it all work, but just not run a fuel gauge. Or you could try to run a second, universal sender in the tank, but that kinda scares me. Its a give/take situation unless youre swapping the entire dash and cluster.
J.
#24
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2009
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Question about LS1 swapp and 3rd steering box????
Is the stock TB really 4"? I thought it was smaller. Im using a 4" for my Nick Williams set up. 4" tubing is big, but you can fit it in the engine bay pretty easy. I was running an elbow off the TB, to a SLP MAF, to an Amsoil filter. IATs were through the roof so I relocated the filter under the drivers side battery tray and added some more tubing/elbows. Doesnt look terrible and my IATs stay near ambient temp all day. The motor likes it
As for the O2 sensor... Do you have your trans mounted and everything bolted down? Or is the motor tilting backwards? I thought the O2s fit with the stock manifolds and k-member...
Youre engine bay looks good. I didnt see "dash" listed in your list of parts from the donor. If you need EVAP to function, you'll need the dash. Im not 100% on what you need to pass smog for your area. So Im not sure if you can make the thirdgen evap function instead...but in order to use the 4th gen EVAP, you'll need the PCM controling it...and the PCM cant control it without the fuel level input. And with the PCM using the fuel level, your gas gauge wont work.
You COULD make it all work, but just not run a fuel gauge. Or you could try to run a second, universal sender in the tank, but that kinda scares me. Its a give/take situation unless youre swapping the entire dash and cluster.
J.
As for the O2 sensor... Do you have your trans mounted and everything bolted down? Or is the motor tilting backwards? I thought the O2s fit with the stock manifolds and k-member...
Youre engine bay looks good. I didnt see "dash" listed in your list of parts from the donor. If you need EVAP to function, you'll need the dash. Im not 100% on what you need to pass smog for your area. So Im not sure if you can make the thirdgen evap function instead...but in order to use the 4th gen EVAP, you'll need the PCM controling it...and the PCM cant control it without the fuel level input. And with the PCM using the fuel level, your gas gauge wont work.
You COULD make it all work, but just not run a fuel gauge. Or you could try to run a second, universal sender in the tank, but that kinda scares me. Its a give/take situation unless youre swapping the entire dash and cluster.
J.
I am going to try to get more pictures posted of the swap.
Yeah the motor and tranny are bolted down i got to double check to see if it can clear but it looks pretty tight on the driver side.
Well i didnt want to use the 4th gen cluster i am not a big fan of the look. I was told that you can use a after market fuel gauge which will have the correct oms for the pcm. I am still looking this issue more but i been talking to some people about the legal swap seeing what i need to do.
For my exhaust i have to get some custom piping down just like pocket did on his swap. But i plan on doing long tube headers after the whole legal swap is done. Well a little more then just headers
#25
Supreme Member
iTrader: (4)
Re: Question about LS1 swapp and 3rd steering box????
Well i didnt want to use the 4th gen cluster i am not a big fan of the look. I was told that you can use a after market fuel gauge which will have the correct oms for the pcm. I am still looking this issue more but i been talking to some people about the legal swap seeing what i need to do.
You can do some rigging to the fuel sender to make it work with a standard 0-90ohm gauge, but then you are back to not being able to make EVAP work. I might be one of the few that actually tried to make EVAP function...but no matter what I tried, it all boiled down to either having a fuel gauge, or having EVAP. I chose fuel gauge and ditched the EVAP stuff all together. Just search and look for some of my posts on it...its detailed in a handful of threads.
As far as I know, unless someone figured something out, there is just no way to have EVAP and a fuel gauge unless you use the LS cluster. But do your research and make sure you need to have it.. If its just to pass a visual and an OBDii test, then you might be able to hook things up, and just program out the codes from the PCM. I know next to nothing about getting a car smogged though, so liek I said, you just gotta poke around some and see what you can do.
Otherwise it sounds like you have a pretty good plan and have a handle on it! Should turn out nice.
J.
#26
Banned
iTrader: (12)
Join Date: Jul 1999
Location: Bertram (outside Austin), TX
Posts: 12,212
Likes: 0
Received 10 Likes
on
10 Posts
Car: 87 GTA
Engine: L98
Transmission: 700R4
Axle/Gears: Dana M78 3.27 posi
Re: Question about LS1 swapp and 3rd steering box????
Could a LS1 gauge motor & needle, be used behind a stock or new screen printed "stock" gauge face? So that stock appearance was maintained?
#27
Supreme Member
iTrader: (4)
Re: Question about LS1 swapp and 3rd steering box????
Hmm...interesting idea. Im not sure if the movement in the LS1 cluster would fit...but that might work.
Dont forget that info to the LS cluster's fuel level gauge is serial data. So you'd need to figure out that whole mess. Figure out connections from the gauge to the PCM. Im not sure if that goes through the BCM or not, but it might. Ide have to check my schematics, which are covered in dust at my garage, which is 45 minutes away haha.
One issue I see, at least for the firebird guys, is the movement is wrong. Im not sure on the camaro's though, I cant find a good picture of the cluster. But if E is on the left, and F is on the right, and the gauge needle is BELOW the print, it might work.
Just a lot of "ifs". But that has potential. Good thinking!
J.
Dont forget that info to the LS cluster's fuel level gauge is serial data. So you'd need to figure out that whole mess. Figure out connections from the gauge to the PCM. Im not sure if that goes through the BCM or not, but it might. Ide have to check my schematics, which are covered in dust at my garage, which is 45 minutes away haha.
One issue I see, at least for the firebird guys, is the movement is wrong. Im not sure on the camaro's though, I cant find a good picture of the cluster. But if E is on the left, and F is on the right, and the gauge needle is BELOW the print, it might work.
Just a lot of "ifs". But that has potential. Good thinking!
J.
#29
Banned
iTrader: (12)
Join Date: Jul 1999
Location: Bertram (outside Austin), TX
Posts: 12,212
Likes: 0
Received 10 Likes
on
10 Posts
Car: 87 GTA
Engine: L98
Transmission: 700R4
Axle/Gears: Dana M78 3.27 posi
Re: Question about LS1 swapp and 3rd steering box????
......One issue I see, at least for the firebird guys, is the movement is wrong. Im not sure on the camaro's though, I cant find a good picture of the cluster. But if E is on the left, and F is on the right, and the gauge needle is BELOW the print, it might work.
Just a lot of "ifs". But that has potential. Good thinking!
J.
Just a lot of "ifs". But that has potential. Good thinking!
J.
Thanks. I'm good at ideas, just bad on execution of those ideas.
Needles just swing in half a circle, basically. Couldn't the needle just be repositioned to swing on the opposite side of the "circle"? To line up with the gauge marks? Make sense?
Or since your adapting the needles motor to a different gauge face anyways.....Couldn't you just flip the motor upside down, and mount it that way? Just mount it so that it swings in the correct way.
Last edited by Stephen; 03-03-2010 at 12:30 PM.
#30
Supreme Member
iTrader: (4)
Re: Question about LS1 swapp and 3rd steering box????
On the firebirds, the needle is mounted above the gauge print. It swings counter clockwise...E being on the left, F being on the right.
An LS1 gauge swings clockwise, with the needle mounted below the print and E being on the left, F being on the right.
So there's no dice there.
On the one camaro cluster I found a pic for, it looks like the direction is right. So you'd just have to fiddle with the mounting and all to make it fit. Just not sure if thats going to be possible. Maybe someone with the two dashes can take em apart and compare. Actually, I know I have a stock fuel level gauge completely out of the cluster housing for a 3rd gen firebird...but thats not gonna help the OP. BUT...if I get bored this spring maybe Ill look into making that work. Just for something to do/help haha.
J.
An LS1 gauge swings clockwise, with the needle mounted below the print and E being on the left, F being on the right.
So there's no dice there.
On the one camaro cluster I found a pic for, it looks like the direction is right. So you'd just have to fiddle with the mounting and all to make it fit. Just not sure if thats going to be possible. Maybe someone with the two dashes can take em apart and compare. Actually, I know I have a stock fuel level gauge completely out of the cluster housing for a 3rd gen firebird...but thats not gonna help the OP. BUT...if I get bored this spring maybe Ill look into making that work. Just for something to do/help haha.
J.
#31
Senior Member
iTrader: (1)
Join Date: Sep 2007
Location: Crestview, FL.
Posts: 533
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z, 1979 Malibu Classic
Engine: LSx 5.3
Transmission: MN12 6-speed, 4L60E
Axle/Gears: 4th gen 3.42
Re: Question about LS1 swapp and 3rd steering box????
Here's the pics of my intake with PVC, you really can't tell after i've painted it flat black.
#32
Member
Thread Starter
iTrader: (1)
Join Date: Nov 2009
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Re: Question about LS1 swapp and 3rd steering box????
Look really nice man.
You pimped it out
What did you use to hold on the sensor on the PVC?
Are you still using your stock over flow tank? or did you go a different rout?
Also what did you do to get your gauges to work? (temp, oil pressure, fuel level, etc? i have read some other post on how to get them to work but i just like to know which way other people though of.)
Well here is a little update on my build.
Engine and tranny is in, drive shaft, rear end, fuel tank, fuel lines, radiator, dual fans, PCM, ECU. Most of all the wiring is done. Engine starts and runs my friend got it do start with out tuning out the VATS . All that's left is getting all the gauges to work, do exhaust work, intake and dressing up the wires and bay.
Can wait to drive it
You pimped it out
What did you use to hold on the sensor on the PVC?
Are you still using your stock over flow tank? or did you go a different rout?
Also what did you do to get your gauges to work? (temp, oil pressure, fuel level, etc? i have read some other post on how to get them to work but i just like to know which way other people though of.)
Well here is a little update on my build.
Engine and tranny is in, drive shaft, rear end, fuel tank, fuel lines, radiator, dual fans, PCM, ECU. Most of all the wiring is done. Engine starts and runs my friend got it do start with out tuning out the VATS . All that's left is getting all the gauges to work, do exhaust work, intake and dressing up the wires and bay.
Can wait to drive it
#33
Senior Member
iTrader: (1)
Join Date: Sep 2007
Location: Crestview, FL.
Posts: 533
Likes: 0
Received 0 Likes
on
0 Posts
Car: 1989 IROC-Z, 1979 Malibu Classic
Engine: LSx 5.3
Transmission: MN12 6-speed, 4L60E
Axle/Gears: 4th gen 3.42
Re: Question about LS1 swapp and 3rd steering box????
I just made the hole a little small and shoved the sensor and grommet in the hole and it holds itself in there pretty well. And the overflow tank is the stock one, and i'm also running the LT1 radiator. As for the temp gauge I will get some pics of the autometer coolant temp sender and adapter I used, You can also use a coolant temperature sensor pigtail from a 98 camaro i think? it has three wires (2 for the PCM and the third for the gauge). Oil pressure gauge I hooked straight to the LS1 sender, the gauge in the car will be pegged out at 60 but its no big deal to me. Fuel level gauge, I'm using the stock tank so nothing was messed with there
Thread
Thread Starter
Forum
Replies
Last Post
backtothe80s
Suspension and Chassis
33
09-05-2015 12:39 AM
