Map Sensor review
Map Sensor review
Since I am going from Carb to Speed Density a whole new technology I have to become familiar with. One of the key sensors in a traditional speed density setup is Manifold Absolute Pressure (MAP) sensor. MAP sensor technical information has been hard to come by. For example, what voltage one should expect at the terminal B depending on manifold vacuum.
In my conversion I have no idea what cam is used with my 350. It appears to be a very mild RV grind. So, before putting the complete TBI system on top of this black box it would be nice to know what to expect.
I pulled couple of typical 1-Bar MAP sensors from J-Yards. These are GM 460 series MAP sensors with green inserts. I have tested both of them with my vacuum pump by varying inlet vacuum levels while recoding voltage output. Supply voltage was set at +5.0 Vdc as required by GM ECMs
Sensor #1 460-9004
Measured Data
In HG Vac Vmap <9004> kPa
0 ............ 4.83 ........... 100.0
6 ............ 3.83 ............ 79.7
7 ............ 3.61 ............ 76.3
10 .......... 3.06 ............ 66.1
12 ........... 2.719 .......... 59.4
13.5 .........2.42 ........... 54.3
19 ............1.31 ............ 35.7
23 ............0.65 ............ 22.1
25 ............0.268 ...........15.3
26 ............0.074 ...........12.0
Sensor #2 460-6294
Measured Data
In HG Vac Vmap <6294> kPa
0 ............ 4.908 ............100.0
2 ............ 4.56 ............ 93.2
5 ............ 4.09 ............ 83.1
7 ............ 3.698 ............76.3
9.5 ......... 3.25 ............ 67.8
13.5 ....... 2.46 ............ 54.3
16.5 ....... 1.89 ............ 44.1
18.5 ....... 1.53 ............ 37.4
20.5 ....... 1.08 ............ 30.6
22.5 ....... 0.696 ........... 23.8
25 .......... 0.30 ............ 15.3
Putting above raw data into a spreadsheet and surprisingly the two sensors correlate very nicely! MAP output voltage is a linear function (y=mx + b) of the vacuum at the input port:
Sensor #1 <460-9004>
Vmap= 0.054669721*Pressure (kpa) - 0.570241761
Sensor #2 <460-6294>
Vmap= 0.055432958*Pressure (kpa) - 0.566709374

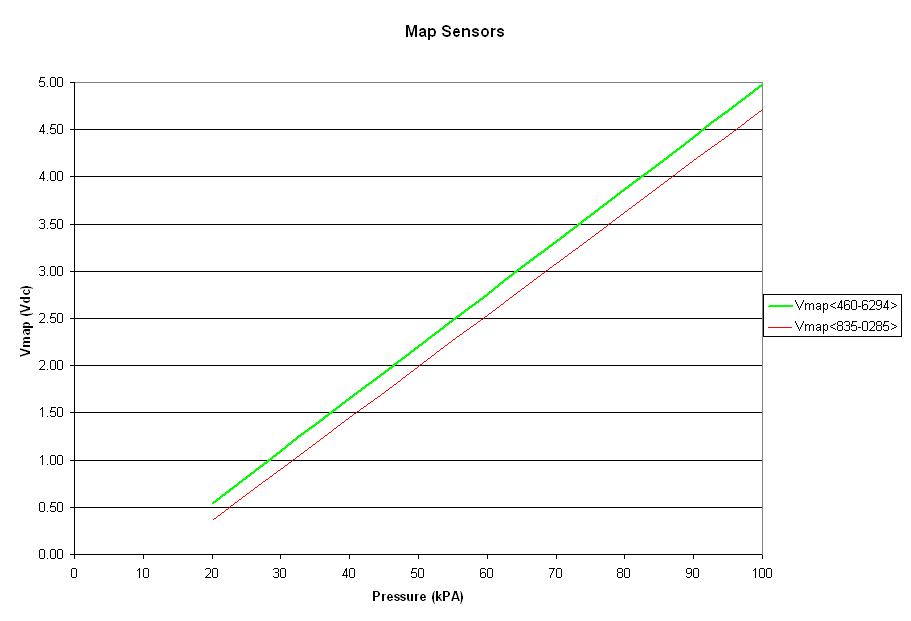

Which can be plotted:
//RF
Since I am going from Carb to Speed Density a whole new technology I have to become familiar with. One of the key sensors in a traditional speed density setup is Manifold Absolute Pressure (MAP) sensor. MAP sensor technical information has been hard to come by. For example, what voltage one should expect at the terminal B depending on manifold vacuum.
In my conversion I have no idea what cam is used with my 350. It appears to be a very mild RV grind. So, before putting the complete TBI system on top of this black box it would be nice to know what to expect.
I pulled couple of typical 1-Bar MAP sensors from J-Yards. These are GM 460 series MAP sensors with green inserts. I have tested both of them with my vacuum pump by varying inlet vacuum levels while recoding voltage output. Supply voltage was set at +5.0 Vdc as required by GM ECMs
Sensor #1 460-9004
Measured Data
In HG Vac Vmap <9004> kPa
0 ............ 4.83 ........... 100.0
6 ............ 3.83 ............ 79.7
7 ............ 3.61 ............ 76.3
10 .......... 3.06 ............ 66.1
12 ........... 2.719 .......... 59.4
13.5 .........2.42 ........... 54.3
19 ............1.31 ............ 35.7
23 ............0.65 ............ 22.1
25 ............0.268 ...........15.3
26 ............0.074 ...........12.0
Sensor #2 460-6294
Measured Data
In HG Vac Vmap <6294> kPa
0 ............ 4.908 ............100.0
2 ............ 4.56 ............ 93.2
5 ............ 4.09 ............ 83.1
7 ............ 3.698 ............76.3
9.5 ......... 3.25 ............ 67.8
13.5 ....... 2.46 ............ 54.3
16.5 ....... 1.89 ............ 44.1
18.5 ....... 1.53 ............ 37.4
20.5 ....... 1.08 ............ 30.6
22.5 ....... 0.696 ........... 23.8
25 .......... 0.30 ............ 15.3
Putting above raw data into a spreadsheet and surprisingly the two sensors correlate very nicely! MAP output voltage is a linear function (y=mx + b) of the vacuum at the input port:
Sensor #1 <460-9004>
Vmap= 0.054669721*Pressure (kpa) - 0.570241761
Sensor #2 <460-6294>
Vmap= 0.055432958*Pressure (kpa) - 0.566709374
Which can be plotted:
//RF
#2
Supreme Member
Thread Starter
Join Date: Jan 2007
Location: OC CA
Posts: 1,873
Likes: 0
Received 0 Likes
on
0 Posts
Car: 75 Beast
Engine: 383 +EBL Flash
Transmission: 700R4
Axle/Gears: 4.11 with 33"
Re: Map Sensor review (Green + Red)
Sensor #2 <460-6294> GREEN Insert, OEM# 16017460
Vmap= 0.055432958*Pressure (kPA) - 0.566709374
Sensor #3 <835-0285> RED Insert OEM# 16006835
Vmap= 0.054397052*Pressure (kPA) - 0.727086143
835 sensor reads approximately 200 to 250 mV lower than 460 series sensor for the same pressure level. Lower output voltage maybe beneficial for engine combo with low idle vacuum levels since ECM MAP circuit uses A/D converter near its maximum input voltage range 5.0 Vdc, at idle. Even though, custom MAP tables should be generated to keep all MALF flags in check within ECM logic if MAP sensor swap is to be seriously considered.
RF
Vmap= 0.055432958*Pressure (kPA) - 0.566709374
Sensor #3 <835-0285> RED Insert OEM# 16006835
Vmap= 0.054397052*Pressure (kPA) - 0.727086143
835 sensor reads approximately 200 to 250 mV lower than 460 series sensor for the same pressure level. Lower output voltage maybe beneficial for engine combo with low idle vacuum levels since ECM MAP circuit uses A/D converter near its maximum input voltage range 5.0 Vdc, at idle. Even though, custom MAP tables should be generated to keep all MALF flags in check within ECM logic if MAP sensor swap is to be seriously considered.
RF
