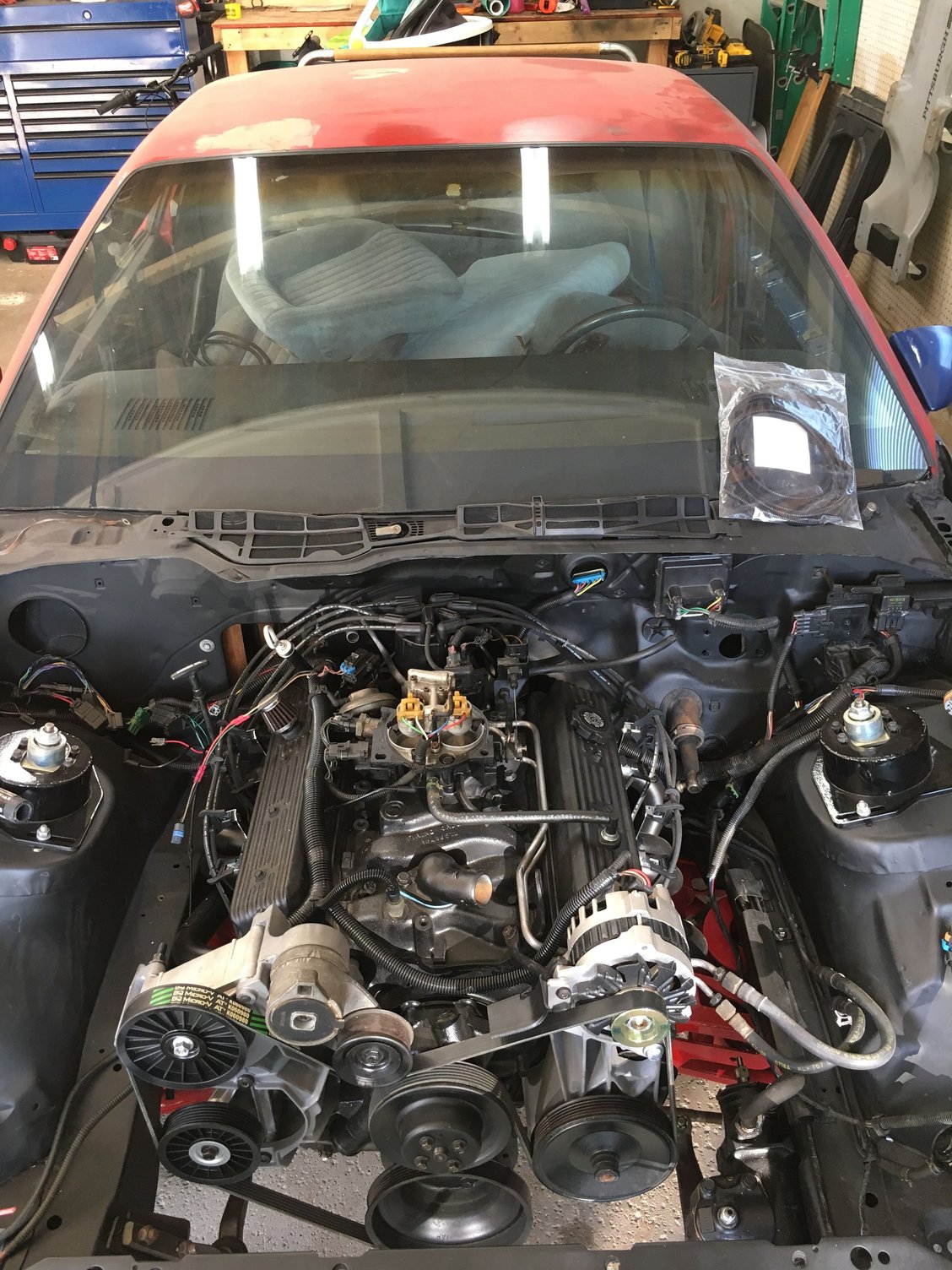

I have an 89 Firebird tbi, I was wondering if anyone had some stock engine bay shots that could help me get this thing back together. Electrical connectors, Egr hoses, etc... this is where I’m at right now.



It's all in the "official GM Service Manual you should buy.



Missing the MAP sensor. See the green 3-wire connector over by the missing HVAC system. That is for the MAP, which gets mounted on the upper lip of the firewall. With the pressure hose running to the back center port on the TBI unit.

RBob.







91 RS TBI with smog equipment removed



Where is your AIR diverter valve? Did you remove your smog equipment? That is a super clean engine bay. Nice!
