what does his mean?

For anybody that understands this stuff....

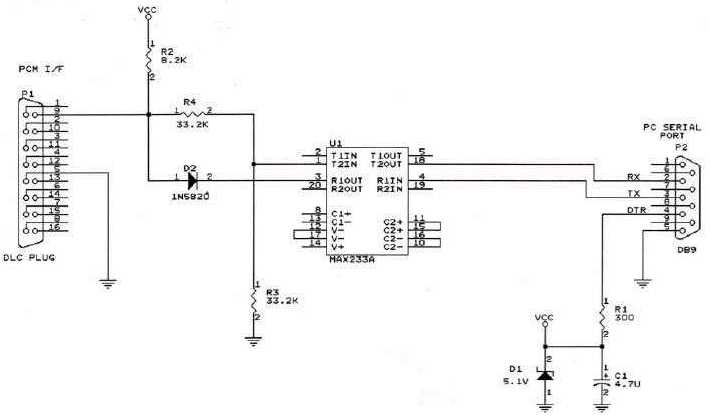

Diode 2 (D2) what is it allowing power into the Max233 IC???
also, what kind of diode is D1????

Old

Apr 30, 2002 | 08:09 PM

#2

Supreme Member

Joined: Jul 1999

Posts: 5,183

Likes: 42

From: Oakdale, Ca

Car: 89 IrocZ

Engine: L98-ish

Transmission: 700R4

D1 is a Zener Diode, requires a breakover voltage to pass. Assume it's the 5.1v listed on the diagram.

I don't really understand your question regarding D2?

Last edited by 8Mike9; Apr 30, 2002 at 08:14 PM.

Old

Apr 30, 2002 | 09:07 PM

#3

Thread Starter

Supreme Member

Joined: Jun 2001

Posts: 3,175

Likes: 1

From: Bedford, Tx

Quote:

Originally posted by 8Mike9
D1 is a Zener Diode, requires a breakover voltage to pass. Assume it's the 5.1v listed on the diagram.

I don't really understand your question regarding D2?

well, #3 on the max233 IC is an OUT.. but yet the diode (D2) allows voltage to go IN??

Old

May 1, 2002 | 09:22 AM

#4

Supreme Member

Joined: Jul 1999

Posts: 5,183

Likes: 42

From: Oakdale, Ca

Car: 89 IrocZ

Engine: L98-ish

Transmission: 700R4

Ya, I see that now. I'm not familar with the max233 chip, could be they have D2 listed incorrectly? Not sure...look up the number on the D2 diode, see what type it is. May yield a clue as to how the circuit works.
