Help removing 87 IROC instrument panel.
I need to remove the instrument panel in my 87 IROC to reach some damaged wiring. I've removed the face plate and clear panel over the gages, and removed all gages and tachometer. I need to remove the white plastic tub that the lights and gages are mounted in but I don't see any bolts or clips holding the tub in place. I've tried to look up behind it but it's got too much up behind to see anything. So I can't tell if there's any mount points on the backside. Can anyone out there give me some guidance on how to get this thing out?
#2
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,671 Likes
on
1,268 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Help removing 87 IROC instrument panel.
SUPER easy...
No hardware in the back. There's about 4 or maybe 6 nuts, those sheet-metal kind of "pal" nuts, down in what look like bulb cavities, in the corners. About 10 or 11mm if memory serves. After that, take the speedo cable loose from the cruise module so it can slide out a bit with the dash; then reach in behind there and push in the clip that holds the cable into the cluster.
No need to remove any of the individual gauges, they all come out as part of the cluster.
No hardware in the back. There's about 4 or maybe 6 nuts, those sheet-metal kind of "pal" nuts, down in what look like bulb cavities, in the corners. About 10 or 11mm if memory serves. After that, take the speedo cable loose from the cruise module so it can slide out a bit with the dash; then reach in behind there and push in the clip that holds the cable into the cluster.
No need to remove any of the individual gauges, they all come out as part of the cluster.
#3
Junior Member
Thread Starter
Re: Help removing 87 IROC instrument panel.

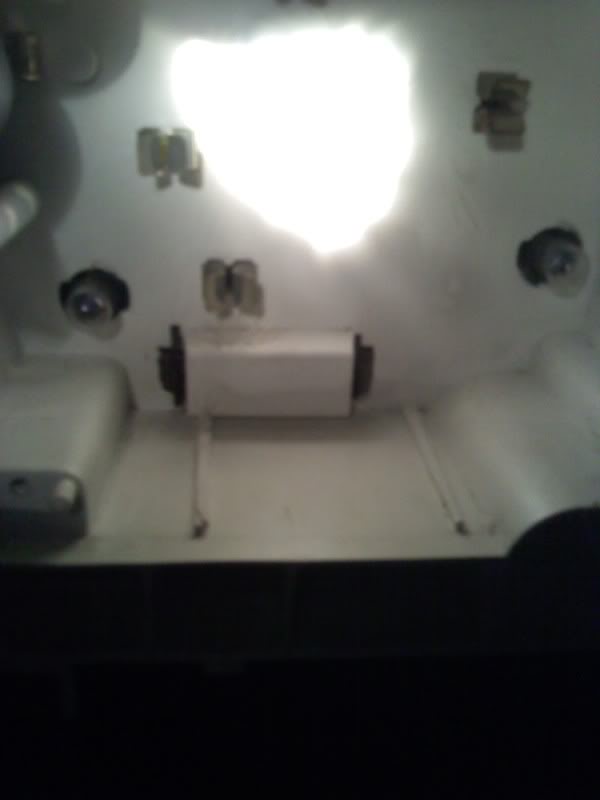

I'm thinking that my dash doesn't attach that same way. I can't find any attaching hardware anywhere on the panel. But it is mounted solidly on the bottom. I can see what look like the catches to electrical connectors
from the back of the panel. They are the rectangular items in the photo below. Could they be mounting clips?

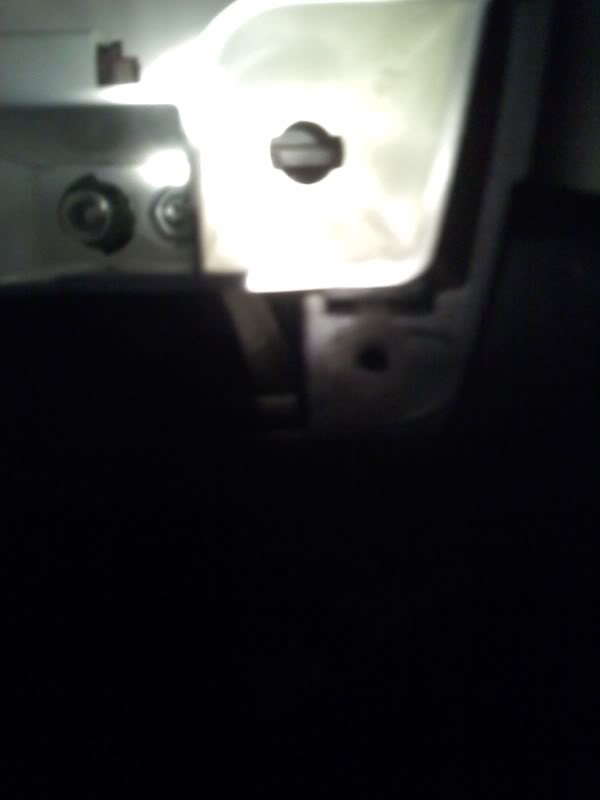

I've checked all the recesses and there are four in the corners that are empty. Here's what they look like.
This things got me stopped cold.
from the back of the panel. They are the rectangular items in the photo below. Could they be mounting clips?
I've checked all the recesses and there are four in the corners that are empty. Here's what they look like.
This things got me stopped cold.
#4
Member
Join Date: Jul 2010
Location: pembroke ma
Posts: 314
Likes: 0
Received 1 Like
on
1 Post
Car: 1987 Chevy Camaro Iroc-Z
Engine: just an empty hole. LS1 coming soon
Transmission: nothing there either. T-56 soon!
Axle/Gears: soon Moser 9 bolt
Re: Help removing 87 IROC instrument panel.
Like sofaking said, theres only 2-4 nuts holding the cluster on from the back. then you just unclip the wiring going in and the whole cluster pops out. Took me awhile to figure it out.
#5
Junior Member
Join Date: Sep 2010
Location: Massachusetts
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Car: 87 LT Convertible
Engine: 357 4bbl
Transmission: 700R4
Axle/Gears: 2.73
Re: Help removing 87 IROC instrument panel.
I'm thinking that my dash doesn't attach that same way. I can't find any attaching hardware anywhere on the panel. But it is mounted solidly on the bottom. I can see what look like the catches to electrical connectors
from the back of the panel. They are the rectangular items in the photo below. Could they be mounting clips?
I've checked all the recesses and there are four in the corners that are empty. Here's what they look like.
This things got me stopped cold.
from the back of the panel. They are the rectangular items in the photo below. Could they be mounting clips?
I've checked all the recesses and there are four in the corners that are empty. Here's what they look like.
This things got me stopped cold.
#6
Member
Join Date: Jul 2010
Location: pembroke ma
Posts: 314
Likes: 0
Received 1 Like
on
1 Post
Car: 1987 Chevy Camaro Iroc-Z
Engine: just an empty hole. LS1 coming soon
Transmission: nothing there either. T-56 soon!
Axle/Gears: soon Moser 9 bolt
Re: Help removing 87 IROC instrument panel.
^^^
I forgot about that. Lowering the steering column helps out a lot.
I forgot about that. Lowering the steering column helps out a lot.
#7
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,671 Likes
on
1,268 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Help removing 87 IROC instrument panel.
Your dash attaches the same way. Blee dat.... it's mass production.
You can see one of the nuts in one of your pics.
The one that says stuff about "checked all the recesses"... look right straight down below the word "recesses", about 1/3 of the height of the pic, and observe the hexagonal object with another shaft-like object protruding through it. That is a "nut". Rotate it counter-clockwise until it releases. Find all such similar objects and do the same thing to them.
Piece o cake.
You can see one of the nuts in one of your pics.
The one that says stuff about "checked all the recesses"... look right straight down below the word "recesses", about 1/3 of the height of the pic, and observe the hexagonal object with another shaft-like object protruding through it. That is a "nut". Rotate it counter-clockwise until it releases. Find all such similar objects and do the same thing to them.
Piece o cake.
Trending Topics
#8
Junior Member
Thread Starter
Re: Help removing 87 IROC instrument panel.
Your dash attaches the same way. Blee dat.... it's mass production.
You can see one of the nuts in one of your pics.
The one that says stuff about "checked all the recesses"... look right straight down below the word "recesses", about 1/3 of the height of the pic, and observe the hexagonal object with another shaft-like object protruding through it. That is a "nut". Rotate it counter-clockwise until it releases. Find all such similar objects and do the same thing to them.
Piece o cake.
You can see one of the nuts in one of your pics.
The one that says stuff about "checked all the recesses"... look right straight down below the word "recesses", about 1/3 of the height of the pic, and observe the hexagonal object with another shaft-like object protruding through it. That is a "nut". Rotate it counter-clockwise until it releases. Find all such similar objects and do the same thing to them.
Piece o cake.
#10
Supreme Member
iTrader: (1)
Join Date: Sep 2005
Posts: 26,050
Received 1,671 Likes
on
1,268 Posts
Car: Yes
Engine: Usually
Transmission: Sometimes
Axle/Gears: Behind me somewhere
Re: Help removing 87 IROC instrument panel.
Don't worry, it's amazing how easy it is to overlook the obvious sometimes.
Glad you got it handled!
