Need help
Need help
Joined: Jul 2000
Posts: 6,521
Likes: 91
From: Aridzona
Car: `86 SS / `87 SS
Engine: L69 w/ TPI on top / 305 4bbl
Transmission: `95 T56 \ `88 200-4R
Re: Need help

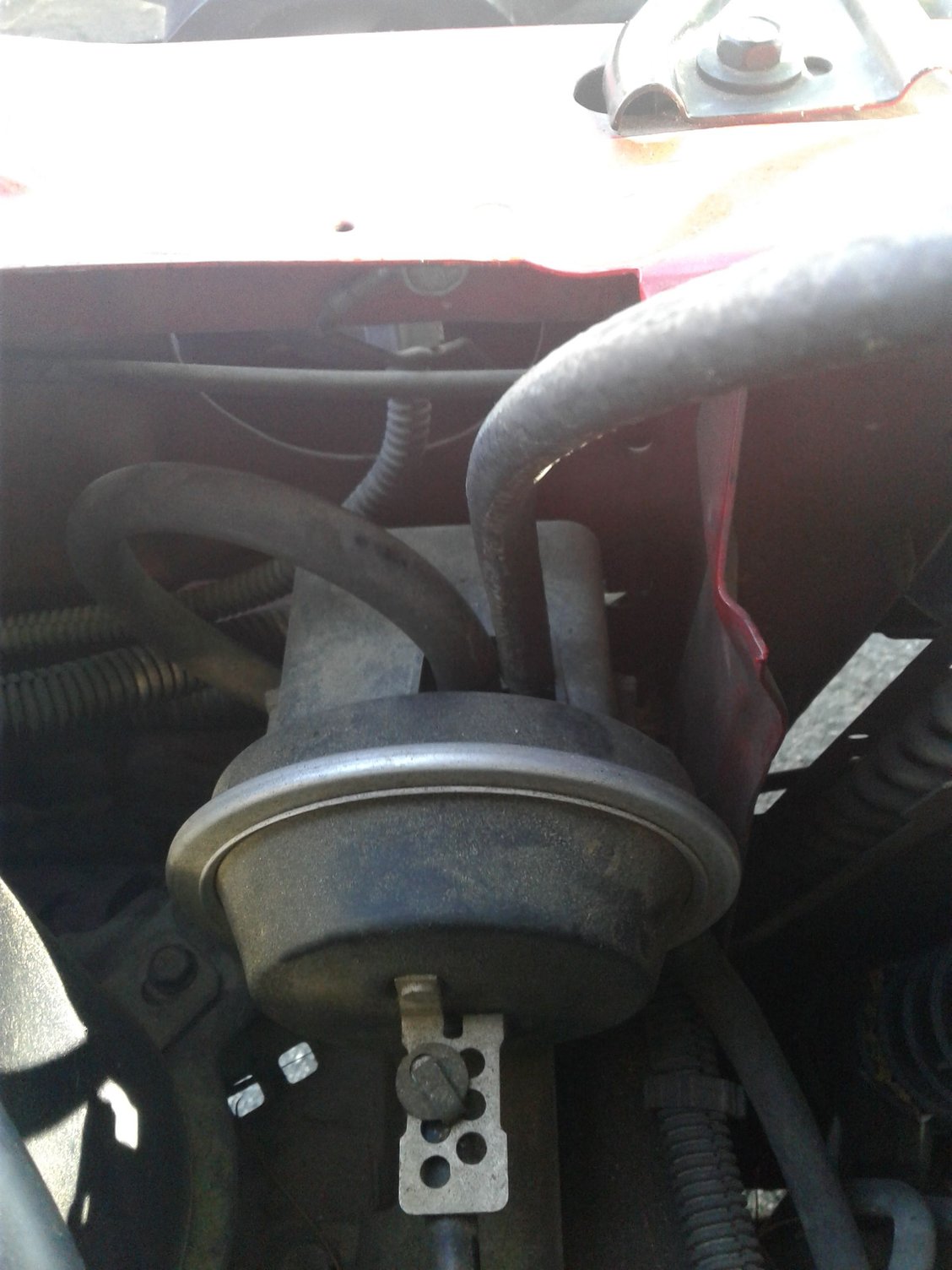

Cruise control diaphragm. When it is actuated, vacuum pulls in, and the cable pulls on the throttle body.
Supreme Member




Joined: Jan 2000
Posts: 3,178
Likes: 48
From: Tracy, CA
Car: '87 IROC
Engine: LB9
Transmission: TH700R4
Re: Need help
See attachment for hose and cable routing.
If you look at Item #6 (the square with the "6" in it); that cap attaches to a "tee". In actuality, that "tee" is a one way valve. This is super important to have. If you don't have that valve, the cruise control will not hold the throttle open when the engine is under load (like when climbing a grade).
The valve should hold vacuum on the cruise control diaphragm side, and be "open" on the engine side.
If you look at Item #6 (the square with the "6" in it); that cap attaches to a "tee". In actuality, that "tee" is a one way valve. This is super important to have. If you don't have that valve, the cruise control will not hold the throttle open when the engine is under load (like when climbing a grade).
The valve should hold vacuum on the cruise control diaphragm side, and be "open" on the engine side.
